"Complete" list of sweep tubes

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.
Hi all -

I am endeavoring to put together a list of sweep tubes. I have about 80, not counting different heater voltage variations. You can download the list here:

http://www.pmillett.com/file_downloads/sweep_tubes.xlsx

The list captures basic data like plate dissipation, G2 max voltage, heater specs, and base.

If you have any input, missing types, or corrections, please let me know!

Pete


(Hard to read, but I pasted the data below so you can get the idea)

Code:
Type	Plate dissipation	G2 max V	Heater V	Heater A	Alt Heaters	Socket	Base	Top cap?		Notes


8950	33	250	13	1.1	-	Compactron		Yes		RF tube
12JF5	17.5	220	12.6	0.6	-	Compactron	12JH	Yes
12JV6	18	220	21	0.45	33JV6	Compactron	12FK	No
16KA6	18	220	15.8	0.6	21KA6	Compactron	12GH	Yes
21KQ6		275	21	0.45	29KQ6	Magnoval	9RJ	Yes		Same as PL521
25EC6	10	175	25	0.6	-	Octal	5BT	Yes
25HX5	14	300	25	0.3	-	Magnoval	9SB	No
6AL6	18.5	300	6.3	0.9	-	Octal	6AM	Yes		6L6 with top cap
6AU5	10	200	6.3	1.25	12AU5	Octal	6CK	No
6AV5	11	175	6.3	1.2	12AV5 17AV5 25AV5	Octal	6CK	No
6BD5	10	325	6.3	0.9		Octal	6CK	No
6BG6	20	350	6.3	0.9	19BG6	Octal	4CG	Yes
6BQ6	11	175	6.3	1.2	12BQ6 17BQ6 25BQ6	Octal	6AM	Yes
6CB5	23	200	6.3	2.5		Octal	8GD	Yes
6CD6	15	175	6.3	2.5	25CD6 35CD6	Octal	5BT	Yes
6CL5	25	200	6.3	2.5	-	Octal	8GD	Yes
6CM5	10	250	6.3	1.25	13CM5	Octal	8GT	Yes		Same as EL36
6CU6	11	200	6.3	1.2	12CU6 25CU6	Octal	6AM	Yes
6DN6	15	175	6.3	2.5	25DN6	Octal	5BT	Yes
6DQ5	24	190	6.3	2.5	-	Octal	8JC	Yes
6DQ6	15	175	6.3	1.2	12DQ6 17DQ6 25DQ6	Octal	6AM	Yes
6EX6	22	195	6.3	2.25	21EX6	Octal	5BT	Yes
6FH6	17	220	6.3	1.2	-	Octal	6AM	Yes
6FN5	17.6	275	6.3	1.75	35FN5	Octal		Yes		Same as EL300
6FW5	17.5	220	6.3	1.2		Octal	6CK	No
6GB5	17	275	6.3	1.38	13GB5 18GB5 27GB5 28GB5	Magnoval	9NH	Yes		Same as EL500
6GC6	17.5	220	6.3	1.2	12GC6	Octal	8JX	Yes
6GE5	17.5	220	6.3	1.2	12GE5 17GE5	Compactron	12BJ	No
6GF5	9	220	6.3	1.2	-	Compactron	12BJ	No
6GJ5	17.5	220	6.3	1.2	-	Novar	E9-88	Yes
6GV5	18	220	6.3	1.2	-	Compactron	12DR	Yes
6GW6	17.5	220	6.3	1.2	17GW6	Octal	6AM	Yes
6GY5	18	220	6.3	1.5	-	Compactron	12DR	No
6HB5	18	220	6.3	1.5	21HB5	Compactron	12BJ	No
6HD5	24	220	6.3	2.25	21HD5 28HD5	Compactron	12ES	No
6HE5	12	300	6.3	0.8	-	Compactron	12EY	No
6HF5	28	190	6.3	2.25	-	Compactron	12FB	Yes
6HJ5	24	220	6.3	2.25	21HJ5 30HJ5	Compactron	12FL	No
6JA5	19	300	6.3	1	-	Compactron	12EV	No
6JB5	15	300	6.3	0.8	-	Compactron	12EY	No
6JB6	17.5	220	6.3	1.2	12JB6 17JB6	Novar	9QL	Yes
6JC5	19	300	6.3	0.8	-	Compactron	12EV	No
6JE6	30	190	6.3	2.5	24JE6	Novar	9QL	Yes
6JF6	17	220	6.3	1.6	17JF6 22JF6	Novar	9QL	Yes
6JG6	17	220	6.3	1.6	17JG6 22JG6	Novar	9QU	No
6JM6	17.5	220	6.3	1.2	17JM6	Compactron	12FJ	Yes
6JN6	17.5	220	6.3	1.2	12JN6 17JN6	Compactron	12FK	No
6JR6	17	220	6.3	1.6	17JR6 22JR6 33JR6	Novar	9QU	No
6JS6	30	220	6.3	2.25	23JS6 31JS6	Compactron	12FY	Yes
6JT6	17.5	220	6.3	1.2	12JT6 17JT6	Novar	9QU	No
6JU6	17	220	6.3	1.6	22JU6	Novar	9QL	Yes
6JZ6	18	220	6.3	1.5	21JZ6	Compactron	12GD	Yes
6KD6	33	200	6.3	2.85	30KD6 36KD6 40KD6	Compactron	12GW	Yes		Same as EL509
6KM6	20	220	6.3	1.6	22KM6	Novar	9QL	Yes
6KN6	30		6.3		-	Compactron	12GU
6KV6	28	220	6.3	1.6	17KV6 22KV6	Novar	9QU	No
6LB6	30	200	6.3	2.25	-	Compactron	12GJ	Yes
6LF6	40	275	6.3	2	20LF6	Compactron	12GW	Yes
6LG6	28	250	6.3	2	21LG6	Compactron	12HL	No
6LQ6	30	220	6.3	2.5	24LQ6	Novar	9QL	Yes
6LR6	30	220	6.3	2.5	35LR6	Compactron	12FY	Yes
6LV6	40?	275	6.3	2	-	Compactron	12GW	Yes		Cannot locate data
6LW6	40	280	6.3	2.65	26LW6 36LW6	Octal	8NC	Yes
6LX6	33	275	6.3	2.55	26LX6	Compactron	12JA	Yes
6LZ6	30	220	6.3	2.3	31LZ6	Novar	9QL	Yes
6MC6	30	250	6.3	2.85	36MC6	Novar	9QL	Yes
6ME6	30	220	6.3	2.3	-	Novar	9QL	Yes
6MH6	38.5	275	6.3	2.65	-	Compactron	12GW	Yes
EL300	17.6	275	6.3	1.75	PL300	Octal		Yes		Same as 6FN5
EL36	10	250	6.3	1.25	PL36     XL36	Octal		Yes		Same as 6CM5
EL38	25	400	6.3	1.4	PL38	Octal		Yes
EL136	16	250	6.3	1.65	PL136	Octal		Yes
EL500	17	275	6.3	1.38	XL500 LL500 PL500	Magnoval		Yes		Same as 6GB5
EL502	20	250	6.3	1.7	PL502	Magnoval		Yes
EL504	16	250	6.3	1.38	PL504	Magnoval		Yes
EL508	12	275	6.3	0.825	PL508	Magnoval		No
EL509	30	275	6.3	2	PL509	Magnoval		Yes		Same as 6KD6
EL511	?	250	6.3	1.3	PL511	Magnoval		Yes
EL519	35	275	6.3	2	PL519	Magnoval		Yes
PL505	25	275	6.3	2	-	Magnoval		Yes
PL521	?	275	29	0.3	-	Magnoval		Yes		Same as 29KQ6

Somewhat more readable. ... and it scrolls!!!

Code:
Type  Plate W G2 max V Htr V Htr A Alt Htrs          Socket   Base  Cap? Notes
8950  33      250      13    1.1   -                 Cpctrn   -     Yes  RF tube
12JF5 17.5    220      12.6  0.6   -                 Cpctrn   12JH  Yes
12JV6 18      220      21    0.45  33JV6             Cpctrn   12FK  No
16KA6 18      220      15.8  0.6   21KA6             Cpctrn   12GH  Yes
21KQ6 -       275      21    0.45  29KQ6             Magnoval 9RJ   Yes  Same as PL521
25EC6 10      175      25    0.6   -                 Octal    5BT   Yes
25HX5 14      300      25    0.3   -                 Magnoval 9SB   No
6AL6  18.5    300      6.3   0.9   -                 Octal    6AM   Yes  6L6 with top cap
6AU5  10      200      6.3   1.25  12AU5             Octal    6CK   No
6AV5  11      175      6.3   1.2   12,17,25AV5       Octal    6CK   No
6BD5  10      325      6.3   0.9   -                 Octal    6CK   No
6BG6  20      350      6.3   0.9   19BG6             Octal    4CG   Yes
6BQ6  11      175      6.3   1.2   12,17,25BQ6       Octal    6AM   Yes
6CB5  23      200      6.3   2.5   -                 Octal    8GD   Yes
6CD6  15      175      6.3   2.5   25,35CD6          Octal    5BT   Yes
6CL5  25      200      6.3   2.5   -                 Octal    8GD   Yes
6CM5  10      250      6.3   1.25  13CM5             Octal    8GT   Yes  Same as EL36
6CU6  11      200      6.3   1.2   12,25CU6          Octal    6AM   Yes
6DN6  15      175      6.3   2.5   25DN6             Octal    5BT   Yes
6DQ5  24      190      6.3   2.5   -                 Octal    8JC   Yes
6DQ6  15      175      6.3   1.2   12,17,25DQ6       Octal    6AM   Yes
6EX6  22      195      6.3   2.25  21EX6             Octal    5BT   Yes
6FH6  17      220      6.3   1.2   -                 Octal    6AM   Yes
6FN5  17.6    275      6.3   1.75  35FN5             Octal    -     Yes  Same as EL300
6FW5  17.5    220      6.3   1.2   -                 Octal    6CK   No
6GB5  17      275      6.3   1.38  13,18,27,28GB5    Magnoval 9NH   Yes  Same as EL500
6GC6  17.5    220      6.3   1.2   12GC6             Octal    8JX   Yes
6GE5  17.5    220      6.3   1.2   12,17GE5          Cpctrn   12BJ  No
6GF5  9       220      6.3   1.2   -                 Cpctrn   12BJ  No
6GJ5  17.5    220      6.3   1.2   -                 Novar    E9-88 Yes
6GV5  18      220      6.3   1.2   -                 Cpctrn   12DR  Yes
6GW6  17.5    220      6.3   1.2   17GW6             Octal    6AM   Yes
6GY5  18      220      6.3   1.5   -                 Cpctrn   12DR  No
6HB5  18      220      6.3   1.5   21HB5             Cpctrn   12BJ  No
6HD5  24      220      6.3   2.25  21,28HD5          Cpctrn   12ES  No
6HE5  12      300      6.3   0.8   -                 Cpctrn   12EY  No
6HF5  28      190      6.3   2.25  -                 Cpctrn   12FB  Yes
6HJ5  24      220      6.3   2.25  21,30HJ5          Cpctrn   12FL  No
6JA5  19      300      6.3   1     -                 Cpctrn   12EV  No
6JB5  15      300      6.3   0.8   -                 Cpctrn   12EY  No
6JB6  17.5    220      6.3   1.2   12,17JB6          Novar    9QL   Yes
6JC5  19      300      6.3   0.8   -                 Cpctrn   12EV  No
6JE6  30      190      6.3   2.5   24JE6             Novar    9QL   Yes
6JF6  17      220      6.3   1.6   17,22JF6          Novar    9QL   Yes
6JG6  17      220      6.3   1.6   17,22JG6          Novar    9QU   No
6JM6  17.5    220      6.3   1.2   17JM6             Cpctrn   12FJ  Yes
6JN6  17.5    220      6.3   1.2   12,17JN6          Cpctrn   12FK  No
6JR6  17      220      6.3   1.6   17,22,33JR6       Novar    9QU   No
6JS6  30      220      6.3   2.25  23,31JS6          Cpctrn   12FY  Yes
6JT6  17.5    220      6.3   1.2   12,17JT6          Novar    9QU   No
6JU6  17      220      6.3   1.6   22JU6             Novar    9QL   Yes
6JZ6  18      220      6.3   1.5   21JZ6             Cpctrn   12GD  Yes
6KD6  33      200      6.3   2.85  30,36,40KD6       Cpctrn   12GW  Yes  Same as EL509
6KM6  20      220      6.3   1.6   22KM6             Novar    9QL   Yes
6KN6  30      -        6.3   -     -                 Cpctrn   12GU
6KV6  28      220      6.3   1.6   17,22KV6          Novar    9QU   No
6LB6  30      200      6.3   2.25  -                 Cpctrn   12GJ  Yes
6LF6  40      275      6.3   2     20LF6             Cpctrn   12GW  Yes
6LG6  28      250      6.3   2     21LG6             Cpctrn   12HL  No
6LQ6  30      220      6.3   2.5   24LQ6             Novar    9QL   Yes
6LR6  30      220      6.3   2.5   35LR6             Cpctrn   12FY  Yes
6LV6  40?     275      6.3   2     -                 Cpctrn   12GW  Yes  Cannot locate data
6LW6  40      280      6.3   2.65  26,36LW6          Octal    8NC   Yes
6LX6  33      275      6.3   2.55  26LX6             Cpctrn   12JA  Yes
6LZ6  30      220      6.3   2.3   31LZ6             Novar    9QL   Yes
6MC6  30      250      6.3   2.85  36MC6             Novar    9QL   Yes
6ME6  30      220      6.3   2.3   -                 Novar    9QL   Yes
6MH6  38.5    275      6.3   2.65  -                 Cpctrn   12GW  Yes
EL300 17.6    275      6.3   1.75  PL300             Octal    -     Yes  Same as 6FN5
EL36  10      250      6.3   1.25  PL36 XL36         Octal    -     Yes  Same as 6CM5
EL38  25      400      6.3   1.4   PL38              Octal    -     Yes
EL136 16      250      6.3   1.65  PL136             Octal    -     Yes
EL500 17      275      6.3   1.38  XL500 LL500 PL500 Magnoval -     Yes  Same as 6GB5
EL502 20      250      6.3   1.7   PL502             Magnoval -     Yes
EL504 16      250      6.3   1.38  PL504             Magnoval -     Yes
EL508 12      275      6.3   0.825 PL508             Magnoval -     No
EL509 30      275      6.3   2     PL509             Magnoval -     Yes  Same as 6KD6
EL511 ?       250      6.3   1.3   PL511             Magnoval -     Yes
EL519 35      275      6.3   2     PL519             Magnoval -     Yes
PL505 25      275      6.3   2     -                 Magnoval -     Yes
PL521 ?       275      29    0.3   -                 Magnoval -     Yes  Same as 29KQ6

That was done with the [ code ] ... [ /code ] markup metatags. And of course the dan {tab} characters refused to align nicely, so I wrote a chunk of PERL to read your data, parse out the missing fields (a lot) and the tabs, and then mono-space enough (' ') padding to each to cause them to align. Then I ran a few more times, "pruning" the width of the alternate heater column, and trimming down the word "Compactron".

(GoatGuy uses his horns to preen his feathers, and winks knowingly...)

Hi Pete,

I don't see the 6CM6 or 12CM6 on your list. I don't know if they count, but in the attached Sylvania datasheet, the 6CM6 and 12CM6 are described as "miniature beam power pentodes designed for service as general purpose audio power amplifiers or vertical deflection amplifiers in television receiver sweep circuits." It sounds as if Sylvania intended the 6CM6 for service as a sweep tube. The data includes design-center ratings and typical operating conditions as a vertical deflection amp "[f]or operating in 525 line, 30-frame system as described in 'Standards of Good Engineering Practice for Television Broadcasting Stations, Federal Communication Commission'. The duty cycle of the voltage pulse is not to exceed 15% of the scanning cycle."

Stph


Attachments

  • 6CM6.pdf
    697.4 KB · Views: 160

PRR

Member
Joined 2003
Paid Member
"....designed for service as general purpose audio power amplifiers or vertical deflection amplifiers in television receiver sweep circuits."...

I agree "sweep" could be horizontal or vertical.

But when I sweep the floor, I wave the broom left and right.

In the TV set, the Horizontal sweep is a MUCH bigger tube than the Vertical sweep. V-sweep tubes are small and boring. Pete's going for the BIG "sweep" tubes, that threw the electron beam a foot each way 15,750 times a second, +and+ jacked-up 300V to 30,000V, +and+ heated the 30KV rectifier filament.

The H-sweep tubes were about the biggest tubes ever sold to ordinary people. Oh, the 6L6GC has higher ratings, but is in fact a H-sweep tube made for non-switch duties. And the H-sweep tubes were made in HUGE quantity. There were far more TV sets than 40 watt PA/HiFi amps. The H-sweep tubes ran too-close to ratings so there used to be huge stocks of replacements (more than V-sweeps which often lasted forever). Of course those stocks are down due to Pete Millett and Pete Traynor and Geloso and many many others co-opting H-sweep tubes for big audio use.

I don't see the 6CM6 or 12CM6 on your list. I don't know if they count, but in the attached Sylvania datasheet, the 6CM6 and 12CM6 are described as "miniature beam power pentodes designed for service as general purpose audio power amplifiers or vertical deflection amplifiers in television receiver sweep circuits."


They appear to be close equivalents to the 6V6 family of tubes, don't they?
Best regards!

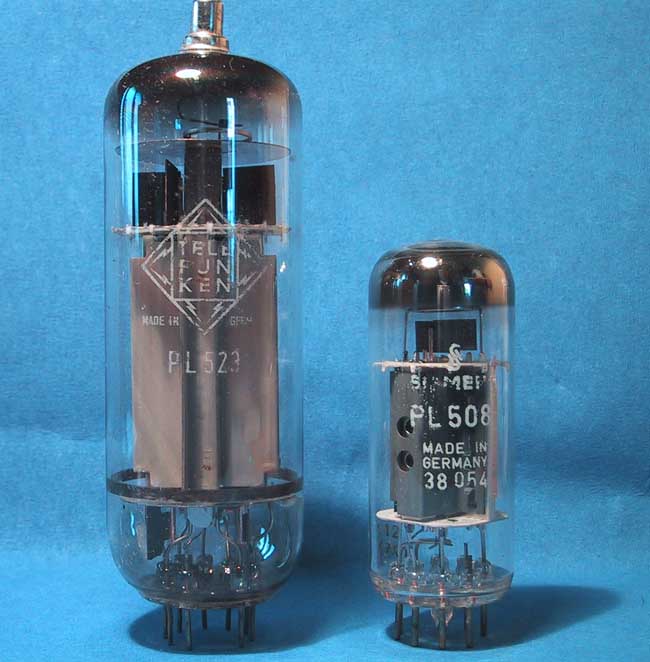

What about the PL523 by Telefunken?

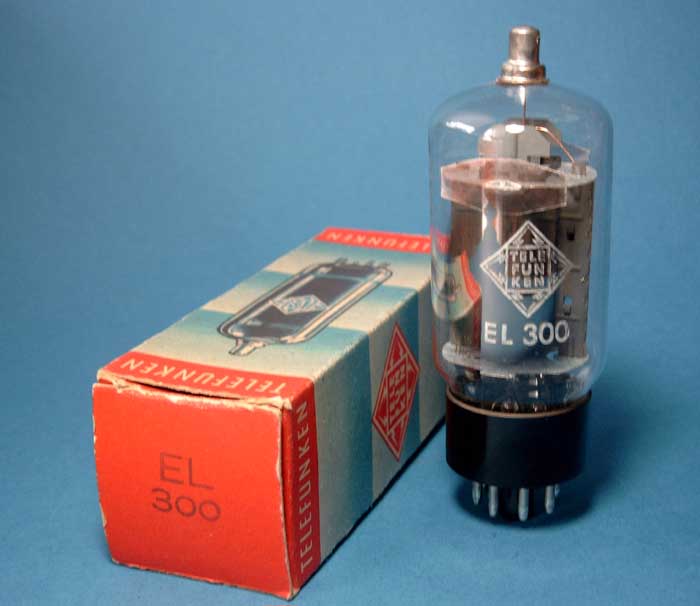

or the EL300?



Last edited:
Thanks everybody for the suggestions. I have added a bunch of types and will update the file tomorrow.

The Russian types are difficult because they aren't in most of the data sources I'm using. It's hard for me to identify which are sweep tubes. But if I have type numbers and can find datasheets, I can add at least some of them.

Pete

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.
