DAC ES9038 PRO

5 Attachment(s)
The ES9038PRO SABRE DAC - Bringing Music to Life
The ES9038PRO SABRE DAC is the flagship of the ESS PRO series. It sets a new benchmark for audio excellence with the industry’s highest dynamic range (DNR), up to 140dB, in a 32-bit, 8-channel DAC. The ES9038PRO was designed for premium home theater equipment including Blu-ray players, preamplifiers, all-in-one A/V receivers, and more. For serious audiophiles it provides the most immersive listening experience — bringing music to life.
The ES9038PRO SABRE DAC also features ESS’ patented 32-bit HyperStreamDAC technology with-122dB total harmonic distortion plus noise (THD+N). The HyperStream architecture is responsible for both the outstanding sound quality of the ES9038 and the extremely low THD+N. A typical competitive, 32-Bit 8-Channel DAC using a delta-sigma architecture features-107dB THD+N (0.0004%), which when subjected to listening tests does not equal the clarity and sound stage of the ES9038PRO.


Es9038 PRO DAC - Design by Andrea Ciuffoli-Quang Hao
  • Based on the ESS Sabre32 Reference (ES9038PRO) DAC chip
  • Support 44,88,96,192,352,384KHz PCM and DSD to play SACD ISO.
  • Full ground isolation from USB module
  • On board reference 100MHz Crystek oscillator with a jitter of 0.5psecUltra
fast oscillator buffer

Output: Stereo balanced output impedance: 202 / 4 = 50 ohm
DC-ouput: +1.65VDC.
Output impedance: 100 Ohm.
Output: 2-Channel (stereo) outputs can be used in current-output or voltage-output mode
(depends on output stage used)

Input: 4 inputs:
1. USB -match with Amanero USB (not included). Have pin I2C for other USB
2. Spdif
3. AES/EBU.
4. Optical
Digiltal supply:
1.2V core: LT3042
3.3V oscillator: LT3042
3.3V digital: LT3042
3.3V Top-botton chip
3.3V USB: LT3042 (If you not like us 3.3v from Computer for USB)
Analog supply:
1.2V analog (left and right separated): LT3042
3.3V analog (left and right separated): LT3042
5V for LCD: LT1117
5V Analog supply: LT1117
5V Digiltal supply Digiltal supply: LT1117

On-board DAC ESD9038PRO includes:
1. ES9038PRO chip.
2. Clock 100MHz CCHD-575, Ultra-Low Phase Noise Crystal Oscillator.
3. All Input connecters, Amanero USB (not included)
4. All low noise Lt3042
5. Lm1117
Use: it is simple and need:
1. Transformer 15VA to 25VA: 2 x 6 - 8VAC: Talema 70050 or Talema 70060 Or equivalent
2. Use LCD Control board off Andrea-quanghao for ES9038PRO, ES9028PRO

Controls and features

1. Standby mode.
2. High volume display.
3. 20 x 4 LCD display.
4. Select the 4-way input and display the frequency on the LCD screen
5. Fuse protection - 220 VAC power supply / 5W
6.Turn on, off with remote control or buttons.
7. Simple and appropriate use for DAC chips: ES9038PRO, ES9028PRO.
8. Set up customizable protocols such as: volume, input as you like.
9. Select modes such as filter, frequency, left channel right.
10. Special and unique - Store settings according to your preferences:
A, Keep the big picture to the desired: lowest -100dB, largest 0dB.
B, Select and store left or right channel output - No need to reverse the output.
C, Selectable filter modes: (Pass band): 47kHz, 50kHz, 60kHz, 70kHz.
D, Option: PCM Filter Characteristics
E, Selectable filter modes: (Pass band): 47kHz, 50kHz, 60kHz, 70kHz.
F, Option: PCM Filter Characteristics: Fast, Slow Roll-Off, Apodizing, Hybrid, Brickwall.

quanghao 5th December 2016 03:09 PM

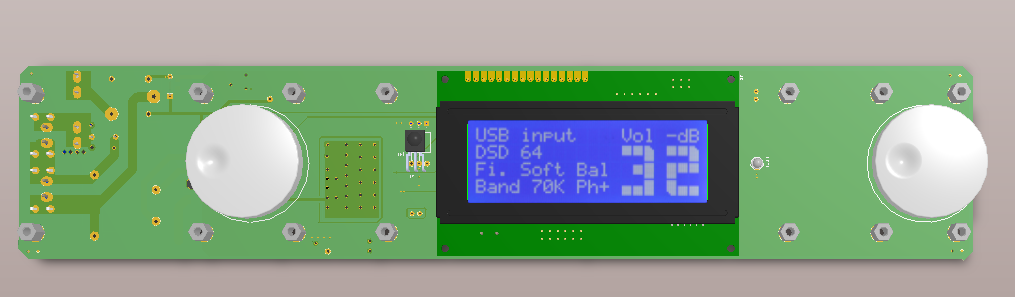

Controle DAC ES9038 PRO

10 Attachment(s)

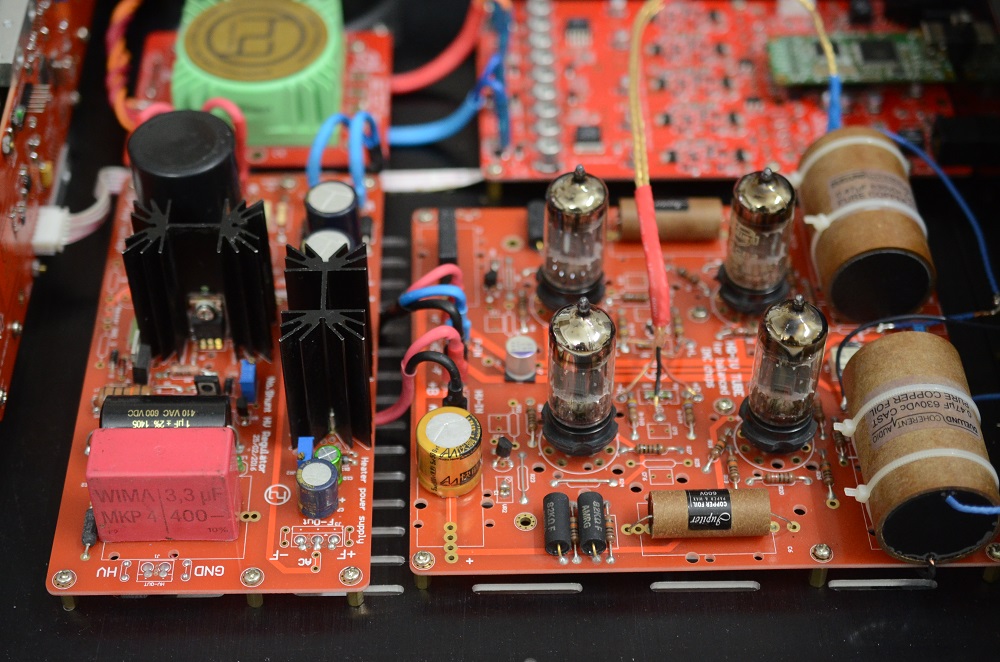

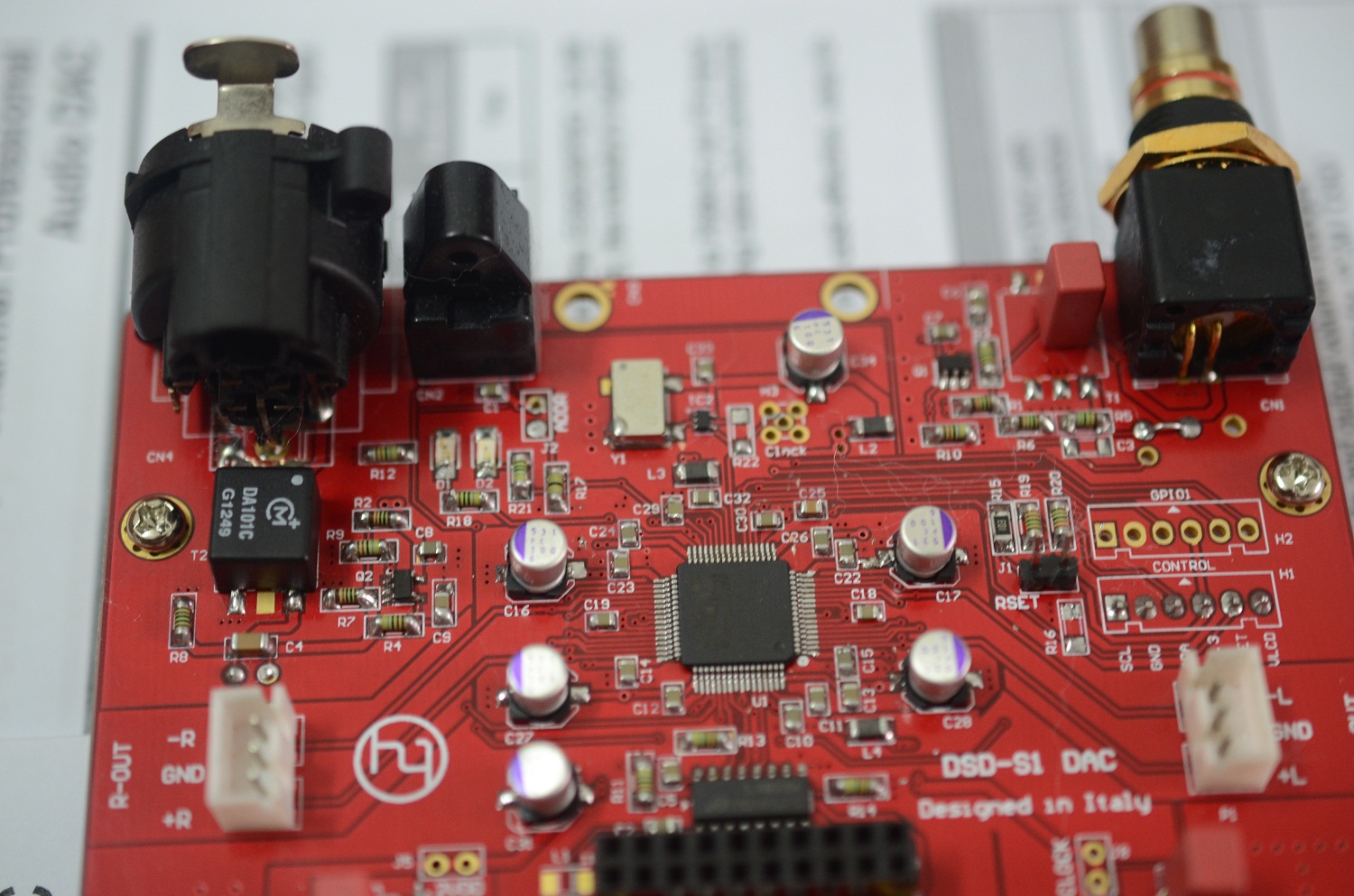

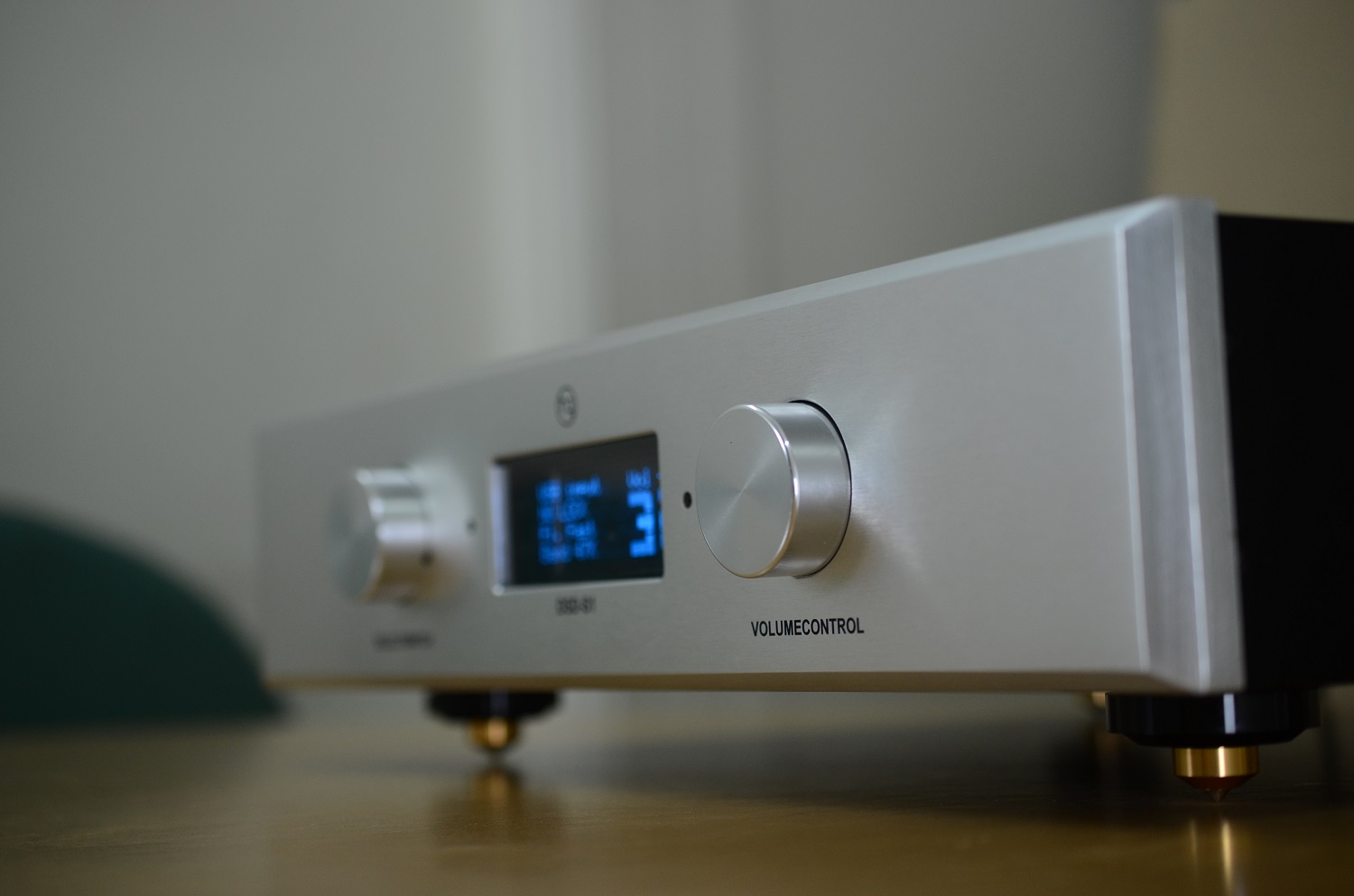

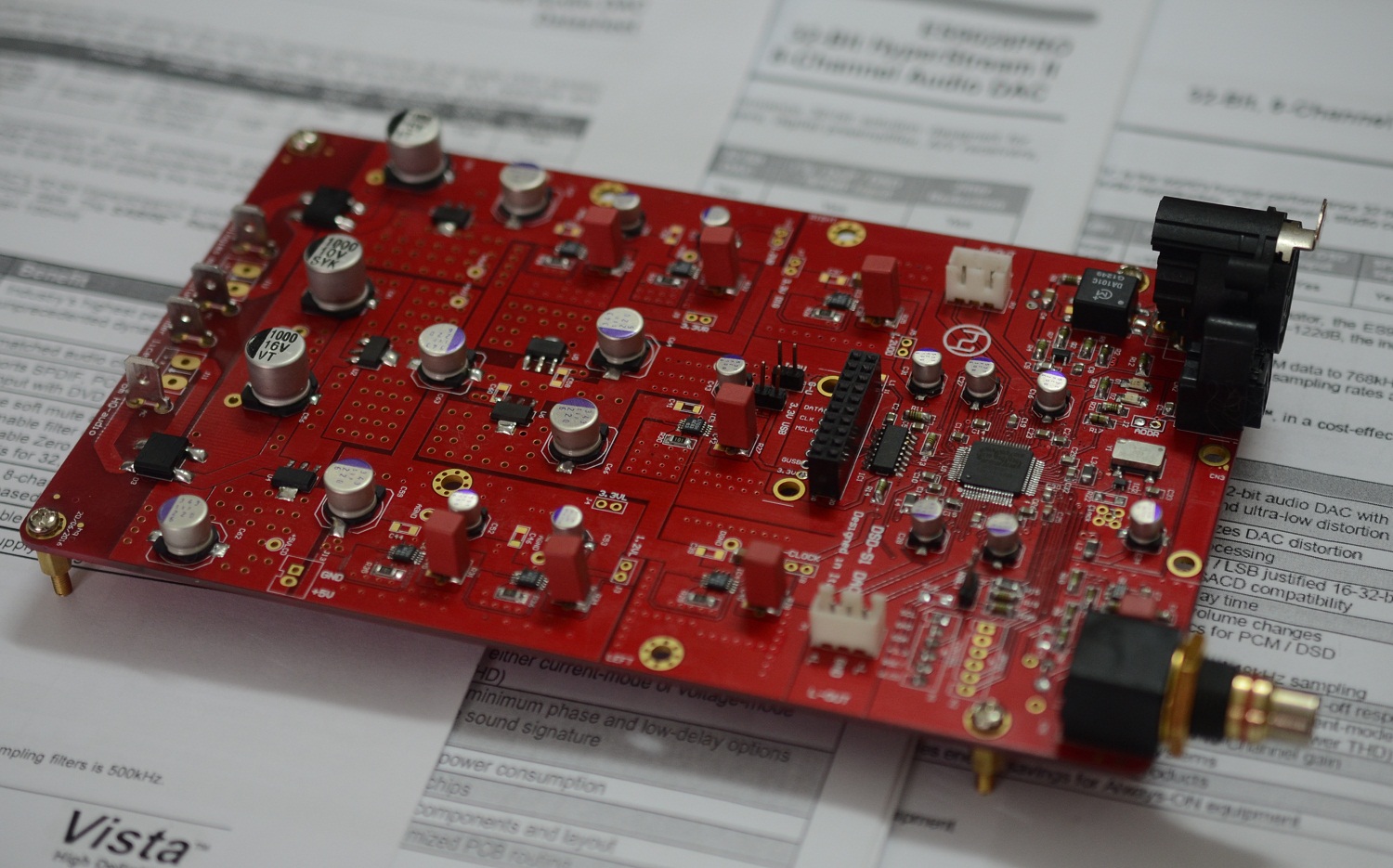

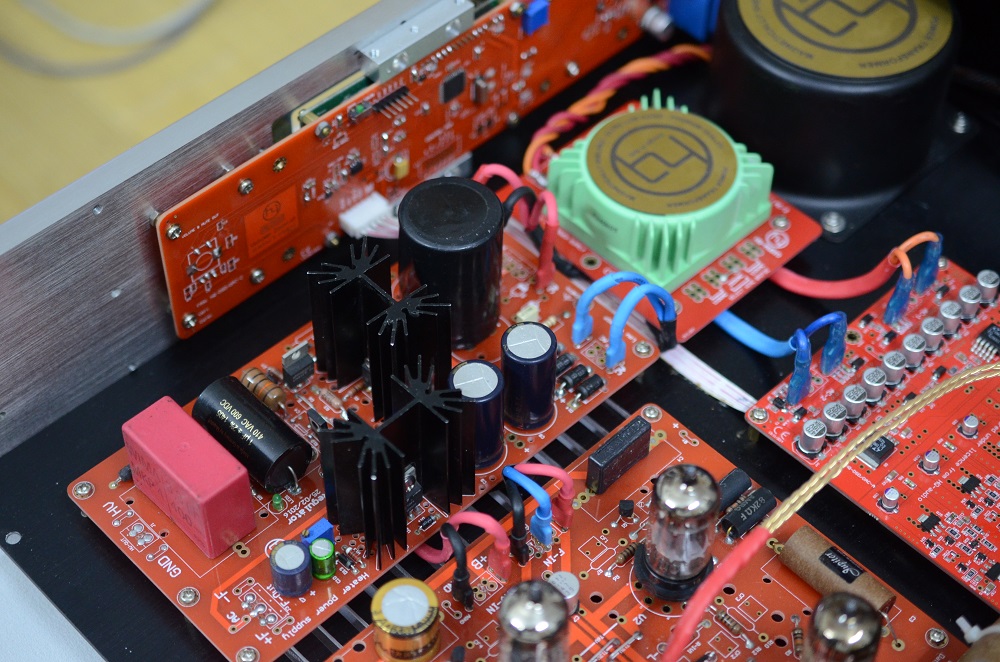

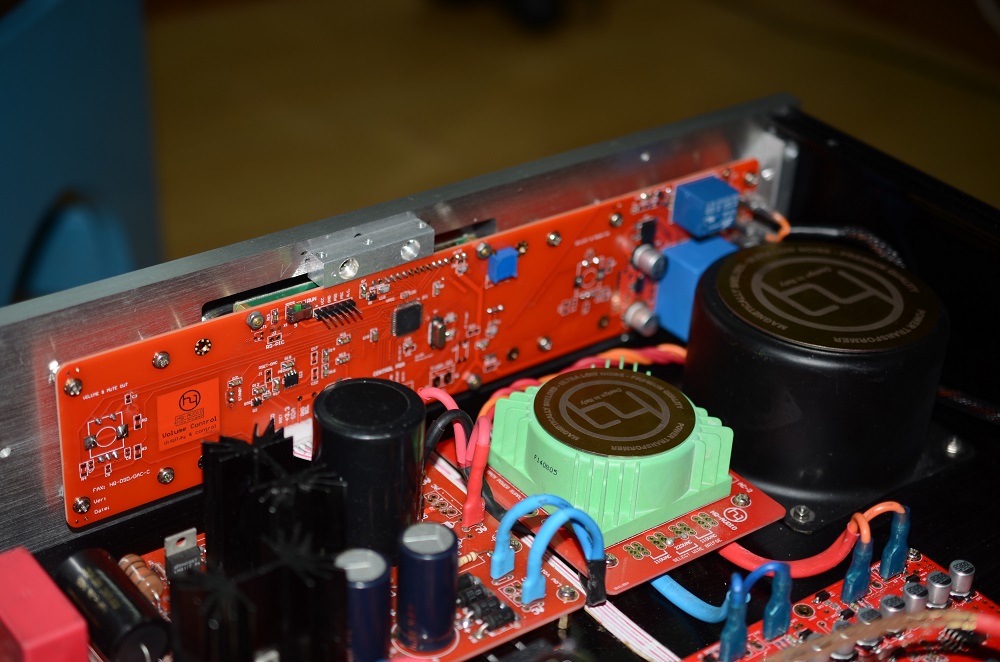

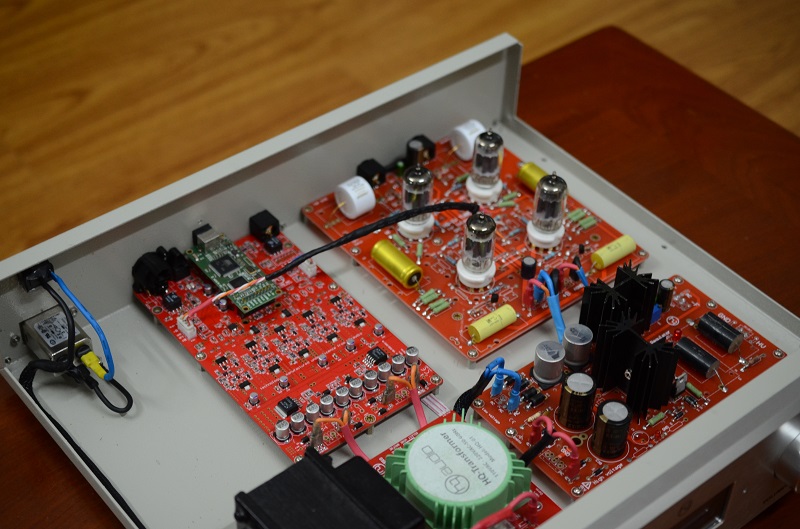

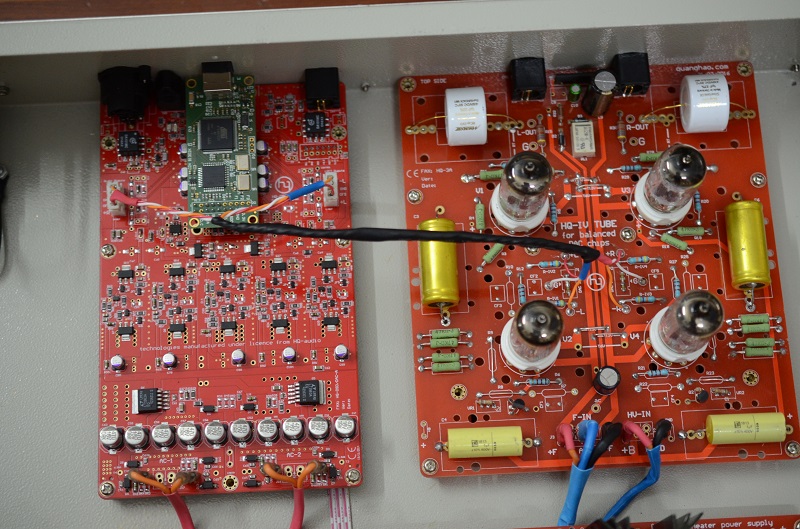

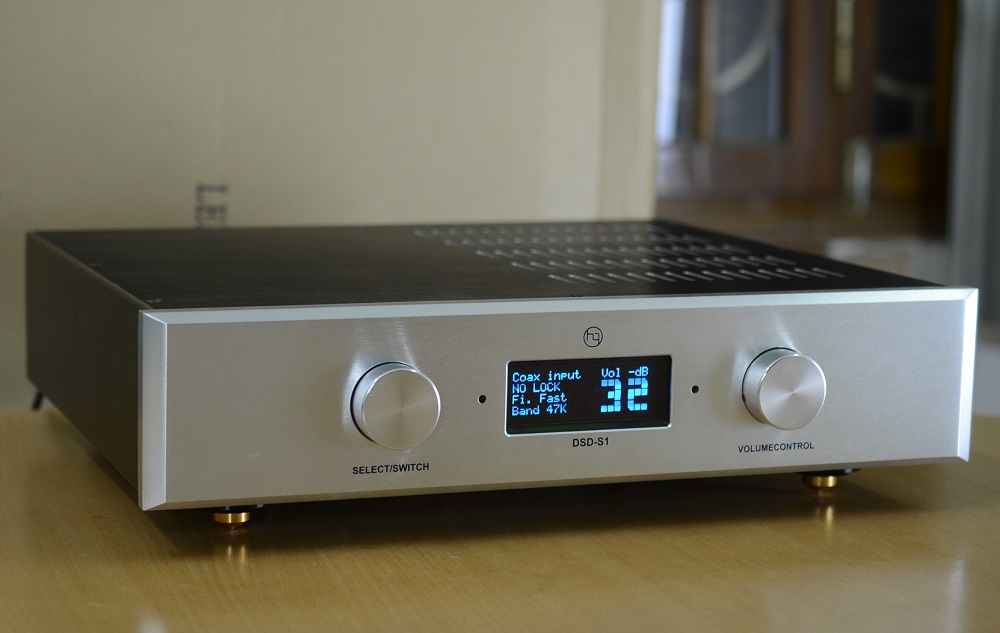

Control of DAC module + remote control + and some pictures DAC completed

mk57 5th December 2016 05:25 PM

Price list?

quanghao 5th December 2016 06:13 PM

Quote:

Originally Posted by mk57 (https://www.diyaudio.com/forums/quanghao-audio-design/300246-dac-es9038-pro-post4907859.html#post4907859)
Price list?

Hi!
i post all in : http://www.diyaudio.com/forums/group...ml#post4907889

please see it now!

thanks

quanghao 11th December 2016 05:11 AM

1 Attachment(s)

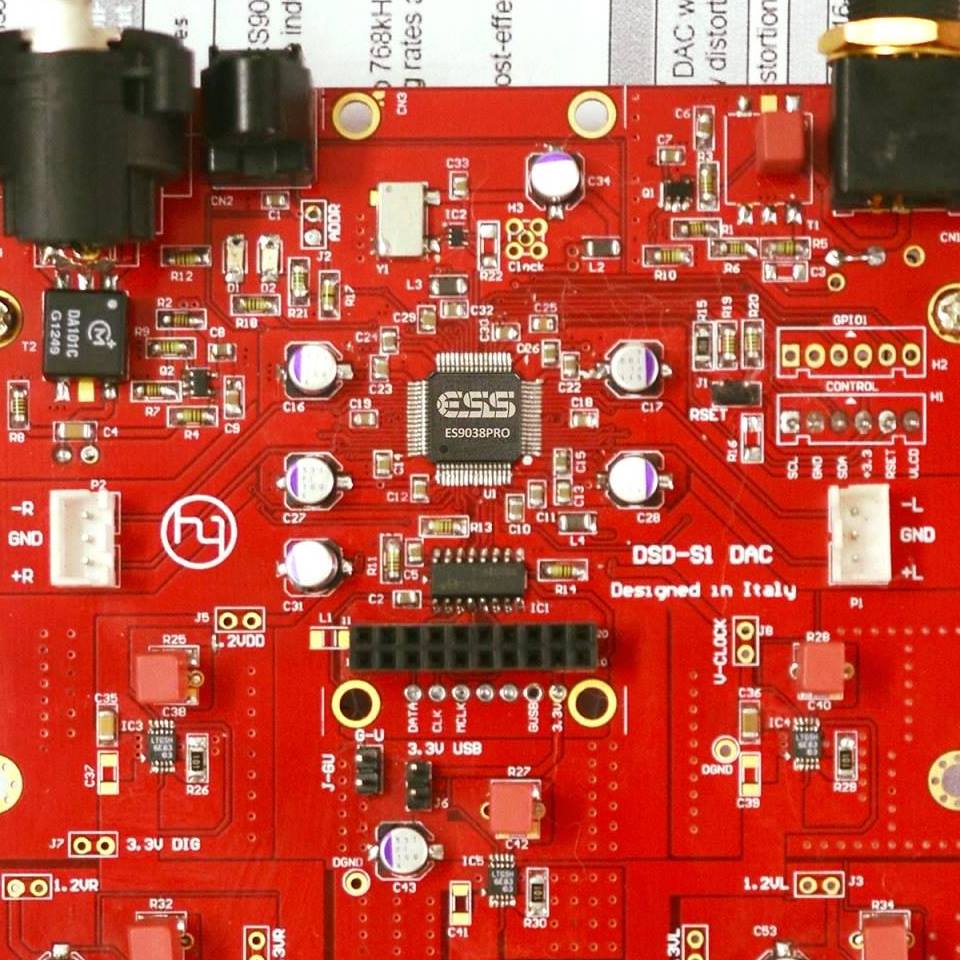

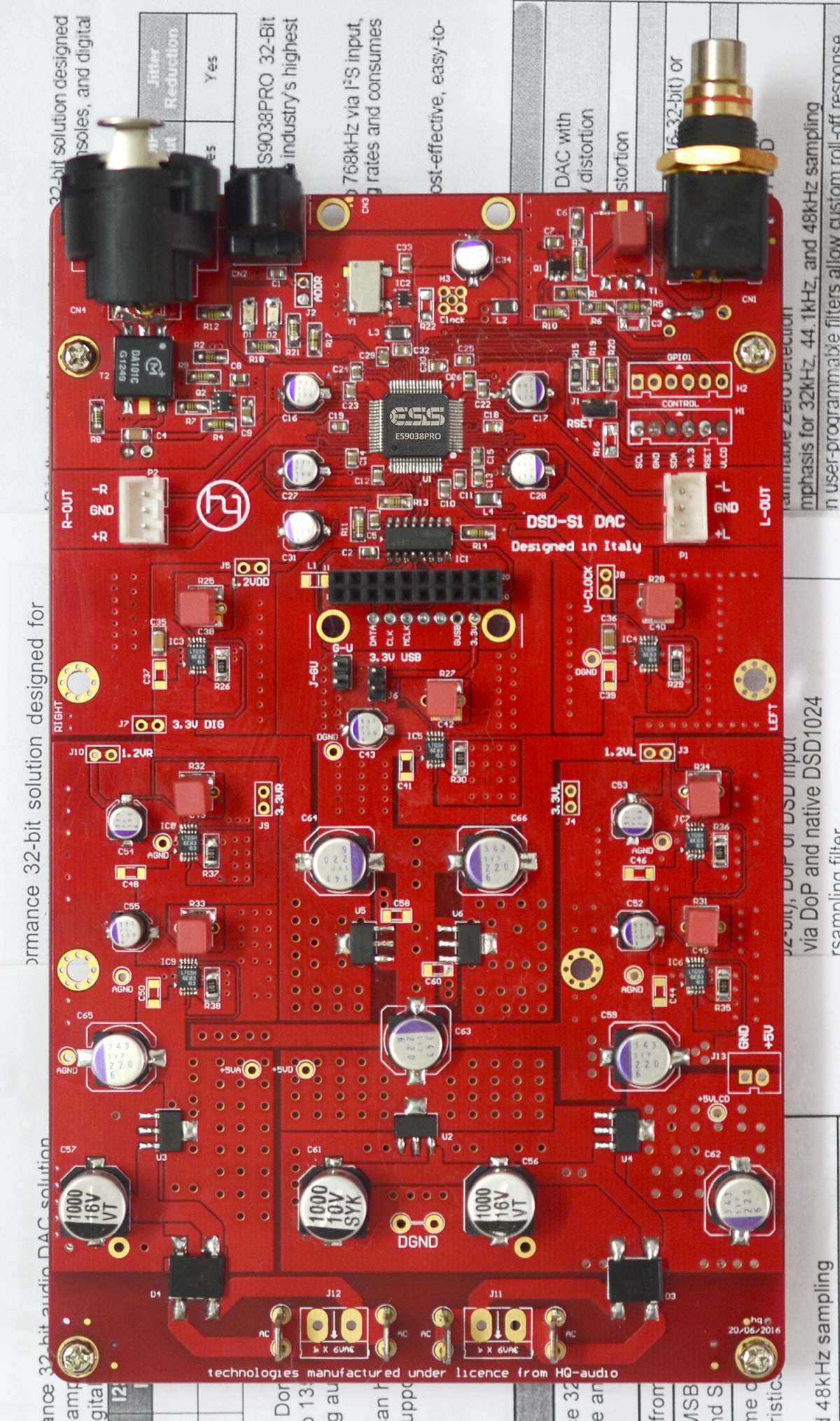

Image ES9038Pro board Chip
thank

quanghao 12th December 2016 01:53 AM

This video ES9038PRO - DAC

https://youtu.be/4owue3-wXpE

Koenjer 18th December 2016 08:41 PM

do you still sell the Lundahl transformer option?

quanghao 19th December 2016 07:31 AM

1 Attachment(s)
Quote:

Originally Posted by Koenjer (https://www.diyaudio.com/forums/quanghao-audio-design/300246-dac-es9038-pro-post4921604.html#post4921604)
do you still sell the Lundahl transformer option?

yes this design!
thanks

Koenjer 20th December 2016 08:43 AM

great!
What is the current price for that kit?

quanghao 20th December 2016 09:00 AM

Quote:

Originally Posted by Koenjer (https://www.diyaudio.com/forums/quanghao-audio-design/300246-dac-es9038-pro-post4923070.html#post4923070)
great!
What is the current price for that kit?

please go to for GR:

http://www.diyaudio.com/forums/group...ml#post4907889

thanks
