tiefbassuebertr 5th September 2011 08:59 PM

Monaural Pre-Amplifier like X0.2/XP-30 so as Integrated Amp - very special and rare

6 Attachment(s)
Monaural power amp devices are nothing special - there are a wide range of manufacturers.
But for me very special are pre-amplifiers and integrated amplifiers in a monaural design.
And such design's I prefer
Unfortunately I know only this examples from each kind of amp.

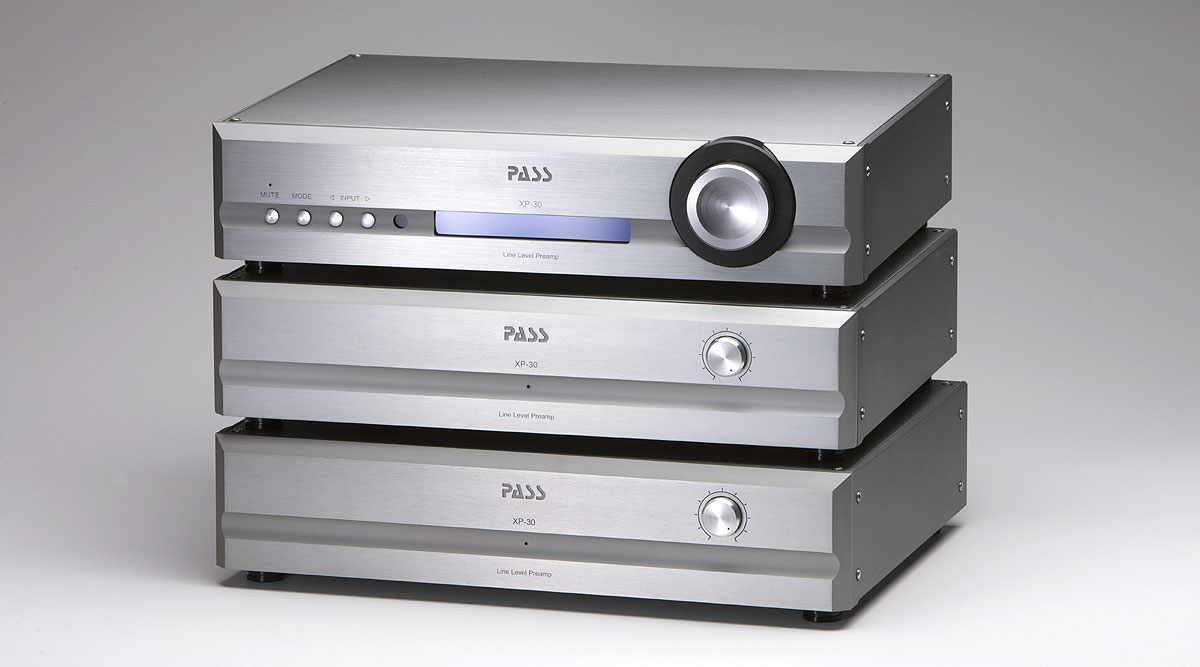

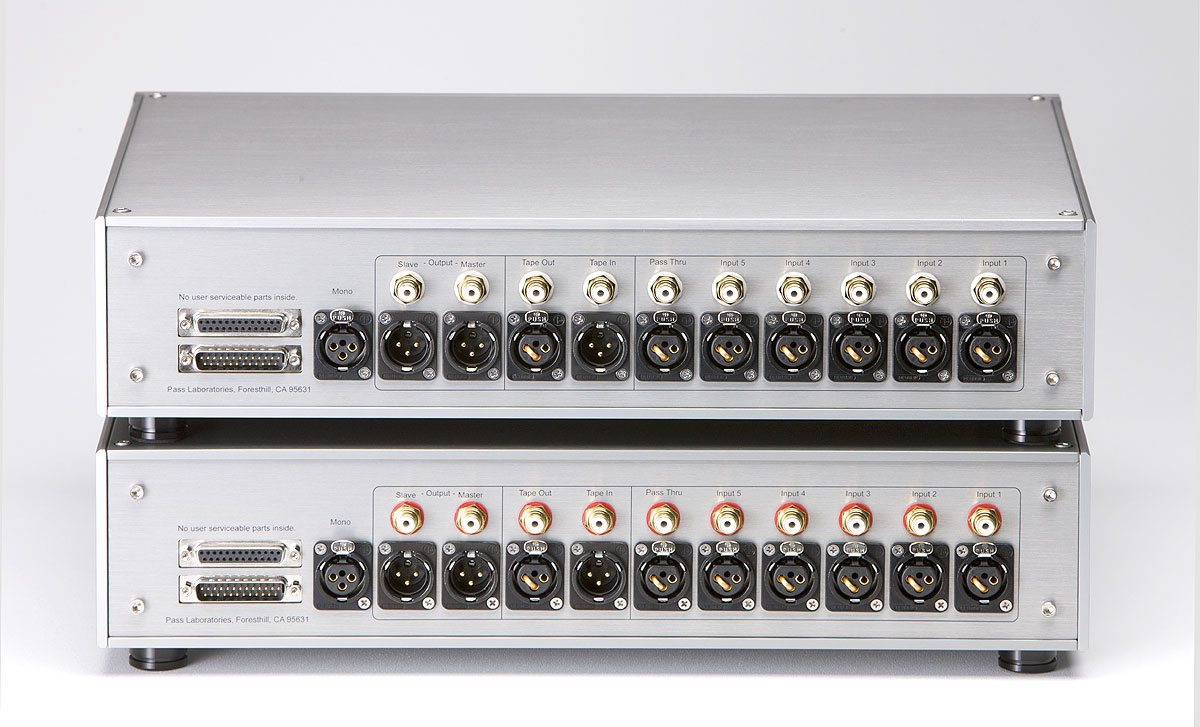

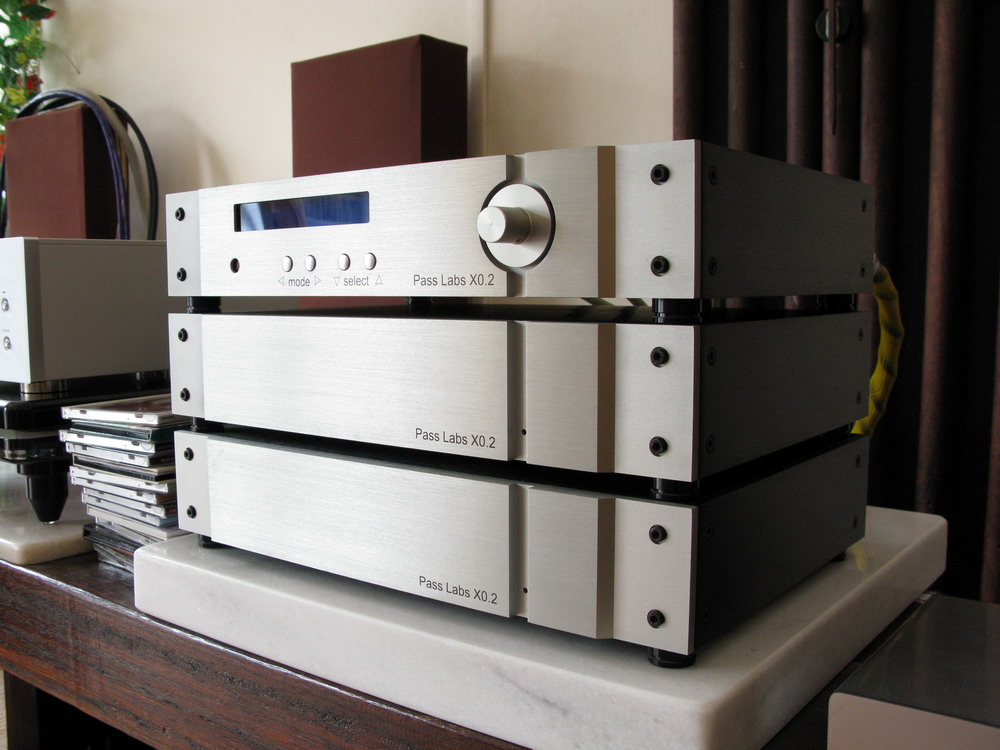

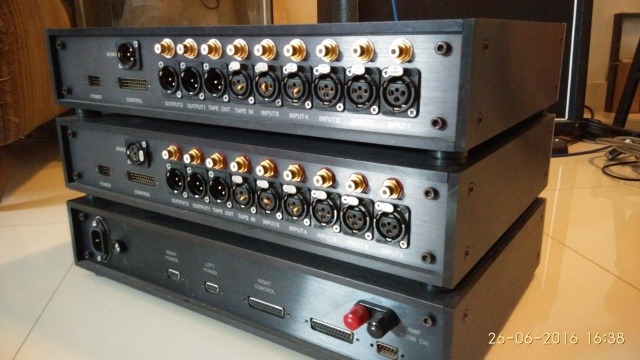

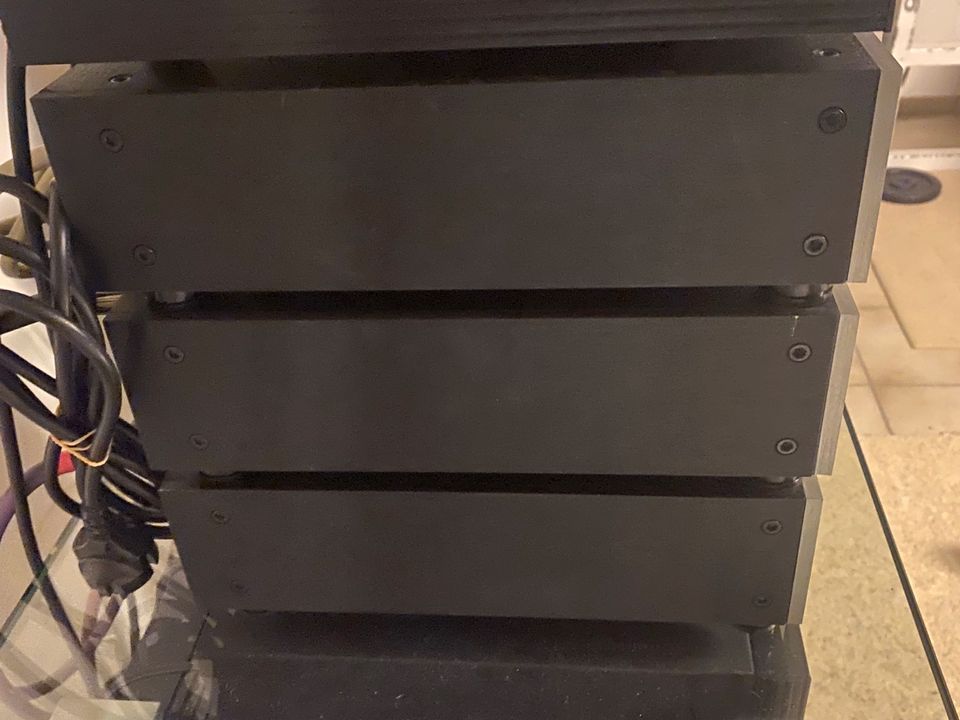

1) Monaural Pre-amplifier: only the currently available Pass XP30
Pass Laboratories
http://www.passlabs.com/pdfs/product...s/XP-30_OM.pdf (Owner's Manual english)
and the legacy (vintage) model X0.2

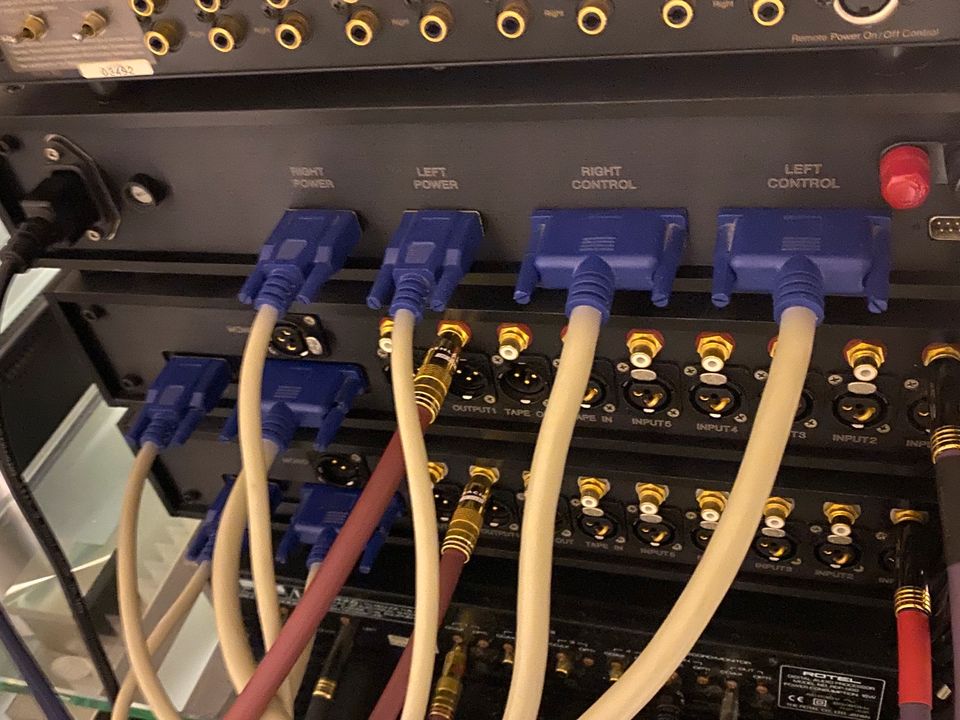

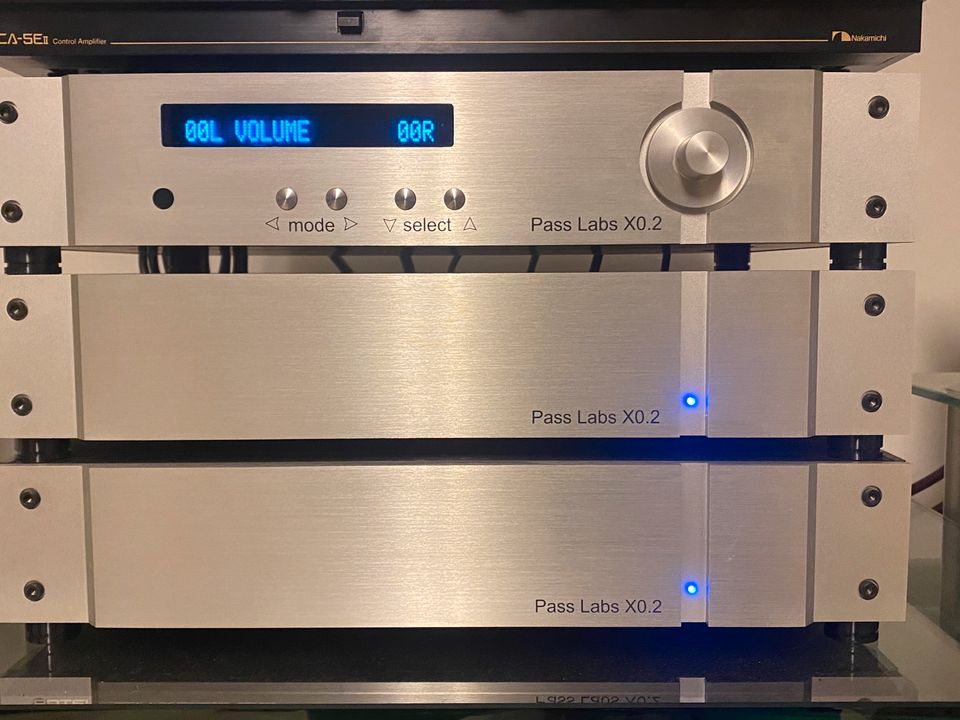

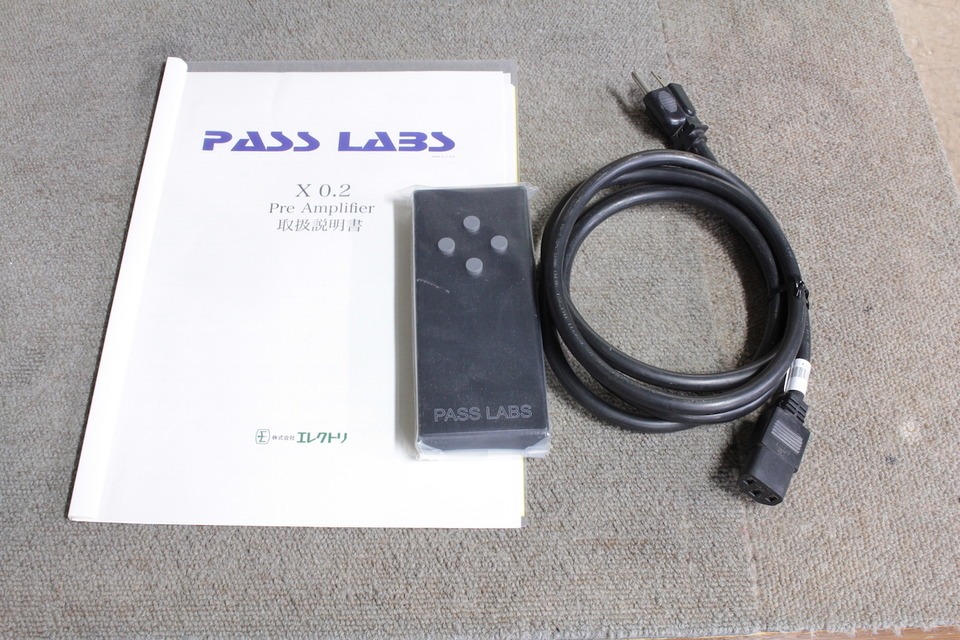

http://www.passlabs.com/pdfs/old%20p...ls/x0.2_om.pdf (Owner's Manual)
DONG FONG AUDIO: Pass Labs X 0.2 PreAmp ( Used ) (Offer)

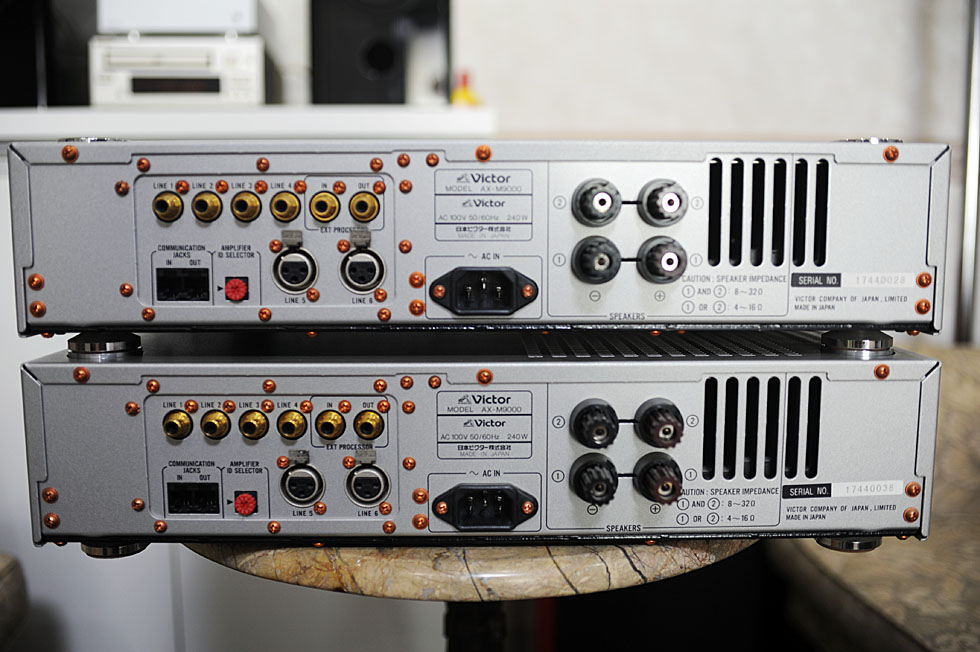

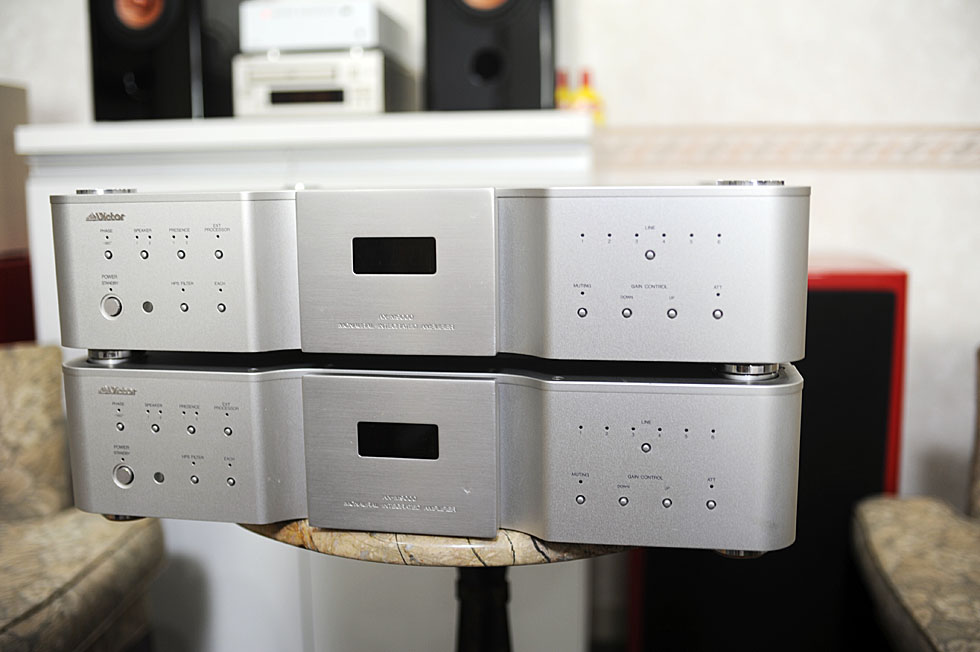

2) Monaural integrated Amplifier JVC AX-M9000
HiFi-Do McIntosh/JBL/audio-technica/Jeff Rowland/Accuphase
http://venetor-sound.com/main/AX-M9000-01.jpg
http://venetor-sound.com/main/AX-M9000-02.jpg
VICTOR ƒ‚ƒmƒ‰ƒ‹ƒvƒŠƒƒCƒ“ƒAƒ“ƒvAX-M9000‚ĚŽd—l ƒrƒNƒ^[
??????????????????AX-M9000??????????????RM-RE9000?
http://av.watch.impress.co.jp/docs/20060914/vic15.jpg
http://www.jvc.de/html/faq/highend/a...000Deutsch.pdf (Owner's German)
JVC AX-M9000 Manuals, Support and Troubleshooting - Amps (Owner's english)
JVC AXM9000 Service Manual free download,schematics,datasheets,eeprom bins,pcb,repair info for test equipment and electronics
JVC AX-M9000 SM 2 Service Manual free download, schematics, eeprom, repair info for electronics

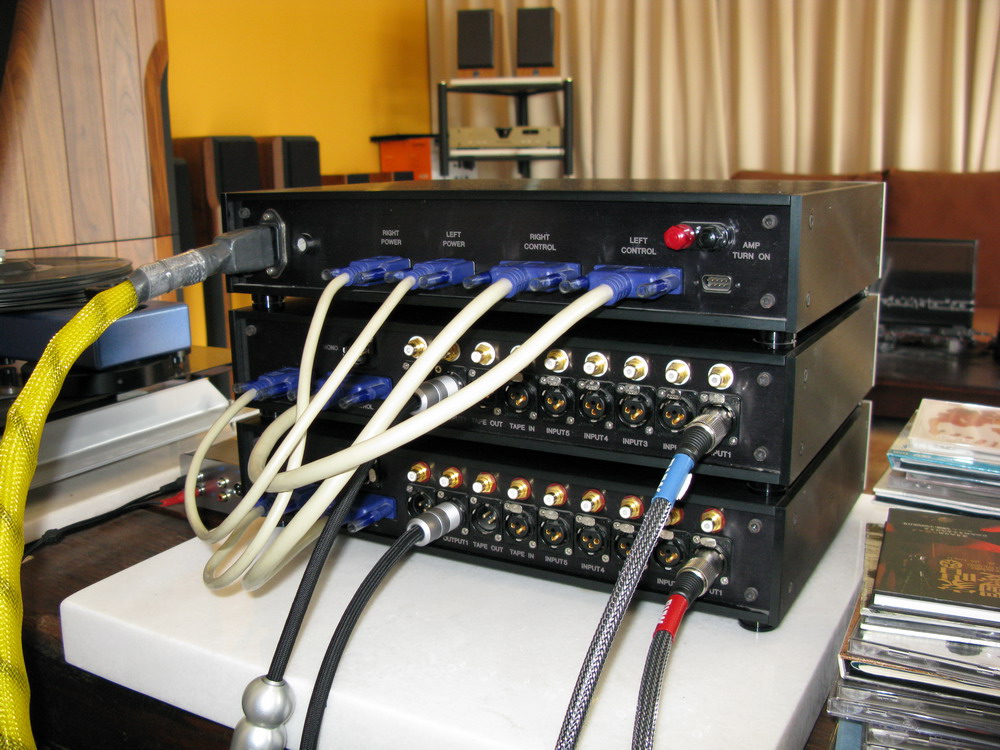

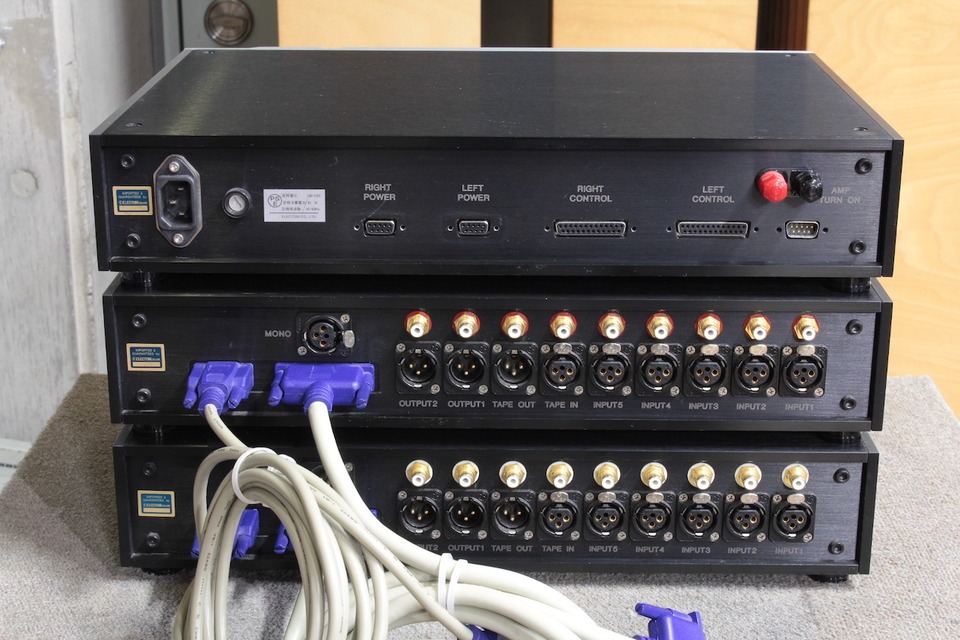

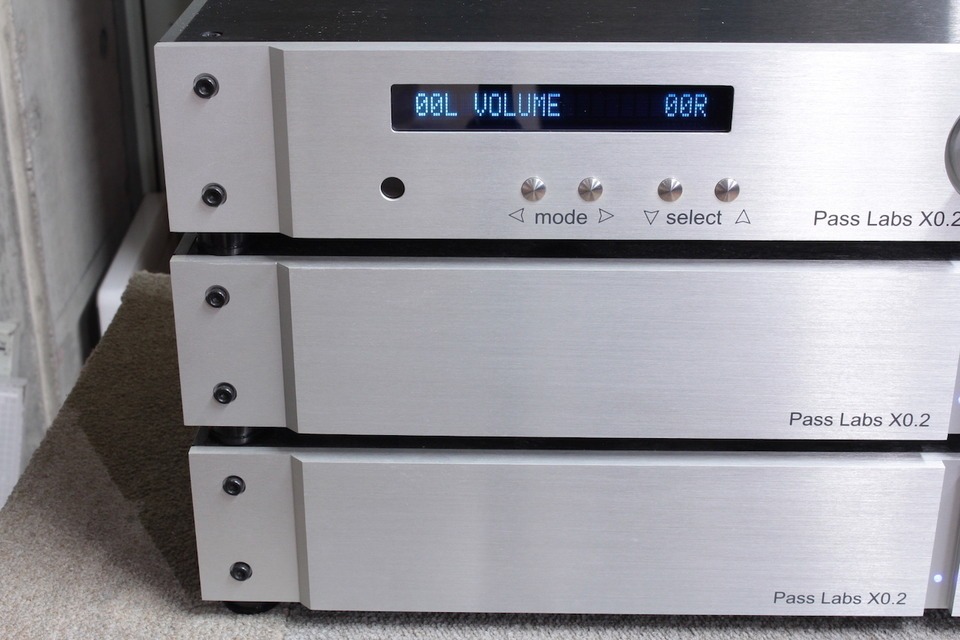

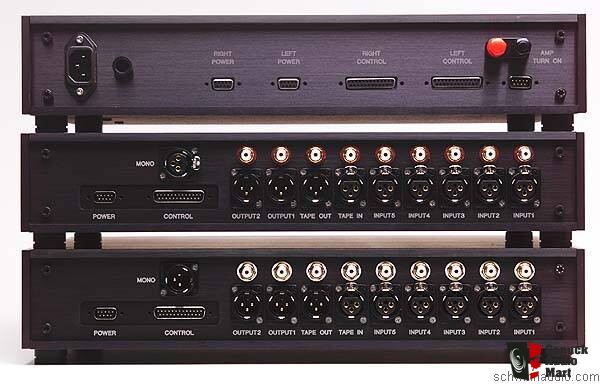

The preamp models X02 and XP30 are more consequently aligned to high performance, because the power supply has been extracted along with the operating/VF-display unit (with a lot of devices, which are critical by a close arrangement of the signal path) of the actual pre-amplifier devices.
This wasn't realized by the integrated Amp from JVC.



Who knows additional examples of this very rare genre ??

Nelson Pass 5th September 2011 09:04 PM

I don't recall seeing any others.

:cool:

tiefbassuebertr 21st September 2011 11:24 AM

For this reason it would be a good idea, to replace the presently output stage through a very small power amp stage in your preamplifier for a special integrated amp series (e. g. arround 2-6 watts output power at 8 ohms) for directly connecting of high efficiency speakers (or also even low efficiency and small speakers like ProAc Tablette or Auratone 5C in very small rooms).
The already massive housing envelope is entirely sufficient as a heat sink by this wattages.

In your currently monaural preamp models unfortunately this massive aluminum housing parts are not used as a heat sink.

jacco vermeulen 16th January 2012 02:30 PM

1 Attachment(s)
Knock, Knock !
Who's there ?
It's me, Yves Bernard André.

Zen Mod 16th January 2012 03:13 PM

NP is a man capable to do so many things , but he just isn't capable to make small Pass amp ...... (without forced cooling )

somehow I can't imagine PL making D class amps ( ok - I remember that pic from Ark , but that was ..... )

:clown:

ThorstenL 27th January 2012 12:17 PM

Hi,

Quote:

Originally Posted by tiefbassuebertr (https://www.diyaudio.com/forums/pass-labs/196007-monaural-pre-amplifier-x0-2-xp-30-integrated-amp-special-rare-post2699092.html#post2699092)
Who knows additional examples of this very rare genre ??

The AMR AM-77 is a Stereo Amplifier, however it can be switched to mono operation and multiple units can be slaved together. So it kind of applies.

In Mono-Mode the solid state output stages of the two channels (it is a hybrid amp) are paralleled up on the inputs (and also outputs too if the single output mode is selected - bi-amping is the other option in which case the outputs remain independent), everything else just uses the left channel's circuitry.

Ciao T

tiefbassuebertr 28th January 2012 09:02 AM

good advice - thank you.
http://www.fastaudio.com/workspace/u...r-serie-77.pdf
amr ph77

ThorstenL 28th January 2012 12:48 PM

Hi,

Quote:

Originally Posted by tiefbassuebertr (https://www.diyaudio.com/forums/pass-labs/196007-monaural-pre-amplifier-x0-2-xp-30-integrated-amp-special-rare-post2881275.html#post2881275)

Modesty and full disclosure obliges me to point out that the design of these units is to a certain degree by yours truly.

Ciao T

tiefbassuebertr 5th July 2012 11:54 AM

Quote:

Originally Posted by jacco vermeulen (https://www.diyaudio.com/forums/pass-labs/196007-monaural-pre-amplifier-x0-2-xp-30-integrated-amp-special-rare-post2864500.html#post2864500)
Knock, Knock !
Who's there ?
It's me, Yves Bernard André.

Which models are this pre- and power amps from YBA ?

not mentioned about
YBA Product Overview

jacco vermeulen 5th July 2012 04:09 PM

2 Attachment(s)

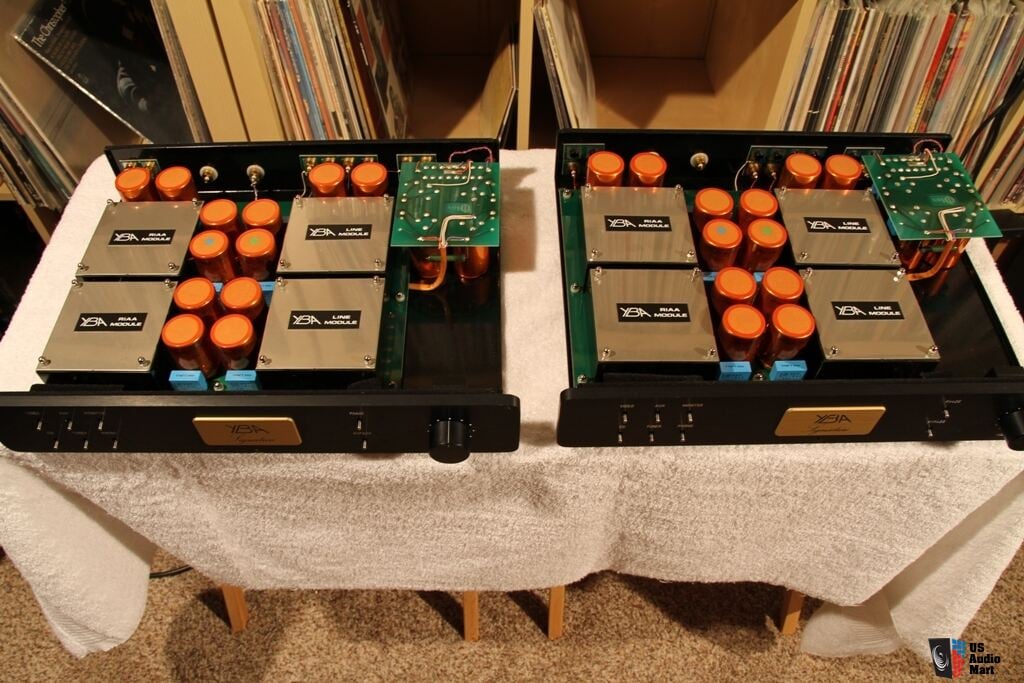

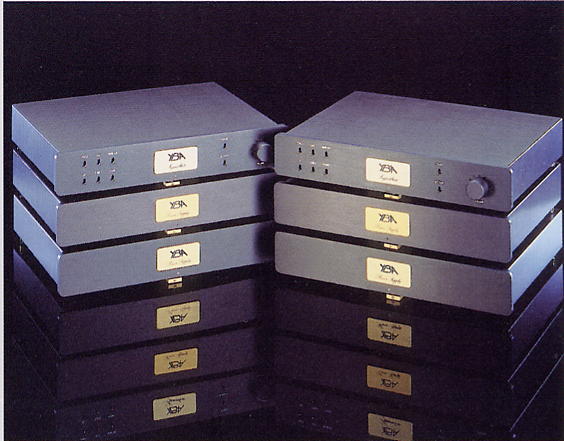

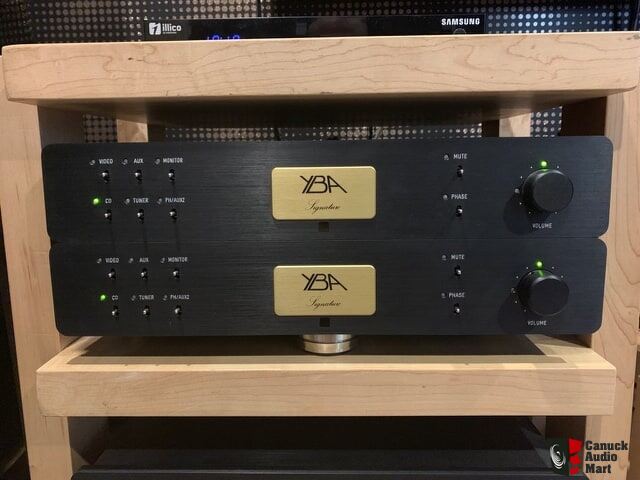

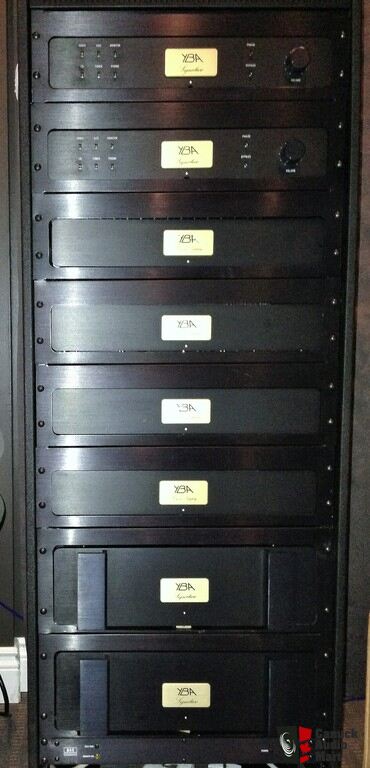

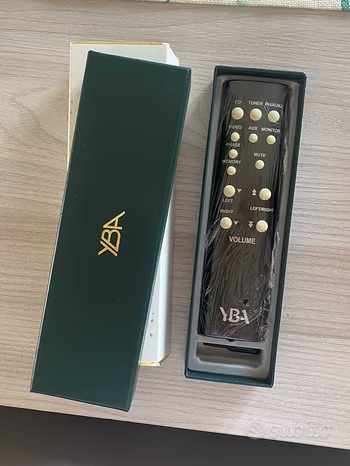

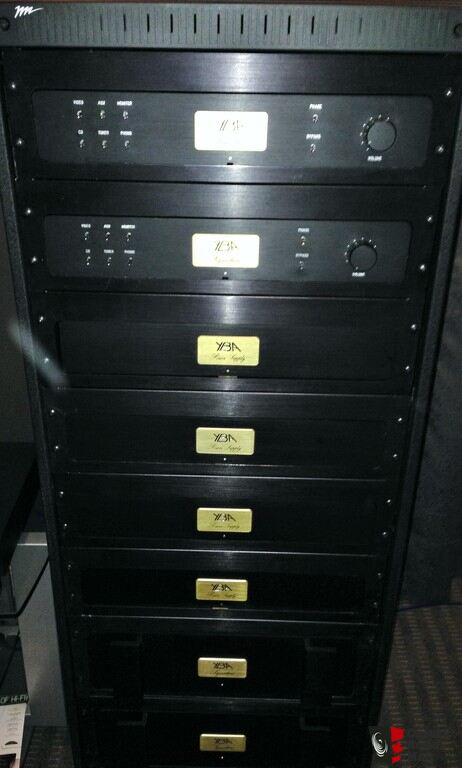

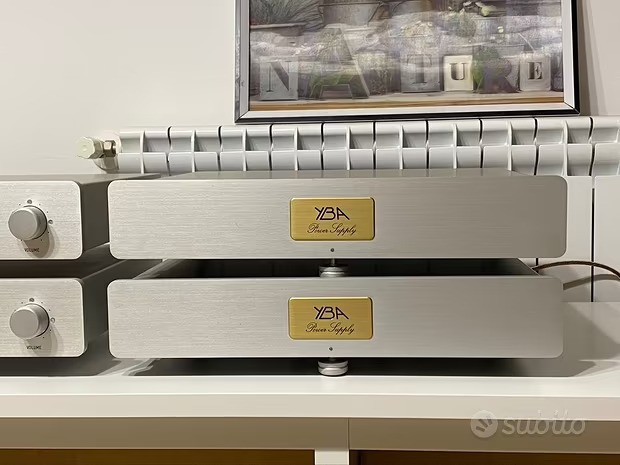

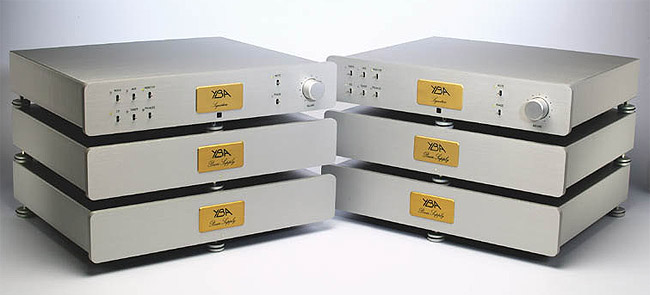

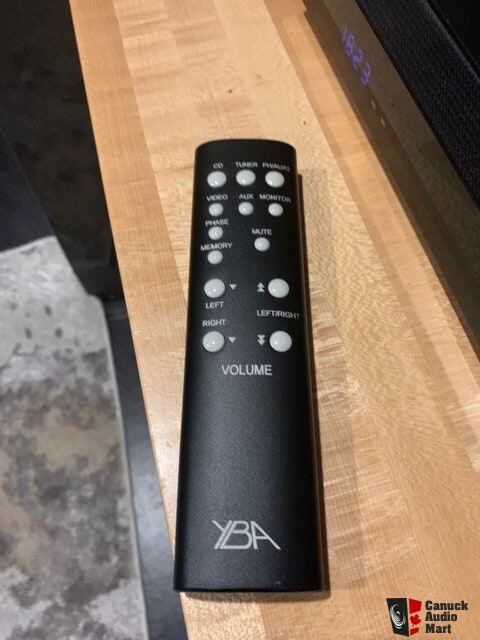

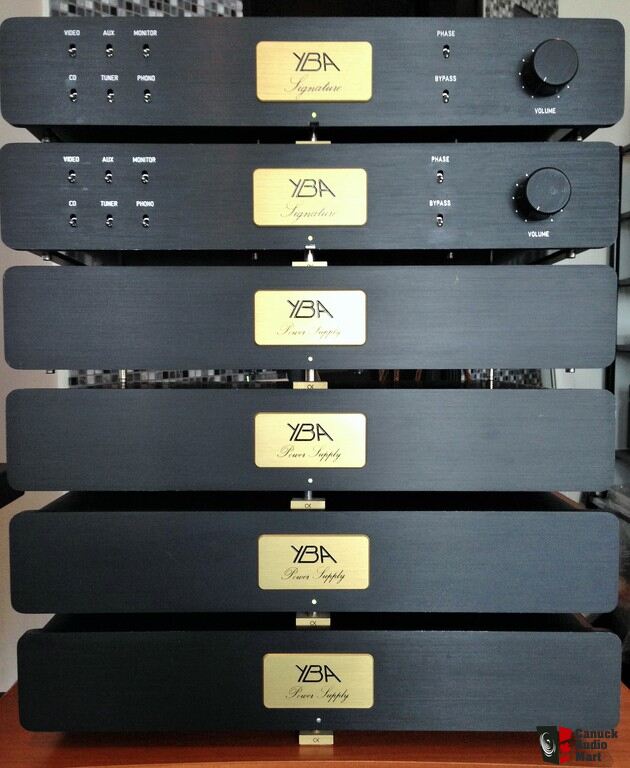

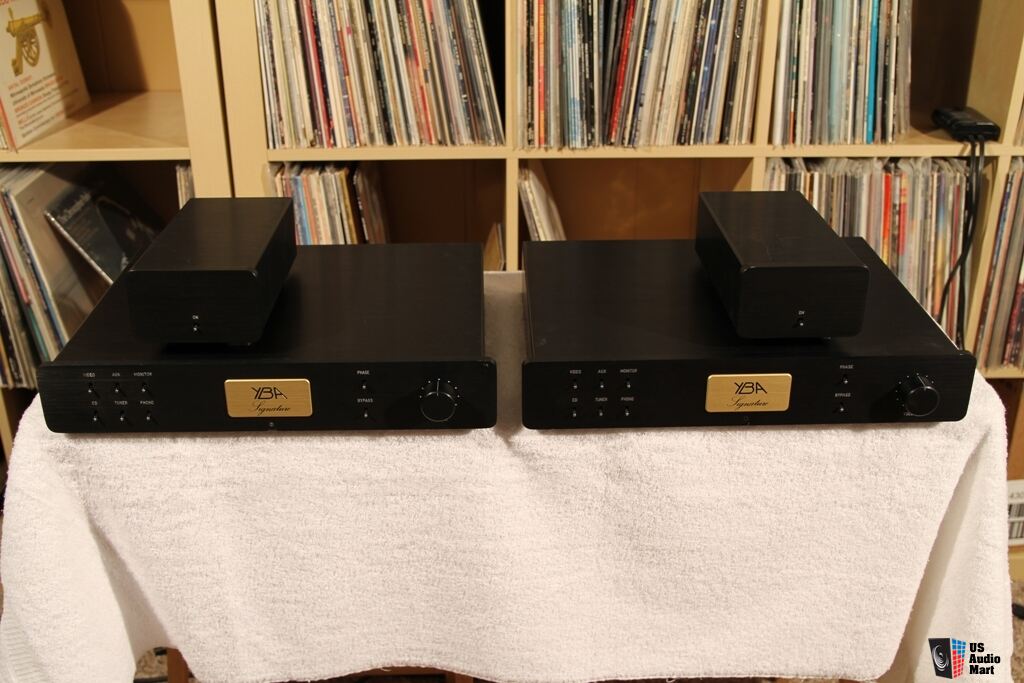

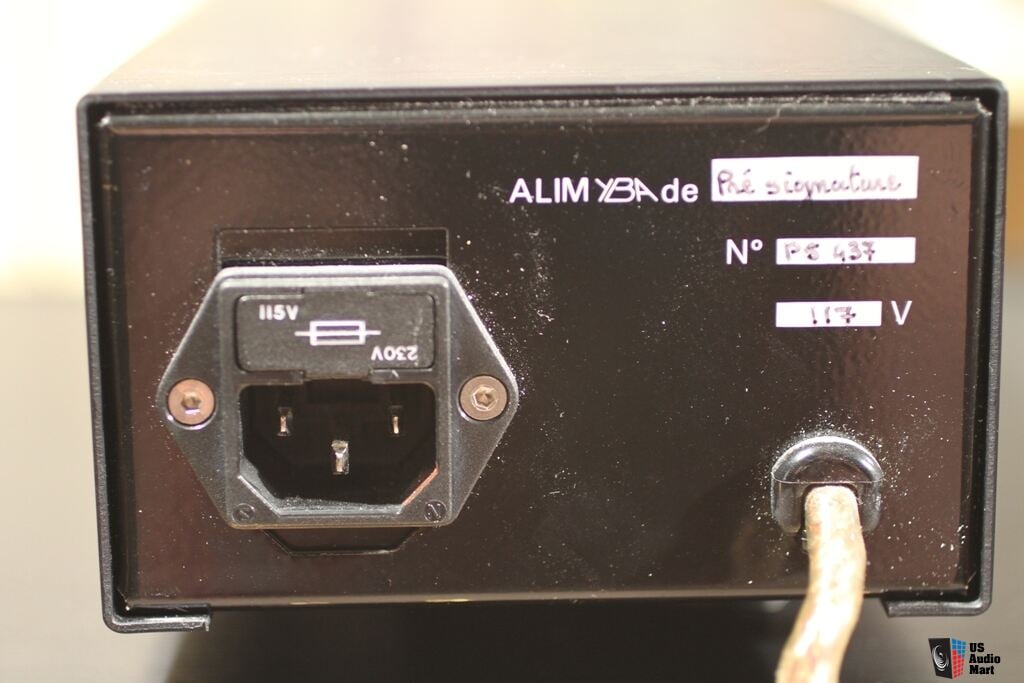

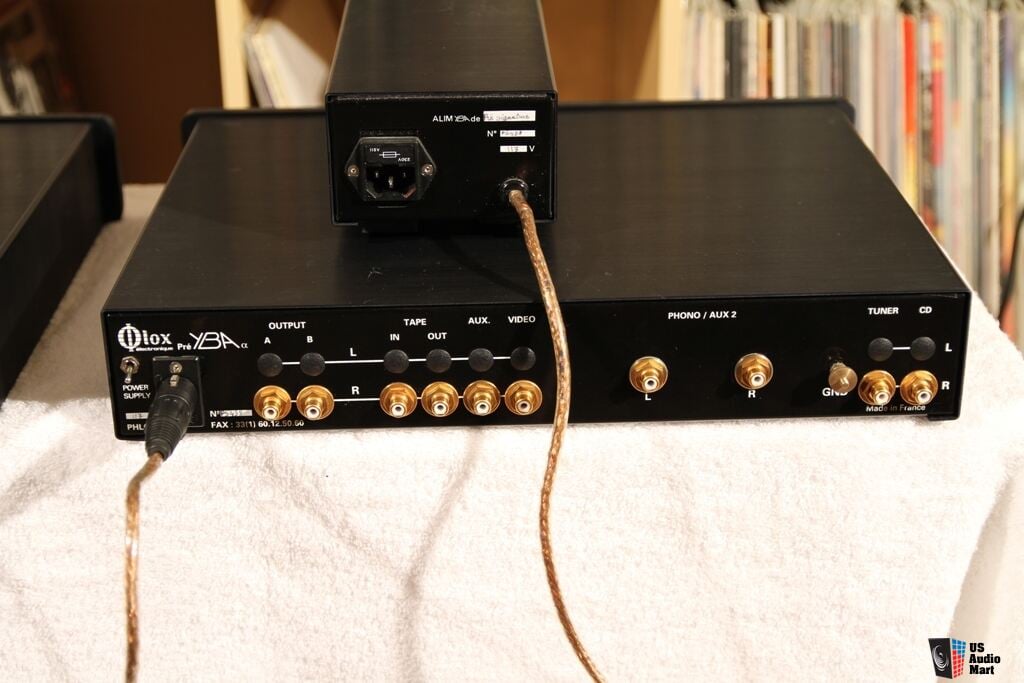

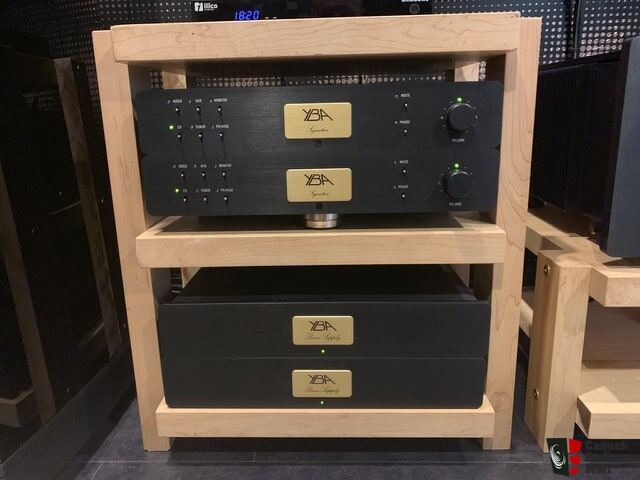

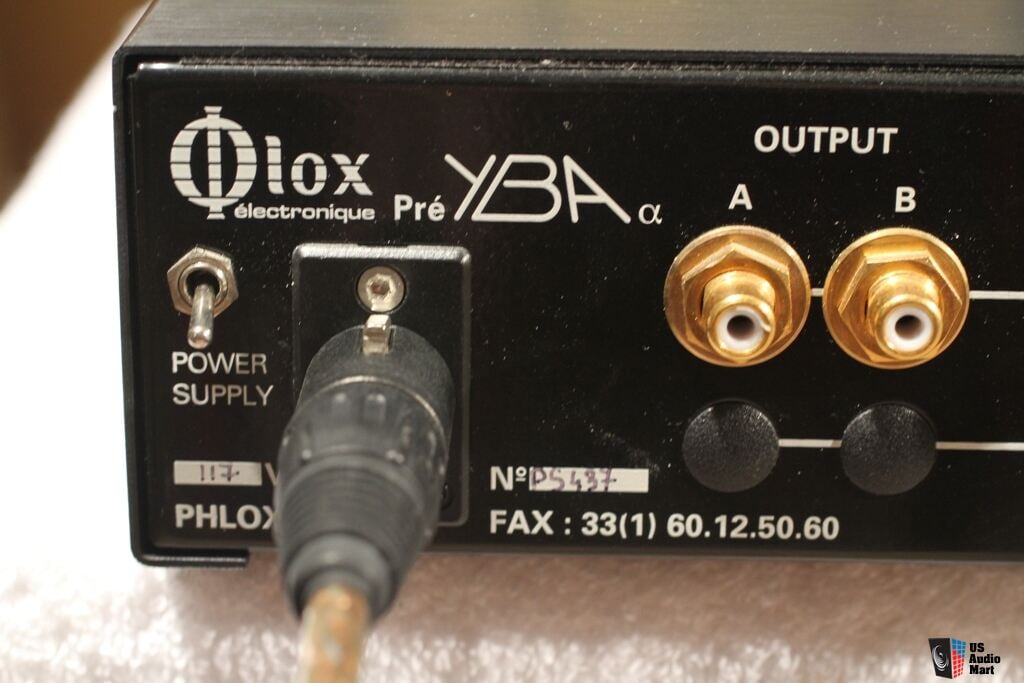

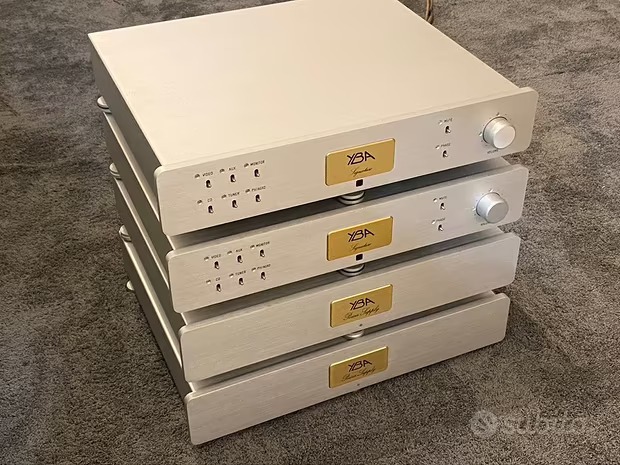

Preamplifier : Signature 6 (total of 6 cases) , Signature 4 (4 cases, phono stage built in the L+R preamp boxes)

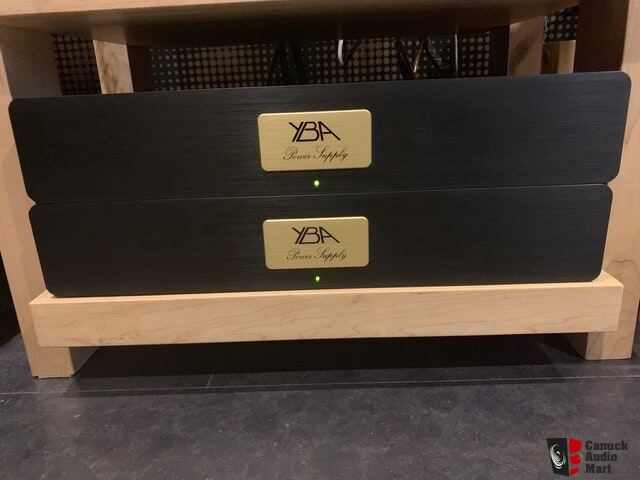

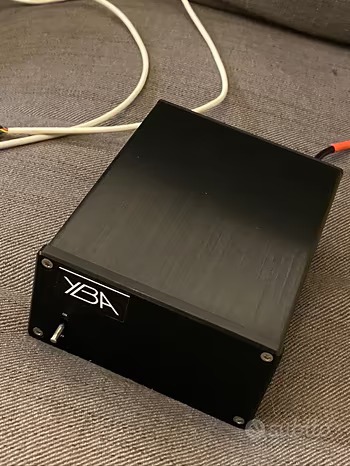

For each channel of the six box affair : 1 power supply chassis, 1 preamp case, 1 phono box.

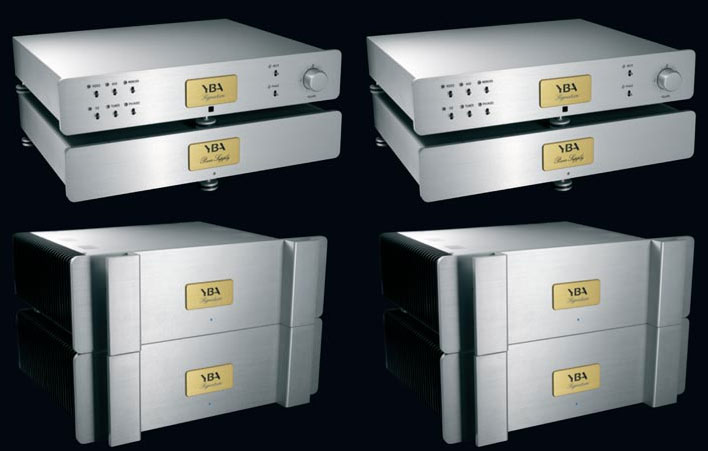

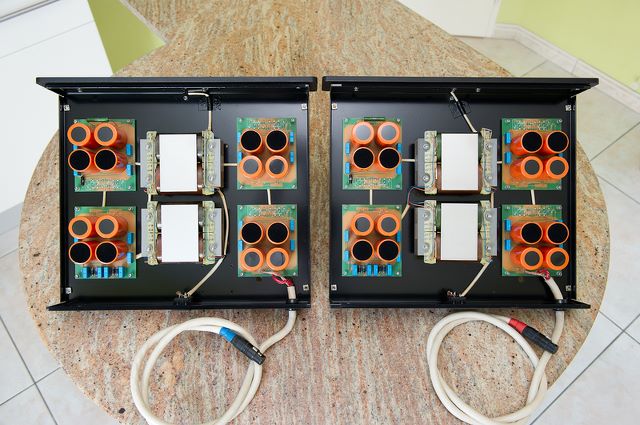

(Signature power amp : 1-case stereo version, 2 monaurals, and a 4-box version with 4 x 500VA transformers per channel)
