Musik007 21st May 2010 04:25 PM

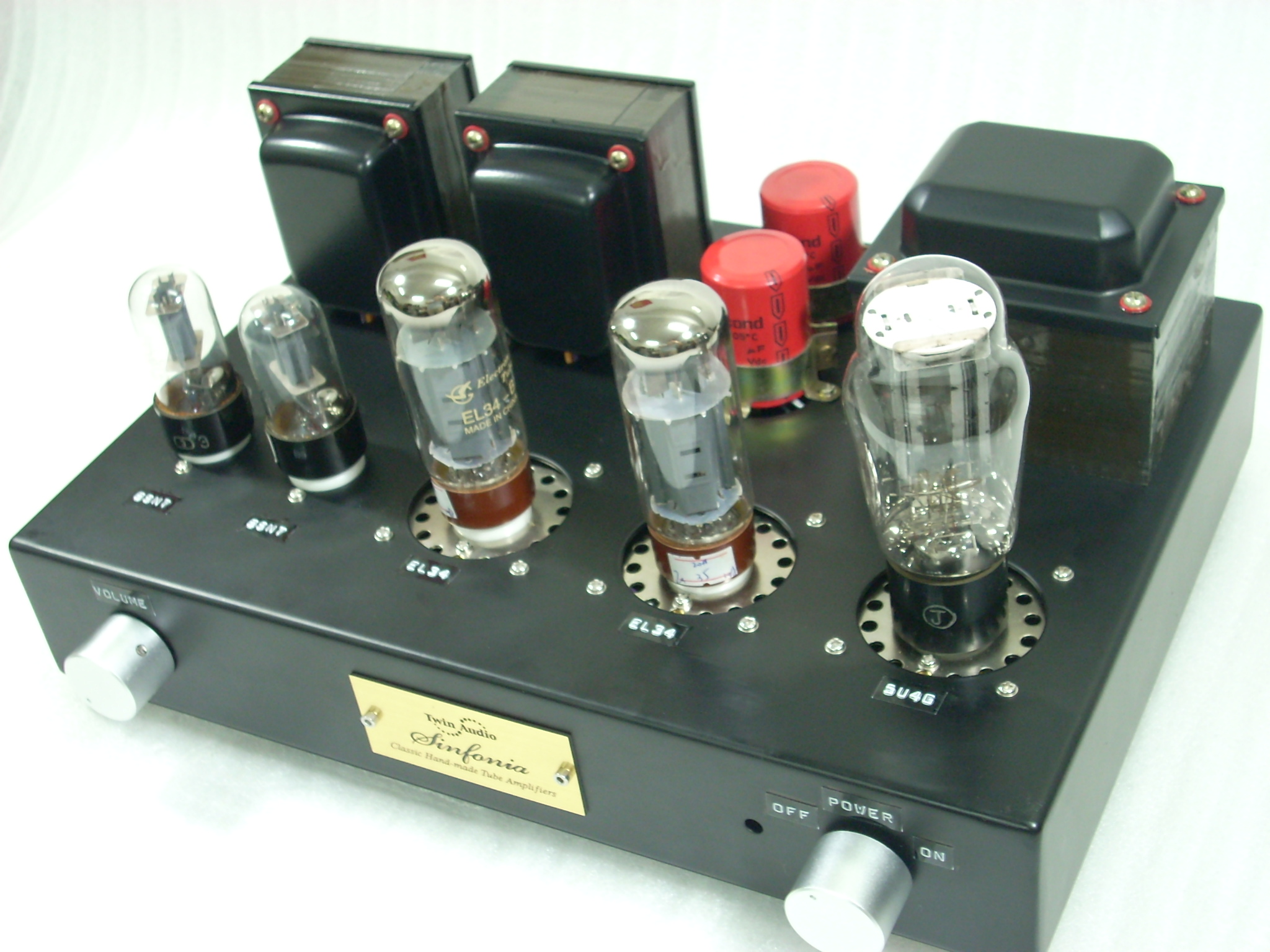

New EL34/6CA7/KT66 integrated amplifier

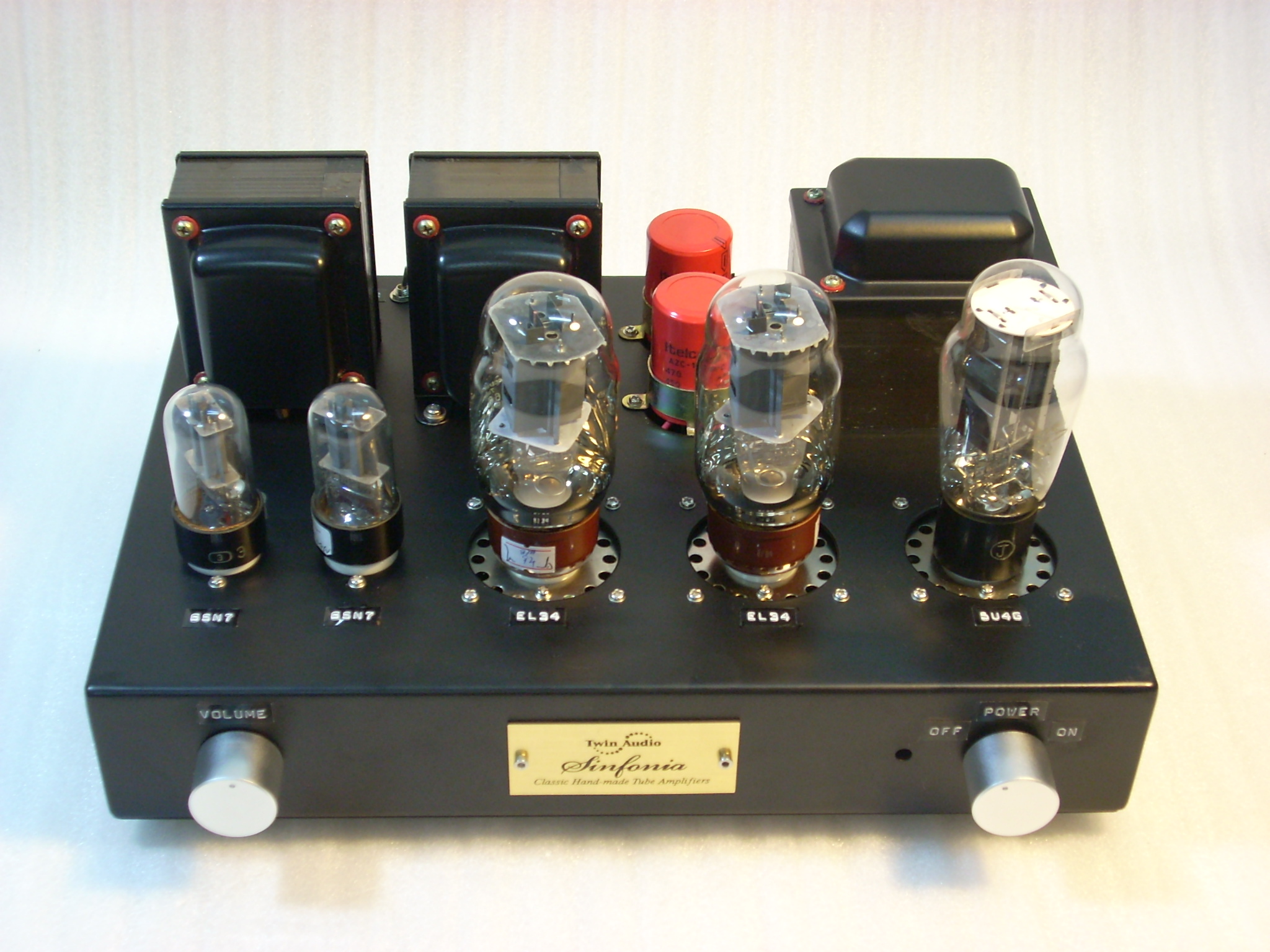

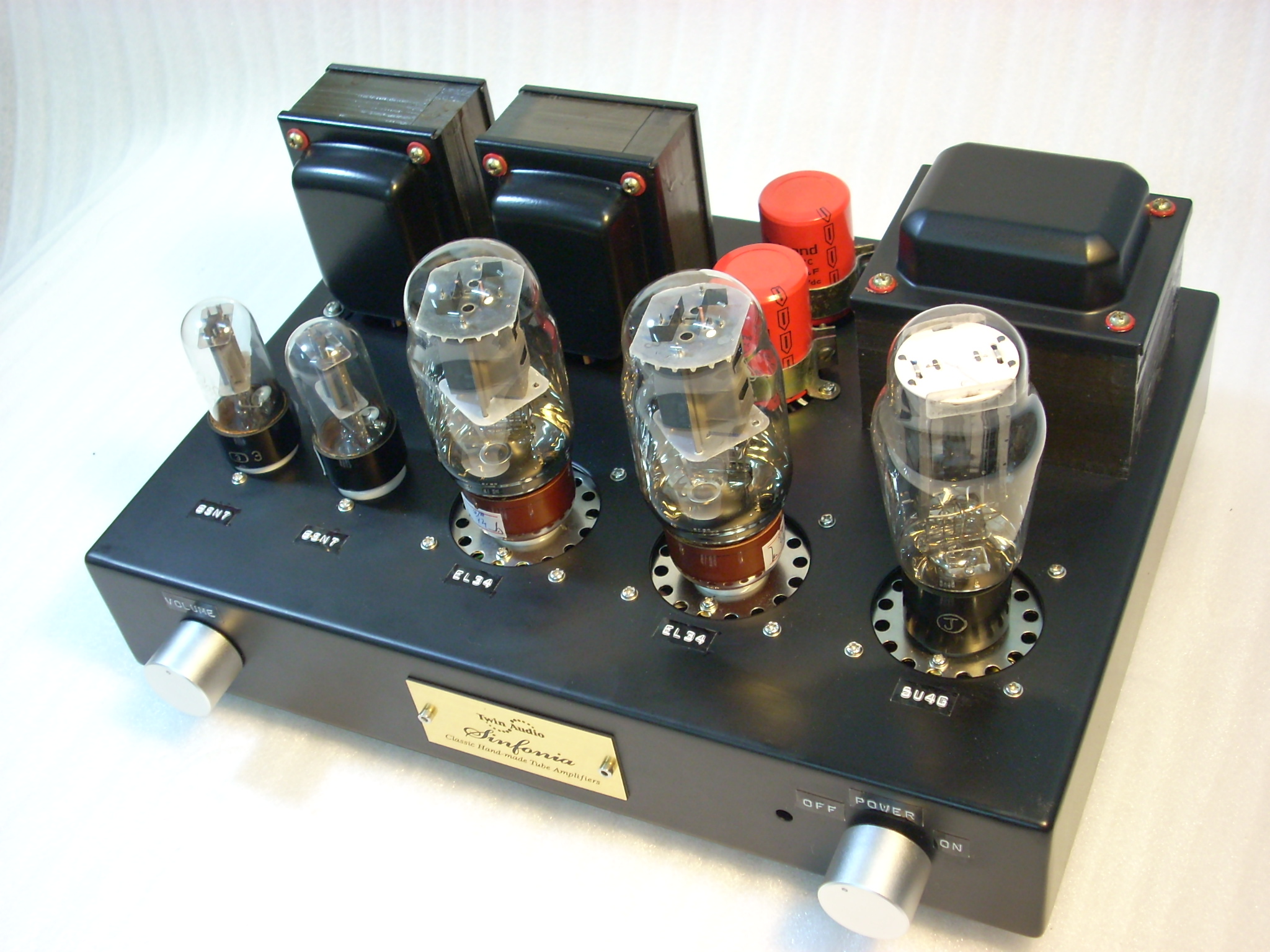

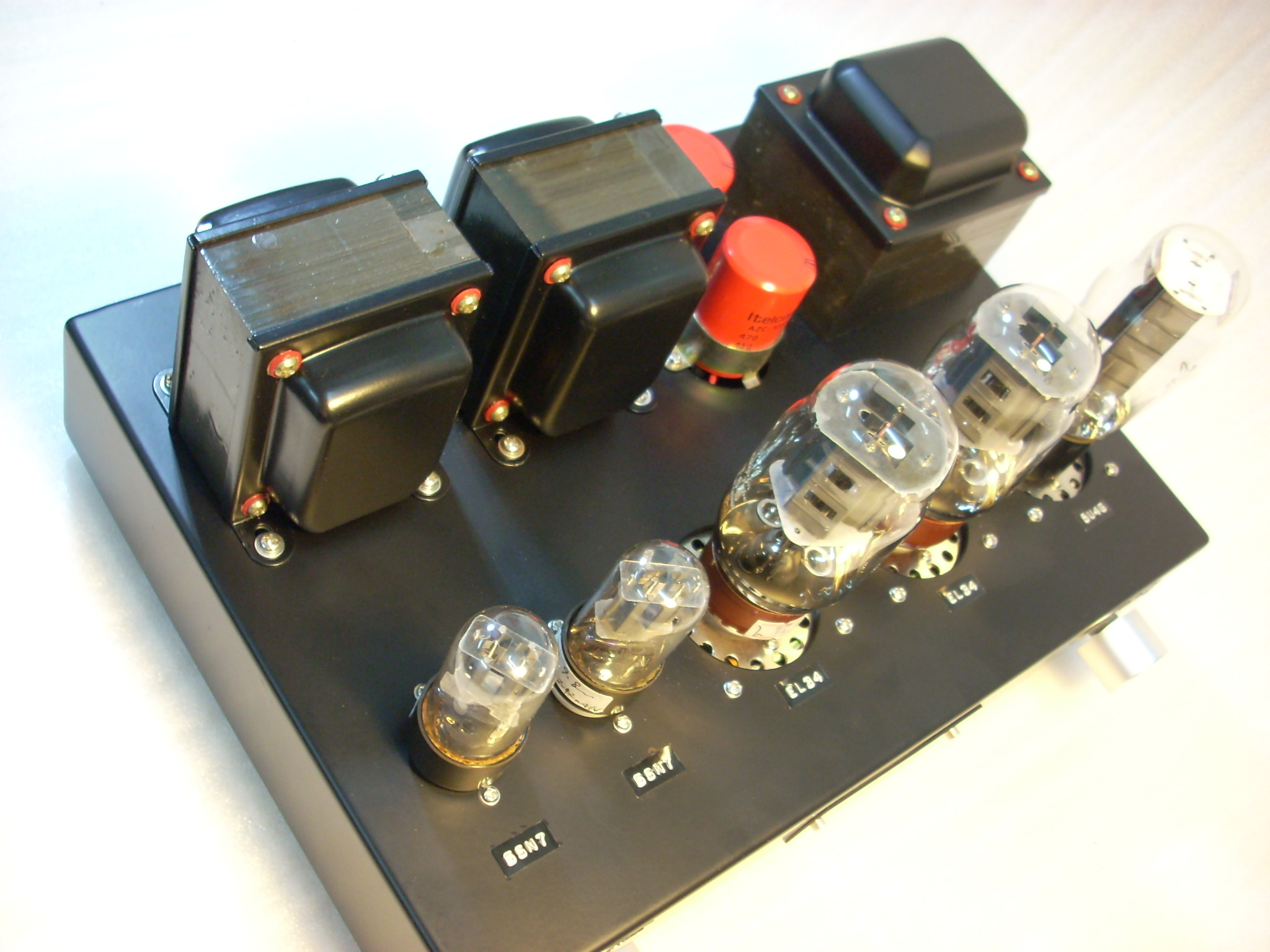

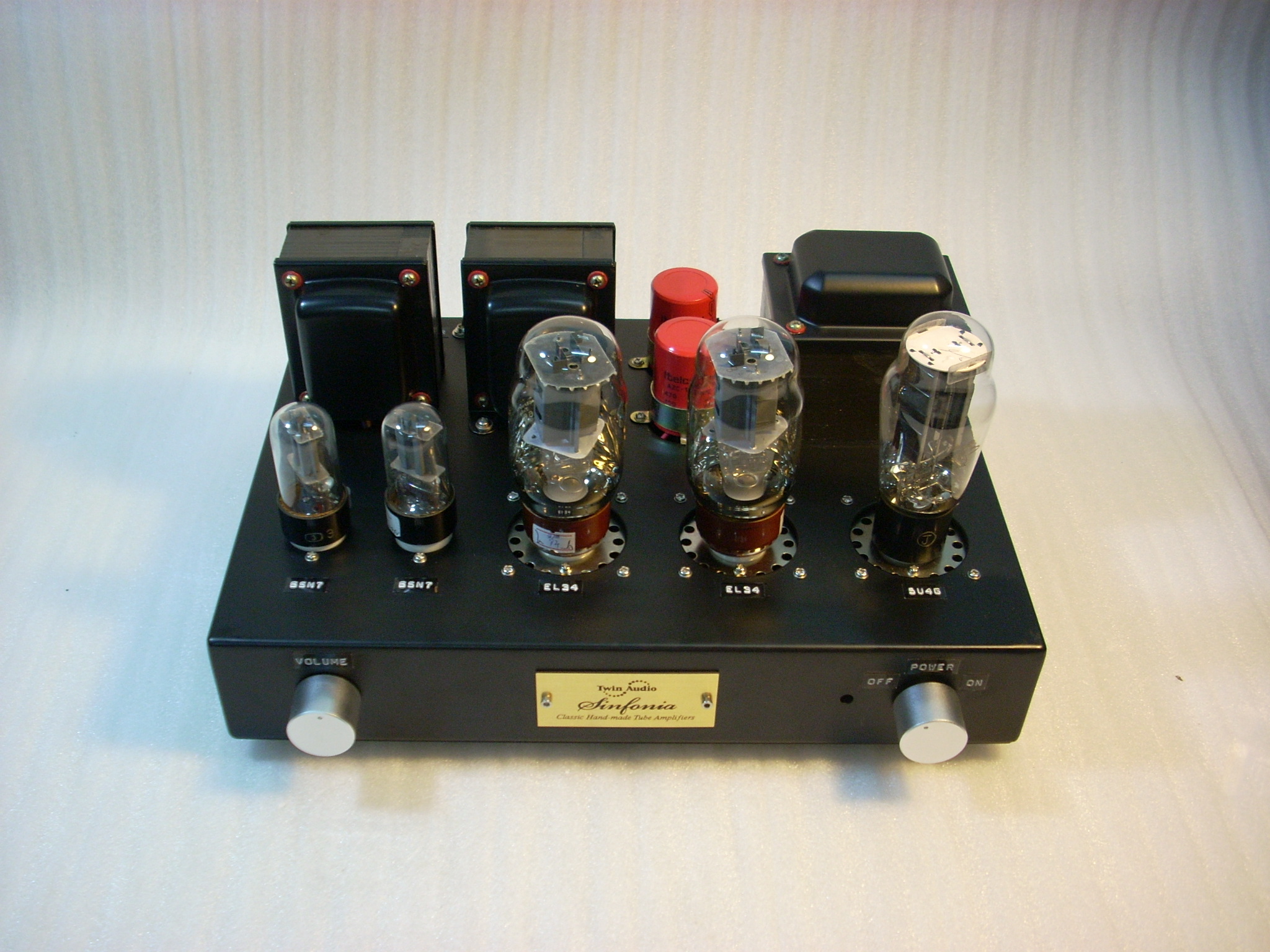

Our second new tube amplifier in May is available now. The circuit is 6SN7 SRPP drive EL34 class A single end. It's a simple EL34 single end circuit with pure class A sound. The output power is 7W. 6CA7 and KT66 are also suitable for this amplifier.

Dimension of the amp: 365W x 320D(inclu. binding posts and knobs) x 200H mm.
Net Weight: 11.8 KG

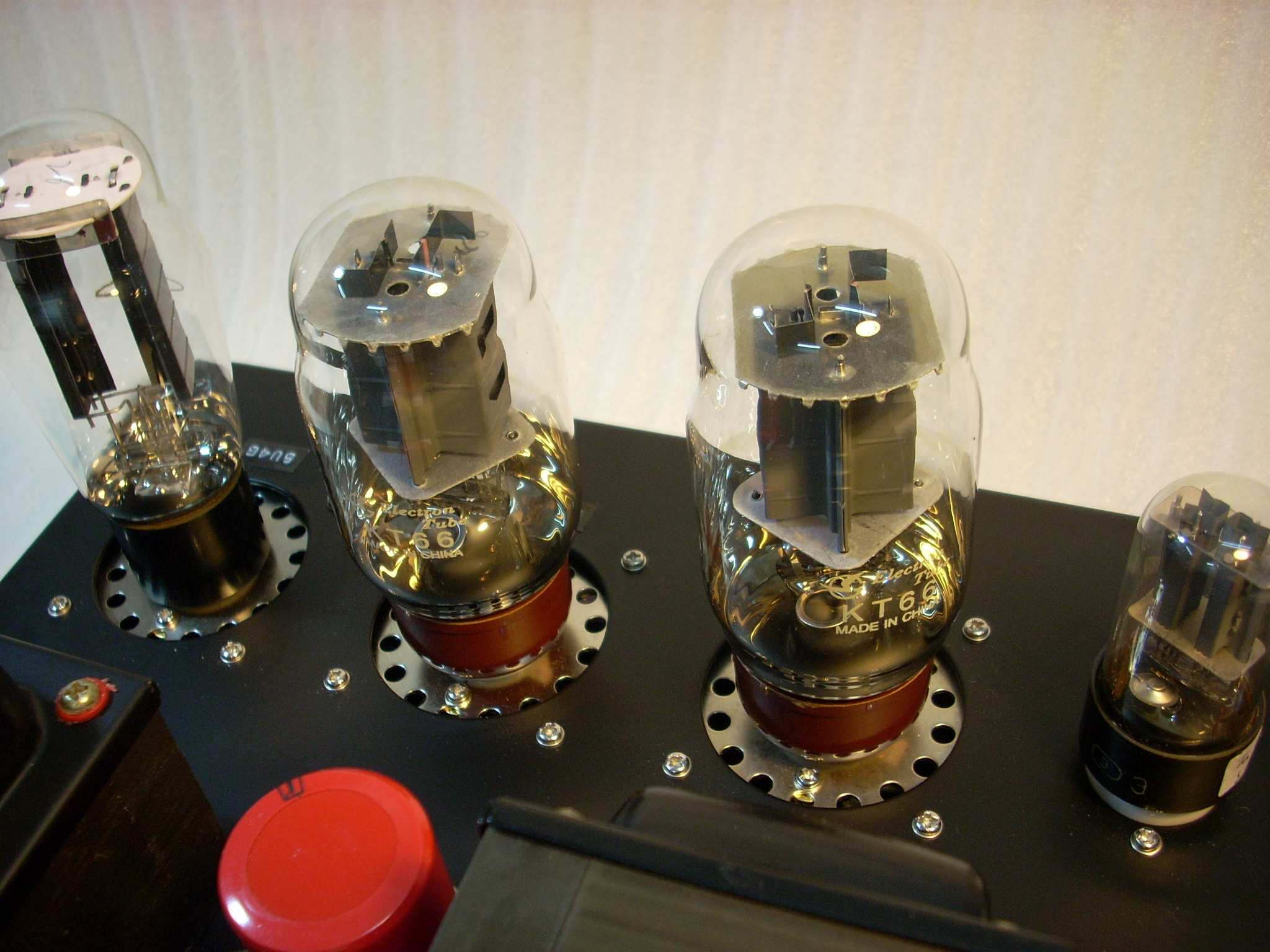

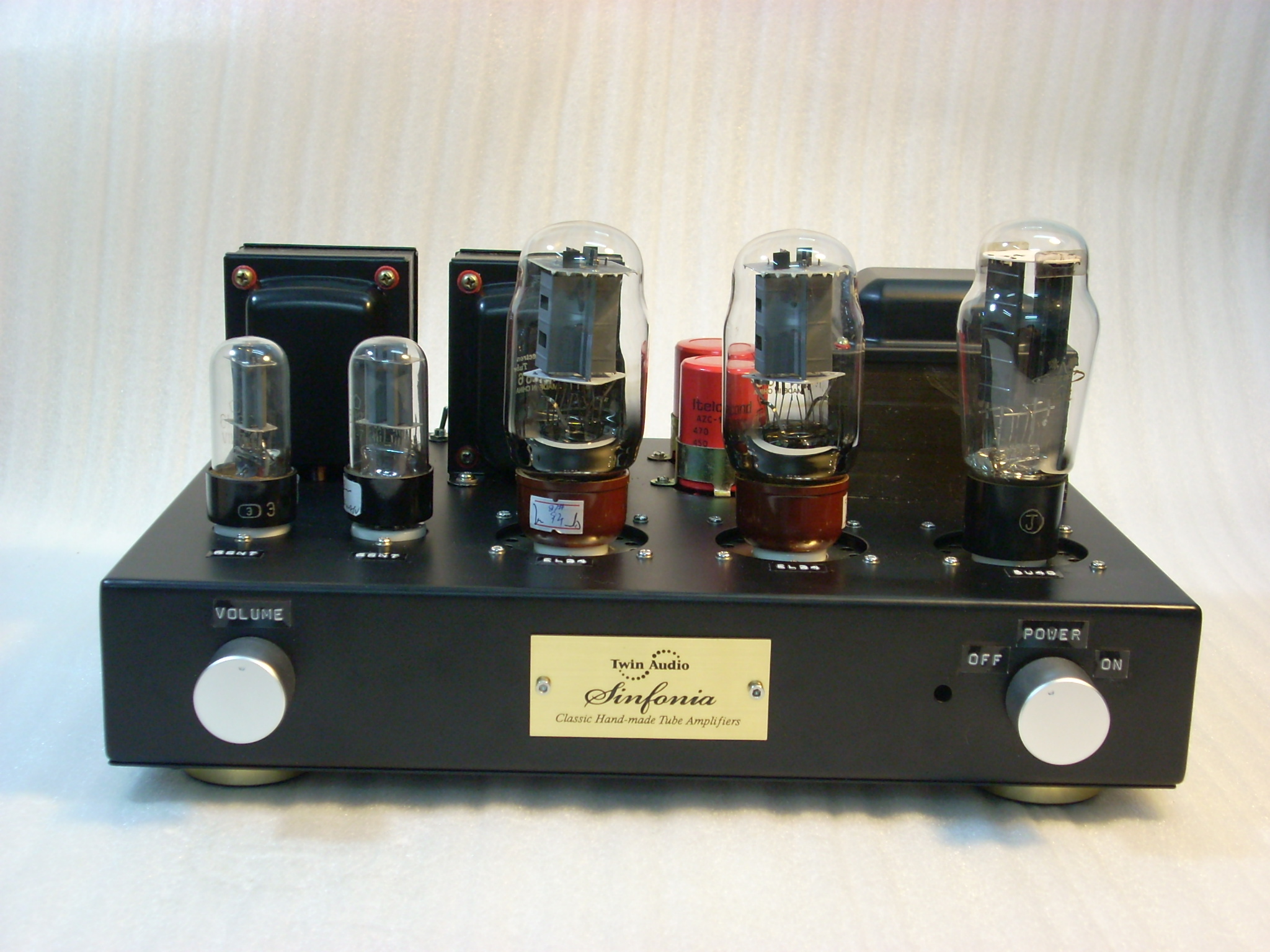

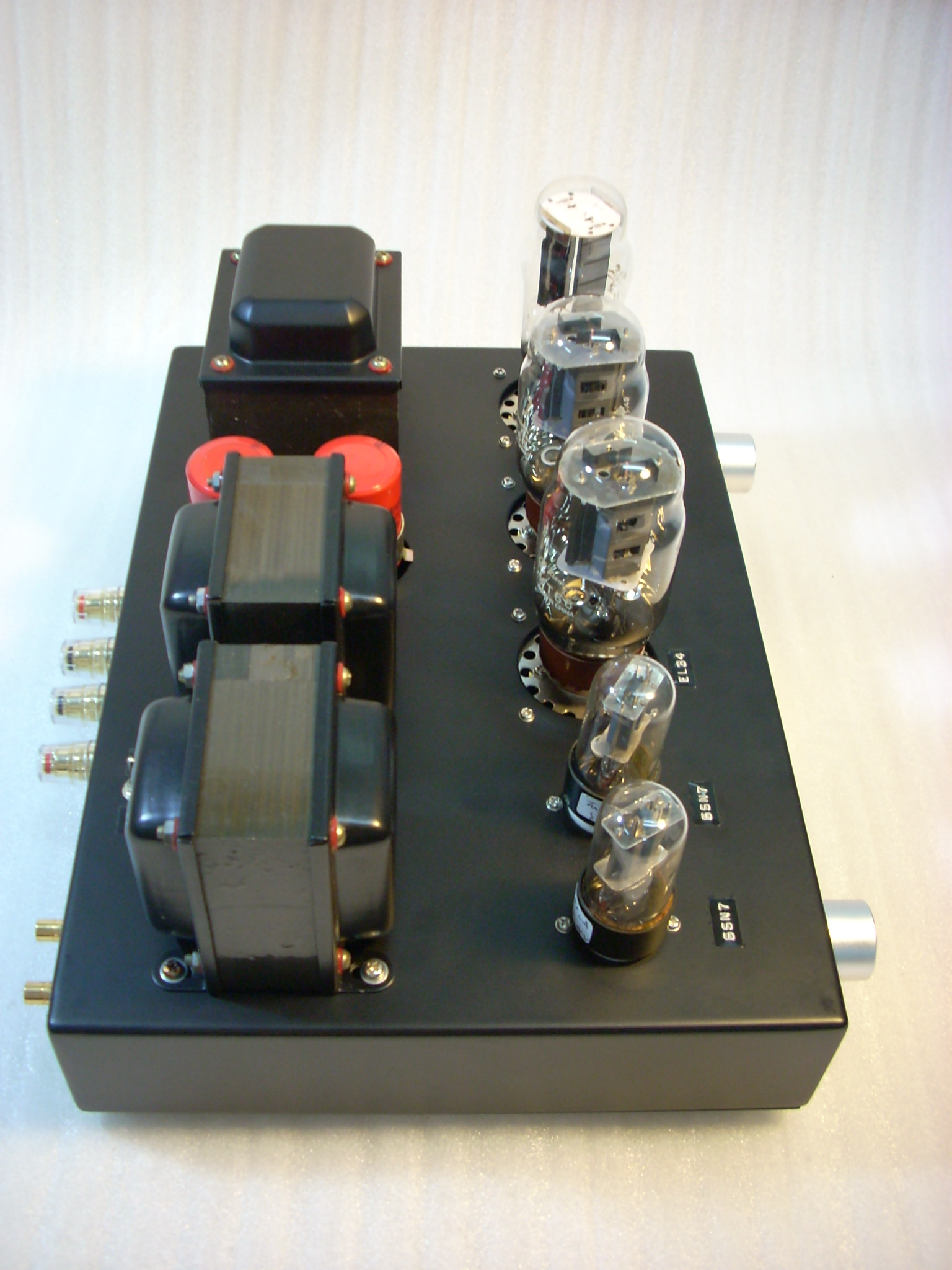

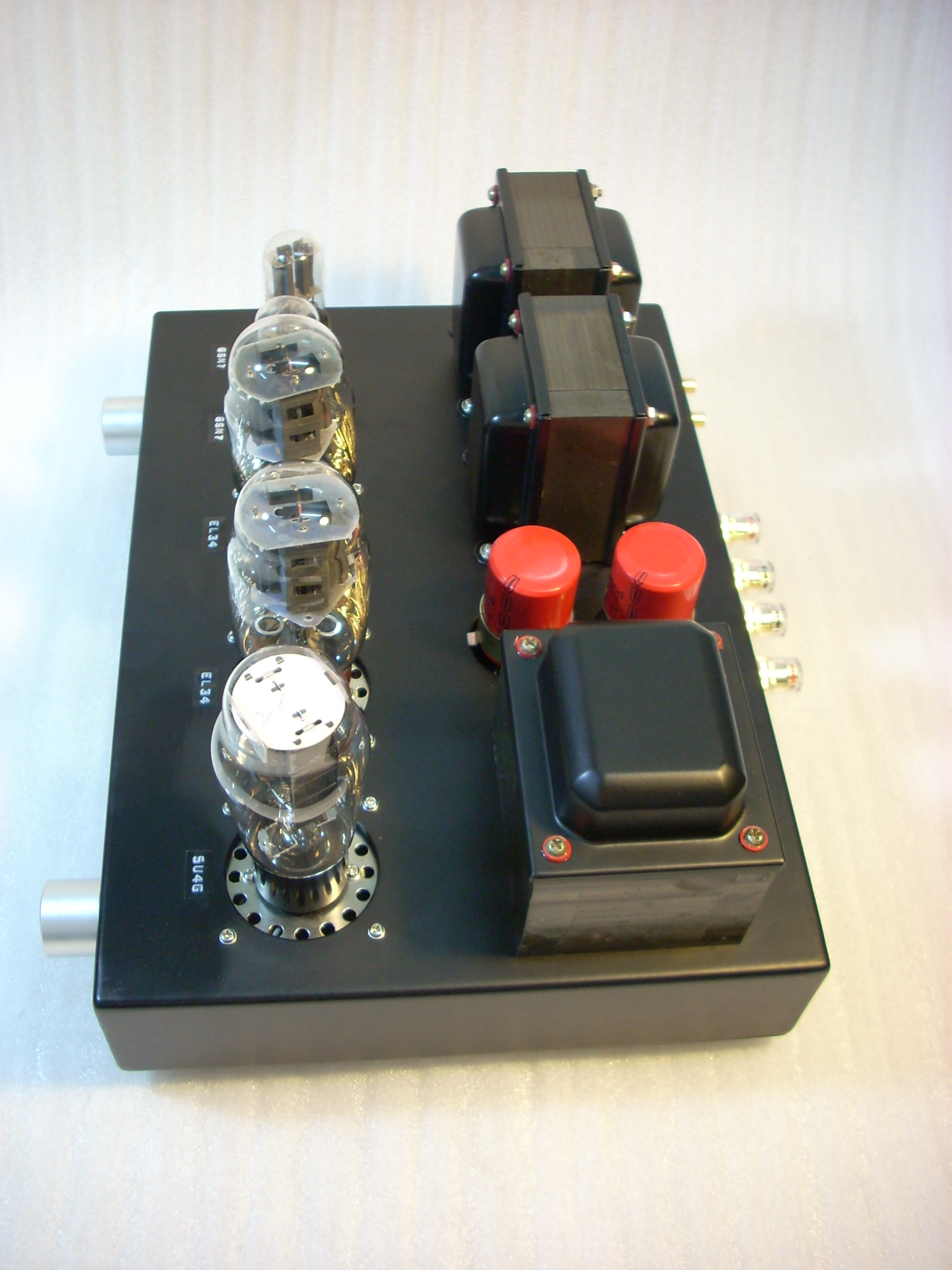

Can directly replace KT66 onto the amplifier. It is very easy to listen and experience different sound on the power tubes.

Musik007 21st May 2010 04:33 PM

We now offer a promotional price for this amplifier, USD438 including Russia 6H8C(=6SN7), China Shuguang EL34-B and 5Z3P(=5U4G). The amplifier was designed, made and soldered by Thomas.

Musik007 23rd May 2010 03:20 PM

1 Attachment(s)

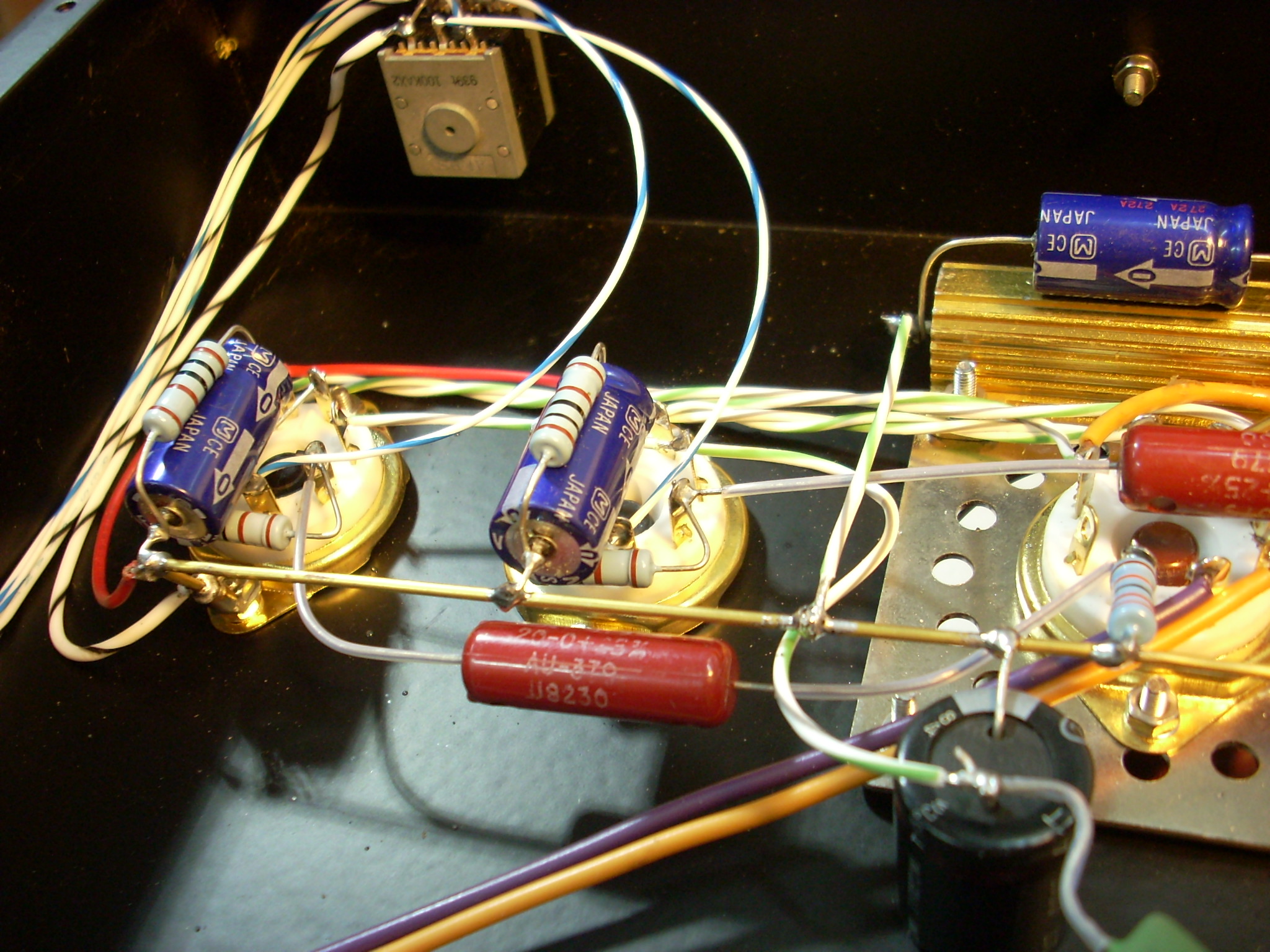

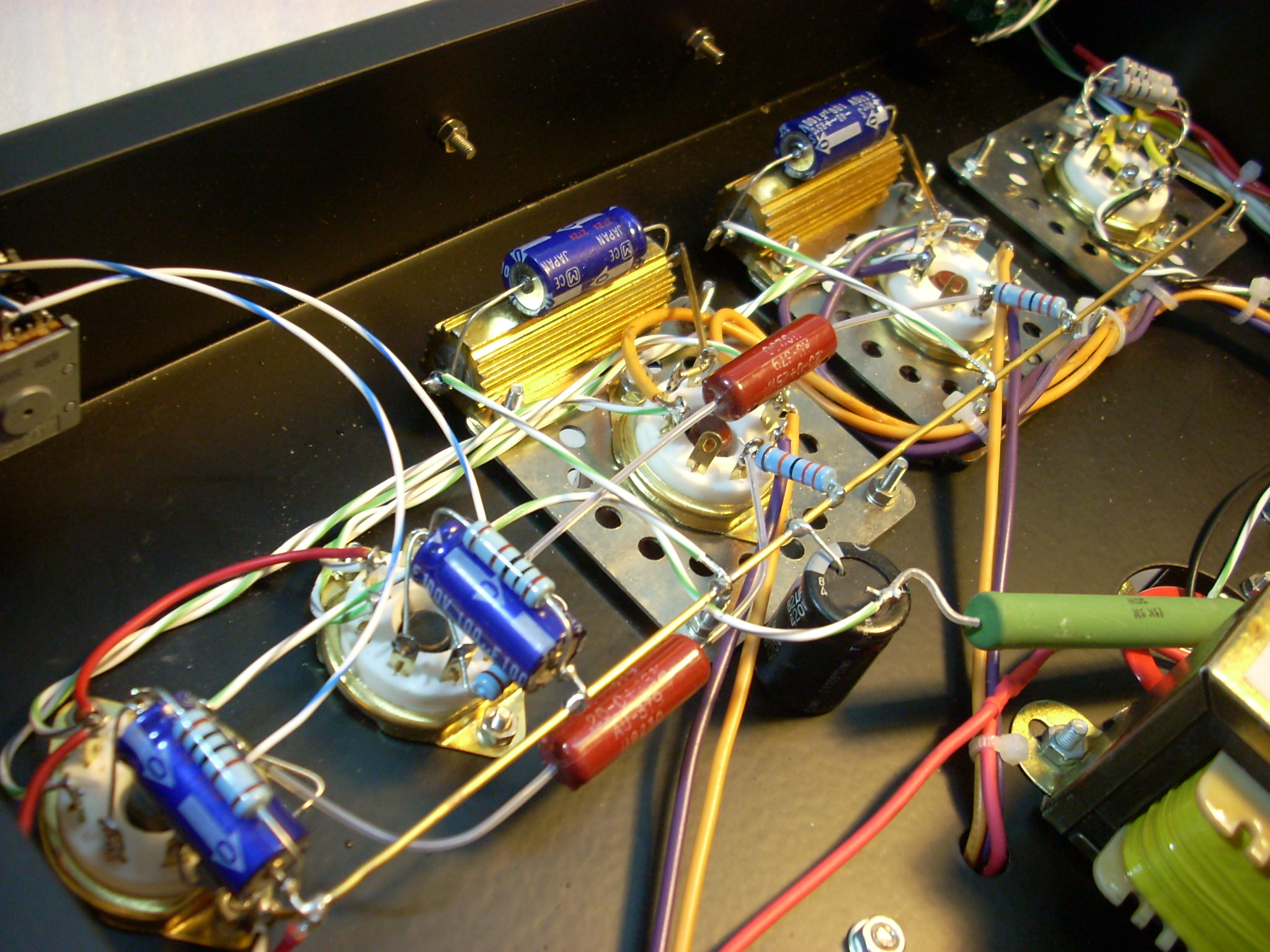

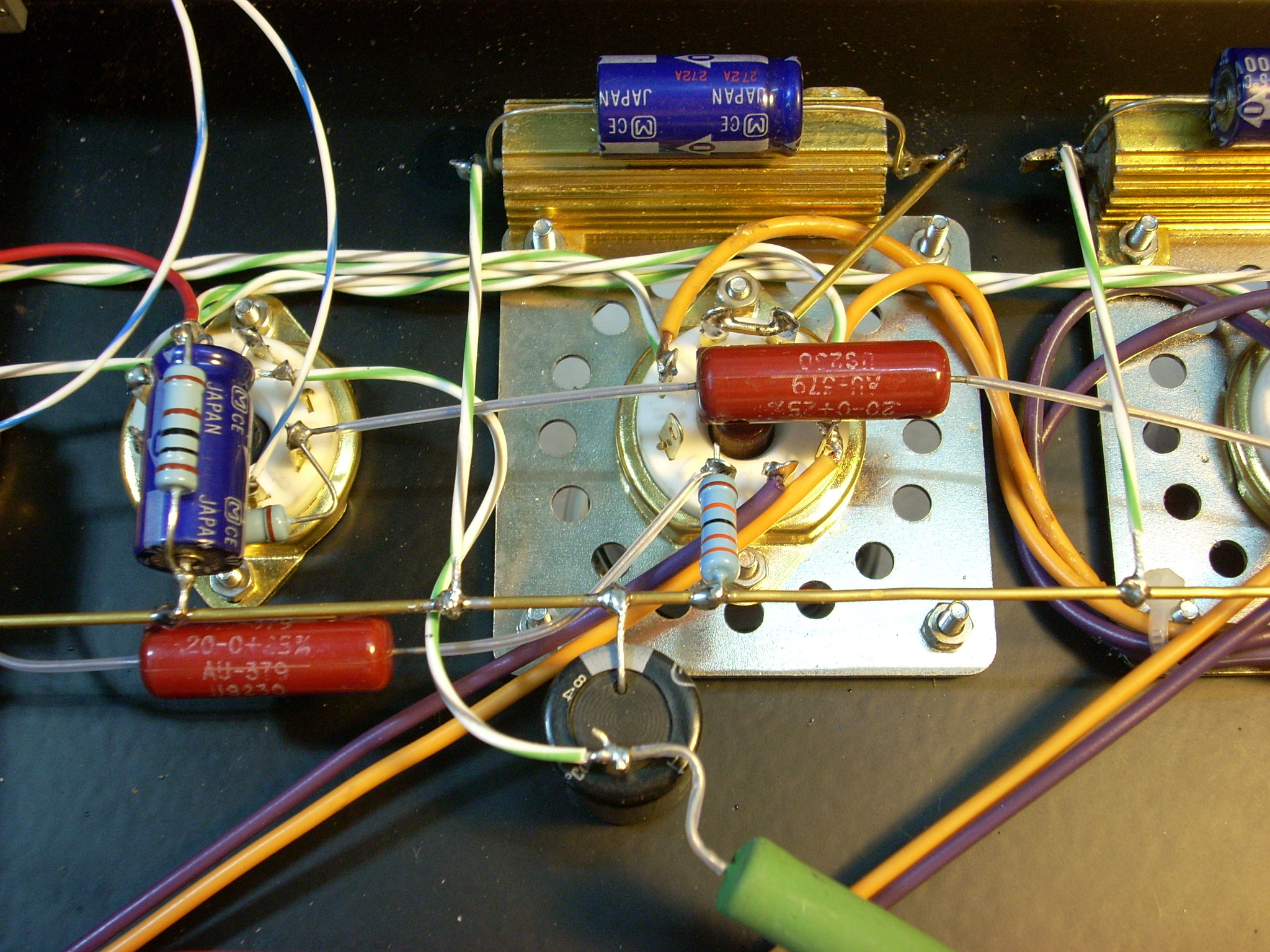

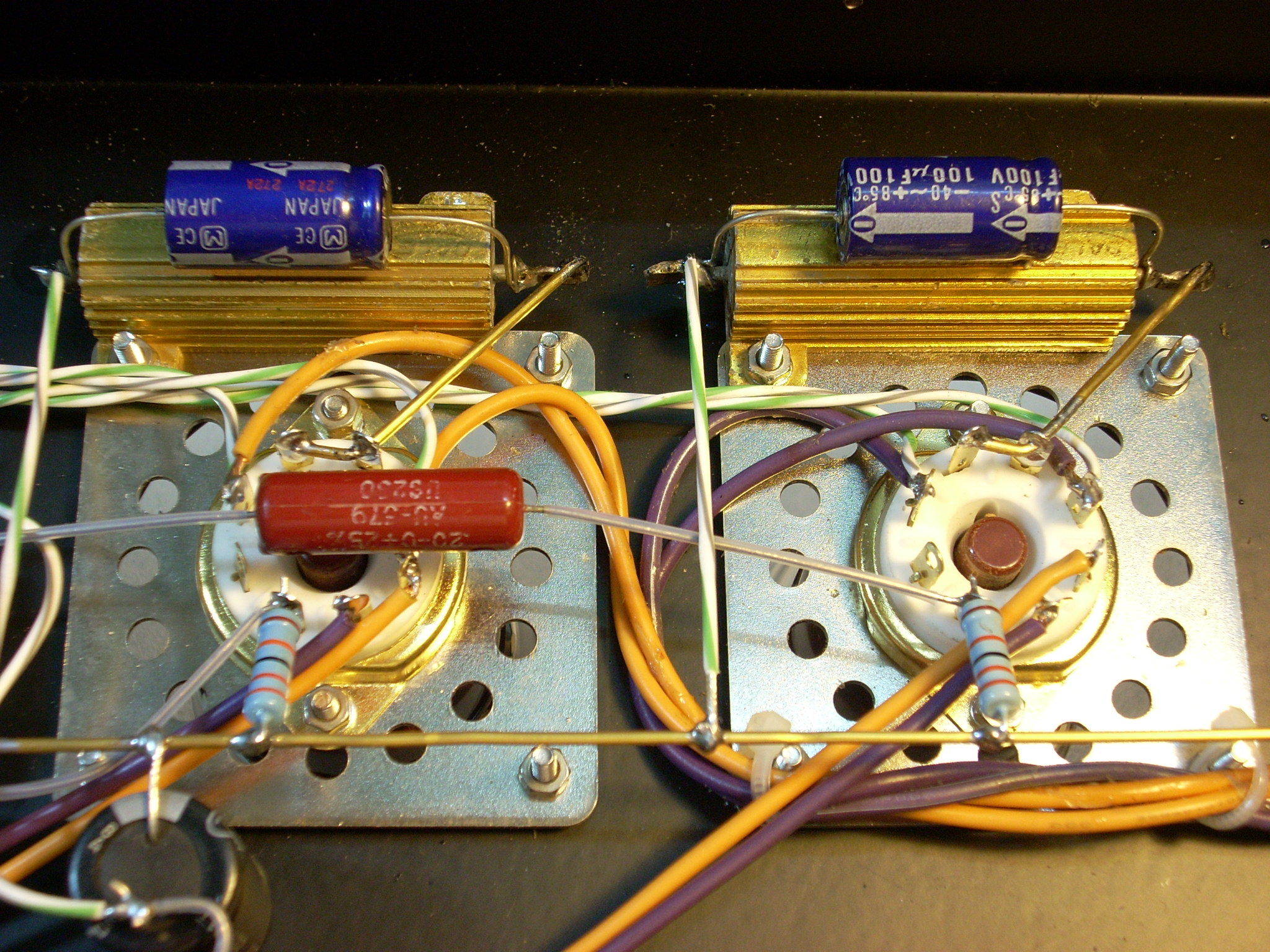

This is one of typical layout of tube amp.

Musik007 26th May 2010 02:46 PM

1 Attachment(s)

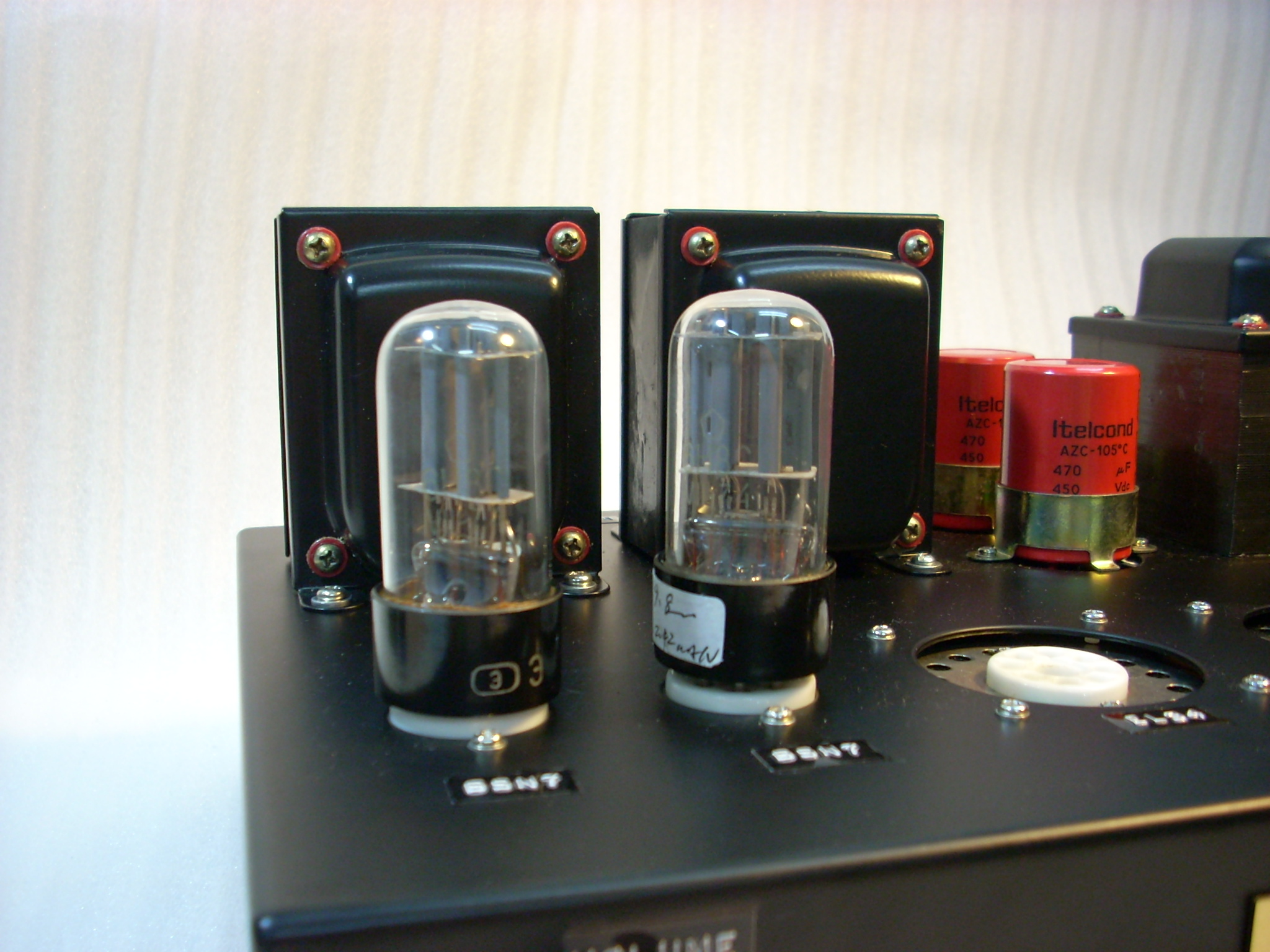

These are old 6H8C twin triodes which were made in Soviet Union. The specification of 6H8C is same as 6SN7.

Musik007 26th May 2010 03:27 PM

1 Attachment(s)

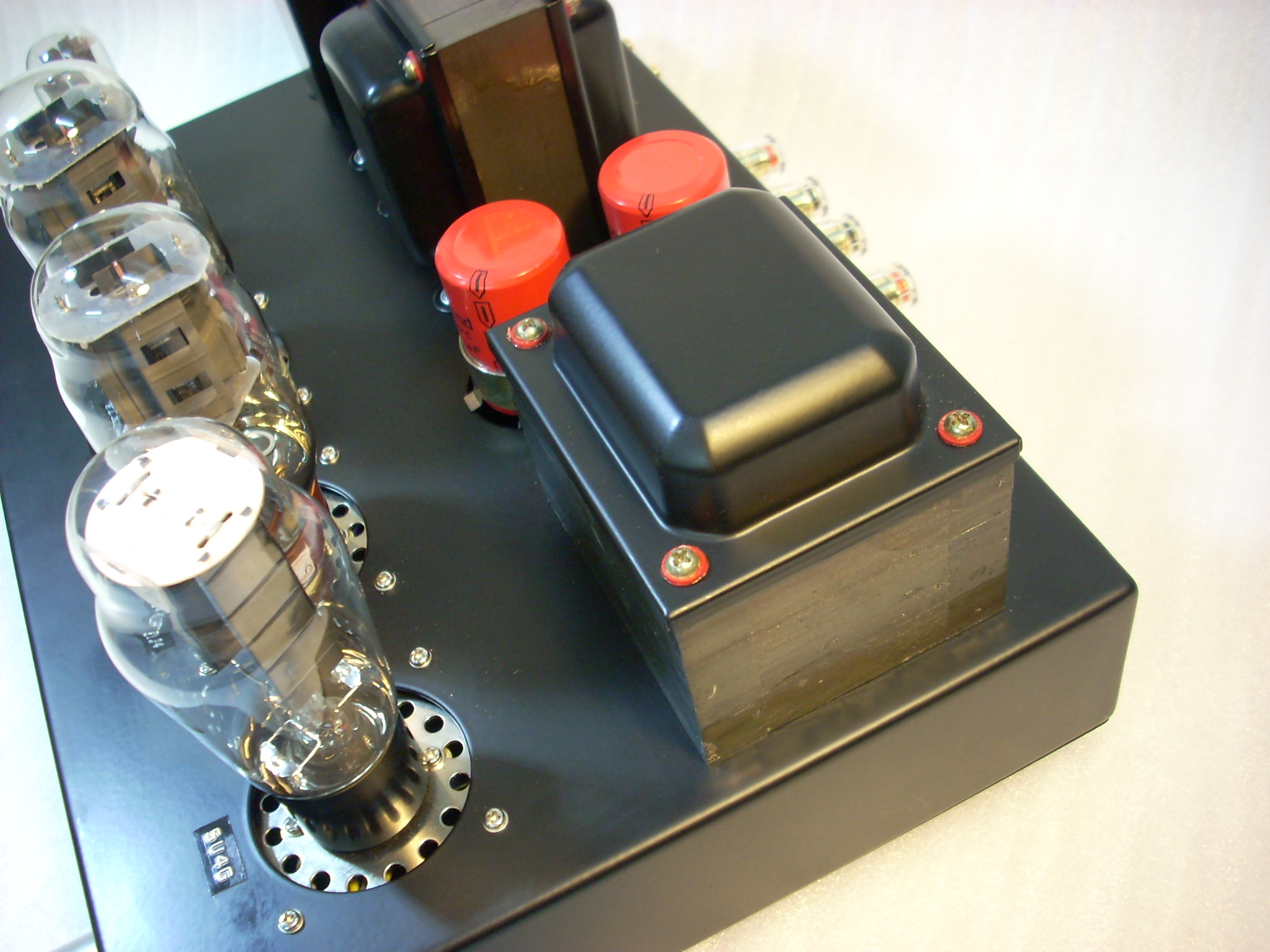

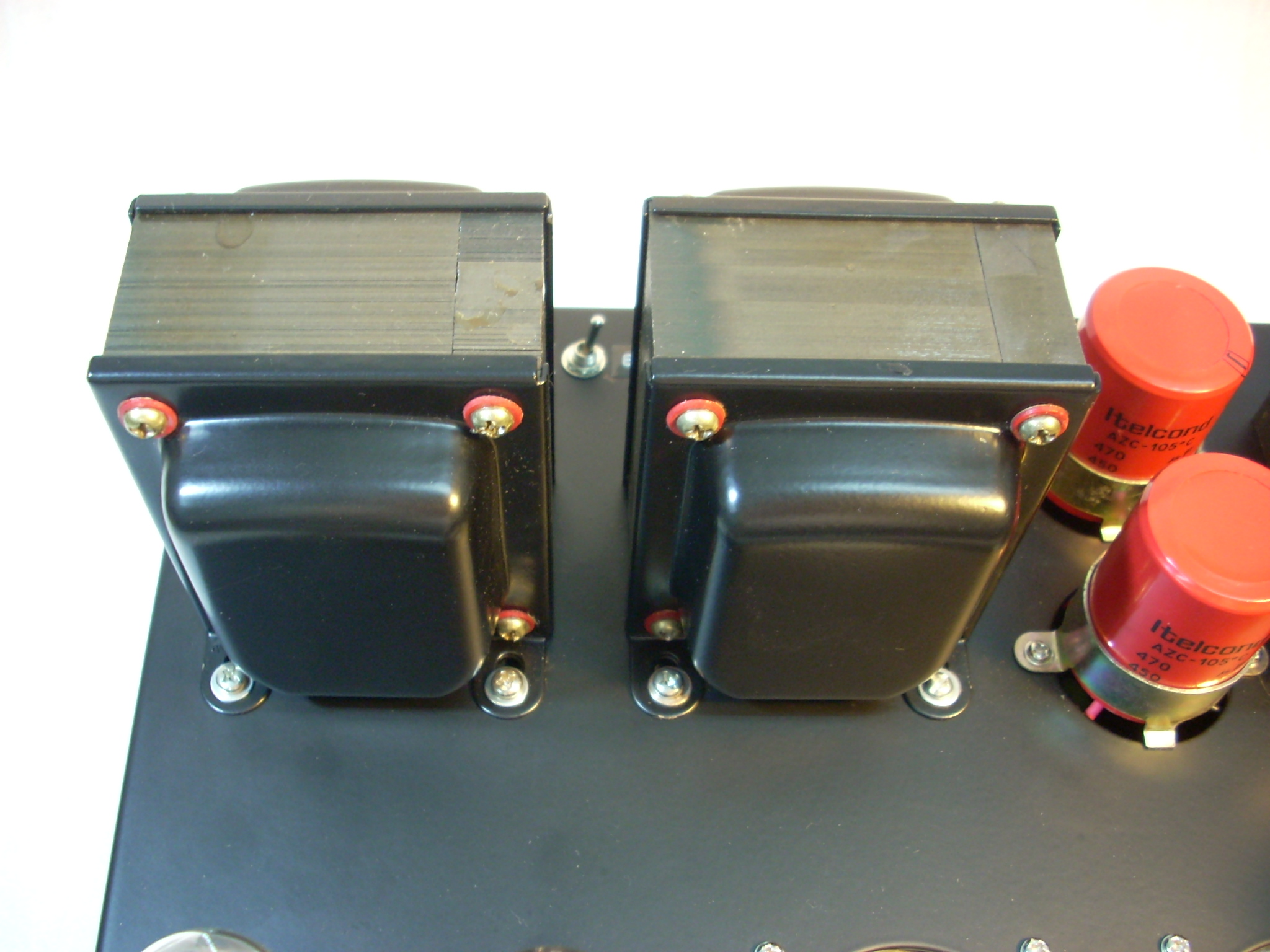

The output transformers are made with H10 EI 86 x 40 mm x 0.35mm steel cores. The primary impedance is 3.8K and secondary impedance is 0-4-8 ohms. The output power is 15W.

Musik007 26th May 2010 03:53 PM

2 Attachment(s)

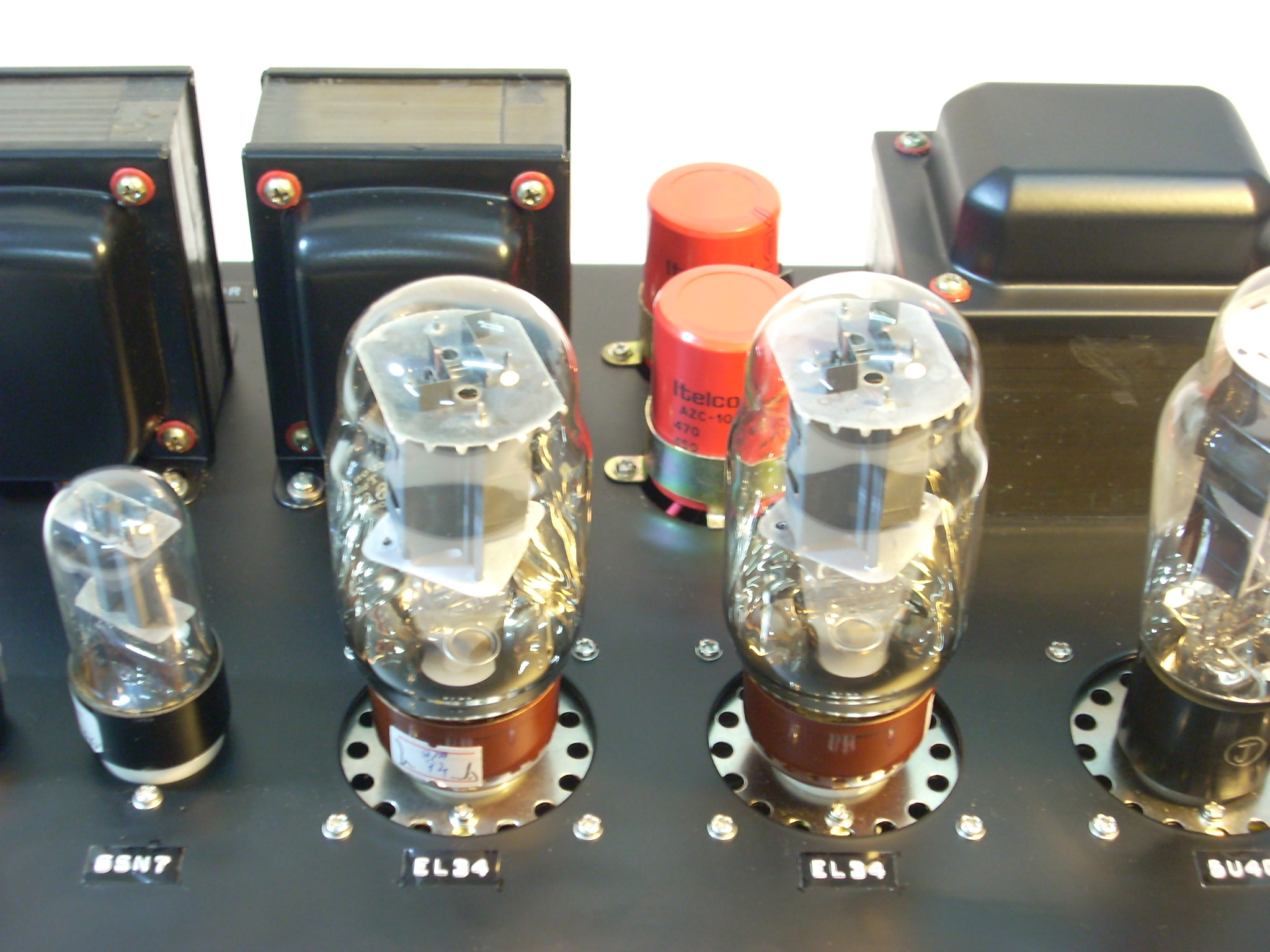

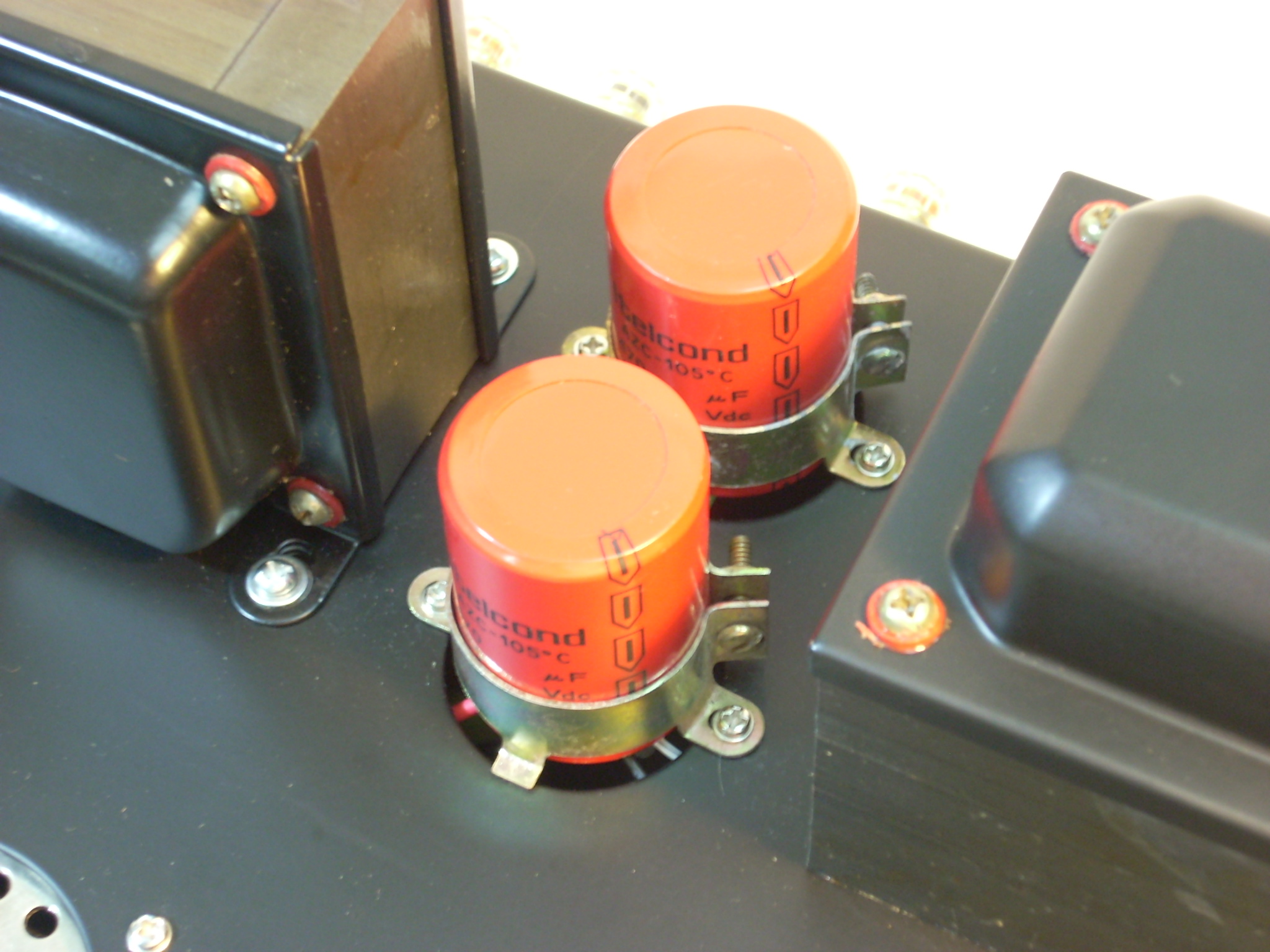

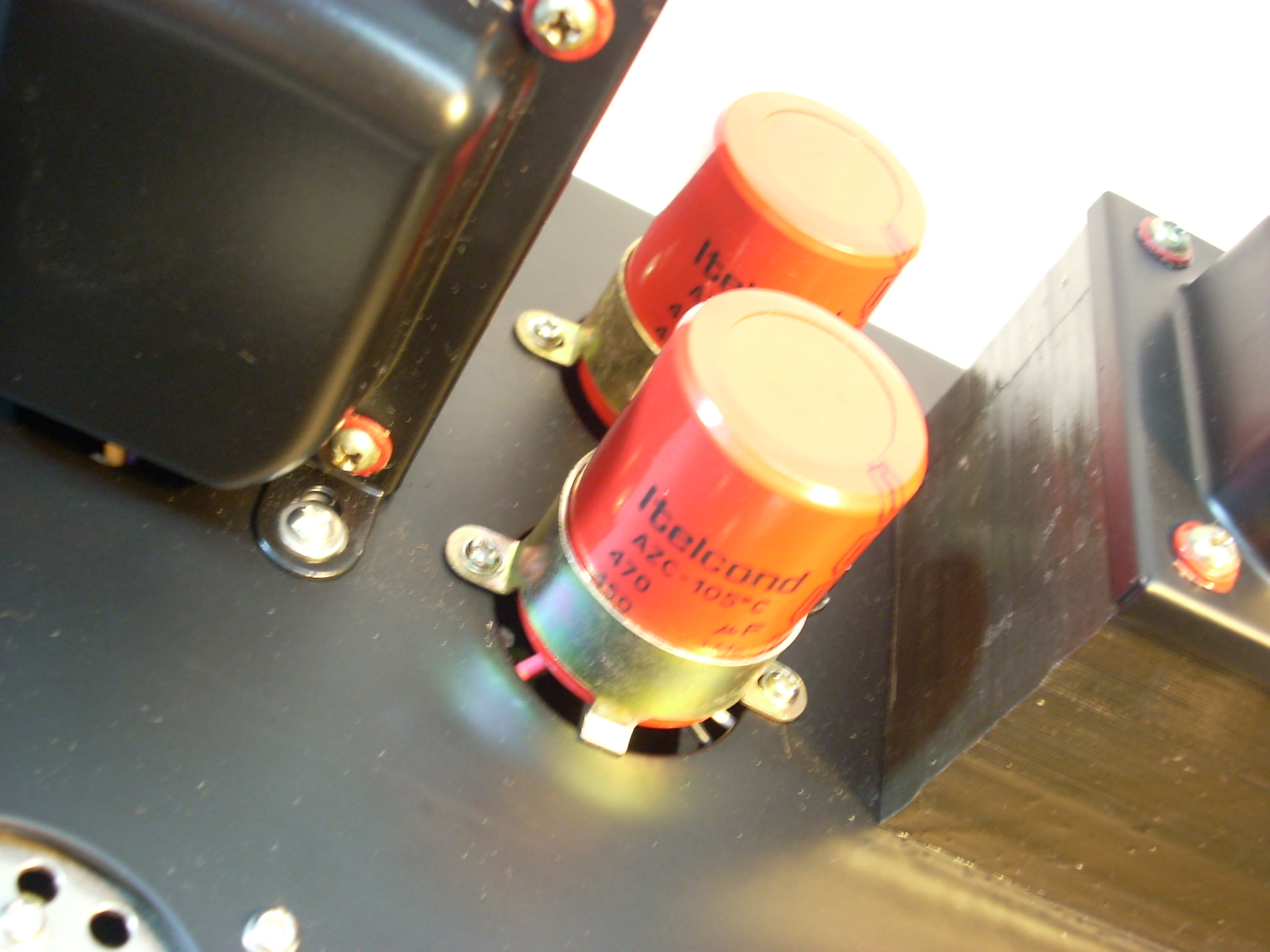

Italy made Itelcond 470uF/450VDC electrolytic capacitors handle CLC filtering with choke. High quality and stable.

Musik007 26th May 2010 04:41 PM

1 Attachment(s)
The power transformer is 200VA EI 96 x 60 x 0.35mm steel core. The output voltage is 290V-0-290V/250mA.

We can order the power transformers in other voltages like 100V, 110V and 230V, etc.

Musik007 27th May 2010 03:05 PM

1 Attachment(s)

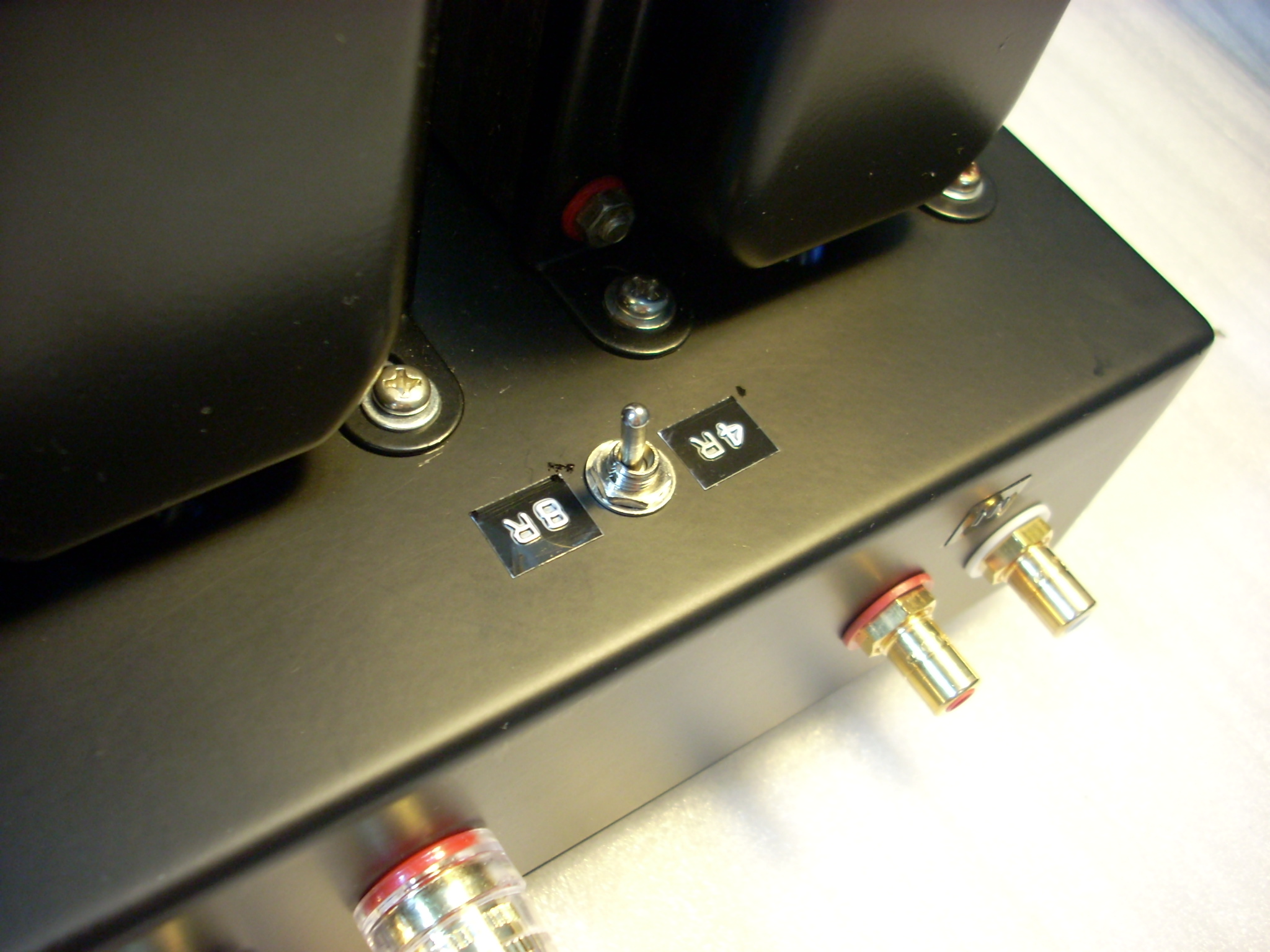

One pair audio input and no selector used ensures direct signal path. The RCA sockets are CMC long style.

Musik007 28th May 2010 03:45 PM

2 Attachment(s)

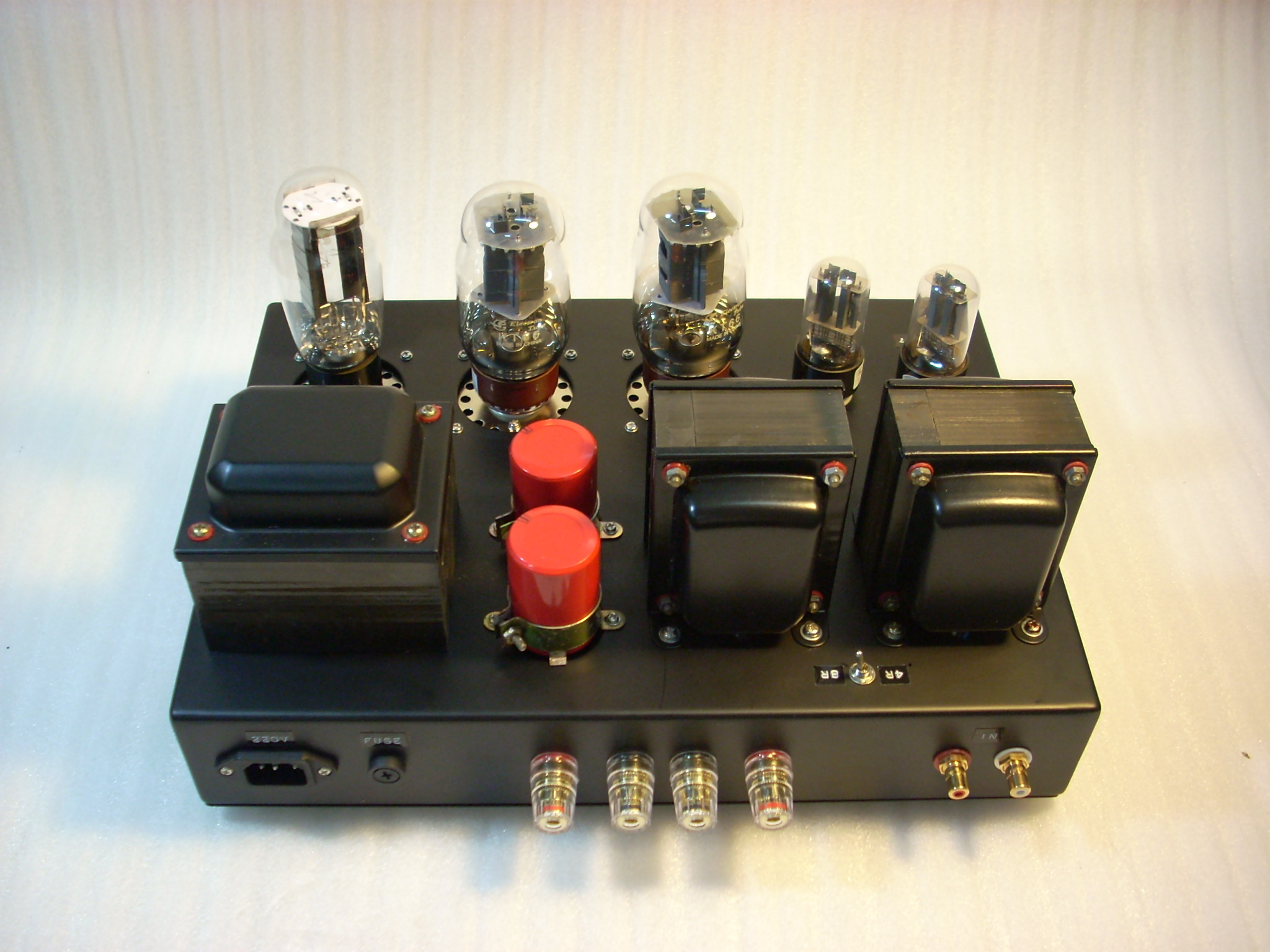

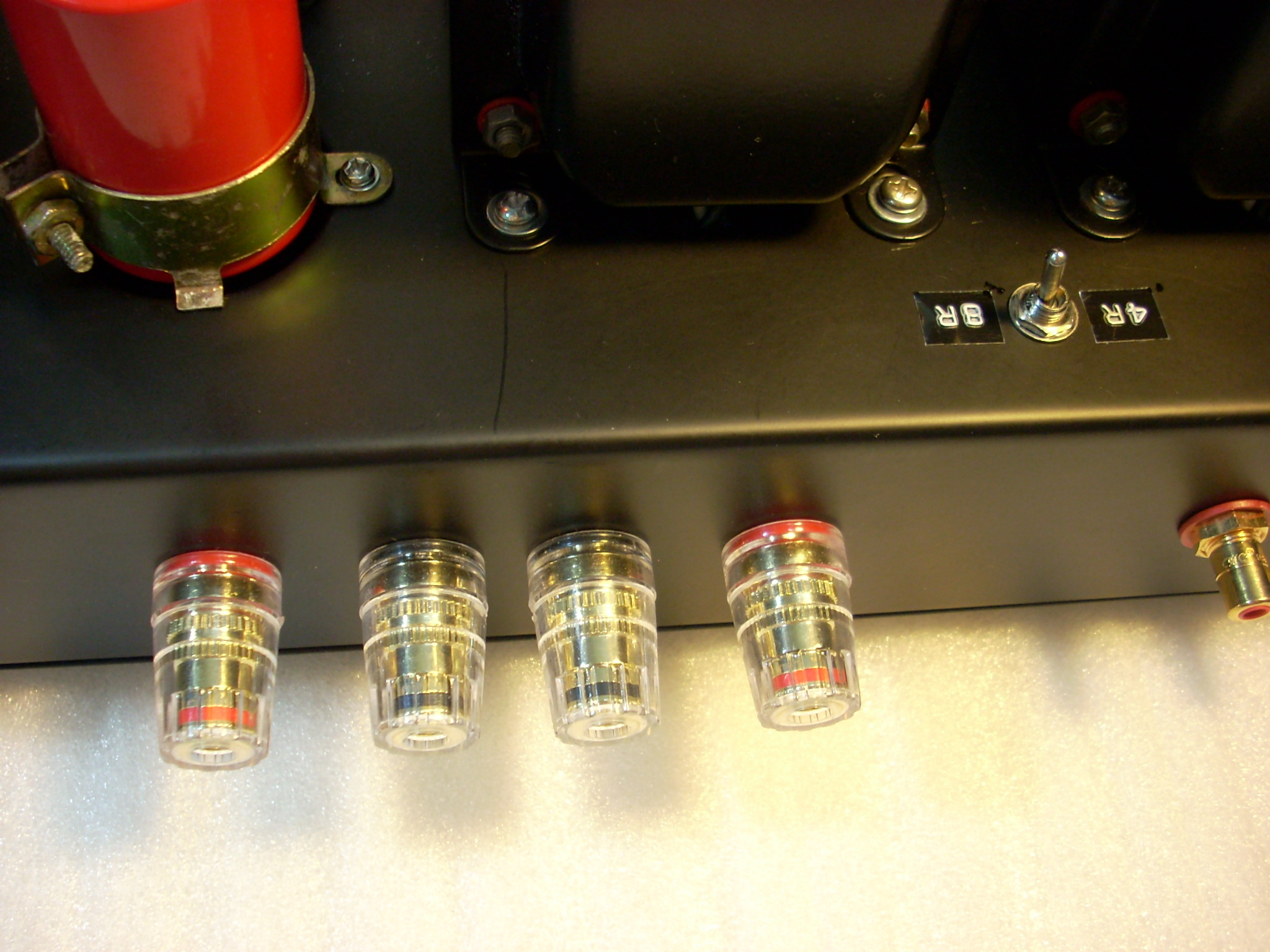

There is a speaker output switch at the back. Can select either 4 ohms or 8 ohms on the switch.

Musik007 29th May 2010 03:47 PM

1 Attachment(s)

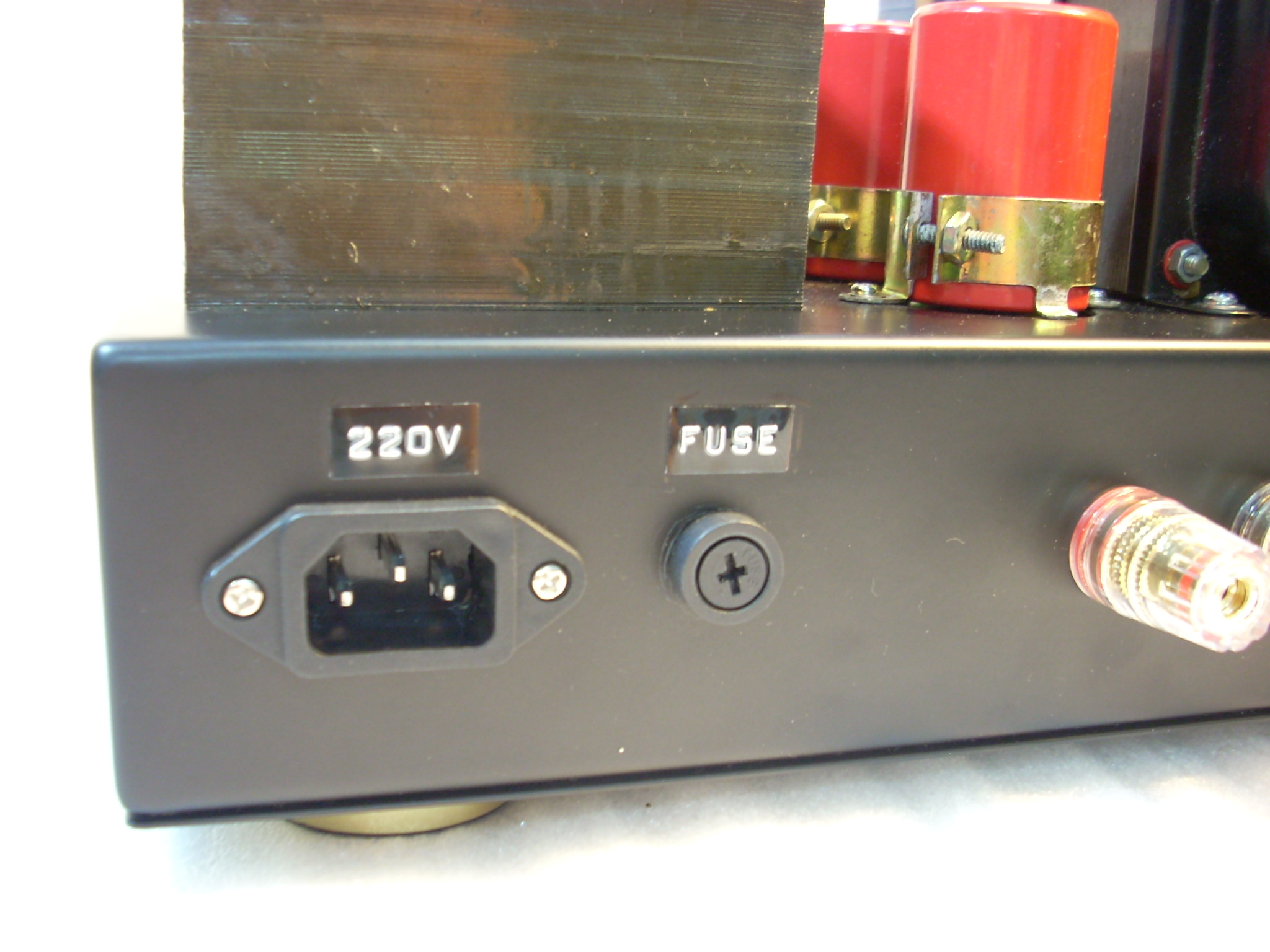

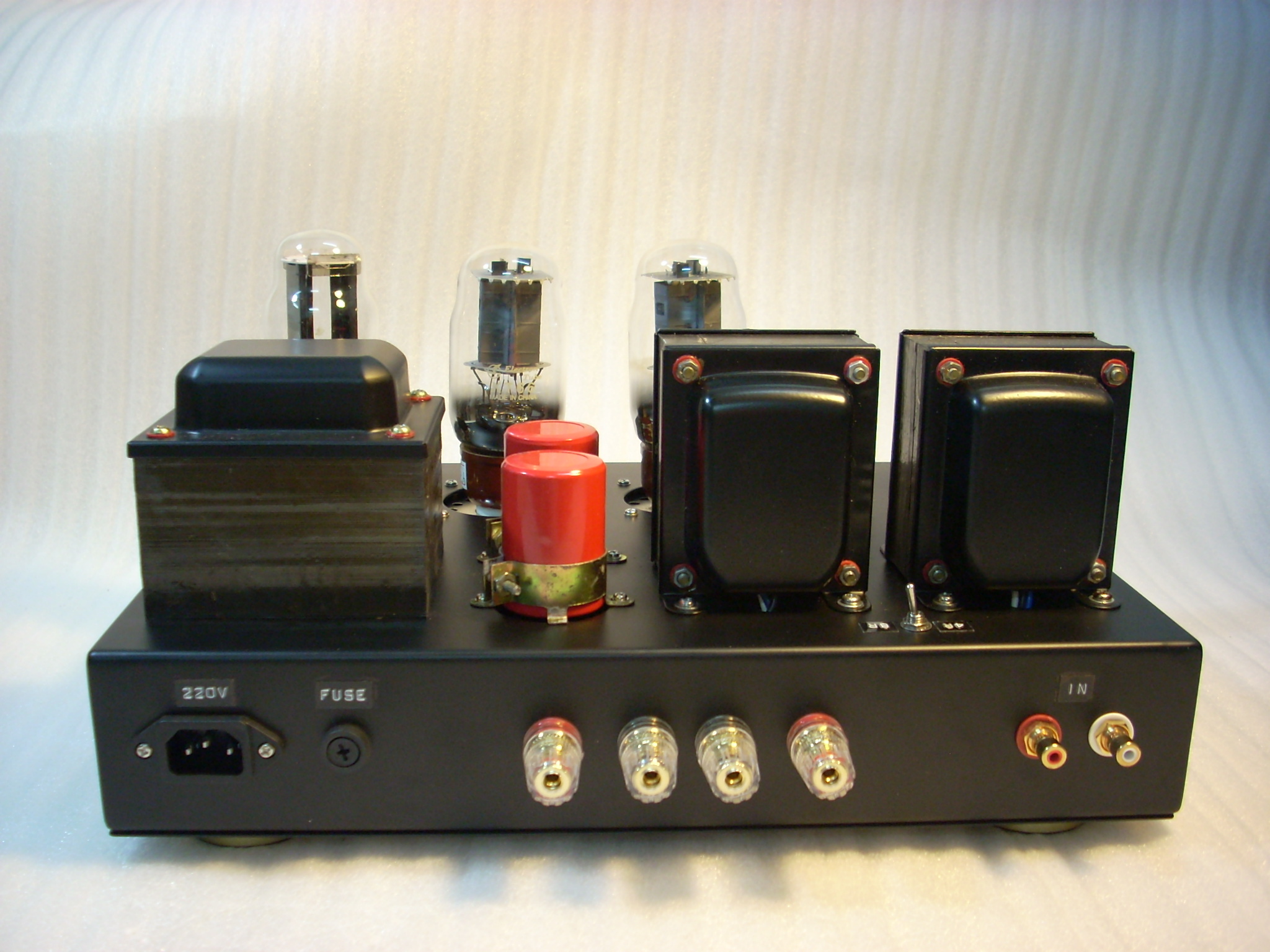

The voltage of this amp is 220V.
