WTB: Amp Camp #1 PCB

[mortron]

Hello,
Looking for a pair of ACA #1 PCB's as the store is still out of stock.
Thanks



[Rudi_Ratlos]

Mortron,

are you able to etch a PCB by yourself?

I have done my own layout of the ACA:


http://www.abload.de/img/image1w8u74.png

and it works flawlessly.
I can send you the Gerber-files.

Best regards - Rudi_Ratlos



[mortron]

unfortunately no, i don't have those abilities... your amp is quite a beauty. do you have a build thread?



[guglielmope]

Hello Rudi,
do you have a PDF 1:1 file of your PCB?
Thanks a lot.
Ciao
Guglielmo



[Rudi_Ratlos]

O course I have, Guglielmo!

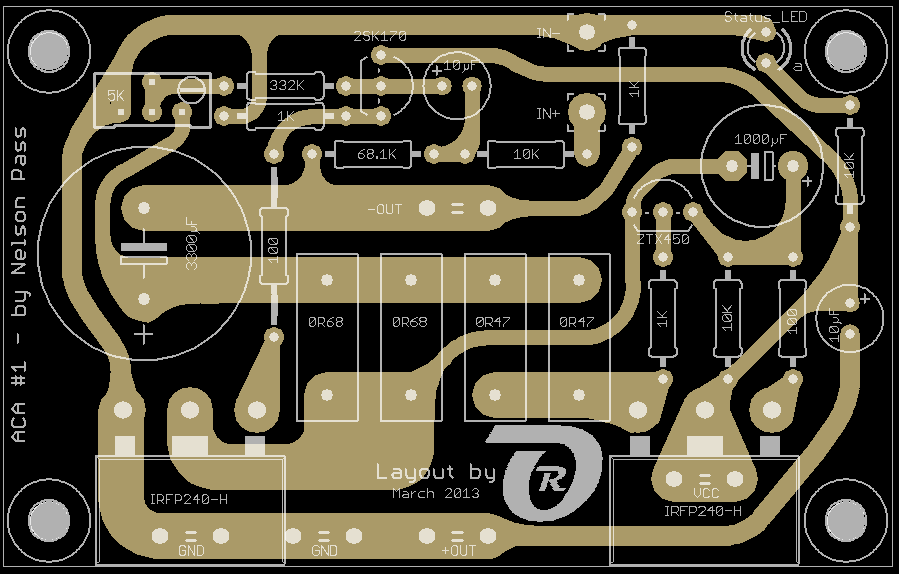

Find attched the .pdf - file and the PCB's topview.

But please: in case that you are able to etch the PCB yourself: offer a pair to MORTRON as well.
The PCB-size is 74 x 47 mm.

Best regards - Rudi_Ratlos



[Rudi_Ratlos]

@MOTRON: I do not have a "special ACA #1 Builder's Thread".

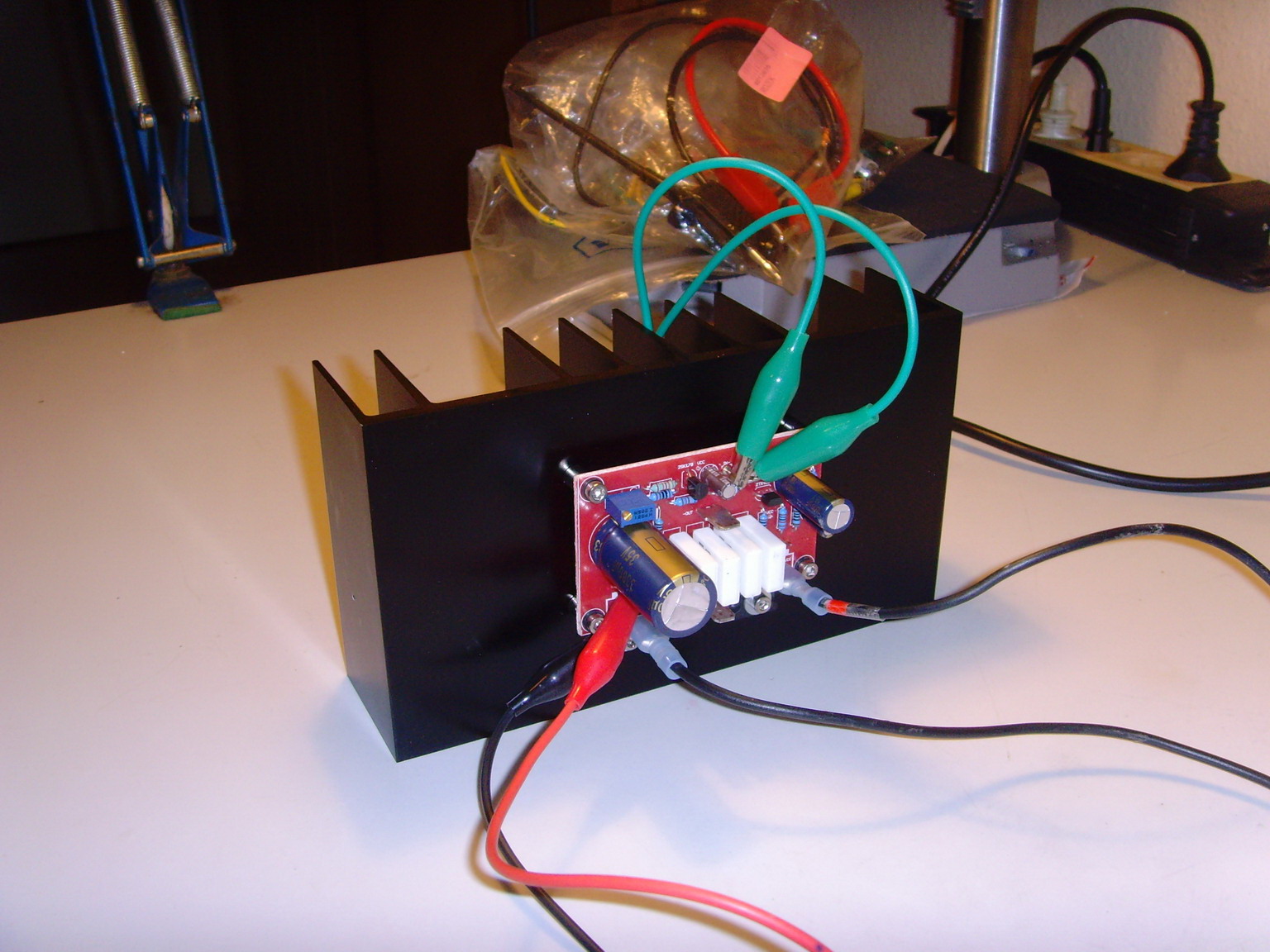

I have used a pair of CONRAD (Fischer) heatsinks:

(Kühlkörper SK 53 Fischer Elektronik SK 53 100 SA (B x H x T) 180 x 48 x 100 mm R(th) 0.65 K/W im Conrad Online Shop | 188883)

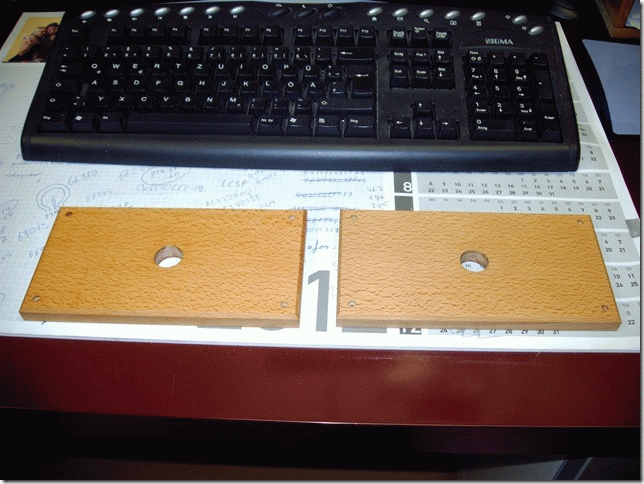

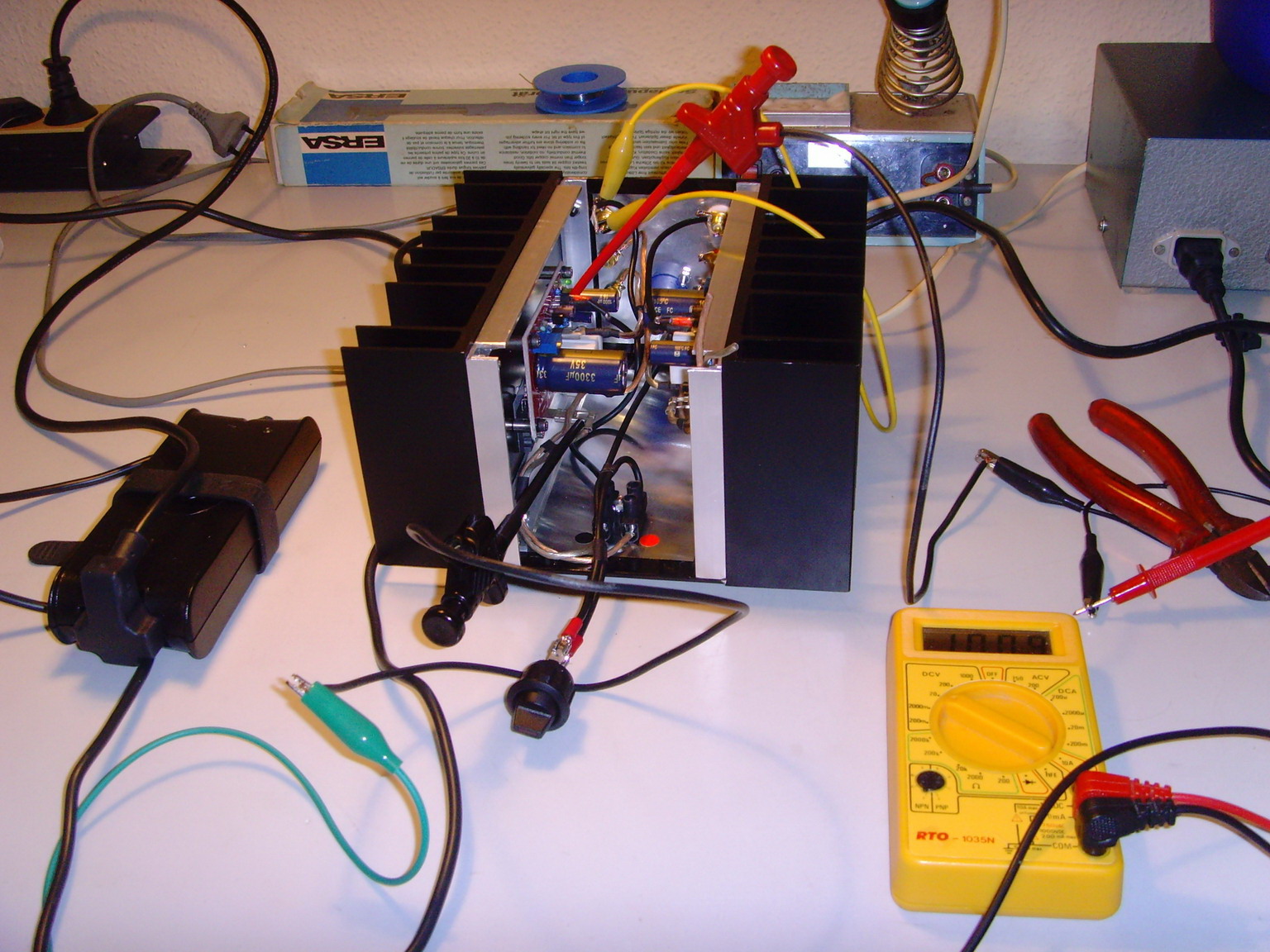

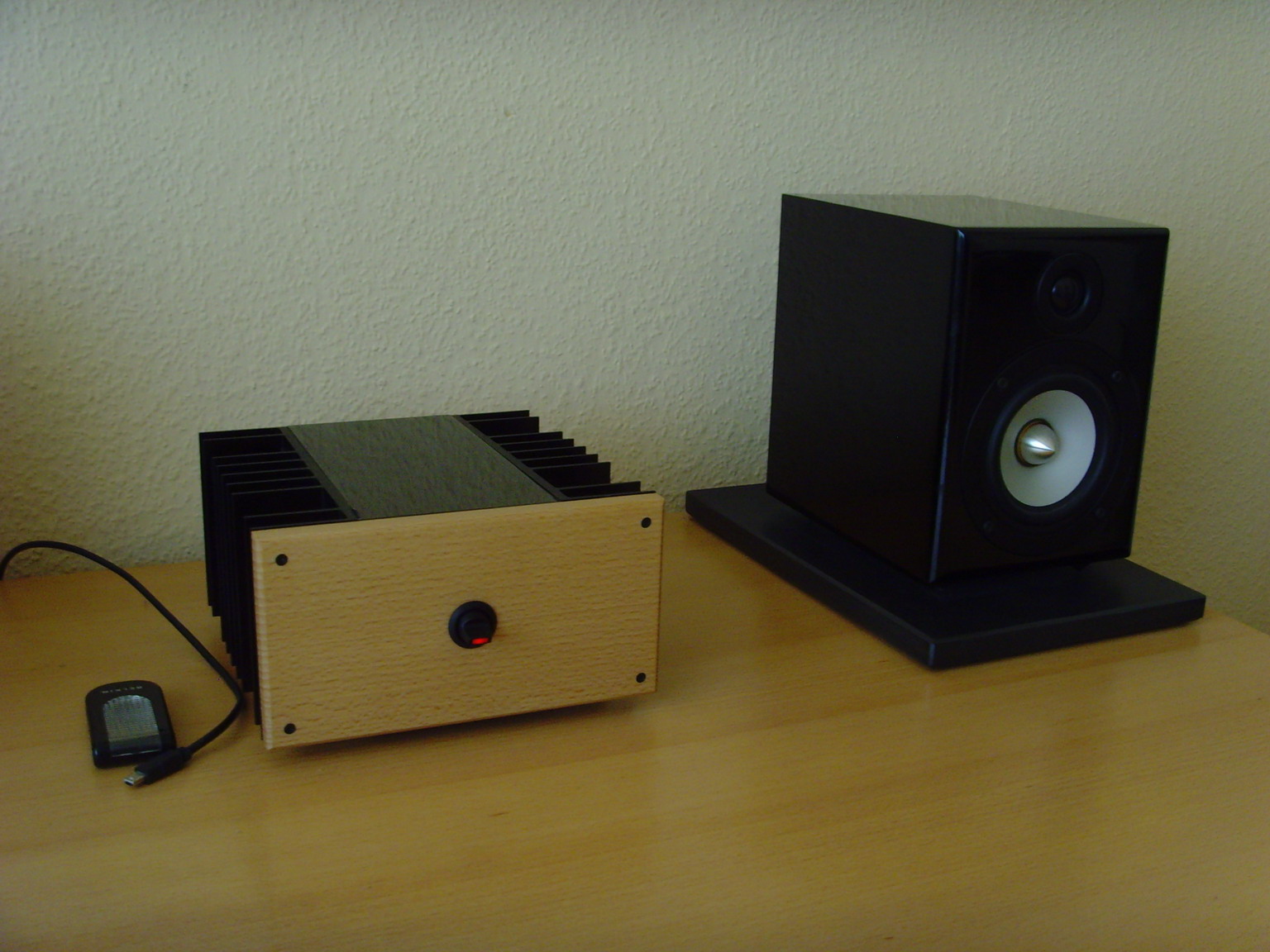

some ALU-plates, a 1000mm 15x15mx2 mm ALU-L-profile and a wooden front-plate.
As PSU I use a Dell PA10 - LAPTOP PSU rated at 19.5 VDC / 4.62A.

Best regards - Rudi_Ratlos



[MeTarzan]

I have been patiently waiting for the restock of the boards/kits as well. Thanks for the files, might learn etching, this looks like a good board to start with.



[sachu888]

Mortron,

are you able to etch a PCB by yourself?

I have done my own layout of the ACA:


http://www.abload.de/img/image1w8u74.png

and it works flawlessly.
I can send you the Gerber-files.

Best regards - Rudi_Ratlos

Hi,
Your amp is a beauty.Can you send me gerber files.I want to make few PCBs for me and friends.

Regards,
Sachin



[Rudi_Ratlos]

Sachin, find attached the Gerber files and the schematics that I have used.
The PCB is single-sided; the layout is proven and completely routed.
I am using MPC74-type resistors as "drain/source" resistors.
Please offer your PCBs to MeTarzan-YouJane, to MORTRON, to ... as well.

Best regards - Rudi_Ratlos



[Rudi_Ratlos]

The Gerber-files above include a modification to reflect the correct orientation of the ZTX450 on the silkscreen.

Best regards - Rudi_Ratlos



[sachu888]

Sachin, find attached the Gerber files and the schematics that I have used.
The PCB is single-sided; the layout is proven and completely routed.
I am using MPC74-type resistors as "drain/source" resistors.
Please offer your PCBs to MeTarzan-YouJane, to MORTRON, to ... as well.

Best regards - Rudi_Ratlos

Thanks Rudi,
I will order few PCbs and also offer here.If anyone else needs PCbs kindly express your interest here.It may take 15-20 days to receive boards from manufacturer.

Regards,
Sachin



[sachu888]

PCBs ordered.

Regards,
Sachin



[MeTarzan]

Yes count me in for at least 1 pair.
Thanks, Ron



[sachu888]

Yes count me in for at least 1 pair.
Thanks, Ron

Done.

Regards,
Sachin



[sfx232]

Dear Sachin!
I would like order 4 PCB also - if it possible post to Hungary.

Regards:
Csaba



[Eric]

These PCBs are now back in stock at the DIYAudio store...



[MeTarzan]

How is the order coming? Just to be clear, the PCB's that are in stock at the DIY store are a separate entity from these boards, correct?



[sachu888]

I will receive PCBs in 2 days,price would be $20/pair shipped.

Regards,
Sachin



[MeTarzan]

Cool. Thanks for quick response. PM me with transaction details at your convenience.



[MeTarzan]

Payment sent!

Thanks again, Ron
