What is this analogue numerical display?

I've seen reference to this display working by the use of rotating cylinders, looks backlit when in operation and not backlit when idle (but numbers still visible). It's not a mechanical counter, it's electronically controlled. Clearly not a Nixie tube either. I'm interested to find out more about it. It's from the 1960's. Anybody have a link to further information ??


Attachments

  • 1968 numerical display b&w image.jpg
    1968 numerical display b&w image.jpg
    153.7 KB · Views: 138
  • 1968 numerical display colour image.jpg
    1968 numerical display colour image.jpg
    83.5 KB · Views: 145
Here's a lesser known numerical display technology which may fit the bill:

A numeric display which used tiny bulbs (1N4001 diode sized) and had black and clear plastic cutouts for each digit, so that the digits appeared as if they had been produced on a typewriter, i.e., perfectly formed.

I read it here: https://www.eevblog.com/forum/chat/...lisle-st-tottenham-ct-rd-in-their-prime-(uk)/

You mention rotating cylinders, so presumably the bulbs would remain fixed and the plastic cutouts would rotate.

I used to have some of those old plastic and bulb displays - kick myself for no longer having them. They worked like a Nixie in that there were no moving parts and each character was at a different depth from the front of the display. No, the images I posted are not of this type. The digits are always at the same depth regardless of whether it's a '1' or a '9'.

It's not a flip chart type either because there are no horizontal lines across the numbers.

I saw a video of one working, just can't find it right now but will post it later if/when I do. The numbers changed very rapidly and the video was from the 60's so the mechanism was not obvious but a quickly rotating cylinder would work.

We're not there yet!

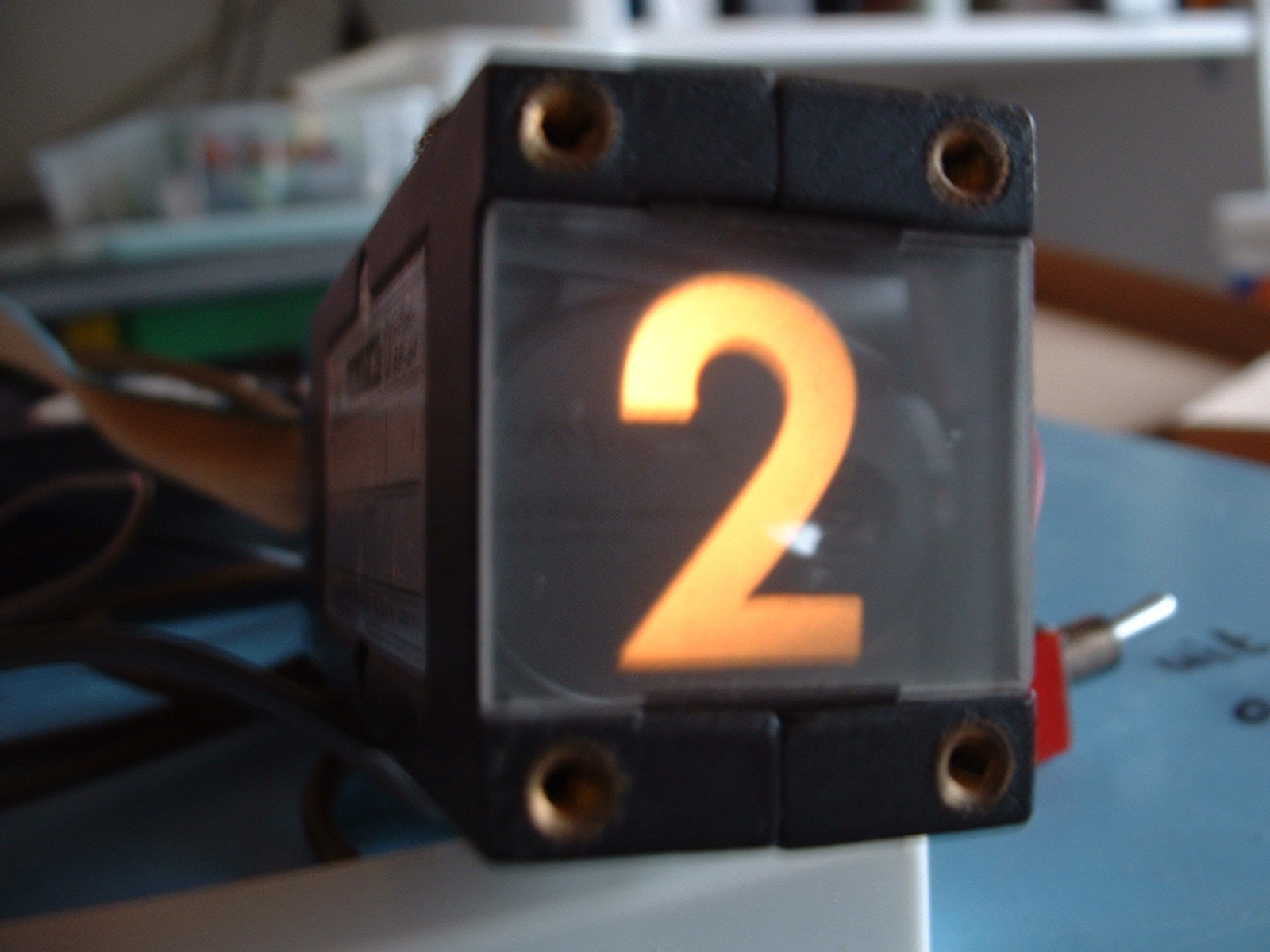

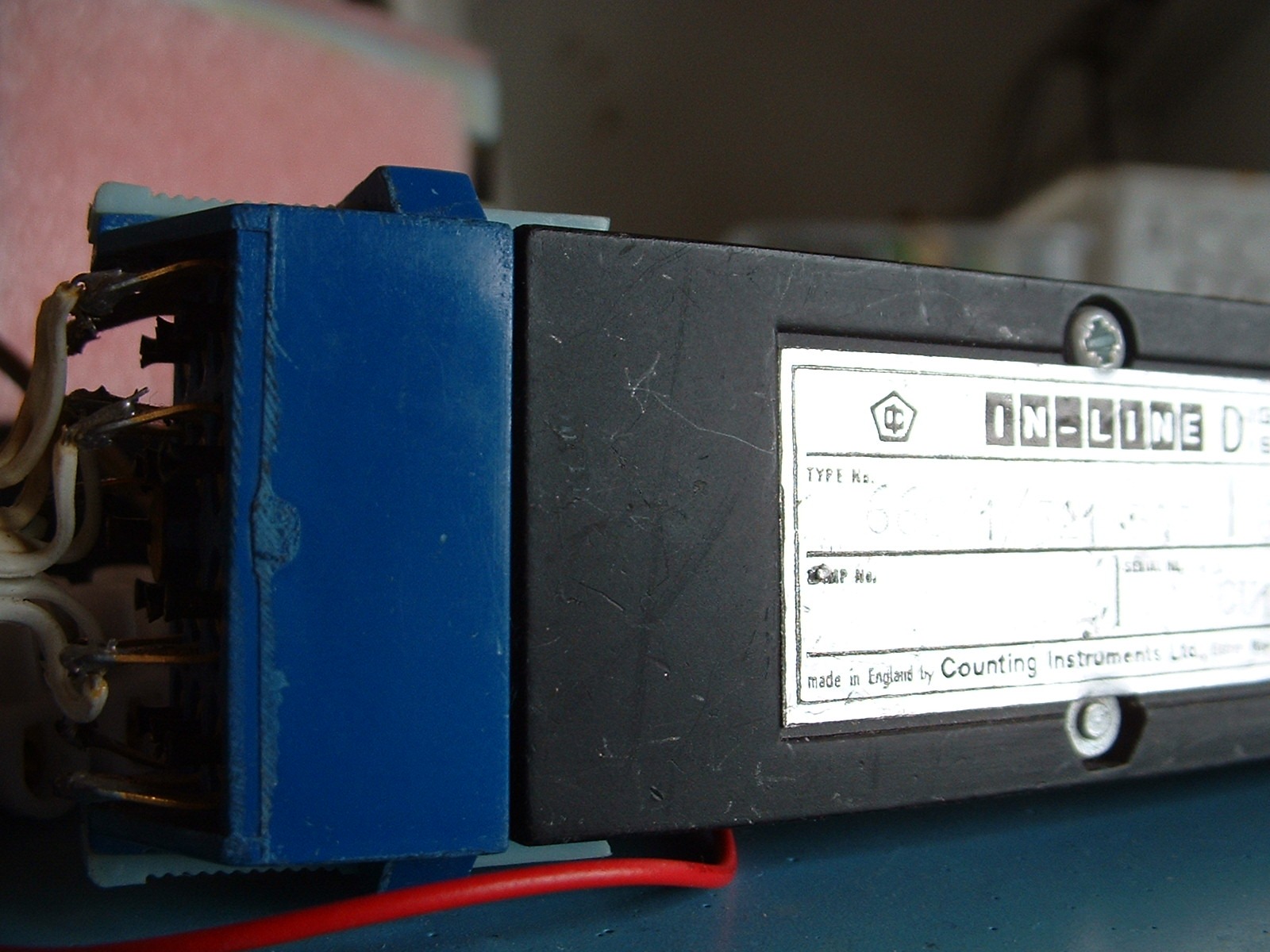

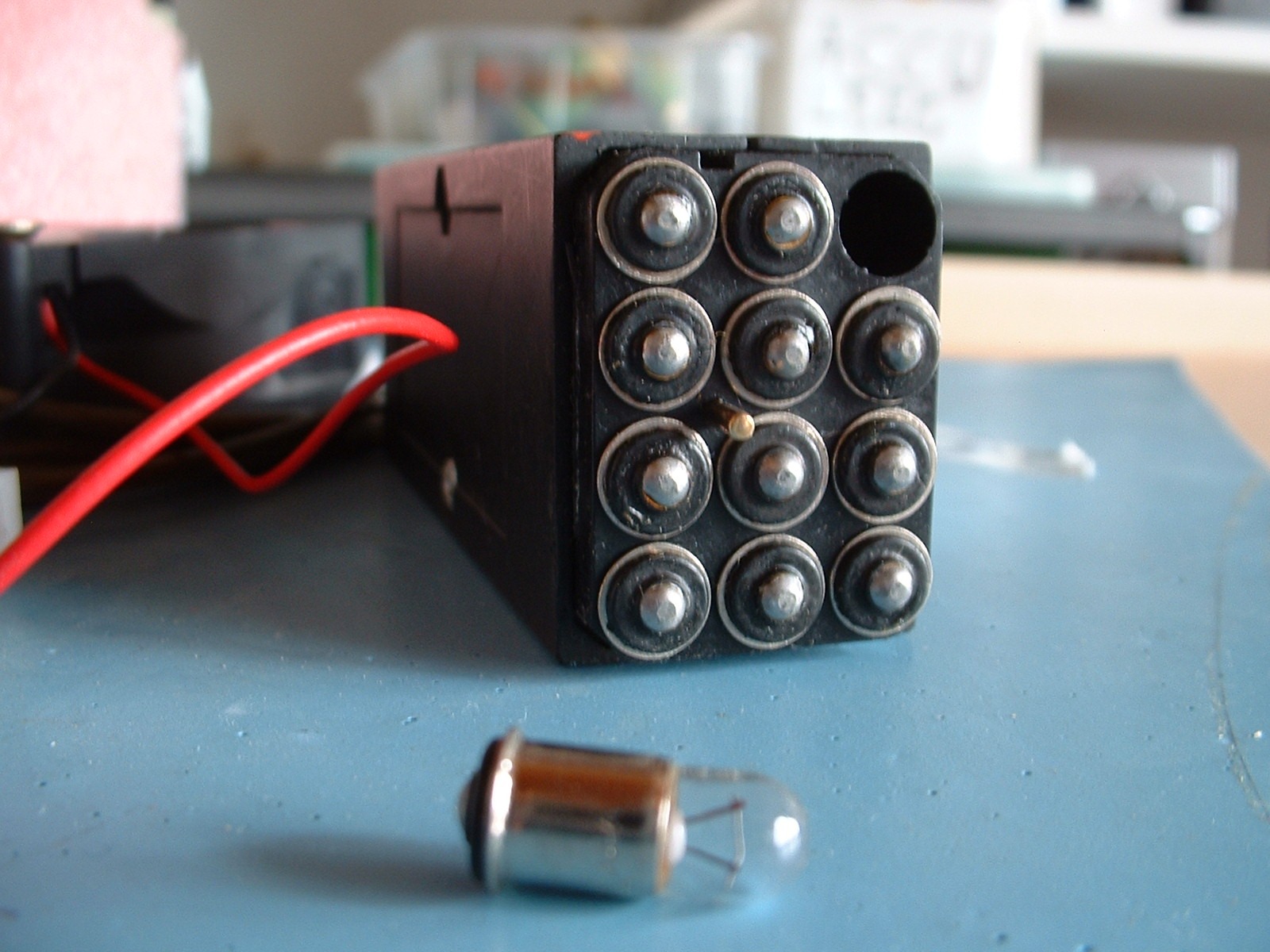

A type of display used ten tiny slide-like projectors behind a frosted glass screen. It was clever: the lenses corrected the geometrical aberrations caused by the juxtaposition of each projector, and the result was very satisfactory visually: good contrast, luminosity, nice font types, etc.
It was rather bulky though, and used ten incandescent light bulbs as sources

Administrator
Joined 2004
Paid Member
Early "digital" alarm clocks had a similar arrangement.
I had one of those for years, the numbers were on rotating barrels, flattened at each side where the numbers were. The numbers were not lit from behind, just from the front with a little neon tube. I suppose that could be done back lit, but the displays shown in the original post seem too tight for that.

We did have a Zenith TV in the 60s in which the channel number was projected into the center of the channel knob. I loved it. Have owned some Maganvox that also used projected numbers. Rather bulky devices, thought.

Moderator
Joined 2011
The advent of digital computers at the time made consumer companies race to appear to be "up to date"
and have digital displays in their products, even if the underlying mechanism was still analog.
Even the "ticking" second hand on analog clocks, which I have always found to be really annoying.

AX tech editor
Joined 2002
Paid Member
The images you posted show digits at different depths as I see it...!
Some of these displays used stacked perspex squares with the numbers milled in the surface. Each square had a lamp shining on its bottom or top edge, and when lit, the milled number would be vissible.
Because of the stack (10 deep) the numbers when changing seemed to move forward or backward.

Jan
