Volvo SC811 -> alpine CHM wiring info

MadMutt

Member
2006-11-30 11:07 pm
I have a volvo with the SC-811 radio. (made by alpine)
Am about to get an alpine CHM-S611 changer.

Does anyone have the pin to pin diagram or list ?



*Notes*
Car is base model so it does NOT have the looms installed. (Yes I've checked).

Radio does have changer control. (same as 815/816 and I believe 805 and a few others)

This changer is compatible. (Same as CHM-s 611/620/630)

Used to be able to get 'adaptor' leads, I don't know if you still can.
This is sorta beside the point as I won't have the money for one anyway.
So I really just need to get a suitable plug (radio side) and just rewire the alpine lead into it.


Thanks all............


MadMutt

Member
2006-11-30 11:07 pm
Think you missed something that I wrote.
But thanks for trying to be helpfull any way.

:D

MadMutt said:

Radio does have changer control. (same as 815/816 and I believe 805 and a few others)

This changer is compatible. (Same as CHM-s 611/620/630)

Did I forget to mention that not only is the radio built by alpine, But that the 'factory' volvo changer is an alpine CHM-S601/611/620 depending on the cars manufacturing date ?

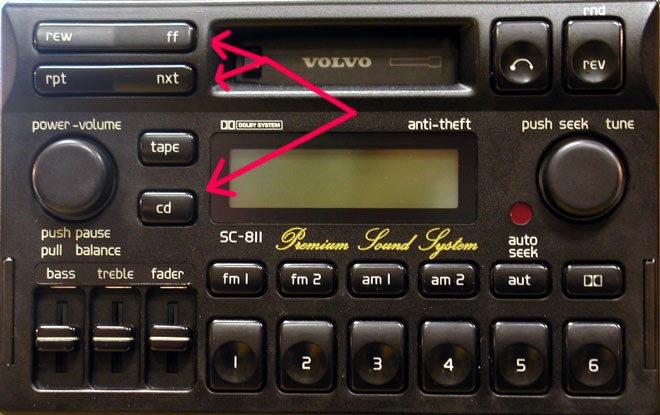

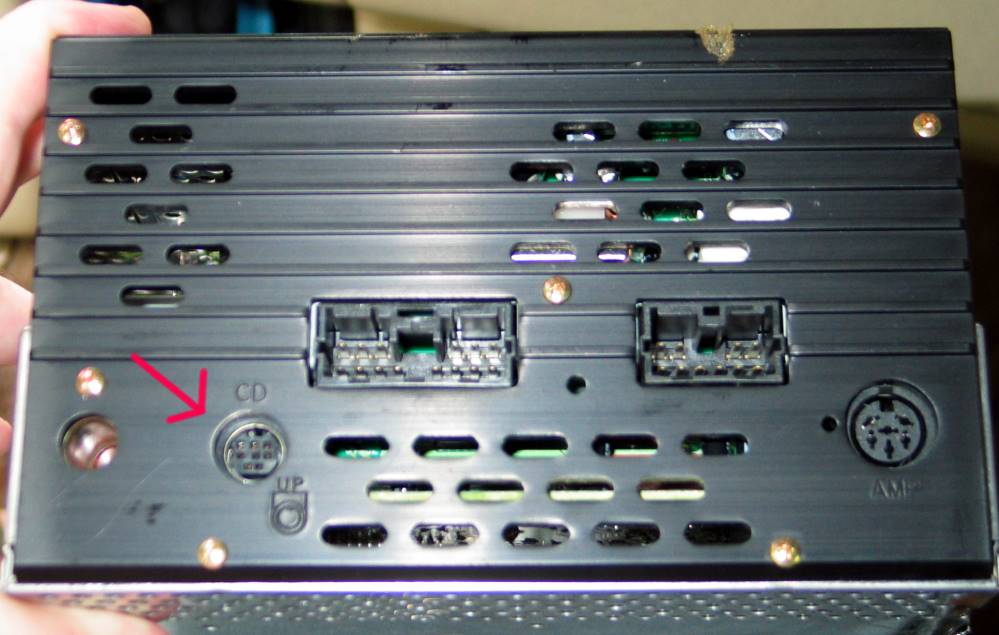

See attached two pics.


Attachments

  • front.jpg
    75.8 KB · Views: 77

MadMutt

Member
2006-11-30 11:07 pm
Ta, yes I've seen the first link.
Second one gives me the amp pin out so that ones good, ta.
But it doesn't cover the cd connections.

I do have some info for the cd, but was just seeing if anyone had better or more reliable info than mine.

Have heard of some people letting the smoke out after not wiring it properly. :hot:
