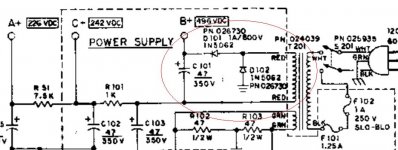

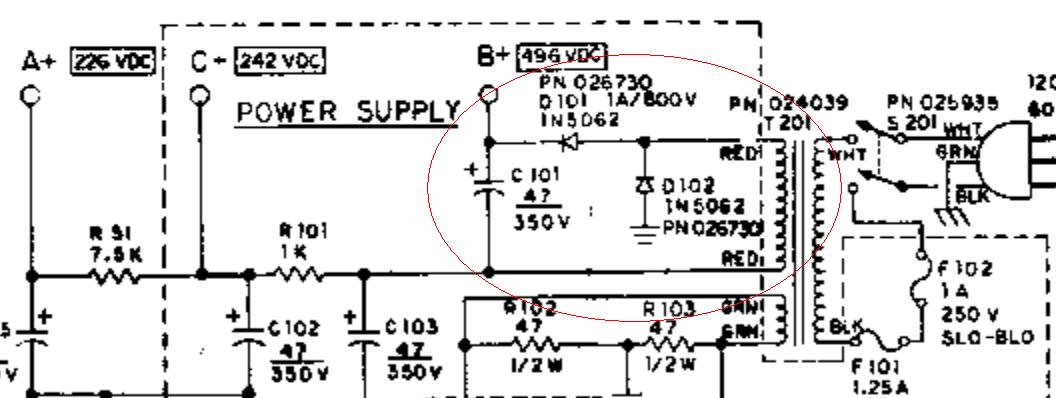

I am not sure but this looks like a voltage doubler? It is for a tube amp and I think that it probably can be upgraded or redesigned maybe, most voltage doublers I have seen have about double the components. If someone could please explain what is going on here it would be much appreciated.
Attachments
Economical reasons I suppose.If you put a extra idental winding on the transfo with two diodes to C101 and C103 it becomes a bridgerectifier.In stead off a 60Hz ripple it is now a 120Hz smaller one.Normaly that's better but if it isn't nessesairy why make the extra cost.
Mona
Mona
Why would this be used instead of say a bridge rectifier? I usually see a full wave bridge rectifier on most designs.
can be used to get symmetric -250v / -0 / +250v from a single transformer winding
or two different voltages like +250v / +500v from a single transformer winding
depending where you put "ground"
- is sometimes mis-labeled Greinacher Circuit (should be named Delon Circuit though)
Jochen's High Voltage Page : Basic multiplier circuits
Voltage doubler - Wikipedia, the free encyclopedia
can be used to get symmetric -250v / -0 / +250v from a single transformer winding
or two different voltages like +250v / +500v from a single transformer winding
depending where you put "ground"
- is sometimes mis-labeled Greinacher Circuit (should be named Delon Circuit though)
Jochen's High Voltage Page : Basic multiplier circuits
Voltage doubler - Wikipedia, the free encyclopedia
Thank you so much for this explanation!!!! I was thinking of a Greinacher Circuit in my head which is different. It is indeed a Delon circuit!!!!!
