Tube Op Amp Building Blocks

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.
TubeLab SimpleSE Buildup begins

Started getting the parts together for my first buildup. The Tubelab SimpleSE seems like a reasonable place to begin. It's been years since my last tube adventure - an old HW-100 ham rig (not a typo - it was the forerunner to the much more famous HW-101, but you'd be hard pressed to tell them apart).

I'm really in awe at the amps that I've seen in this forum - you guys certainly set a high standard for excellence!

I'll give fair warning before plugging the box in the first time :) I wouldn't want anybody startled by a sudden flash over the horizon...


Attachments

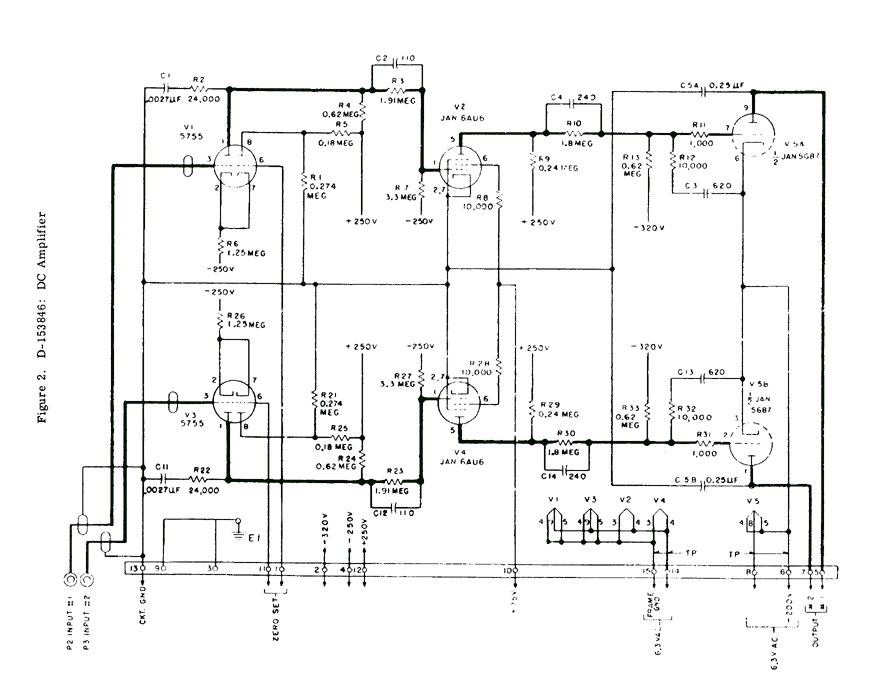

  • Nike_Op_Amp.gif
    47.2 KB · Views: 218

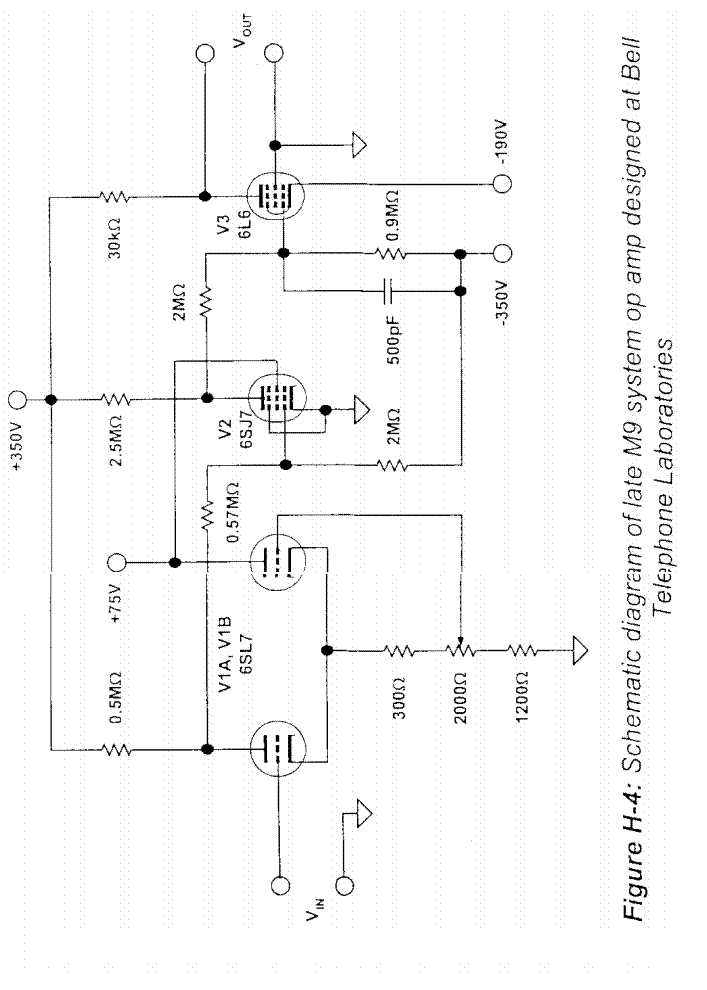

  • Gun Director Op Amp 1942.GIF
    Gun Director Op Amp 1942.GIF
    28.5 KB · Views: 206

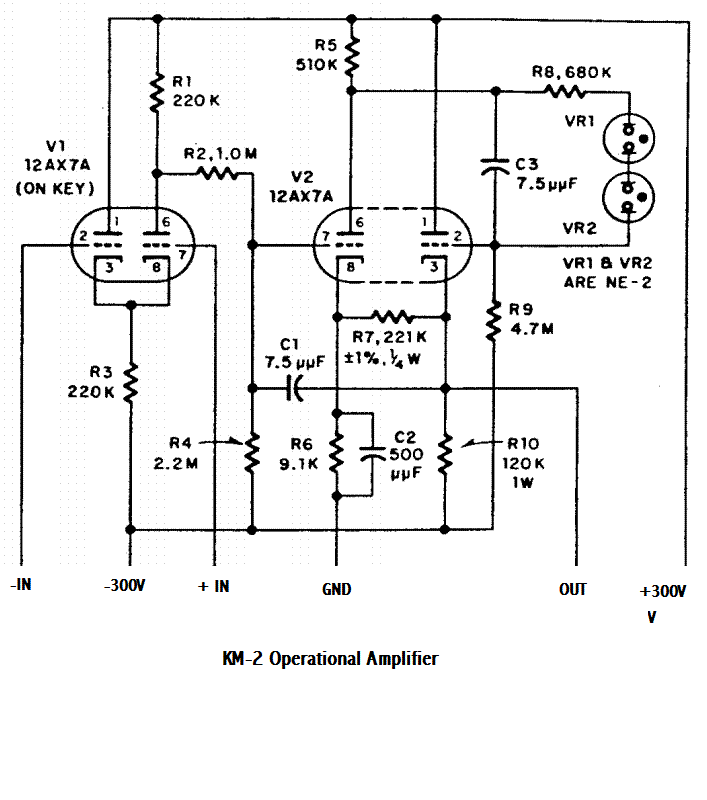

  • KM2_OP_AMP.GIF
    27.2 KB · Views: 203
  • my_favorite_programming_language_is_solder_pease.jpg
    22 KB · Views: 202
Last edited:
Thanks, SY. For now, it's a straight SimpleSE buildup with the only change being that I will use two preamp tubes - one for each channel. The idea is to build a "test bed" for further experimentation, possibly using the (at present) unused triode in each preamp tube in later modifications.

The GIFs I posted were originally part of an April Fool thread - but the fool is me, it turns out... Been a long winter, I lost a month someplace (it's only March 1 today :))

Still... it's another option to play with later!

And dang - now I gotta come up with a different April 1 thread!

Sweet, Ketje! And SOOO much easier to read than the gifs I posted! :)

So very much cooler (or hotter!) than a puny little LM-741. :cool:

(Mods - I hope this isn't too "off-topic" for the forum. My rationalization would be "Hey, it's an amplifier and with suitable feedback would indeed function as an audio amp. Not that it would be a good idea to do one this way - but it's another glimpse into the world of Tube amplifiers.

Hope you guys don't mind.

RF Dude )
