I would like to have a simple tube checker for : 12AX7 12AT7 &12AU7 ( guitar amp stuff )

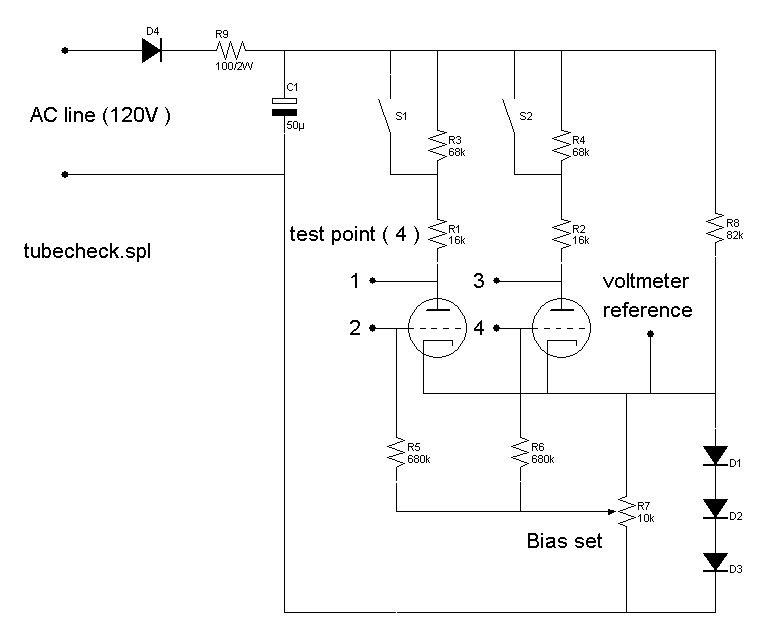

So I desing the attached circuit

170 V 10 mA load line for 12AT7 & 12AU7

170V 2mA load line for 12AX7

0-2V bias

Should I build it as-is ?
