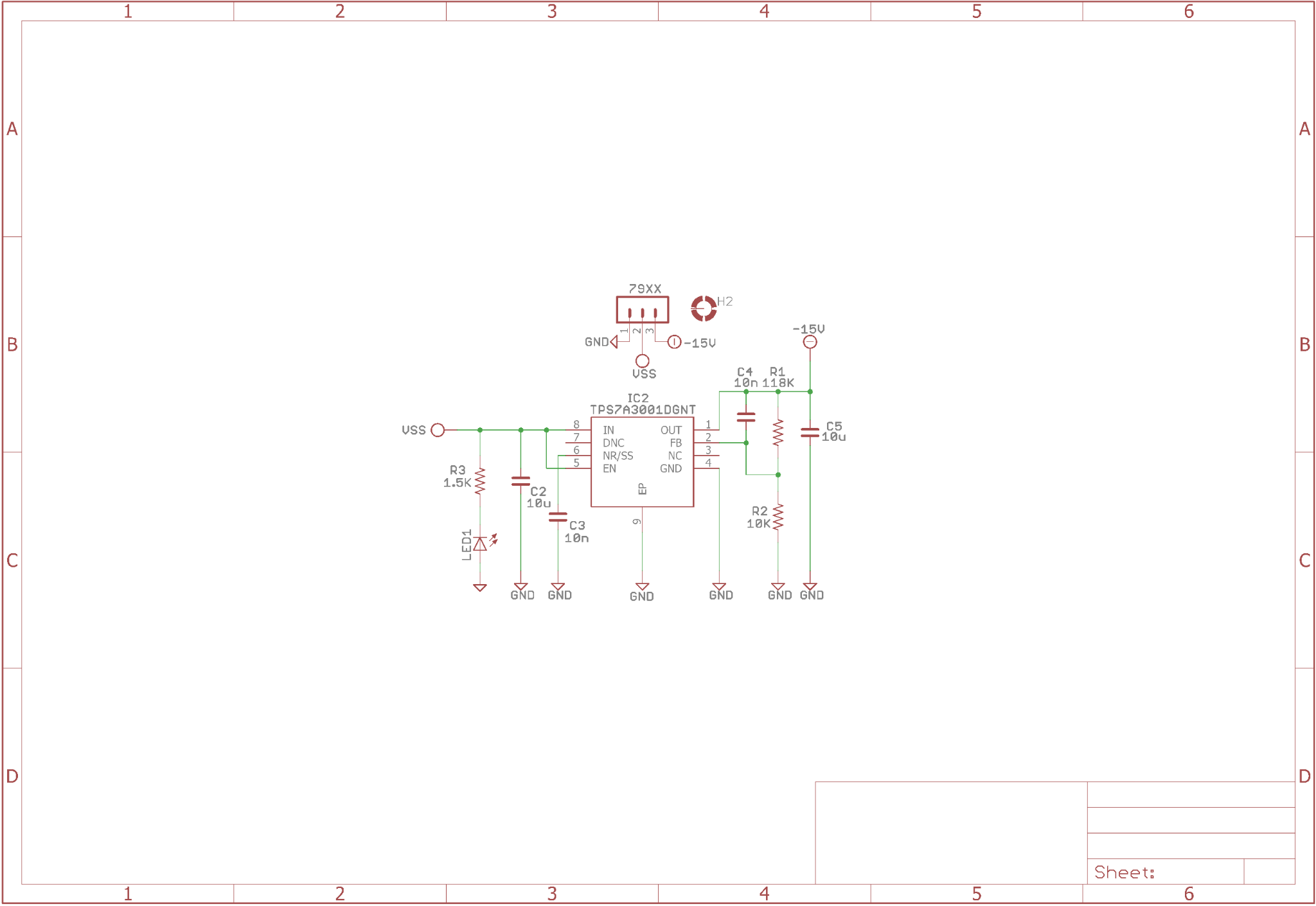

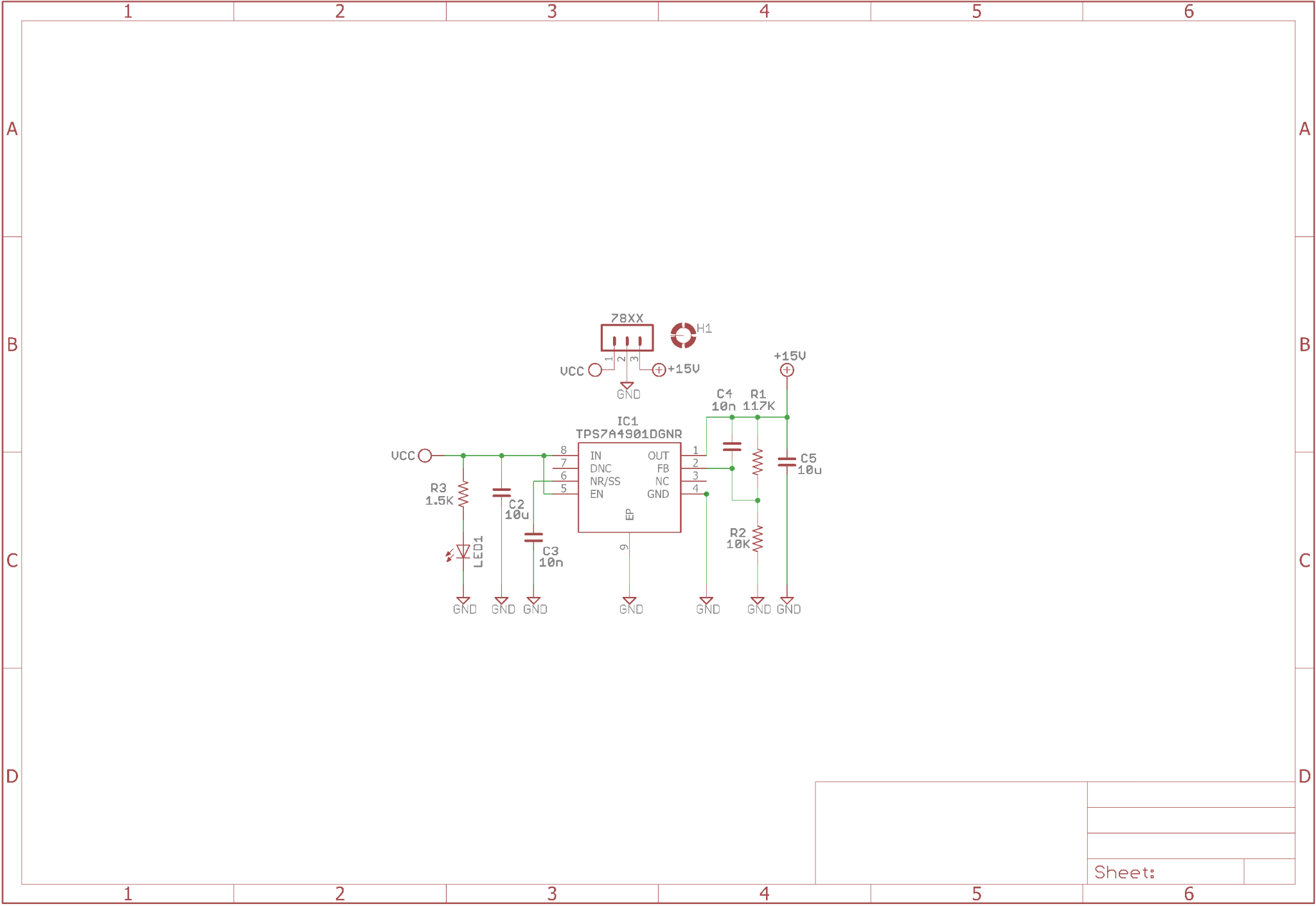

TPS7A4901 and TPS7A3001 Designed on a 78xx/79xx Footprint
Vin: ±36V
Vout: Adjustable (ADJ)
Iout: 150mA





Attachments

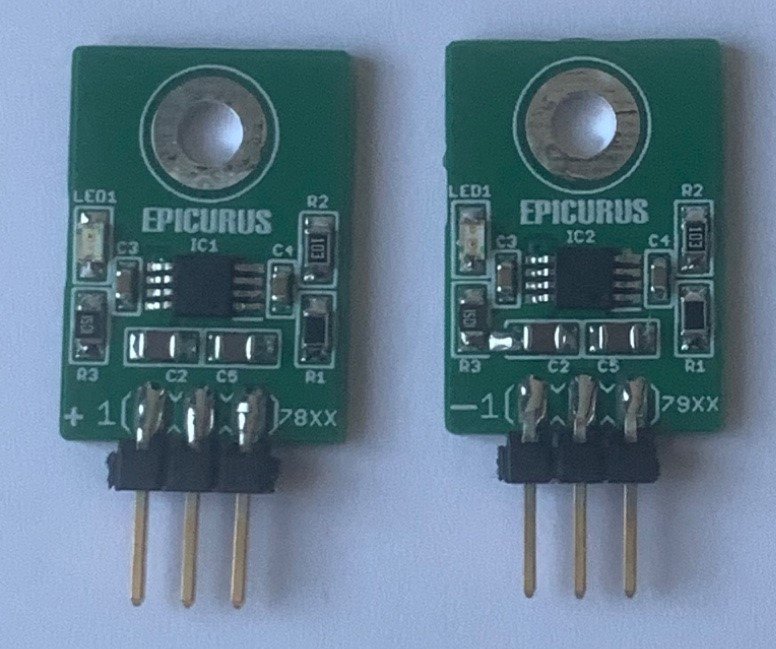

  • reg1111.jpeg
    98.7 KB · Views: 61

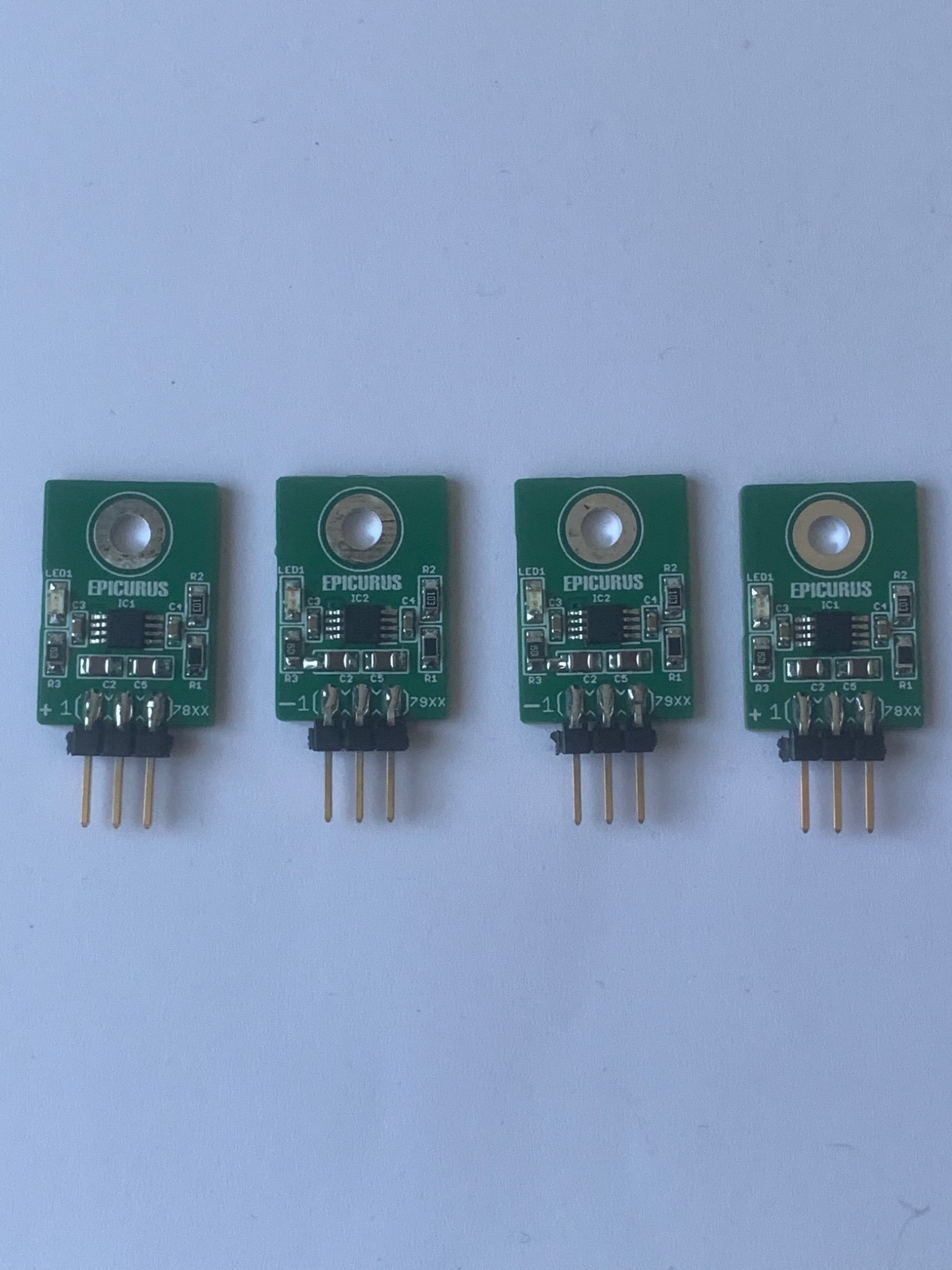

  • 12F86081-B560-446D-A356-4D94AF290317.jpeg
    378.8 KB · Views: 59
