Sony FET Part 3: Nelson's PSU Filter Relay Essentials 2022

Member
Joined 2011
Paid Member

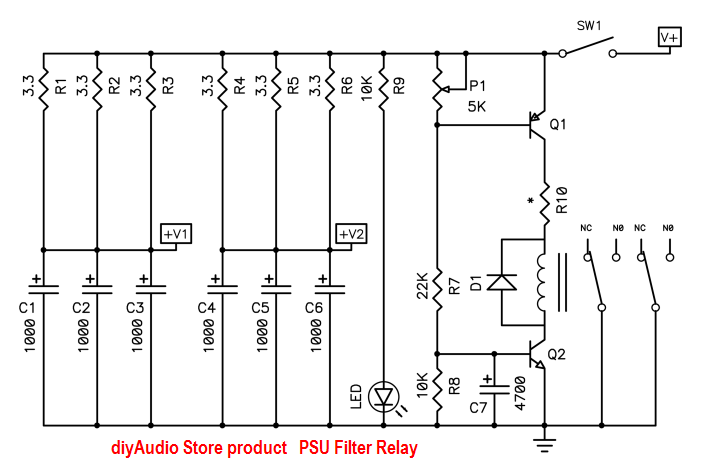

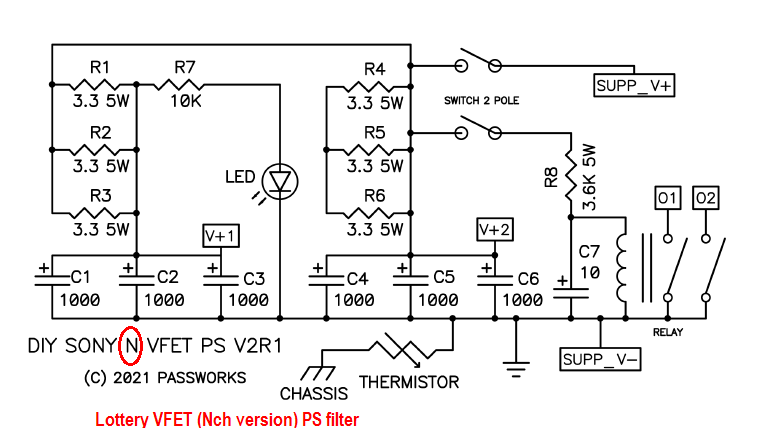

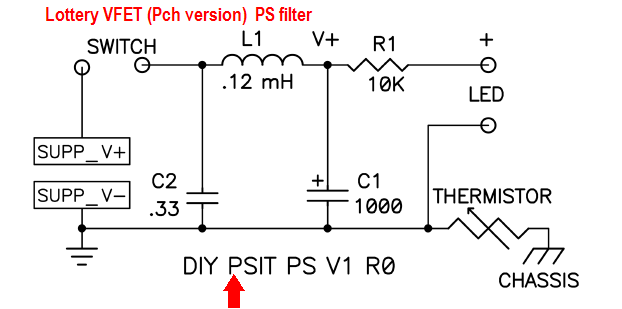

The three PSU filters that Nelson designed for VFET amplifiers, are shown below. Two of them include relays, one of them includes a big toroidal inductor, and one of them includes a trimmer potentiometer for fine tuned adjustments.
