SMPS to amp Boards connection

juanito

Member
2006-11-20 8:10 pm

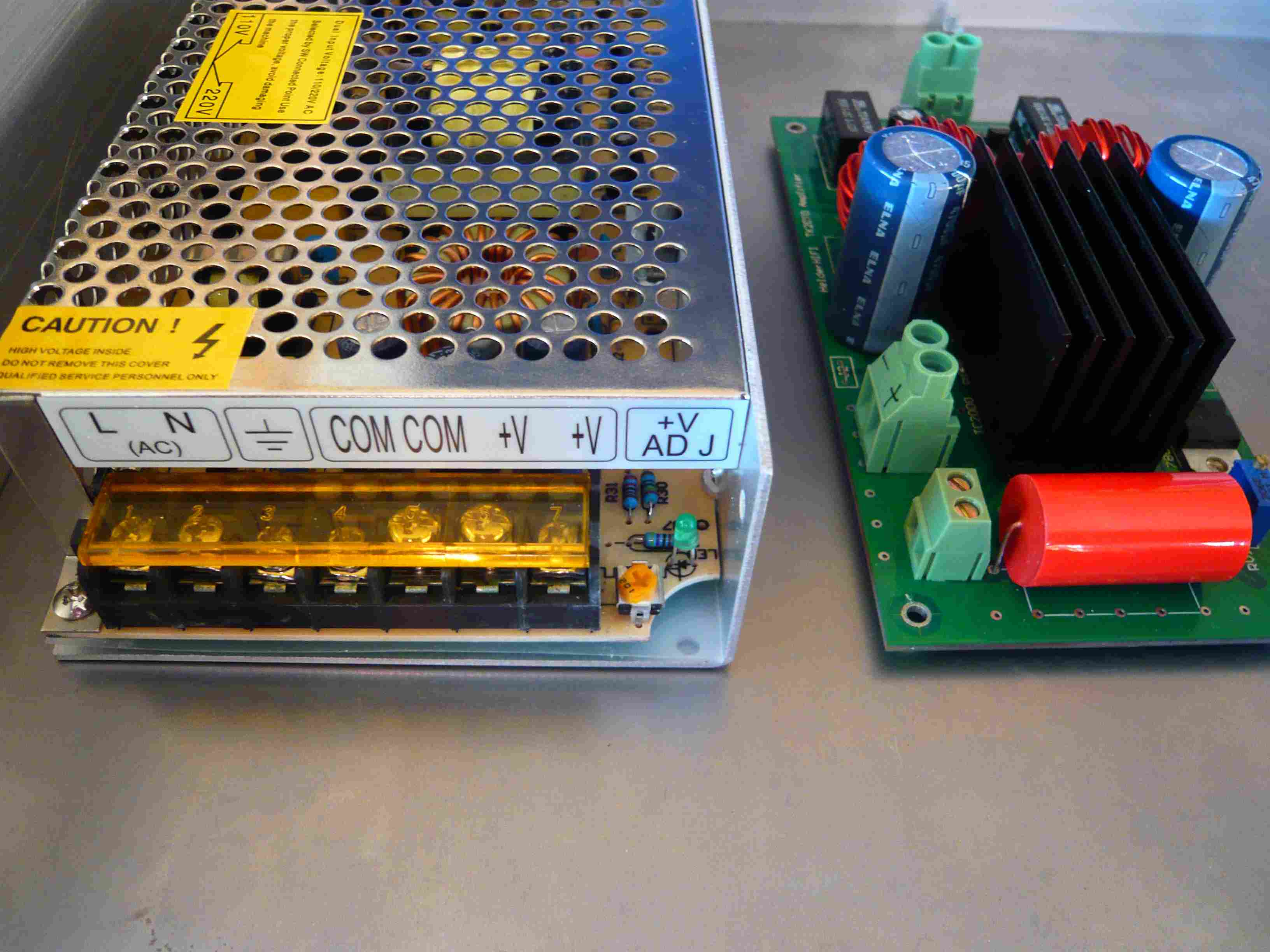

is any body familiar with this smps? I gues you are familiar with many smps also so you may know how to solve this simple problem. I have to connect this smps to 2 amp boards (in picture I show one)
It should be one positive and one negative from smps to 1 amp board, and the other board the same. So, under the "COM COM sticker", it's the negatives?So screws 4 and 5 from left to right are the negatives?, and 7 and 8 are positives?
I should pair screws 4 (negative) 6(positive) to amp boardright?
many thanks for your help
bye:xfingers:
