Sanyo Plc-xu74 lamp ballast bypass

Status
Not open for further replies.
Please could someone assist me in fooling/ bypassing the lamp ballast on my sanyo plc-xu74 projector.

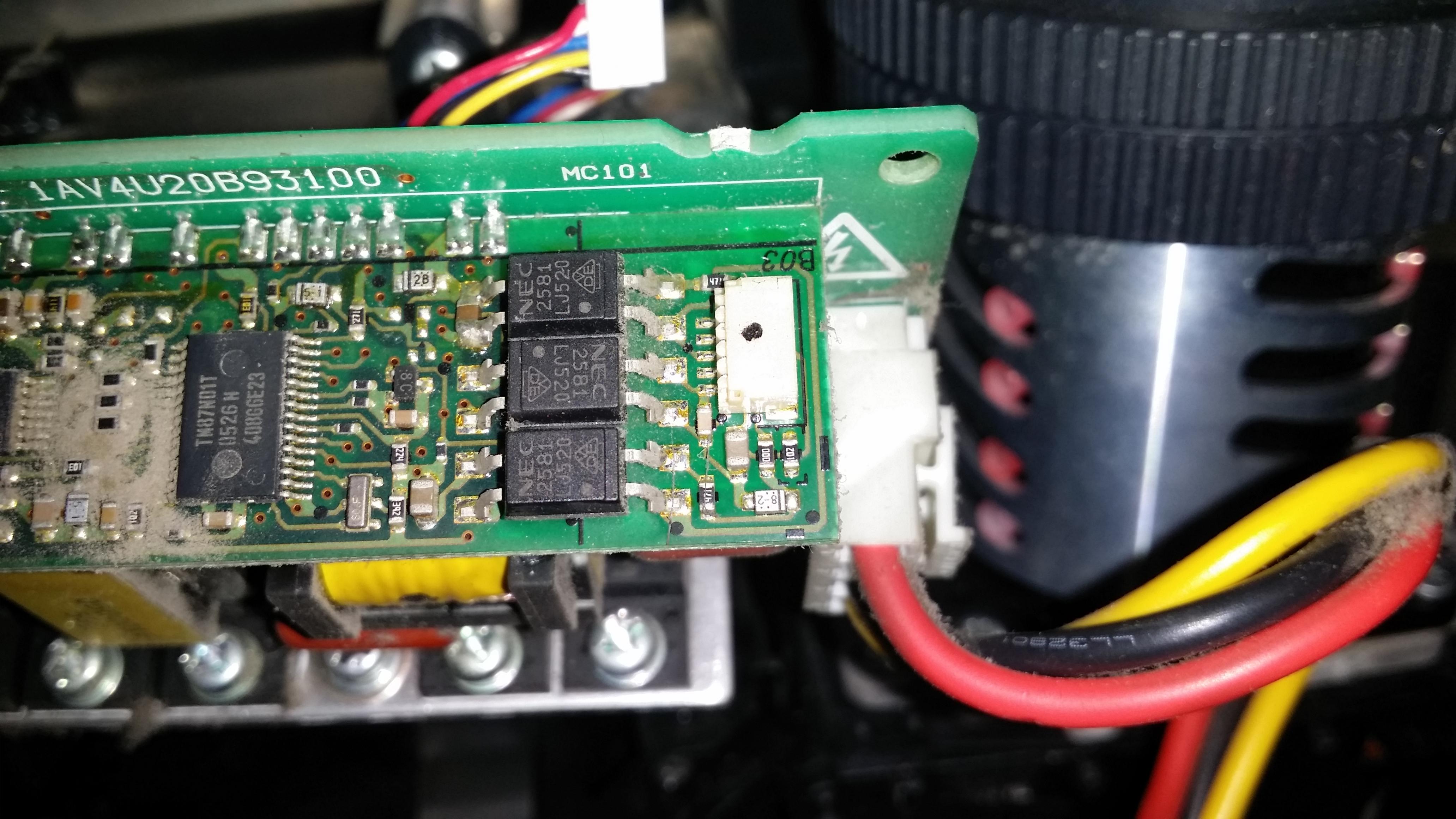

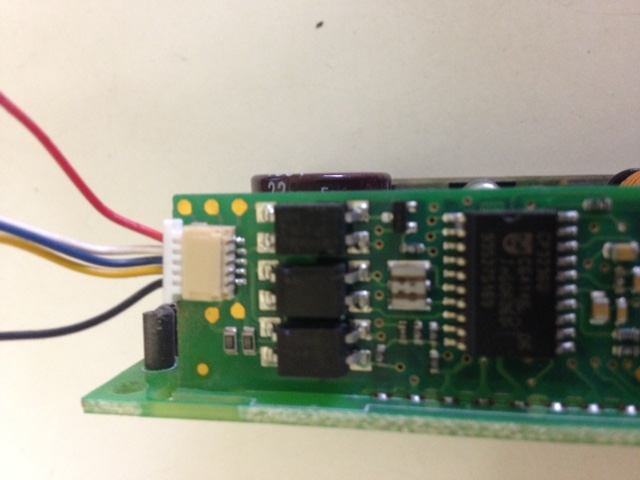

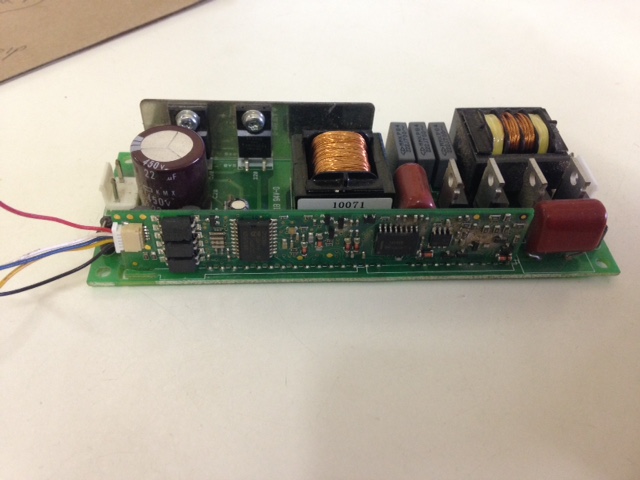

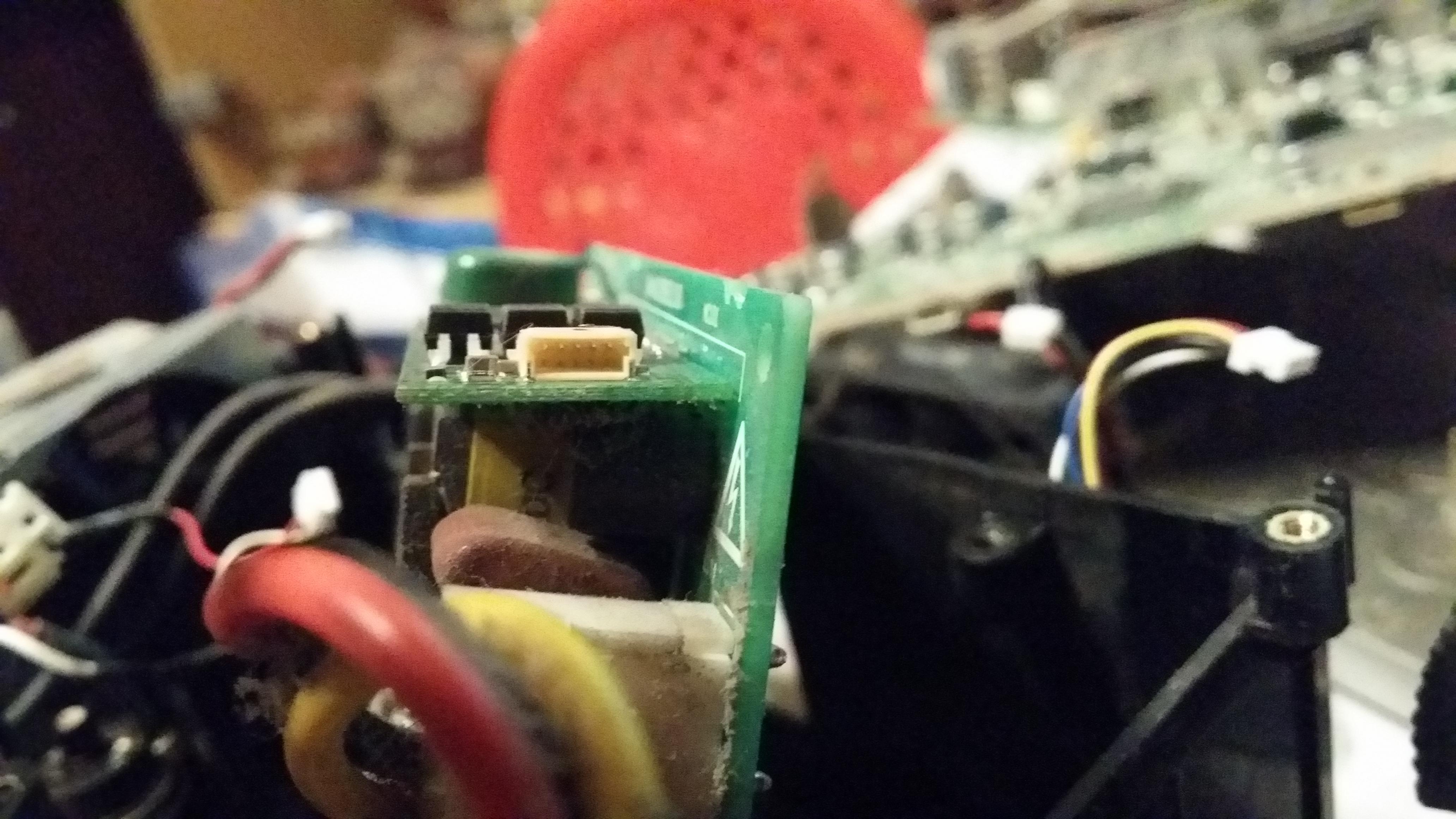

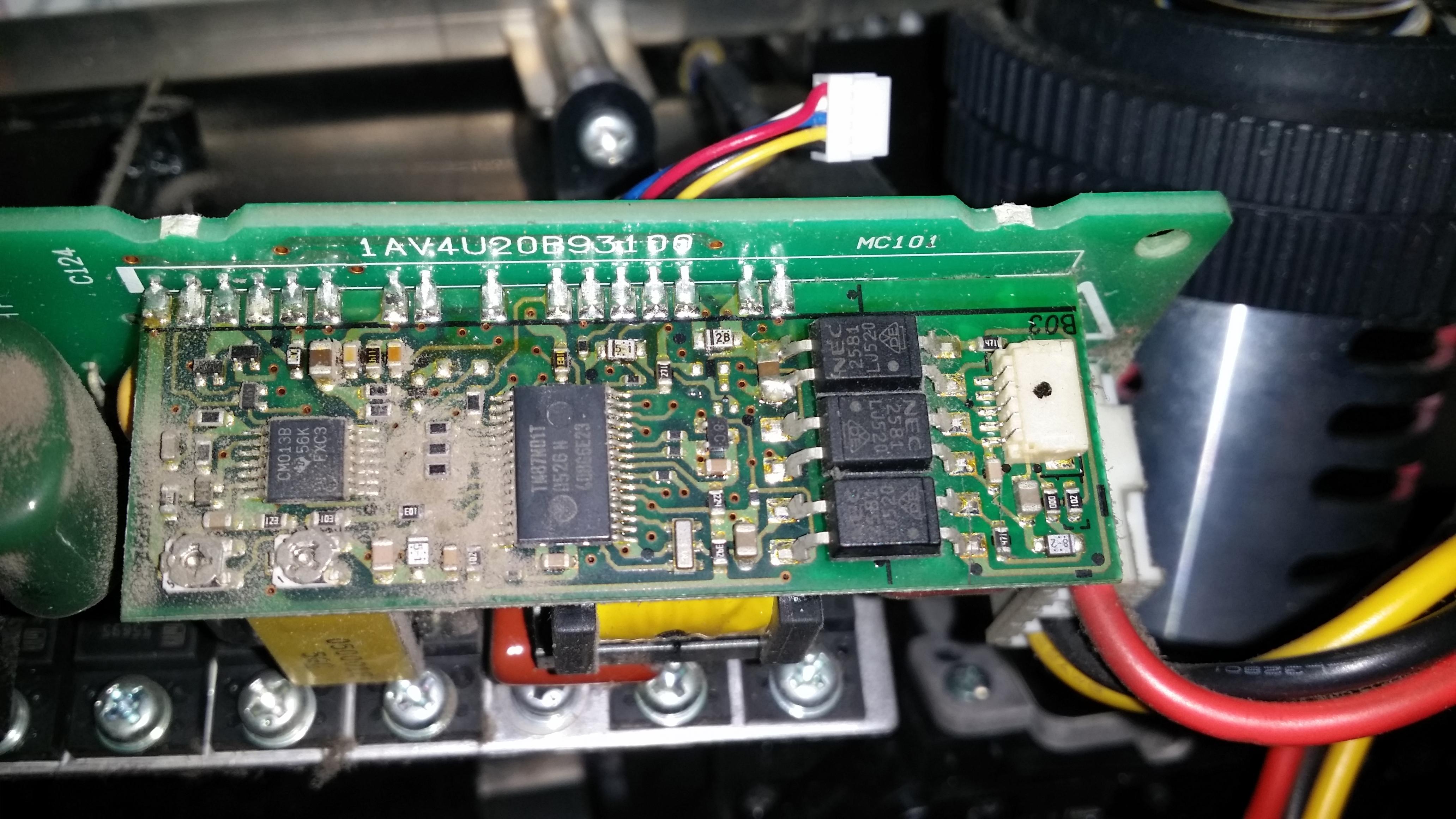

the ballast is a euc 200d v11.

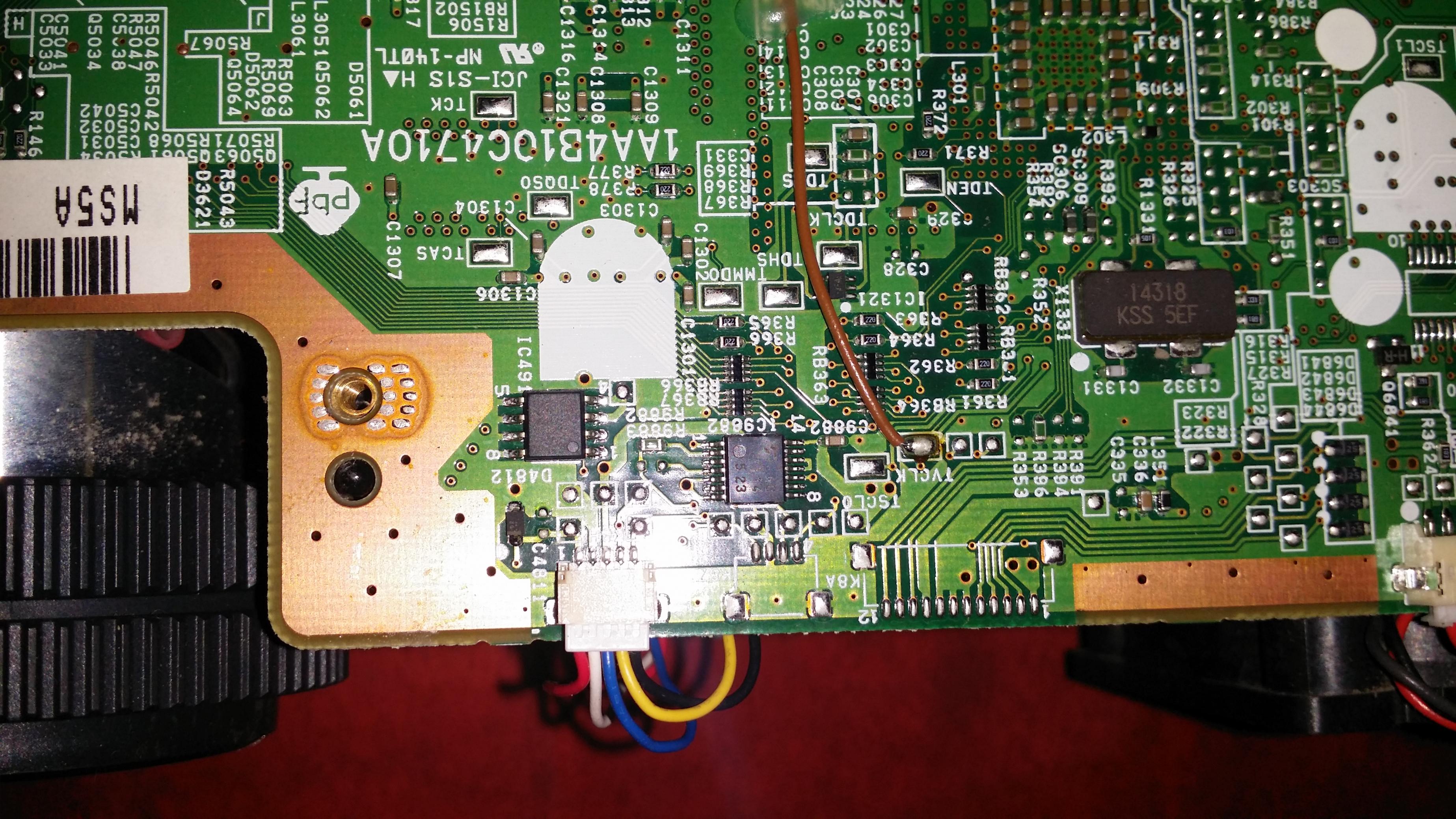

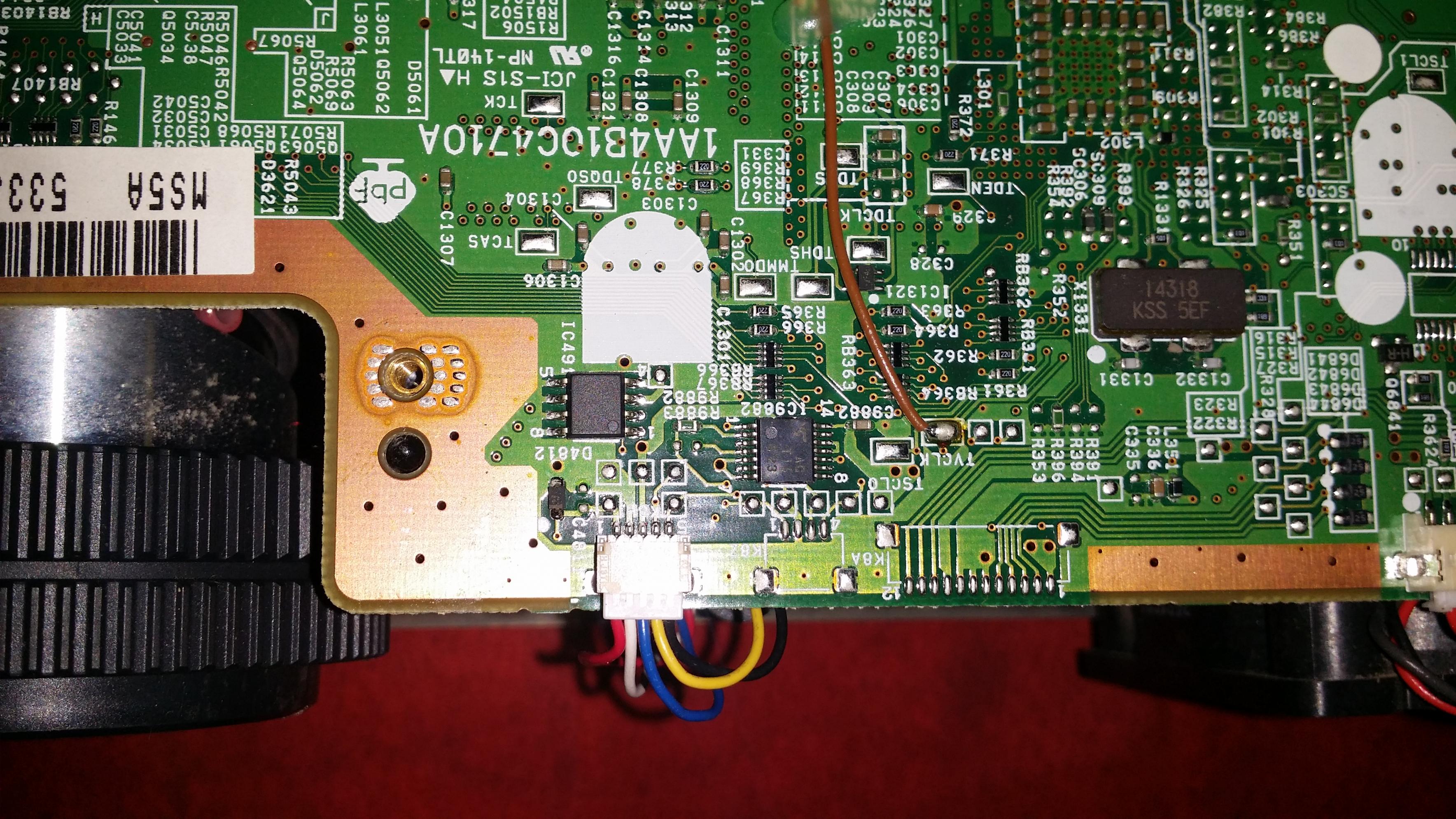

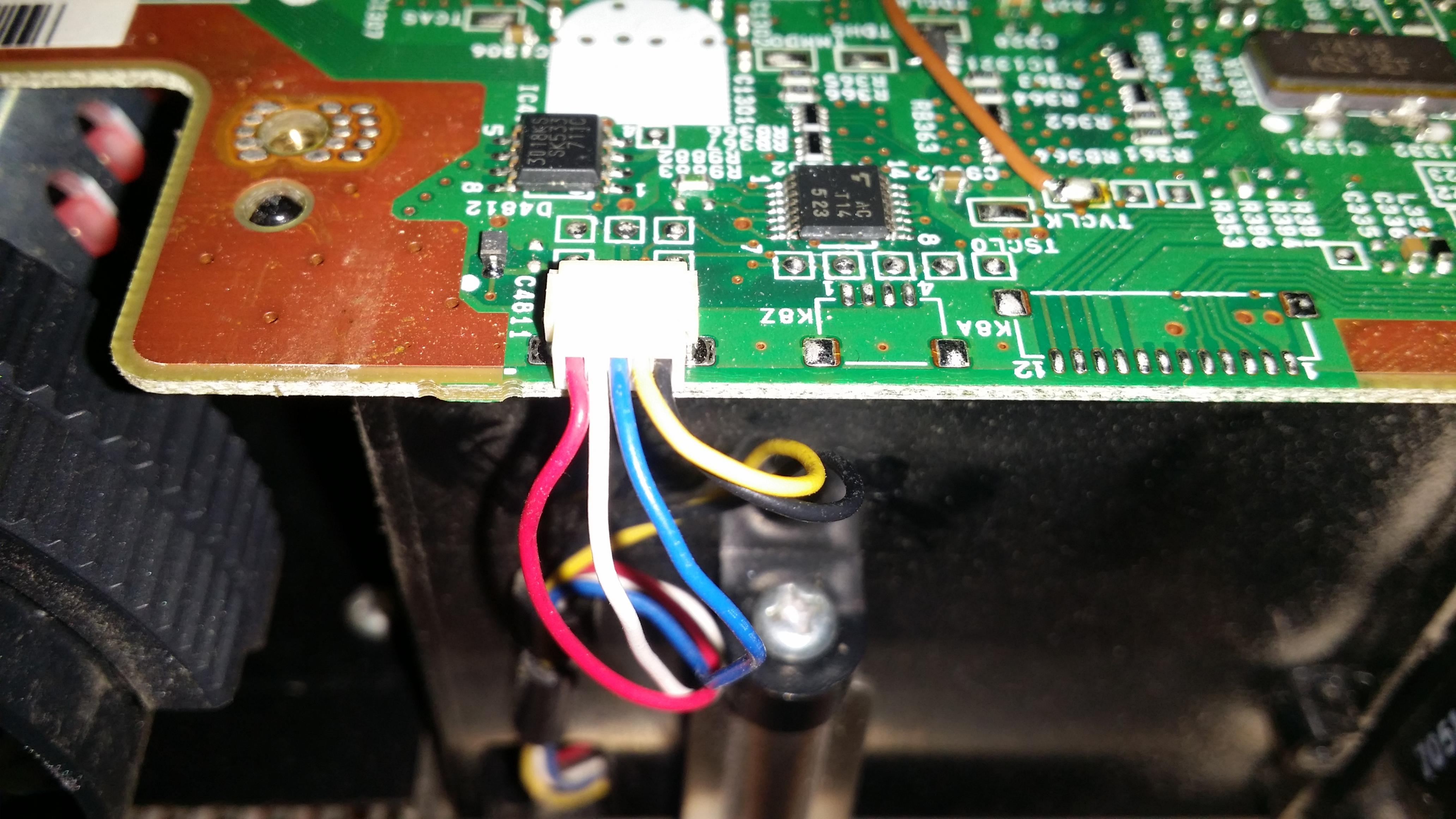

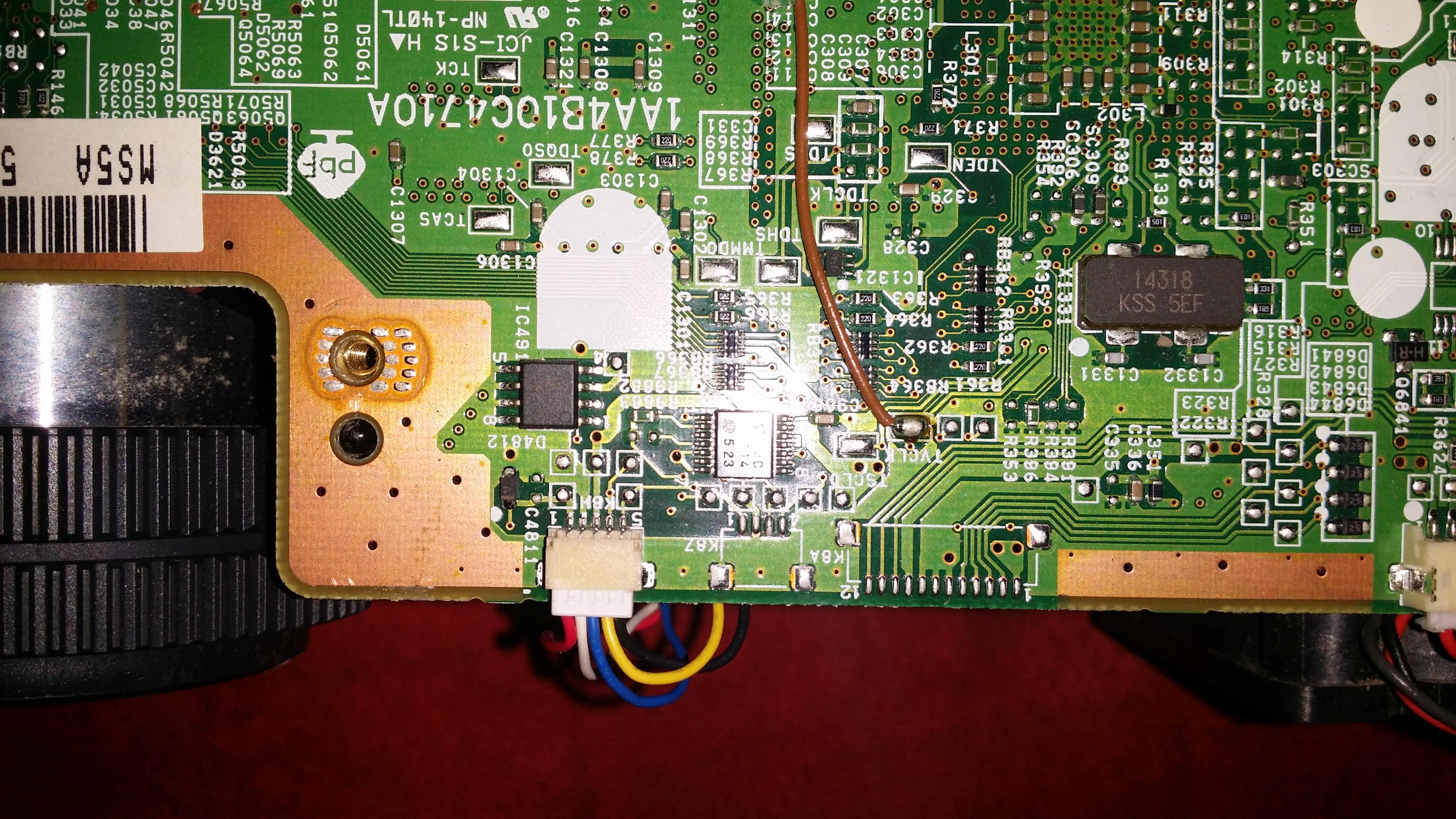

I have tried the jumping of the wires going into the motherboard (red and white) and i have no luck.
I want to run my projector on HID lamp and ballast separately powered from the projector.

any advise will be greatly appreciated.


Attachments

  • image1.JPG
    77.9 KB · Views: 237
  • image2.JPG
    93.1 KB · Views: 211
  • image3.JPG
    81.6 KB · Views: 252

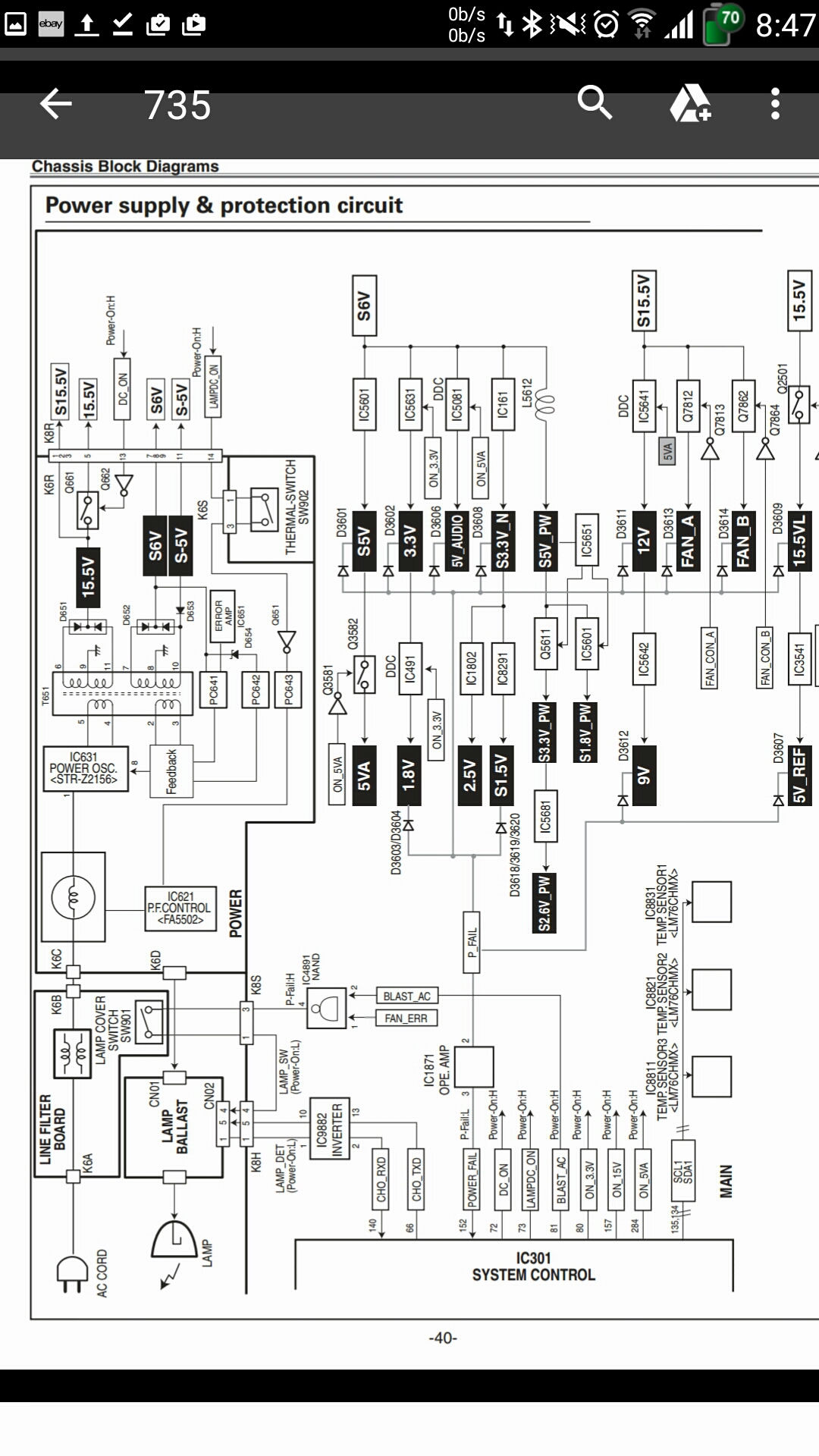

For this diagram Red cable N1 is CHO_RXD is shorts to N5 Black CHO_TXD but I'm not sure.....
