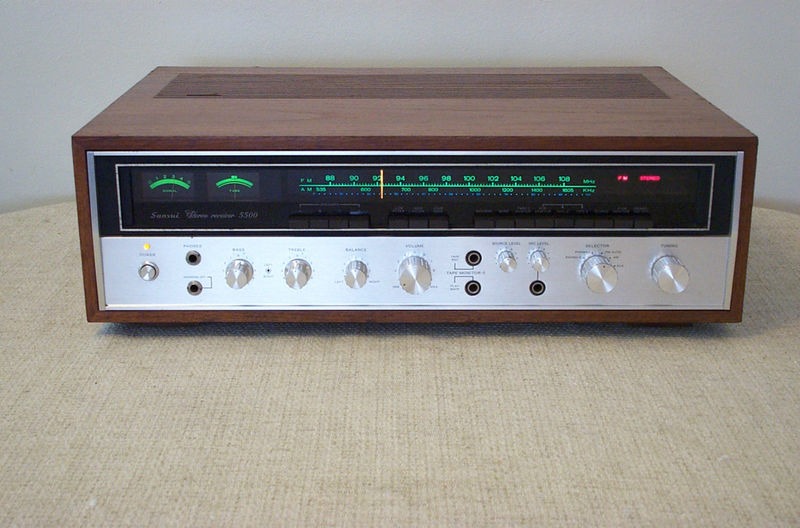

Can someone please help with a good resolution schematic of the old Sansui 5500 receiver (not the newer AU-5500) , as the one I got is sadly in a very poor PDF quality.....
Thanks in advance 🙂
Thanks in advance 🙂
Last edited:
Sorry, do not understand what you mean...Sadly the same poor quality..... :-(
Madis64
As I recall that is the schematic for a newer version (two speaker set output). Sadly there are quite some differences
As I recall that is the schematic for a newer version (two speaker set output). Sadly there are quite some differences
Thats the one I got. Can't read component values etcHave a look at this one. https://www.audioservicemanuals.com/s/sansui/sansui-5500/127484-sansui-5500-service-manual
jeff
Under no circumstances whatsoever do not disclose to the forum readers what you are looking for... 🙂As I recall that is the schematic for a newer version
Yeah I had a closer look at it and decided to delete my post. You may have to pay for a high rez download.
jeff
jeff
