[SALE] Digilent Analog Discovery Portable Analog Circuit Design Kit USB oscilloscope

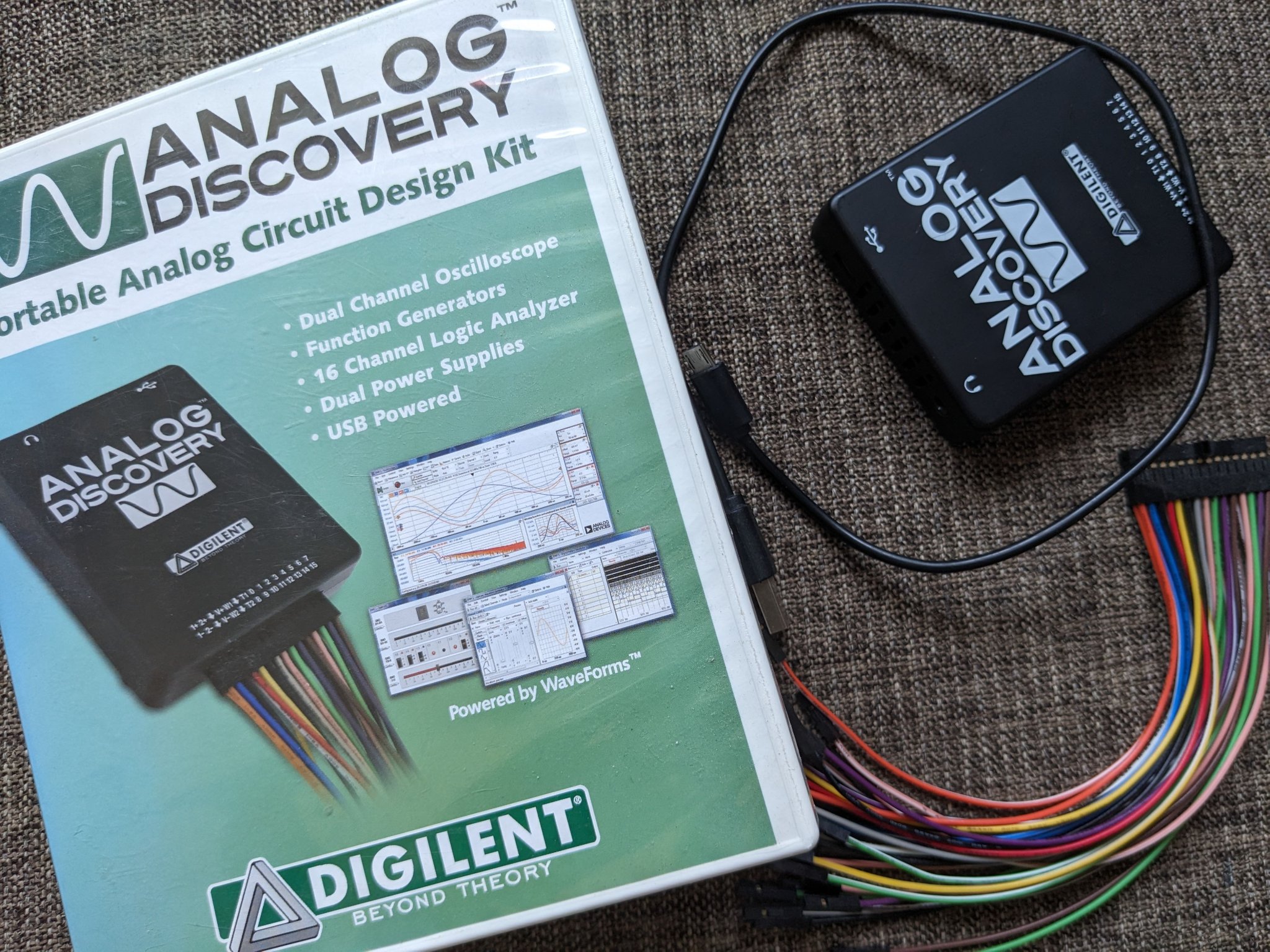

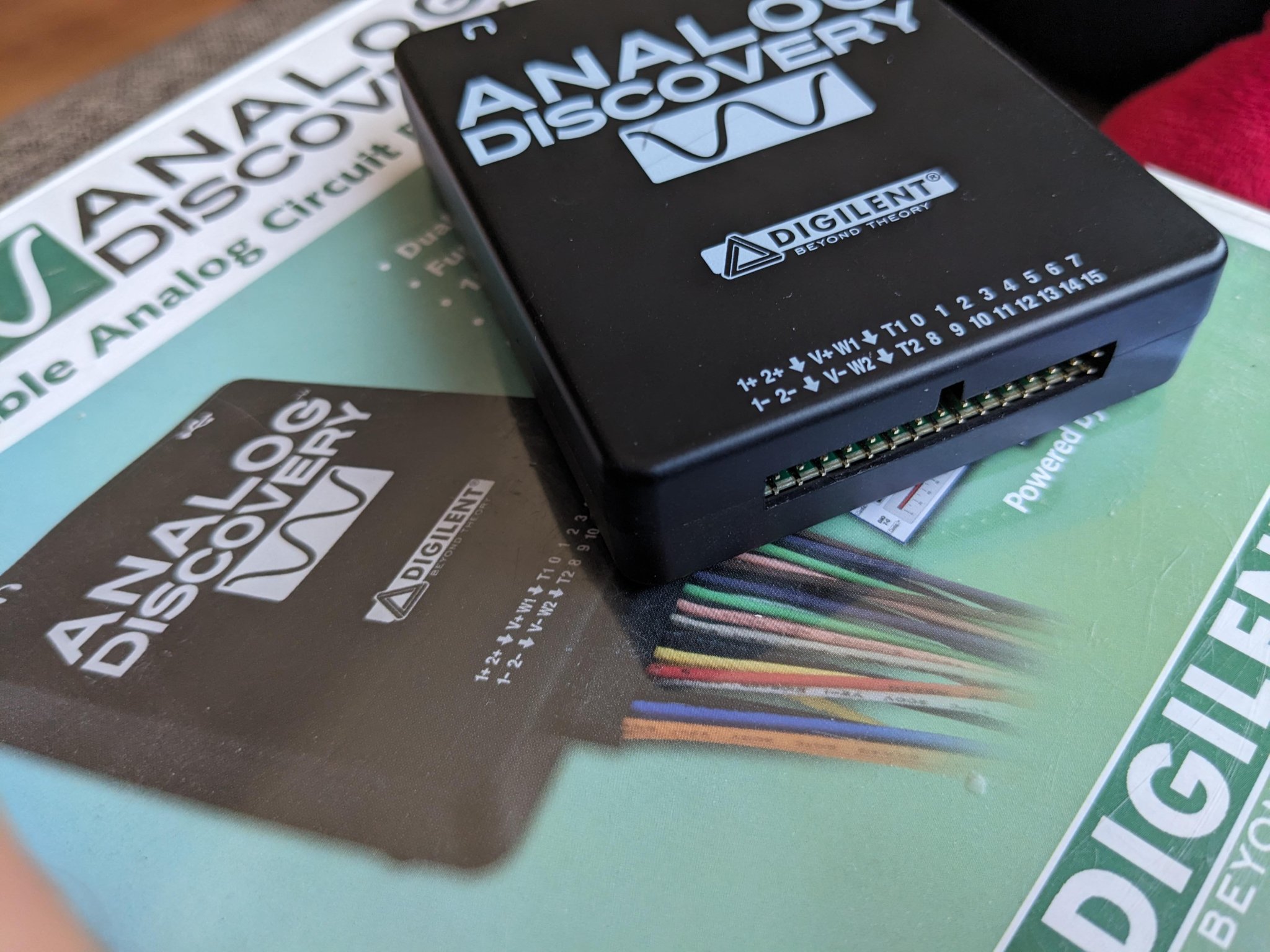

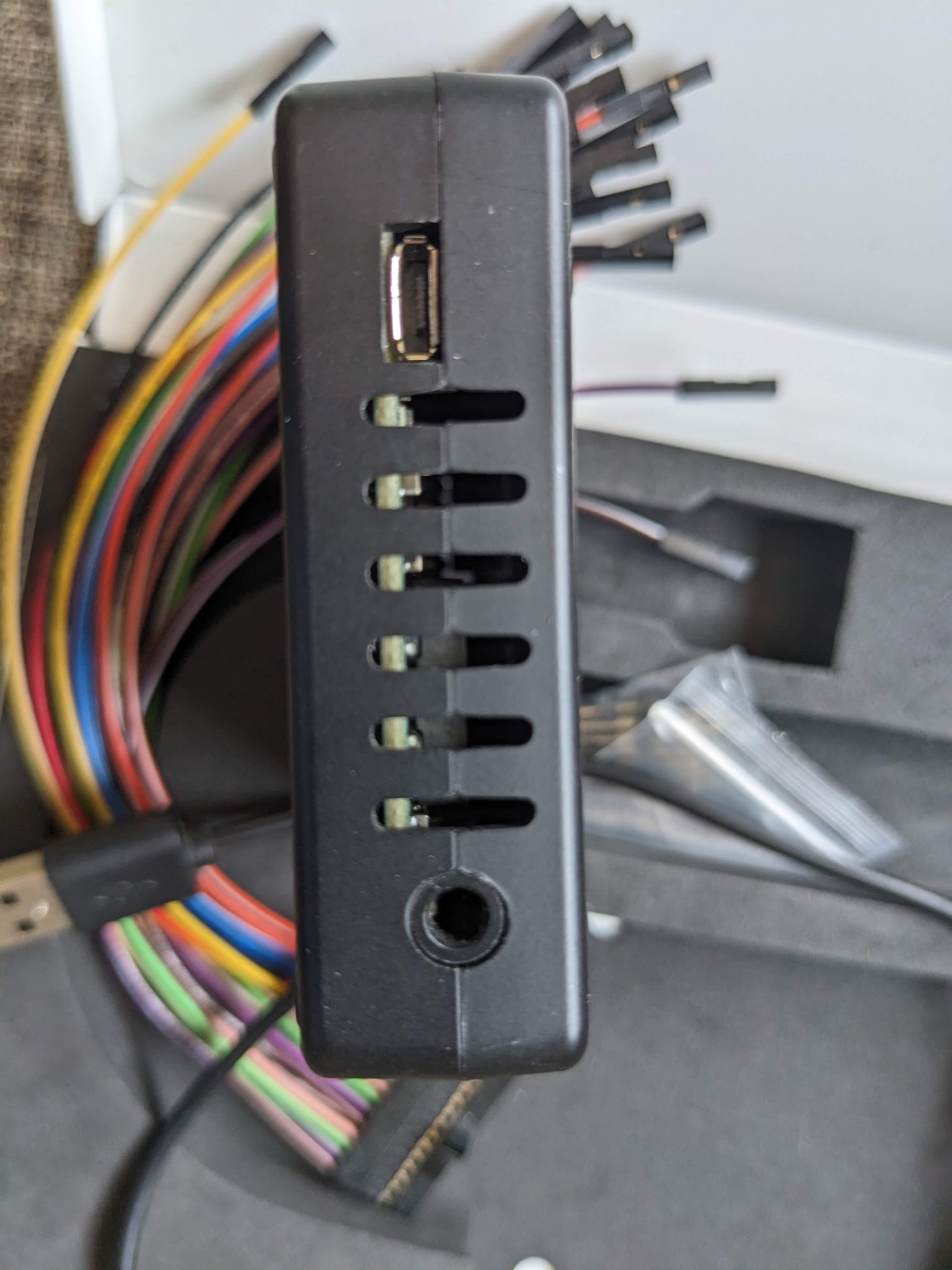

For sale: Digilent Analog Discovery Portable Analog Circuit Design Kit with a BNC PCB

price: 170euro/$170

shipping costs: shipping from the Netherlands, should be about $7-10 within EU and $20 to the US, in any case ask and I will tell you for sure.

Barely used, only for measuring THD and as a spectrum analyser during one project, but then was replaced by a Handyscope, works great!

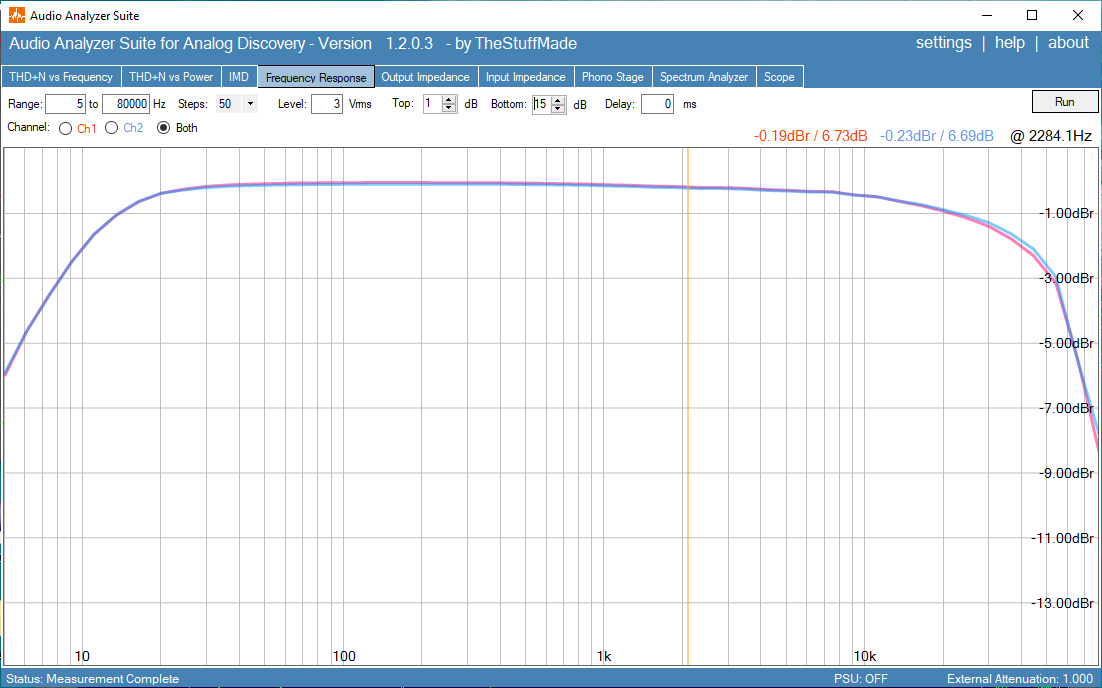

Works with Digilent's software as well as nice external package for working with audio amplifiers:


Features:

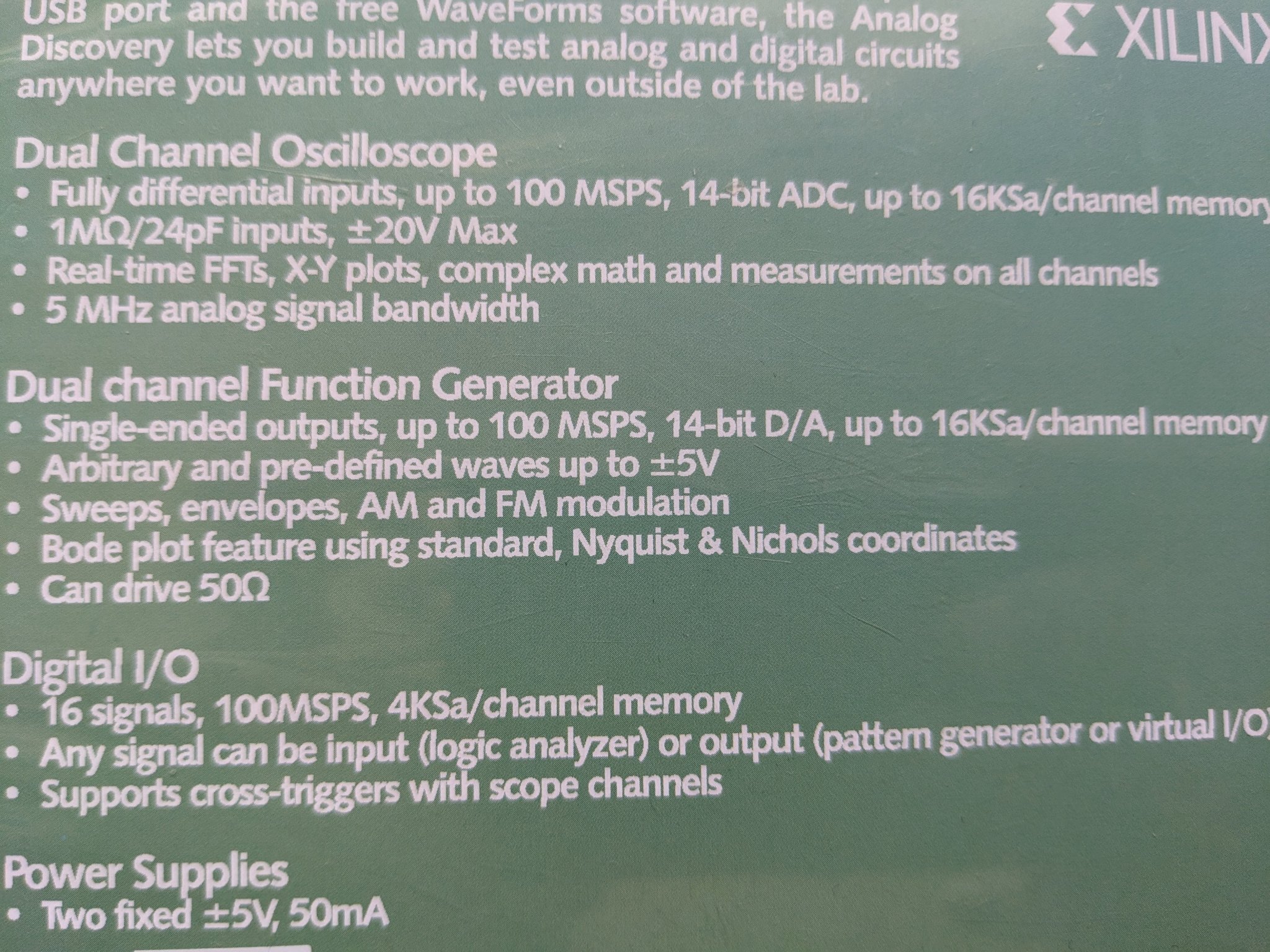

The Analog Discovery’s analog and digital inputs and outputs connect to a circuit using simple wire probes. Inputs and outputs are controlled using the free PC-based Waveforms software that can configure the Discovery to work as any one of several traditional instruments. Instruments include:
  • Two channel oscilloscope (1MΩ, ±25V, differential, 14 bit, 100MS/s, 5MHz bandwidth);
  • Two channel arbitrary function generator (22Ω, ±5V, 14 bit, 100MS/s, 5MHz bandwidth);
  • Stereo audio amplifier to drive external headphones or speakers with replicated AWG signals;
  • 16-channel digital logic analyzer (3.3V CMOS, 100MS/s)*;
  • 16-channel pattern generator (3.3V CMOS, 100MS/s)*;
  • 16-channel virtual digital I/O including buttons, switches and LEDs –good for logic trainer applications*;
  • Two input/output digital trigger signals for linking multiple instruments (3.3V CMOS);
  • Two power supplies (+5V at 50mA, -5V at 50mA).
  • Single channel voltmeter (AC, DC, ±25V);
  • Network analyzer – Bode, Nyquist, Nichols transfer diagrams of a circuit. Range: 1Hz to 10MHz;
  • Spectrum Analyzer - power spectrum and spectral measurements (noise floor, SFDR, SNR, THD, etc.);
  • Digital Bus Analyzers (SPI, I2C, UART, Parallel);
