Hello, I bought a very nice looking tube tester: the RCA Wt-100A.
Is there anyone who owns a manual and wants to share it with me? I really would like to restore the tube tester, and use it as soon as possible.
Kind regards,
Roeland De Vriese
Is there anyone who owns a manual and wants to share it with me? I really would like to restore the tube tester, and use it as soon as possible.
Kind regards,
Roeland De Vriese
looking for user manual rca wt100
dear sir, do you have an original RCA WT100 user-servie manual and the datacharts set up for it E type ,G type gr AEG
dear sir, do you have an original RCA WT100 user-servie manual and the datacharts set up for it E type ,G type gr AEG
Manuals here: Bama Manual Archive
An RCA tube manual is really all you need to set up for testing. It reads directly on gm based on setting from the RCA tube book.
Video here: Testing Vacuum Tubes on the RCA WT-100A - YouTube
An RCA tube manual is really all you need to set up for testing. It reads directly on gm based on setting from the RCA tube book.
Video here: Testing Vacuum Tubes on the RCA WT-100A - YouTube

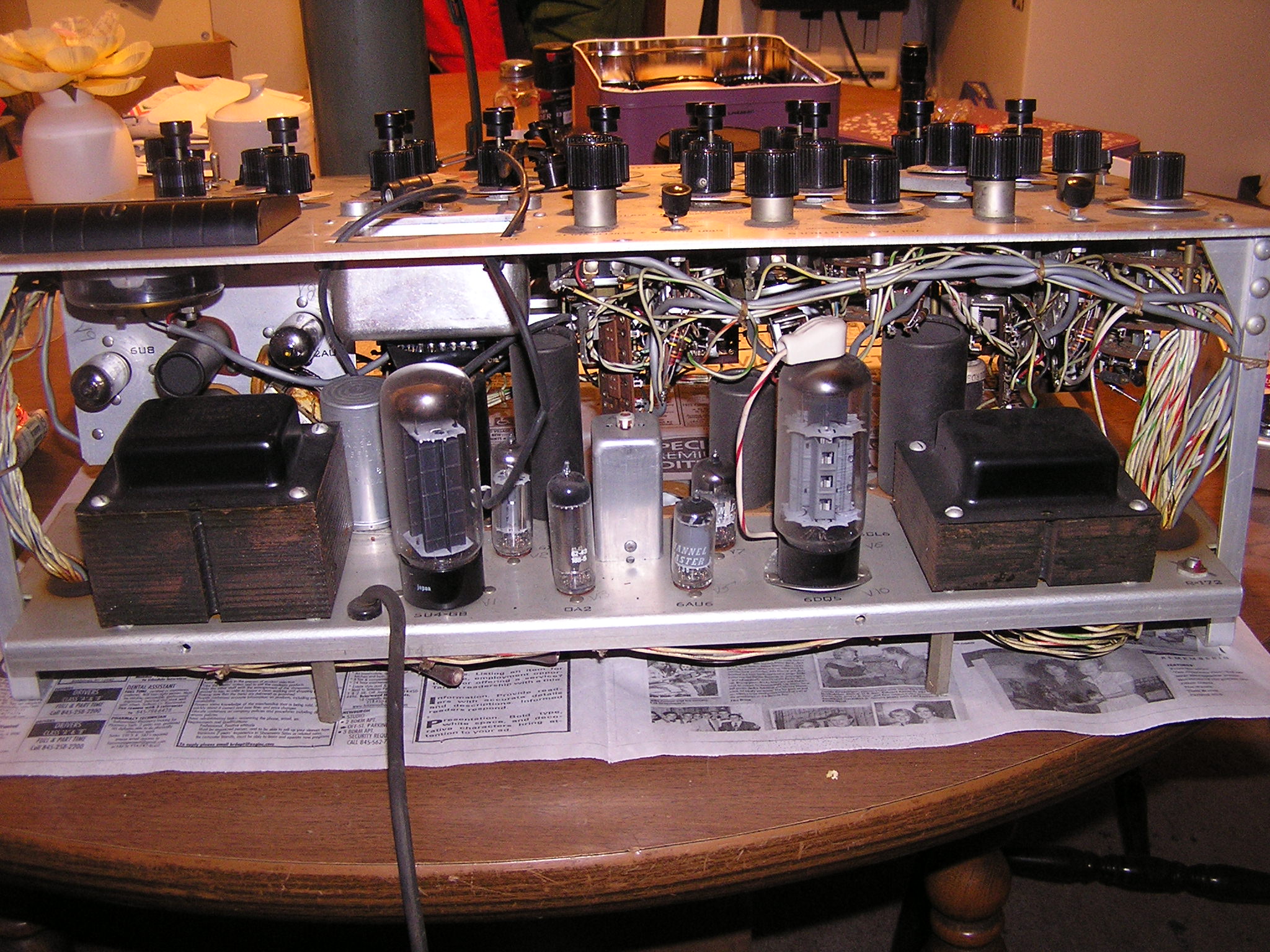

I have an RCA WT100A in my project pile that is missing the high voltage power transformer. Would someone have an interior view photo of the internal power supply. I need to determine the stack height of the transformer to determine the VA rating for a replacement. I do have scans for the various manuals including the available tube data chart.
Last edited:
Thank you for posting this pic! Solves a long unanswered question. Do you have a photo of the underside showing the transformer's terminal configuration?
Here's a link to a tube data chart showing WT100A pin settings for a list of tubes circa 1957 with a few blank pages for adding new tubes in the same layout pattern. https://elektrotanya.com/rca_wt-100a_tube_charts_1963_sm.pdf/download.html
Here's a link to a tube data chart showing WT100A pin settings for a list of tubes circa 1957 with a few blank pages for adding new tubes in the same layout pattern. https://elektrotanya.com/rca_wt-100a_tube_charts_1963_sm.pdf/download.html

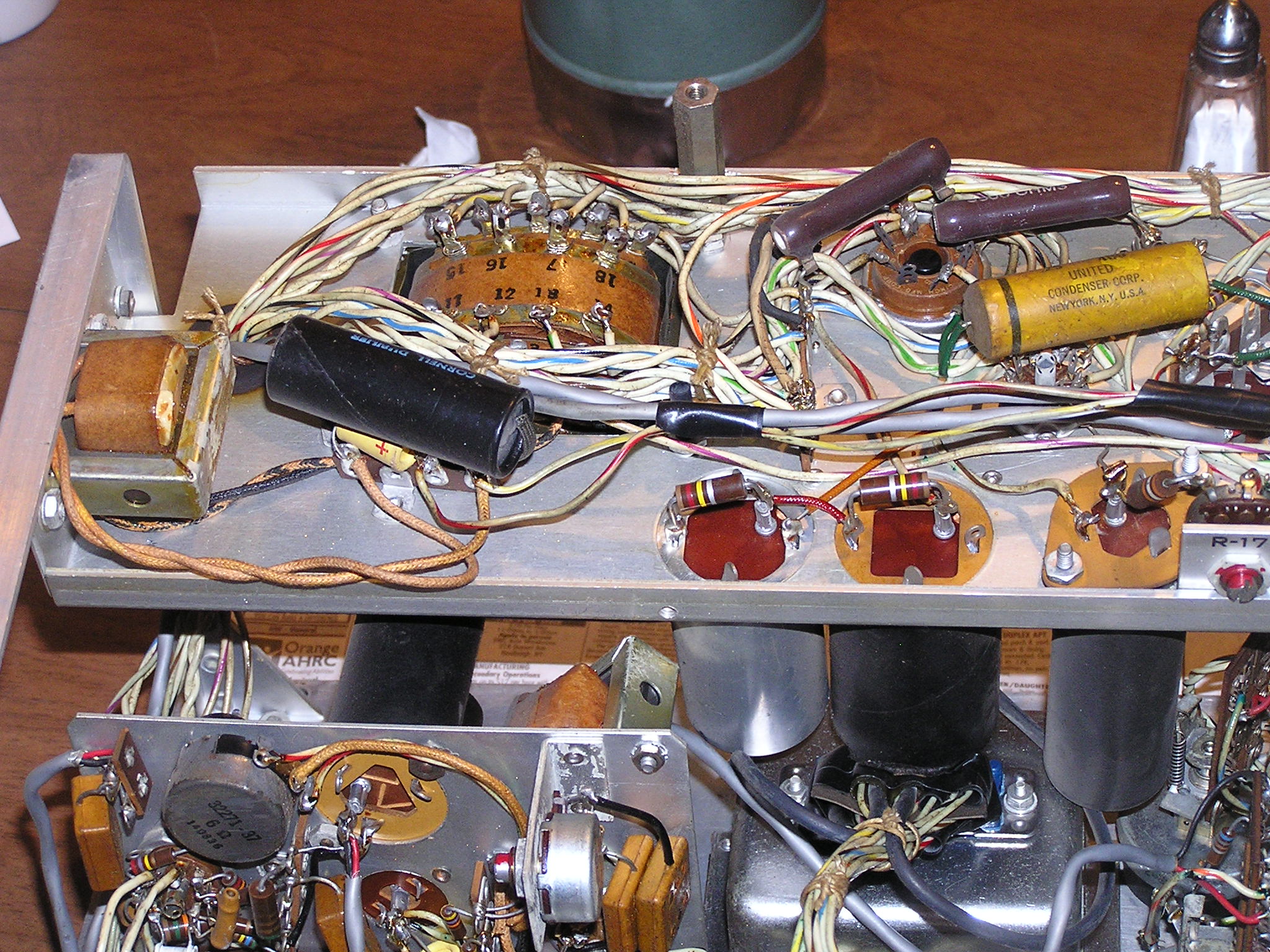

I think this is the correct transformer. It's the best pic I have, the tester is in storage at the moment.
Thanks for the link!
Thanks for the link!
