Quiz: Can you match these circuits with their phasor diagrams

[AllenB]

White arrows are for Voltage, black arrows are for current. Positive x-axis is the reference angle.



[MarcelvdG]

How can one answer without spoiling the quiz for everyone else?



[AllenB]

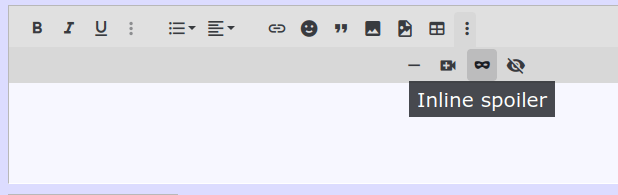

The spoiler options in the editor will hide answers until you click on them.

Example 1, the inline spoiler: Hidden text.
Example 2, the regular spoiler:

Spoiler: Hidden

text

(For those in tag mode, use [ISPOILER]Hidden text.[/ISPOILER] or [SPOILER="Hidden"]text[/SPOILER]



[MarcelvdG]

1B 2F 3J 4H 5G 6A 7I 8E 9D 10C



[newvirus2008]

Didn't try but nice exercise.



[lcsaszar]

2 and 7 are undefined, they depend on the frequency.



[MarcelvdG]

You shouldn't just look at the sum vector, but also at how it is constructed.
