Pioneer AVH-100DVD

[Onuijizm]

I am looking for the pin out on the plug



[Perry Babin]

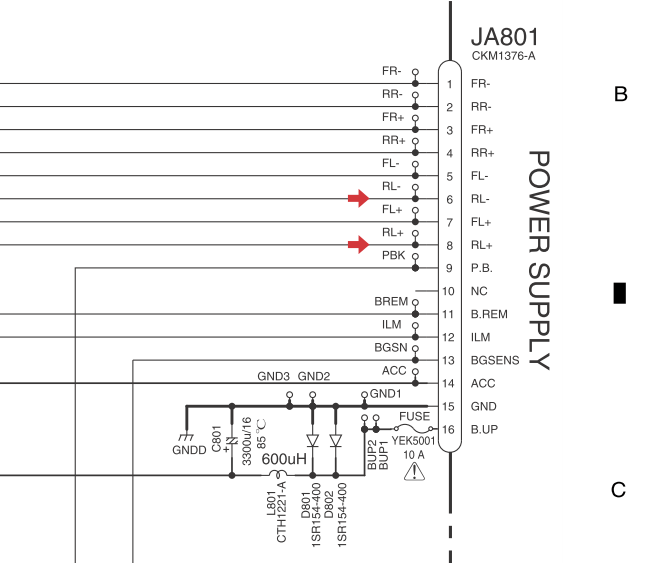

See attached.



[Onuijizm]

Whhat is BGSENS on the wiring diagram



[Perry Babin]

https://pdf.crutchfieldonline.com/ImageBank/v20140408142200/Manuals/130/130AVH100D.PDF

Light green? Page 36 in the owner's manual.

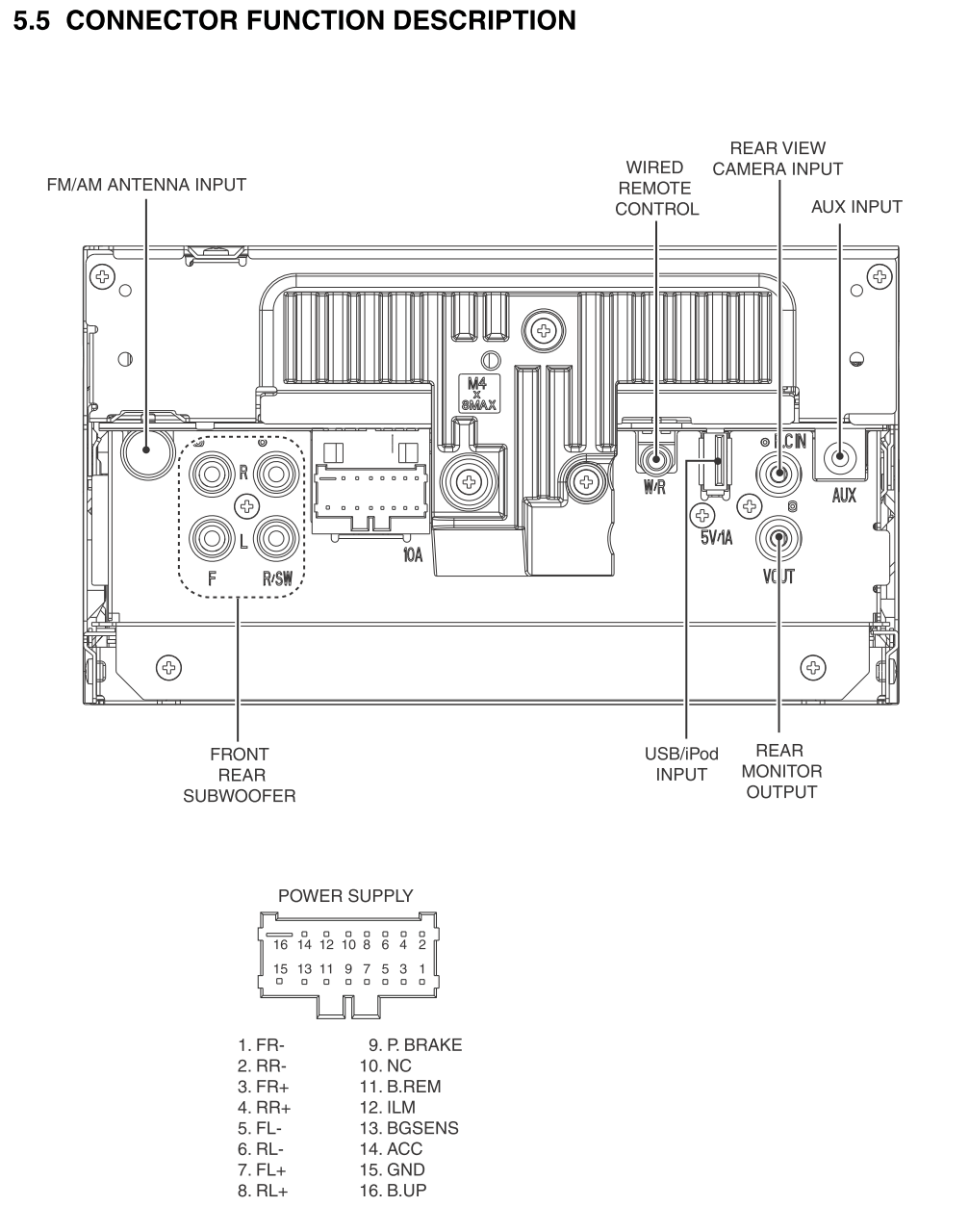

I found a better diagram in the service manual.
