PCB mount RCA socket

[jan.didden]

Hi guys,

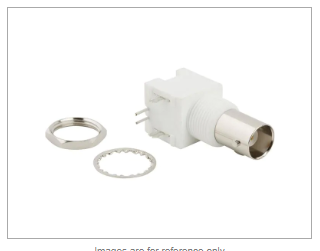

I was searching for an RCA-mounted connector similar to this one:

031-5431-10RFX Amphenol RF | Mouser Belgique

That one is BNC but I am pretty sure I saw some RCA-type connectors with the same body and mounting and pins etc as this one. But can't find it back :-(

Anybody knows where to find those?

Jan



[catd]

Hi!
not exactly the same, but similar: LUM 1553



[scottjoplin]

I find googling images is often useful panel mounting PCB mounting RCA sockets - Google Search There are some here that are panel mounting

This looks good https://www.canford.co.uk/ProductRe...RCA (PHONO) PANEL SOCKET PCB mounting MK2.pdf



[jan.didden]

Actually Scott that is exactly what I was looking for. Isn't this forum a great resource! Thanks a bunch!

Now to find the 3D .step file for it ;-)

Jan



[Boydk]

Or this:

EOS Electronics | Hi-Fi & Hi-End Audio | RCA Plug & Jack | RJ-140GT



[jan.didden]

What price is that: Цена 9.00 лв ?

Jan



[jan.didden]

I think it is Bulgarian Lev, which is about € 0.5 .
Looks like a good resource, but the last posting is from 2017 ...
Are they still alive, one wonders..

Jan



[thuanth43]

1pair RCA Audio Plug PCB Mount Jack Male Solder Locking Audio Grade Connector | eBay



[jan.didden]

Good stuff! I ordered a pair, see how they look in real life!

Jan



[Mark Tillotson]

https://uk.farnell.com/c/connectors...dapters/audio-video-connectors/rca-connectors
