Has anyone has information about the directions an unshielded EI core power transformer leaks, magnetically speaking ? The solder lugs on mine make it can't be easily shielded...and I have some noise I think it is related to this.
Thanks in advance
best regards
eric
Has anyone has information about the directions an unshielded EI core power transformer leaks, magnetically speaking ? The solder lugs on mine make it can't be easily shielded...and I have some noise I think it is related to this.
Thanks in advance
best regards
eric
Eric,
The magnetic field of an EI core follows the same rules as any other magnetic field. Wikipedia has some good illustrations of this: Magnet - Wikipedia, the free encyclopedia and here: Leakage inductance - Wikipedia, the free encyclopedia
Basically, you can figure the transformer will leak field lines that originate perpendicular to the windings. I would also expect some leakage field at the corners of the core. Shielding the solder lugs will do absolutely nothing for shielding. And even a metal shield needs to be very thick (>10 mm) to be worthwhile for magnetic shielding. Unless, you have access to mu-metal...
~Tom
The magnetic field of an EI core follows the same rules as any other magnetic field. Wikipedia has some good illustrations of this: Magnet - Wikipedia, the free encyclopedia and here: Leakage inductance - Wikipedia, the free encyclopedia
Basically, you can figure the transformer will leak field lines that originate perpendicular to the windings. I would also expect some leakage field at the corners of the core. Shielding the solder lugs will do absolutely nothing for shielding. And even a metal shield needs to be very thick (>10 mm) to be worthwhile for magnetic shielding. Unless, you have access to mu-metal...
~Tom
Below link is to a good simulation schematic of the stray magnetic field emanating from an E-I configuration transformer with an outer leg winding. Your PT would most likely have windings on middle leg, so you would need to do some mental gymnastics to move the stray field emanate from the centre leg. Steel chassis or shield plate would redirect the field - although a thin chassis/plate won't significantly redirect field lines hitting it at right angles.
http://dalmura.com.au/projects/Strayfield.pdf
Ciao, Tim
http://dalmura.com.au/projects/Strayfield.pdf
Ciao, Tim
Last edited:
If you make a mag field search coil you will find that the long side of the core emits the strongest field, in plane with the individual laminations. The short side will emit a field at 1/8 of the long side's strength. This will show up on the trailing slope of the AC waveform. Directly perpendicular to the face of the laminations, the coil will emit a field 1/8 the strength of the short side of the core. This will show up on the leading slope of the AC waveform. This is also the most invasive of the various emitted fields. There is measurable field strength from the angles between core and coil, but they are off the scale from the rest.
To contain fields you must have perfect boxes, no gaps anywhere. It is easier to shove them away from a sensitive area with ferrous materials with poor permeability, like heat treated cold rolled steel. ).06 thick CRS heated to Osteonite temperature will get you -100 db of field suppression. Typical 22 gauge will provide about -40 db. Another tack is to suck the field off in another direction with high permeability materials, like the conetic alloys. Yet another is to form a near chassis width triangle out of high perm material and suspend it between emitter and receiver. You will need about 1/4 inch clearance on either end. To use a core suppression band around the core it should extend beyond the core stack by 0.050 inch on either side of the core faces.
Keep in mind that stray flux will enter and propagate down the bends in a CRS chassis, only to re-emit at some point you don't want it to. Again, heat treating the chassis is the solution.
Bud
To contain fields you must have perfect boxes, no gaps anywhere. It is easier to shove them away from a sensitive area with ferrous materials with poor permeability, like heat treated cold rolled steel. ).06 thick CRS heated to Osteonite temperature will get you -100 db of field suppression. Typical 22 gauge will provide about -40 db. Another tack is to suck the field off in another direction with high permeability materials, like the conetic alloys. Yet another is to form a near chassis width triangle out of high perm material and suspend it between emitter and receiver. You will need about 1/4 inch clearance on either end. To use a core suppression band around the core it should extend beyond the core stack by 0.050 inch on either side of the core faces.
Keep in mind that stray flux will enter and propagate down the bends in a CRS chassis, only to re-emit at some point you don't want it to. Again, heat treating the chassis is the solution.
Bud
To date I haven't done anything to quell fields from the AudoPrism Debut amp I use. I will have to sooner or later, as my next speaker system will jump from 93 db efficient to 96 db. The current set up does have audible hum directly adjacent to the main full range driver, though none from the plate amp driven TL subs, so I will be investigating all manner of power supply remedies for the upper frequency range drivers.
Bud
Bud
Hi everybody,
I have a question that is along the lines of this post; I just can't seem to wrap my head around the geometry that you all are describing above...
I want to build a stereo amp and the space on the chassis is rather tight. I want to know the best way to situate the output transformers so their magnetic flux will LEAST affect the pre tubes that are situated very close by to the output transformers. The choice is picture "A" or picture "B".

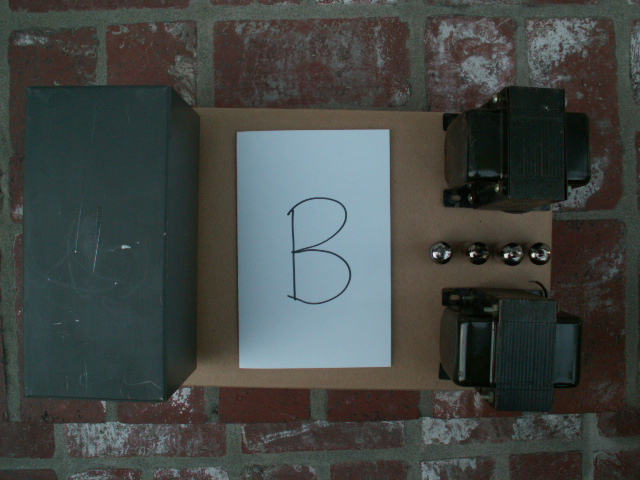

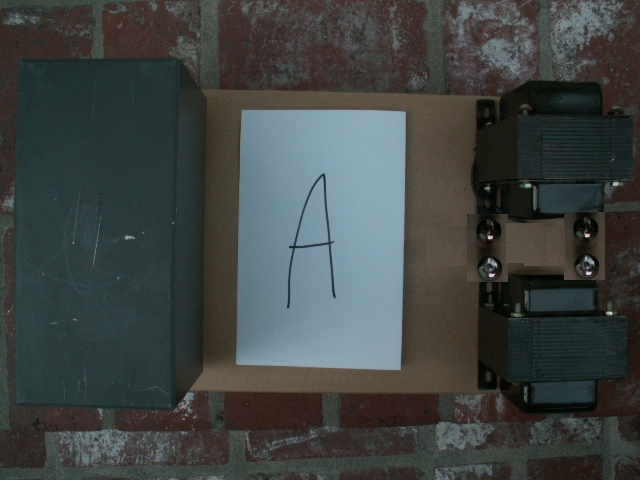

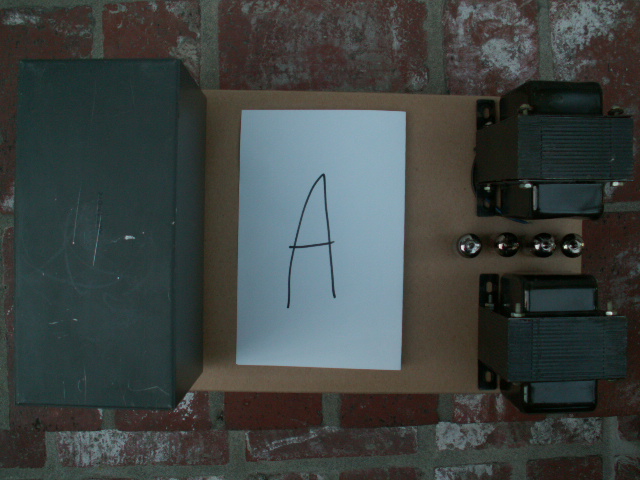

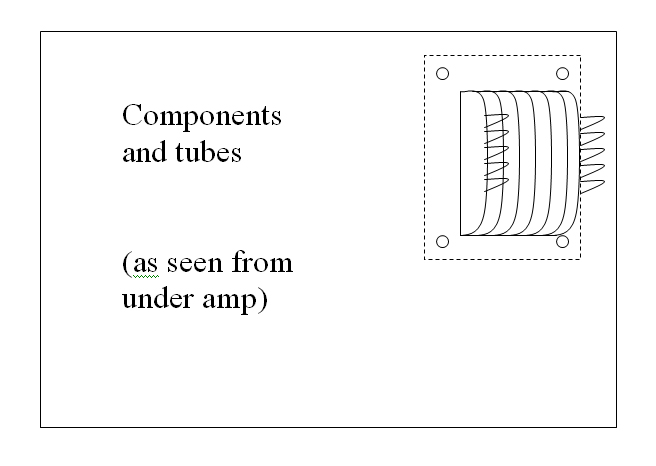

The power transformer is at the left, the middle of the chassis is for the output tubes and the 2 transformers at the right will be the outputs with the pre tubes (pre drivers) in between the 2 output transformers.
The pre driver tubes will be 6DJ8 or 6CG7 tubes, the output tubes will be 811A's in push-pull. This will be a stereo version of the Gotham Audio's cutter amp that they made back in the 50-60's. I have built a mono version of this amp and love the way it sounds, now I want to do a stereo version.
Thanks in advance...
Daniel
PS. One more question.... If the long side of the transformer core emits the strongest field, then why does the sides perpendicular to the core emit the most invasive of the magnetic fields? I don't follow. Wouldn't the side that emits the strongest field be the side that is most invasive?
Attachments
Last edited:
I have no idea why the coil generated flux is more invasive. That's just an empirical finding from 35 years of helping other folks track down their noise issues. Were I to build the amp you show in your pictures and wanted the least interference and could not mount the tubes on the other side of the main board or just sticking up through pretty tight holes in the board I would place them as shown in the picture.
I would strongly suggest a bread board first and then a perfboard with sockets and OPT's mounted on the desired metal plate just so you can move the tubes around.
Bud
I would strongly suggest a bread board first and then a perfboard with sockets and OPT's mounted on the desired metal plate just so you can move the tubes around.
Bud
Attachments
In my own humble experience, this is not predictable through an intellectual exercise or discussion.
The only way to be sure to have the least coupling is to test it on the bench. Different transformers in practice behave differently.
Apply the correct AC voltage to the power transformer and monitor your signal transformer or coil for a millivolt level AC signal. Sometimes a pair of headphones is sensitive enough. The input of an amplifier works also. Then move the coils around and try all orientations for minimum coupling. Try different orientations of both the power transformer and the signal coil relative to each other.
For example, I found the best orientation for Hammond open frame filament transformers on one amp to be with the open coil directly facing the OPT. Go figure...
The only way to be sure to have the least coupling is to test it on the bench. Different transformers in practice behave differently.
Apply the correct AC voltage to the power transformer and monitor your signal transformer or coil for a millivolt level AC signal. Sometimes a pair of headphones is sensitive enough. The input of an amplifier works also. Then move the coils around and try all orientations for minimum coupling. Try different orientations of both the power transformer and the signal coil relative to each other.
For example, I found the best orientation for Hammond open frame filament transformers on one amp to be with the open coil directly facing the OPT. Go figure...
Transformer Magnetic field Leaking
Hi All.
I decided to do an experiment and measure magnetic leakage field. The following is a brief description of the experiment.
Materials and Methods:

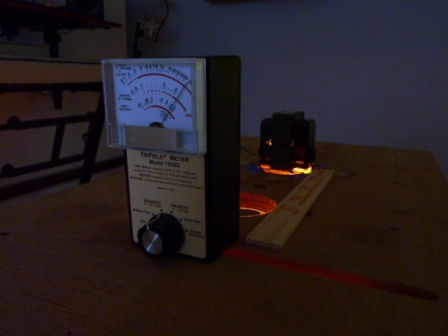

I used Hammond 167S6 filament transformer (116V Pri. 6.6VCT 10A sec.) loaded with 12V 50W halogen bulb. Transformer was mounted on the wooden table. The Magnetic field was measured with TriField Meter
Trifield® Meter
Meter was set on "Magnetic" 1-100 mgauss for all measurements. In all measurements the distance between the TriField Meter bottom and the transformer center was 10.25". Transformer center is assumed to be an intersection of the symmetry axes.

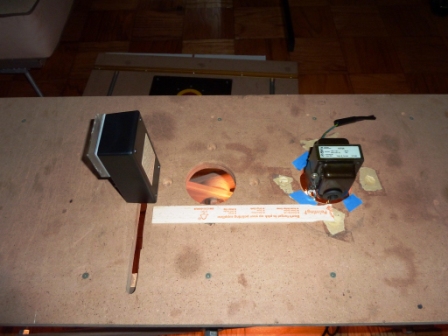

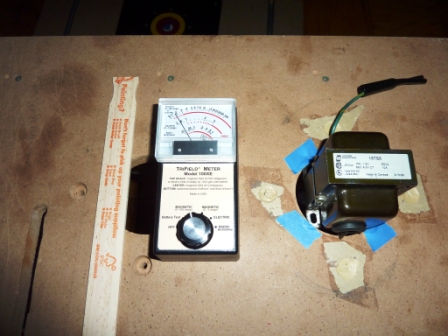

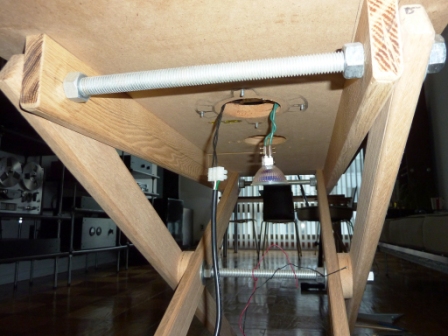

See photos P1 and P2 for the setup.
Results:

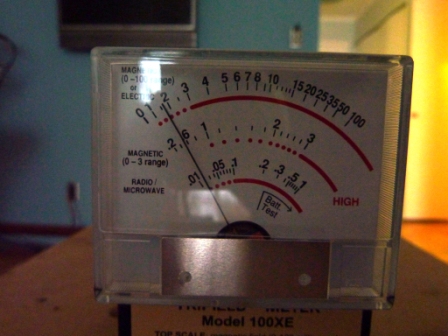

1) I made sure that there are no strong external magnetic fields to interfere with the measurements (e.g. turned off my stereo and lights 🙂). Also placed the table in the middle of the room. I made multiple measurements in the visinity of the test device ( 3-4 ft spere around the transformer with power off). In all cases the measured field was less than 3 mgauss (see photo P3).
2) I measured magnretic fields with power on with transformer in three different positions (three axes). For each position I made measurements at each side along the axis and equal distances from the transformer center. The distance was 10.25" for every measurment. I choose this distance because the strongest field gave me 100mgauss (full scale) during one of the measurements.
Here are the actual results:
a) the measurement axis is parallel to coil axis (photos P4,P5): 100mgauss

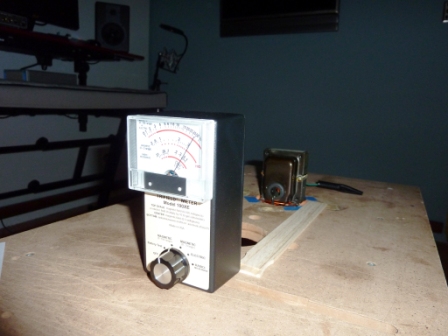

b) the axis is perpendicular to laminations (photo P6,P7): 50-60mgauss

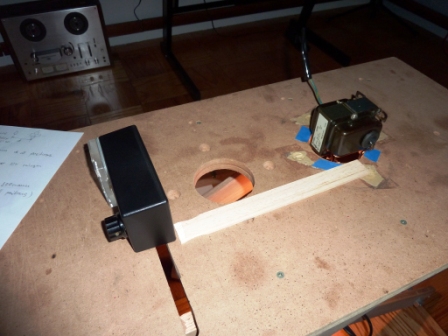

c) the axis is perpendicular to laminations and transformer is rotated 90 degrees (photo P8): 50-60mgauss.
(continued in the next post)
Hi All.
I decided to do an experiment and measure magnetic leakage field. The following is a brief description of the experiment.
Materials and Methods:
I used Hammond 167S6 filament transformer (116V Pri. 6.6VCT 10A sec.) loaded with 12V 50W halogen bulb. Transformer was mounted on the wooden table. The Magnetic field was measured with TriField Meter
Trifield® Meter
Meter was set on "Magnetic" 1-100 mgauss for all measurements. In all measurements the distance between the TriField Meter bottom and the transformer center was 10.25". Transformer center is assumed to be an intersection of the symmetry axes.
See photos P1 and P2 for the setup.
Results:
1) I made sure that there are no strong external magnetic fields to interfere with the measurements (e.g. turned off my stereo and lights 🙂). Also placed the table in the middle of the room. I made multiple measurements in the visinity of the test device ( 3-4 ft spere around the transformer with power off). In all cases the measured field was less than 3 mgauss (see photo P3).
2) I measured magnretic fields with power on with transformer in three different positions (three axes). For each position I made measurements at each side along the axis and equal distances from the transformer center. The distance was 10.25" for every measurment. I choose this distance because the strongest field gave me 100mgauss (full scale) during one of the measurements.
Here are the actual results:
a) the measurement axis is parallel to coil axis (photos P4,P5): 100mgauss
b) the axis is perpendicular to laminations (photo P6,P7): 50-60mgauss
c) the axis is perpendicular to laminations and transformer is rotated 90 degrees (photo P8): 50-60mgauss.
(continued in the next post)
Attachments
Irakli, why did you move the meter?
You could plot level as you just turn the transformer through 90 degrees (keep meter in same position), for each of the three transformer axis. And could repeat for each of the three meter axis orientations.
Ciao, Tim
You could plot level as you just turn the transformer through 90 degrees (keep meter in same position), for each of the three transformer axis. And could repeat for each of the three meter axis orientations.
Ciao, Tim
actually I did it both ways 🙂 the results were the same.
pictures represent the one you are talking about.
pictures represent the one you are talking about.
As measurement is made with a fully shrouded transformer, the faraday cage is makes could explain the quite equal measurement on all axes.
Anyway, usual components are far closer than 10" in an actual amplifier.
Anyway, usual components are far closer than 10" in an actual amplifier.
valid point.
So I repeated the measurements with 2.5" distance. The setup is the same as above except I use variac (located far away) do decrease primary voltage to 25V. This way I could get stray field in the range of my meter (again, the strongest field at 2.5" was giving me 100mgauss).
The results are absolutely the same as in previous post.
Very interesting could you do the same with the bell ends off Tx and replace the bolts with the insulating mountings to stop shorted turns? This would show if the bell ends do block the magnetic field and how effective they are!
Also it would be interesting with a torroid Tx Above and below + side.
Regards
M. Gregg
Last edited:
