Optical Pot

[coolet]

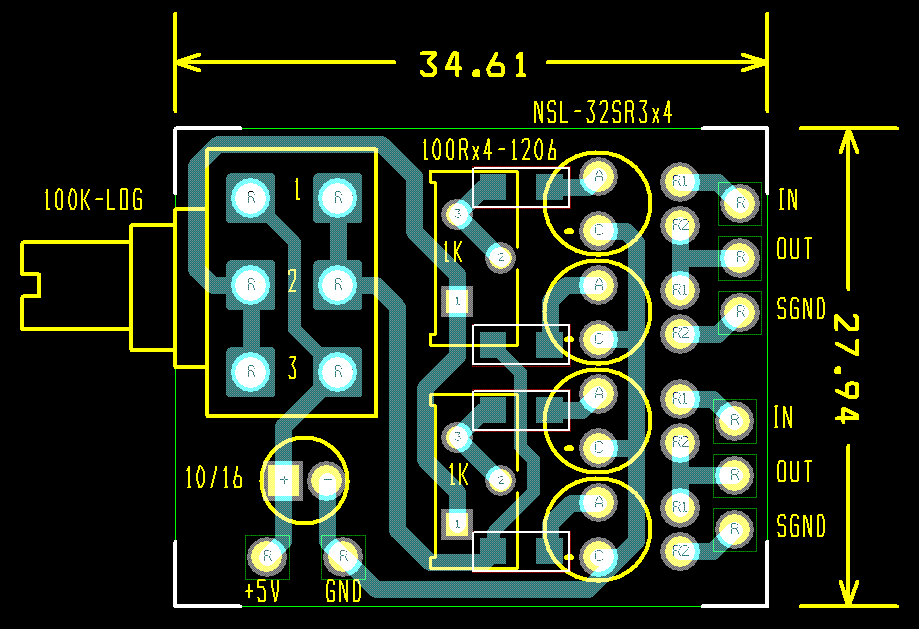

Just received my NSL-32SR3 and i want to share my layout. this was discuss somewhere here in the forum. 😉



[coolet]

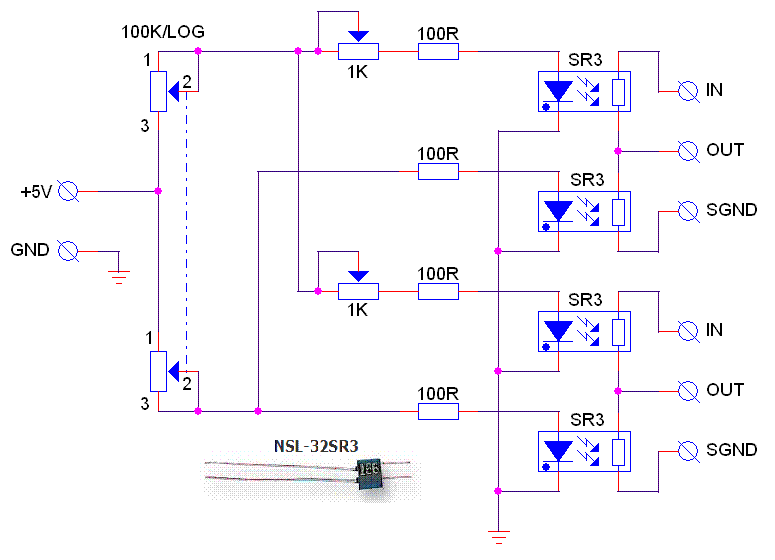

here is the schematic



[vijay_meyou]

Hi coolet,

nice small layout.

can i know what would be special feature in this optical(isolated) pot? since finding nsl32 is very hard in our place.

vijay



[A square]

hello sir ....
thanx ......



[AndrewT]

nice layout, small & neat. I like it.

My only criticism is the lack of space to experiment with caps across the LEDs.



[coolet]

Hi coolet,

nice small layout.

can i know what would be special feature in this optical(isolated) pot? since finding nsl32 is very hard in our place.

vijay

you an check it Here and Here



[coolet]

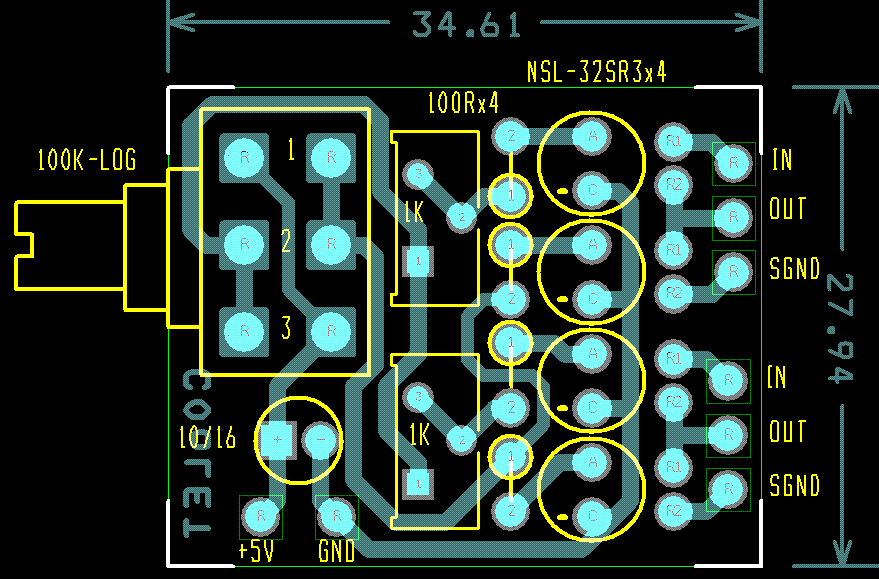

here is a Through-hole version.



[A square]

hi

hello sir


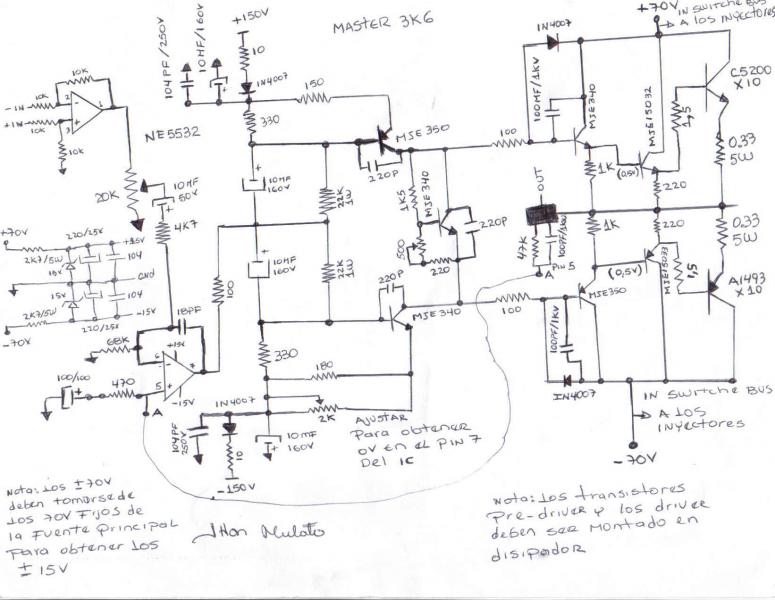

sir can u make pcb layout for dis....i found dis nd i want to make dis can u pls help me.......



[coolet]

I'll try 😉



[A square]

ok thanx sir have a good day....



[A square]

hello sir

i m waiting for ur answer ........

thanx
