1. The circuit simple, inexpensive components, common.

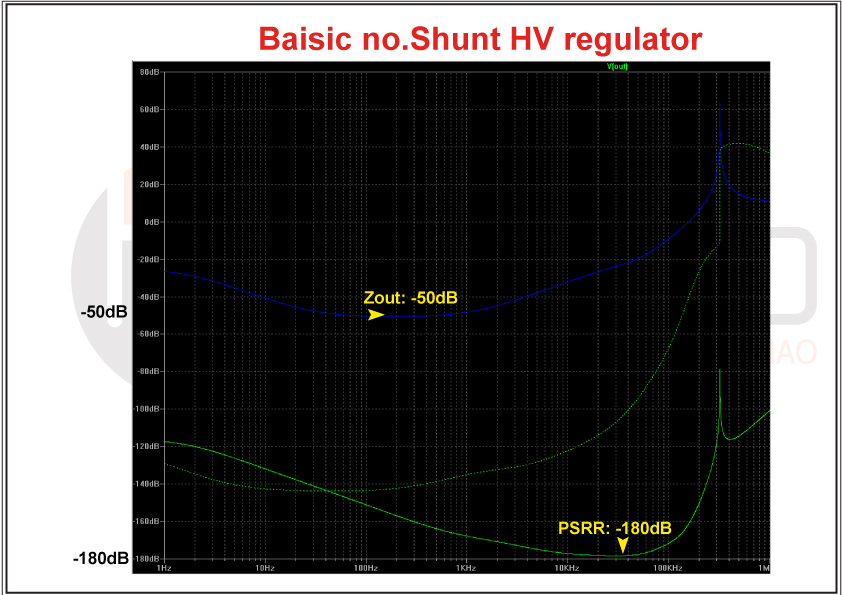

2. Noise output is very small: -180 dB PSRR at 10Hz to 100kHz.
3. Output impedance extremely small as 0.03 mOhm.
4. The main source of small filter capacitors, at least 66 uF,
small temperature on the heat sink, a small voltage drop on the 30V source.
5. Applications for Amplifier, Pre, phono tube .

No.Shunt HV regulator
V-in: Max: 450V
V-out: 150V to 420V
Current load max: 100mA
PSRR: -180dB
Z-out: 0.03mOhm

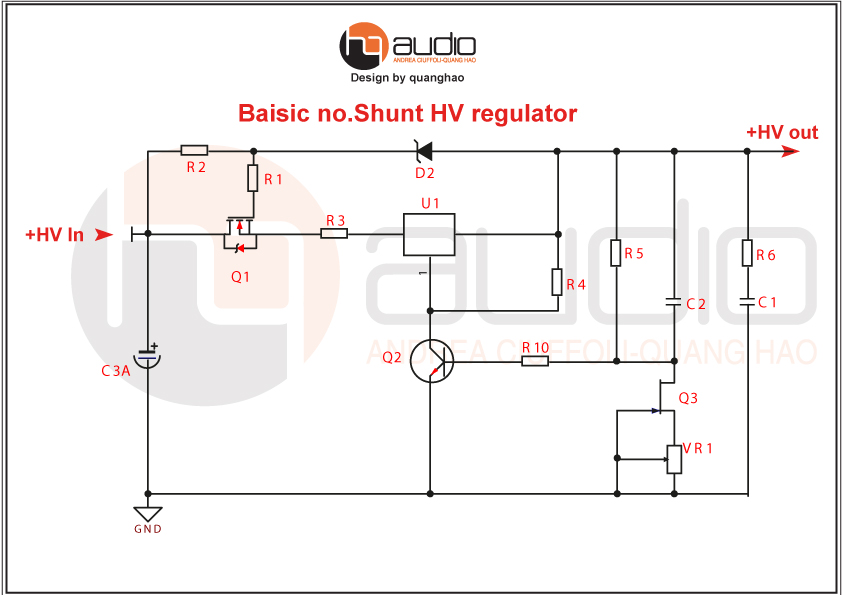

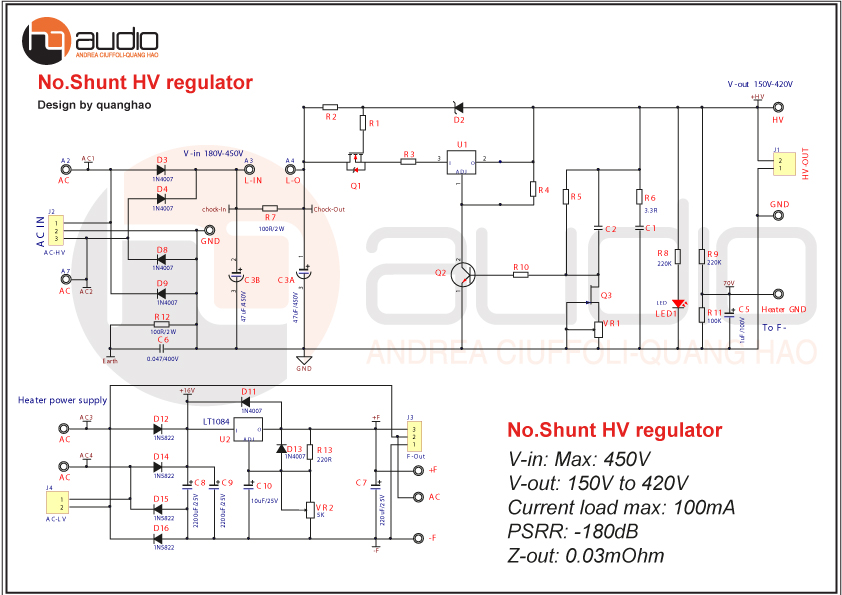

please see the circuit diagram:
Thank you

and this link tube use No.shunt : http://www.diyaudio.com/forums/group-buys/282836-hq-iv-tube-banlance-dac.html#post4623546


Attachments

  • Basis-No,shunt-HV-shema1.jpg
    113.5 KB · Views: 354
  • Z-out-Basis-No,shunt.jpg
    234.2 KB · Views: 348
  • No,shunt-HV-shema.jpg
    191.3 KB · Views: 343

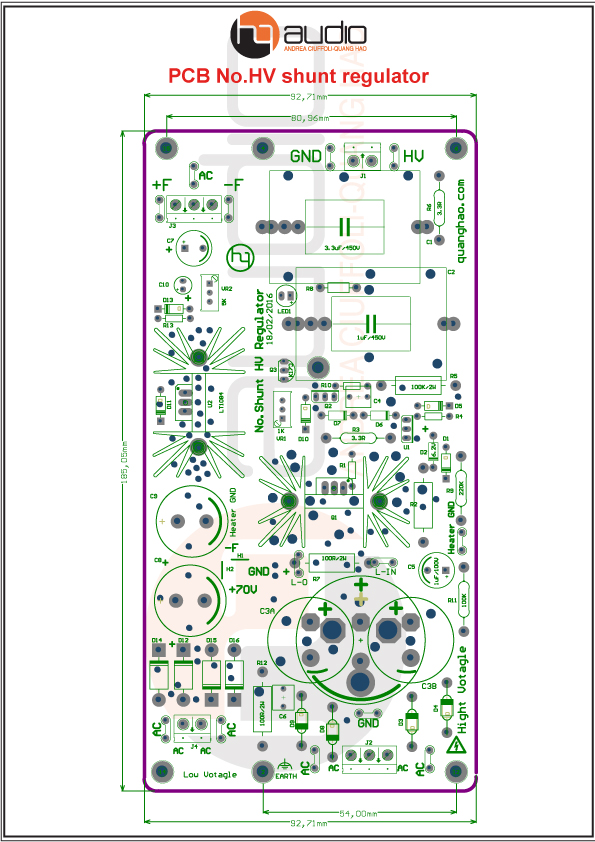

  • PCB-No.HV-shunt-regulator.jpg
    334.1 KB · Views: 339
No.shunt HV Regulator + Heater supply
The PCB is available for $20USD
Sizes: 95 mm X 185 mm
Material: double layer glass phip 2mm thickness
Surface plating: gold standard
The PCB is available for $20 USD
The shipping costs is 15USD ( for all with 1- 3 PCB )
Total: PCB+ship = 35 USD
Accepting USD PayPal only

thanks
