New Design Tektronix 576/575 Curve Tracer Adapter

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.

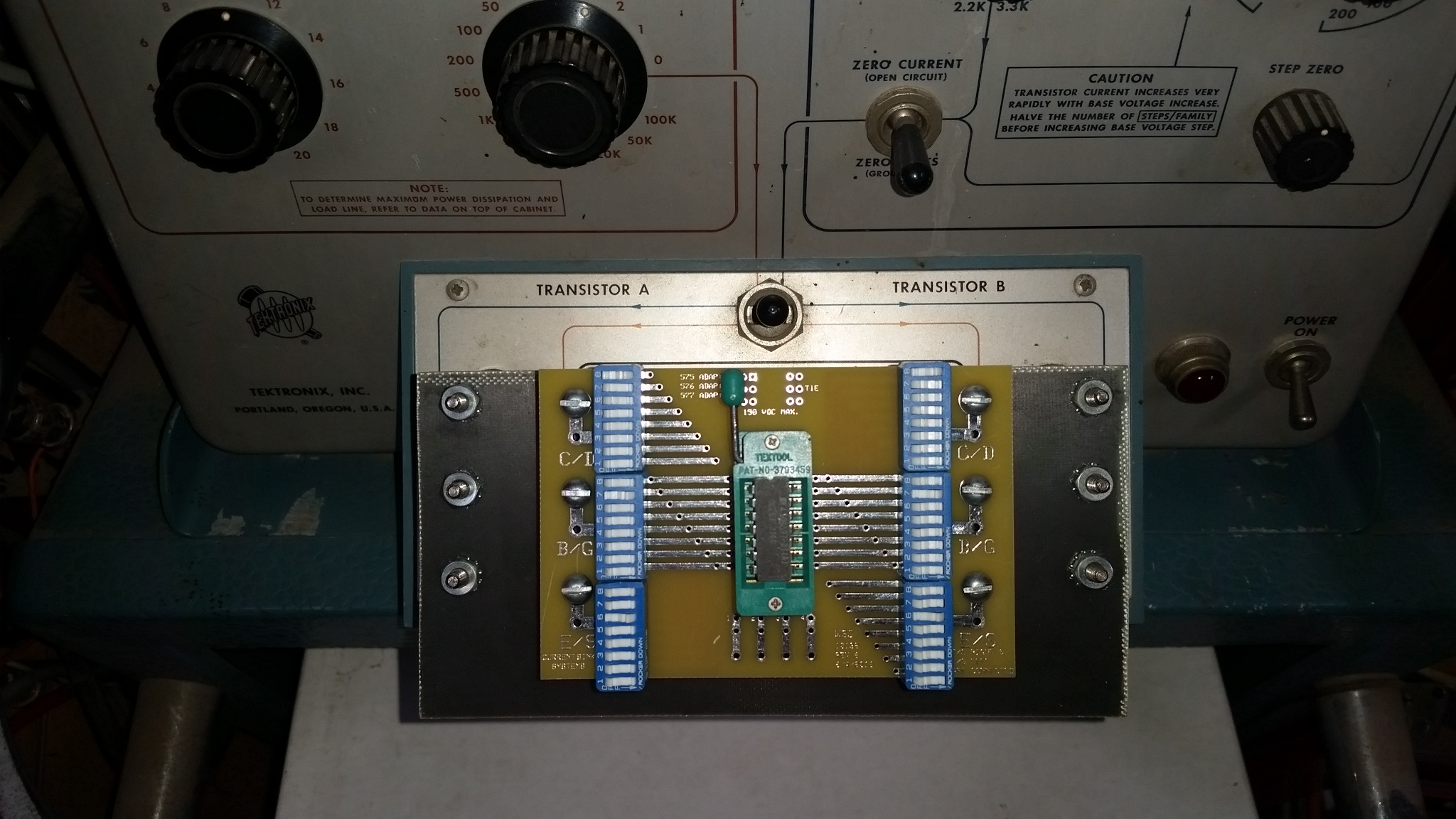

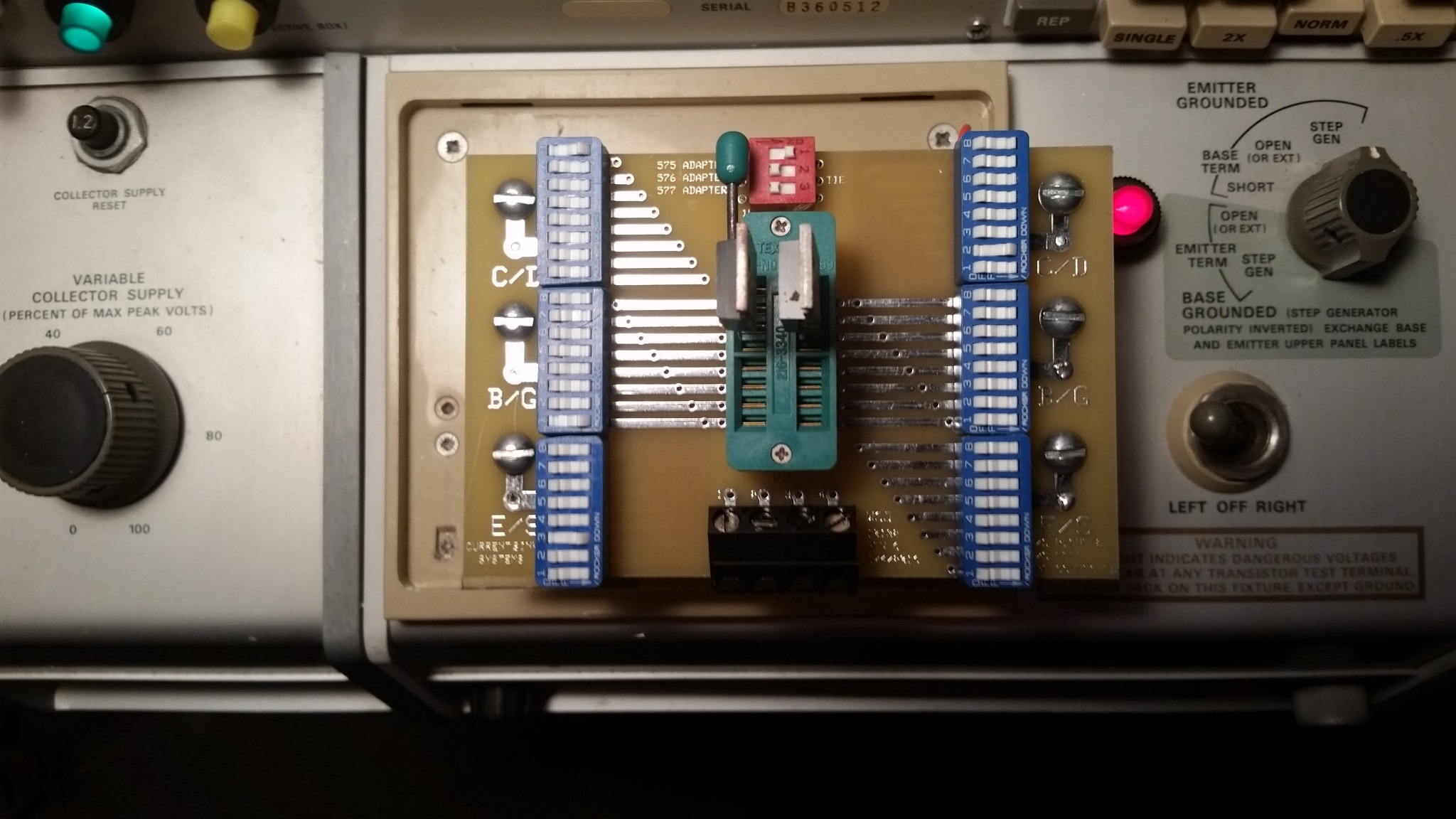

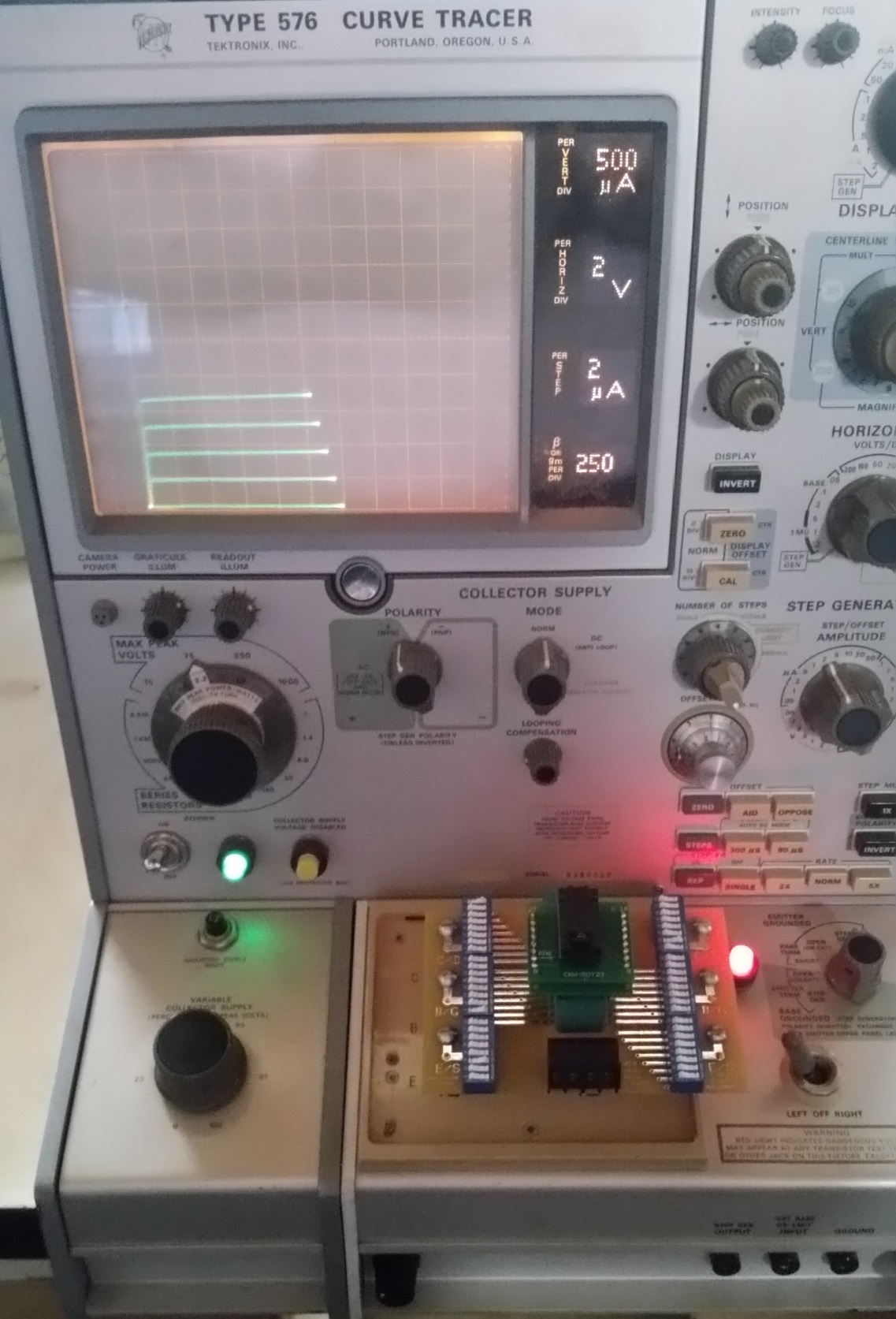

This is 16 pin adapter I designed for the 576 or 575. It will allow any of the ZIF socket pins to be connected to the emitter, base or collector terminals on the curve tracer. The 16 pin ZIF socket can be used with a SOT6, SOT23 adapter to allow 3 and 6 pin surface mount components to be tested. The right and left sides of the ZIF socket can be isolated for used with dual transistors or FETs.


Attachments

  • 20160617_173223 CROP 1.jpg
    20160617_173223 CROP 1.jpg
    418.4 KB · Views: 326
  • 16 PIN ADAPTER WITH TO-220 1.jpg
    16 PIN ADAPTER WITH TO-220 1.jpg
    599 KB · Views: 317
  • 16 PIN ADAPTER WITH SOT23 SOCKET 1.jpg
    16 PIN ADAPTER WITH SOT23 SOCKET 1.jpg
    707.4 KB · Views: 315
  • 20160613_112021.jpg
    724.5 KB · Views: 297
Disabled Account
Joined 2012
This is 16 pin adapter I designed for the 576 or 575. It will allow any of the ZIF socket pins to be connected to the emitter, base or collector terminals on the curve tracer. The 16 pin ZIF socket can be used with a SOT6, SOT23 adapter to allow 3 and 6 pin surface mount components to be tested. The right and left sides of the ZIF socket can be isolated for used with dual transistors or FETs.


I would also like a set for a TEK 576.


Thank you,
Richard Marsh

I would also like a set for a TEK 576.
Thank you,
Richard Marsh

I will be ordering more boards in a few days.
Let me know if anyone else would like a set of boards for the 576.

The Adapter for SOT6 SOT23 is not included, but is available on eBay.
Search: SOT6 TO DIP6 (B) SOT 6 IC Test Socket Programming Adapter for SOT6 SOT23 Package
