Hello all. I have been looking for this quad RCA jack. It has separate insulated grounds. It have tried Switchcraft brand. Ebay, Mouser , etc. Foot print has the grounds on front and back pins. Signal on the side pins. I think there is an RCA cable somewhere with the ground cap still stuck in it.
One of my previous jobs was 14 years at an electronics parts counter but this one is getting to me
Thank, Rick
One of my previous jobs was 14 years at an electronics parts counter but this one is getting to me
Thank, Rick
Attachments
Thanks Perry, I saw those, they have combined grounds. I have some of those and I modified to split the grounds, they work but they look pretty bad.
I bought some for an Alpine 1507 amp from the seller audioclinic on ebay, his name is Mike. You might try him and see what he has. He keeps a lot of them in stock.
So, the large tab connects to the bottom shield and the leg that sticks out the farthest connects to the top shield.
If you can't find the identical jacks, you can use the ones from ebay with some modifications.
If you can't find the identical jacks, you can use the ones from ebay with some modifications.

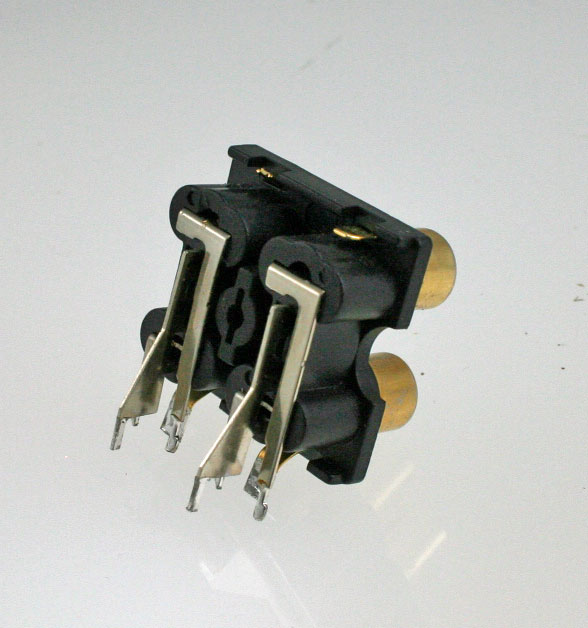

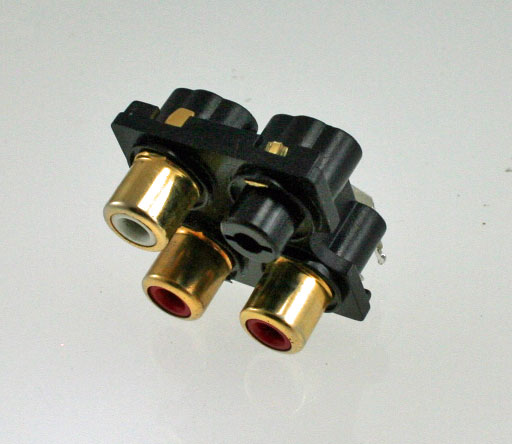

The RCAs appear to be like those in the attached photo. The wide tab is the shield for one channel. The connection farthest back is the shield for the other channel.
http://www.bcae1.com/temp/IMG_0642x.jpg
http://www.bcae1.com/temp/IMG_0642x.jpg
No they won't. The shields on those are tied together. The one I need the shields are isolated. I think they do that so that they can invert one channel for bridging.
I tried that Perry. The flanges for the jacks are different. There is also a little donut-shaped spacer in there too.
