Monacor "Stage Line" STA-700 schema

[edl]

Hi!

I'm looking for the schematic of the Monacor "Stage Line" STA-700 amplifier.

Info

My e-mail adress: [email protected]

Thanks!



[edl]

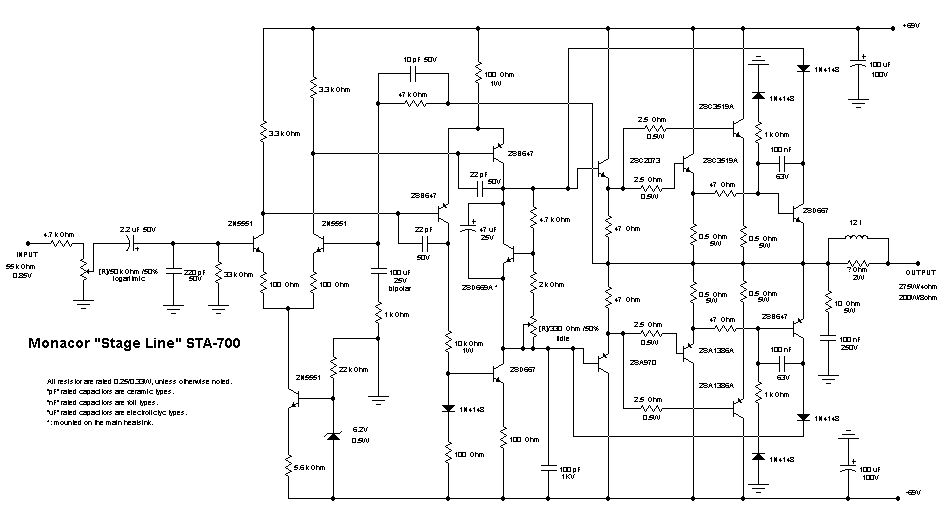

here is the schema

sorry, I can't post it in better quality.

if you can't read something, let's post, I will tell you the value.



[edl]

sorry folks, there is a mistake on the schema.
the pnp transistor in the protection circut is 2SB647 instead of 2SD667.

any feedback about the schema?

regards



[edl]

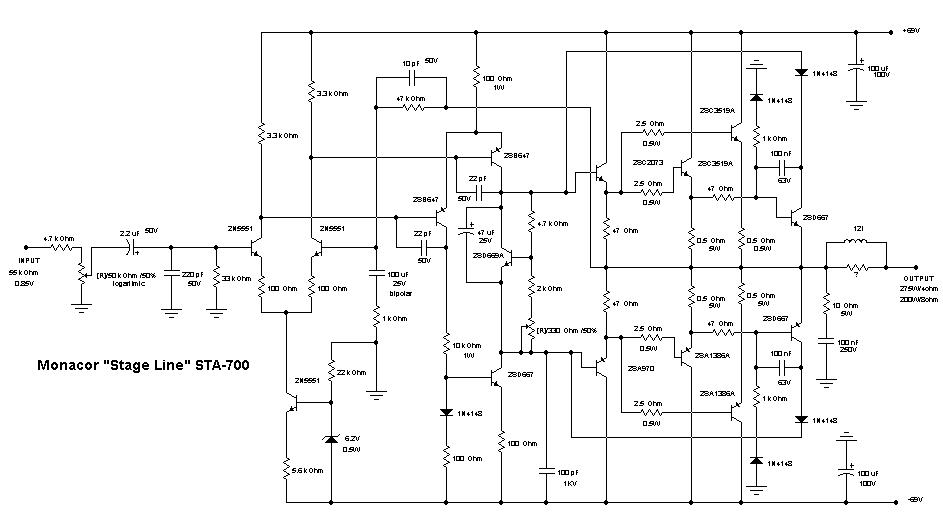

Schematic updated.



[Leolabs]

Nice design on the driver-output stage,individual bias resistor for each output transistor.



[fesa]

If have a sta-700 on my table. I there someone that have the complete schematic.
The protection keeps lighting and the output relais dos not switch ?
I'm kind of new with amps. can someone help ?
