Micromega "DUO" (CDM9-PRO) - Schematic or other Model with same MAB Processor wanted

Micromega "DUO" (CDM9-PRO) - Schematic or other Model with same MAB Processor wanted

Because service manual and schematic isn't available from Micromega itself, the real question is the following:
Which other Brand uses the same mask programming MAB's in their models as follow ?

1) MAB 8441P T018 DSD9136 (operating processor on front PCB)
2) MAB 8441P T162 DSD8931 (radial servo processor on mainboard)

I don't think, that this mask programming MAB's was only special made for Micromega (because of too small amounts of pieces).
Also the fact, that both MAB's are still available by many providers also indicates, that they were used in models of different brands like Philips, Grundig and Marantz.

Additional in use on Micromega's DUO (BTW - Ser.-No 0035) are this display module: NSM4202A
and this PCM processor: SAA7310GP
There are a lot of models with this parts, but I must know a model, where the above mentioned MAB's are in use.

According the datasheet under
MAB8441P pdf, MAB8441P description, MAB8441P datasheets, MAB8441P view ::: ALLDATASHEET :::
there are a wide range of different mask programming MAB's on the market.

Thank you very much for advices.

P.S.: Please log out to read the captions for the images from attachements.


Attachments

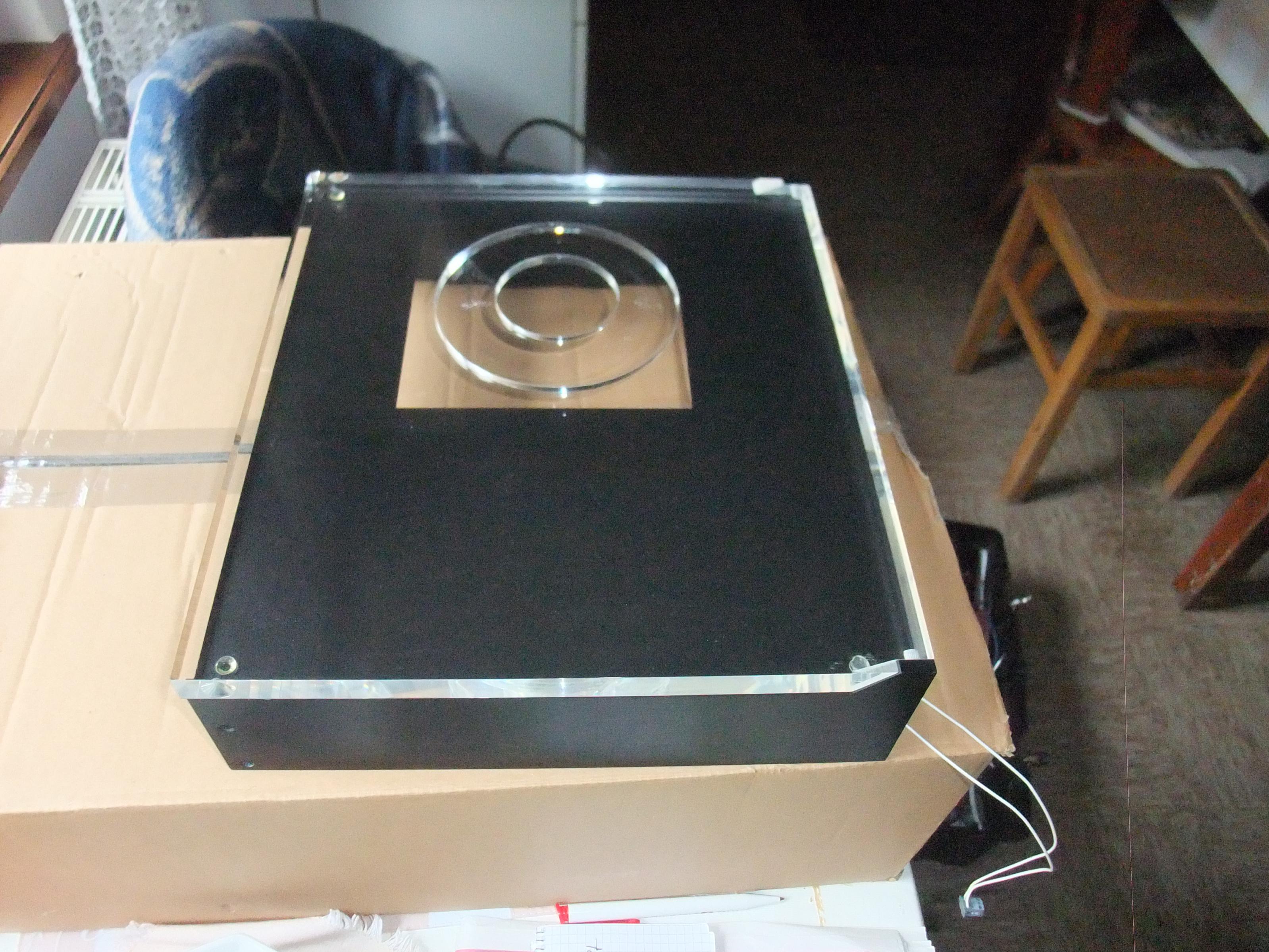

  • Micromega DUO Cover.jpg
    Micromega DUO Cover.jpg
    992.7 KB · Views: 191
  • Micromega DUO rear-I.jpg
    Micromega DUO rear-I.jpg
    979.6 KB · Views: 180

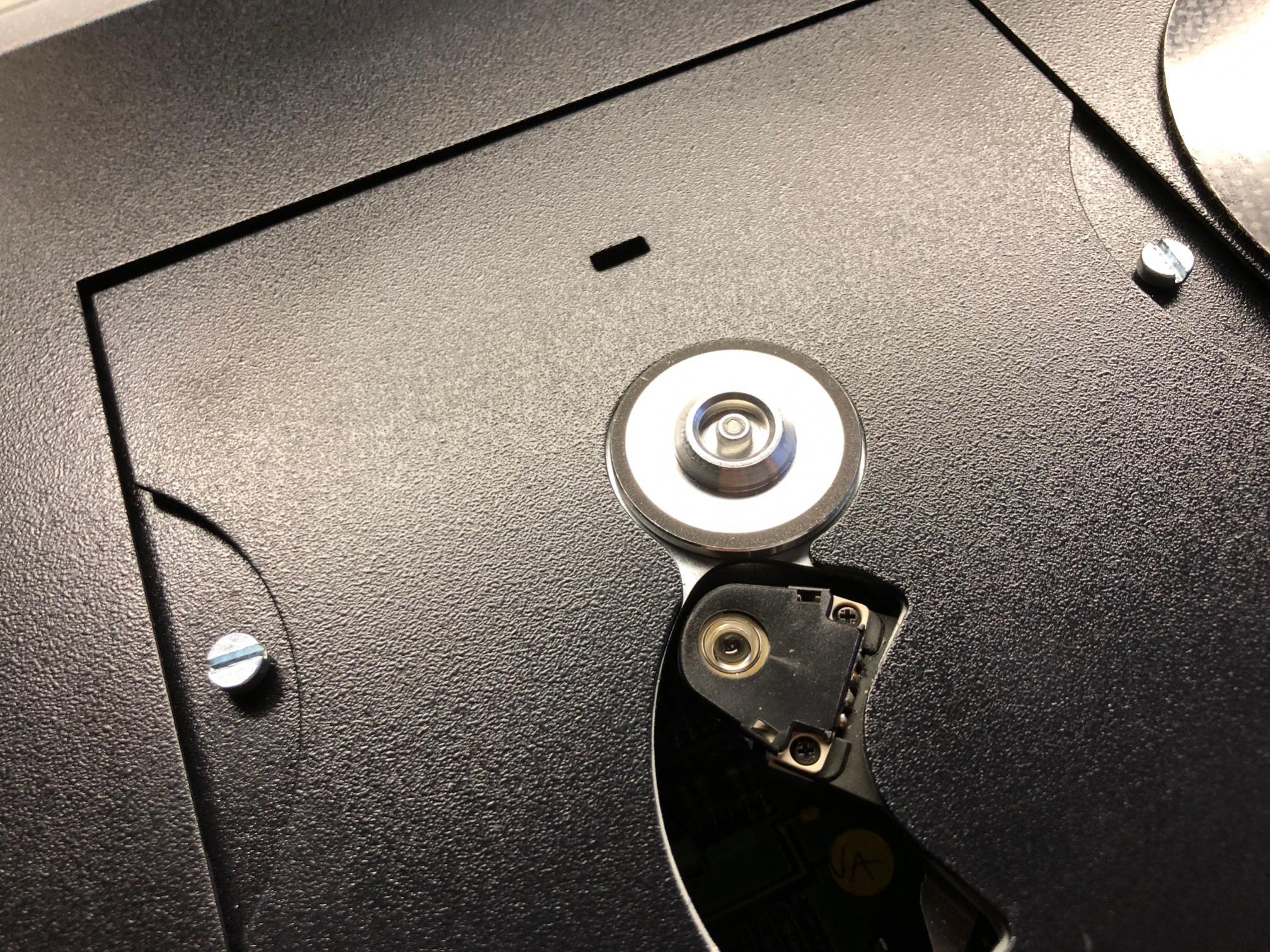

  • Micromega DUO CDM-9 top view.jpg
    Micromega DUO CDM-9 top view.jpg
    652.1 KB · Views: 184

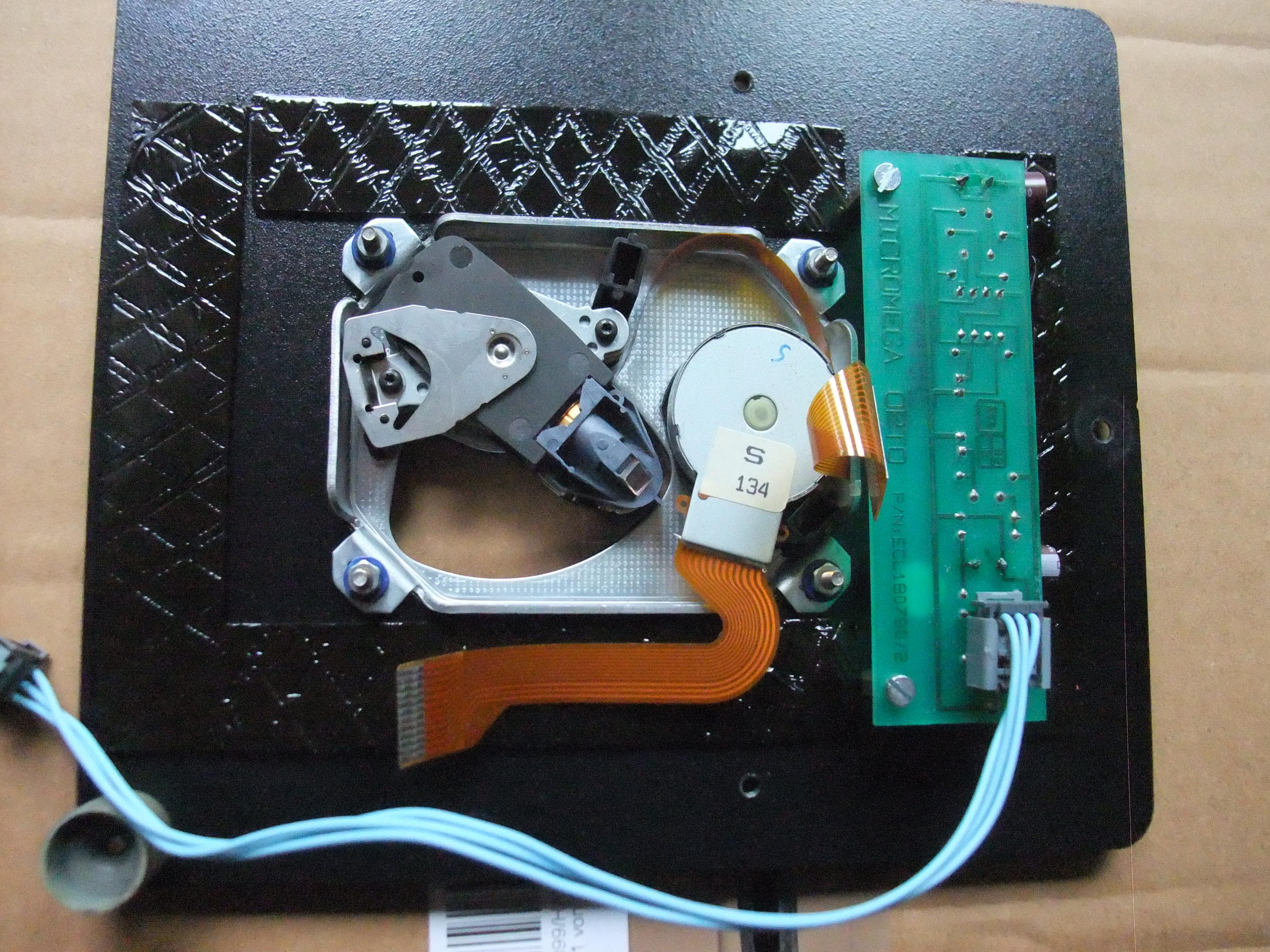

  • Micromega DUO CDM-9 botton view.jpg
    Micromega DUO CDM-9 botton view.jpg
    1 MB · Views: 185

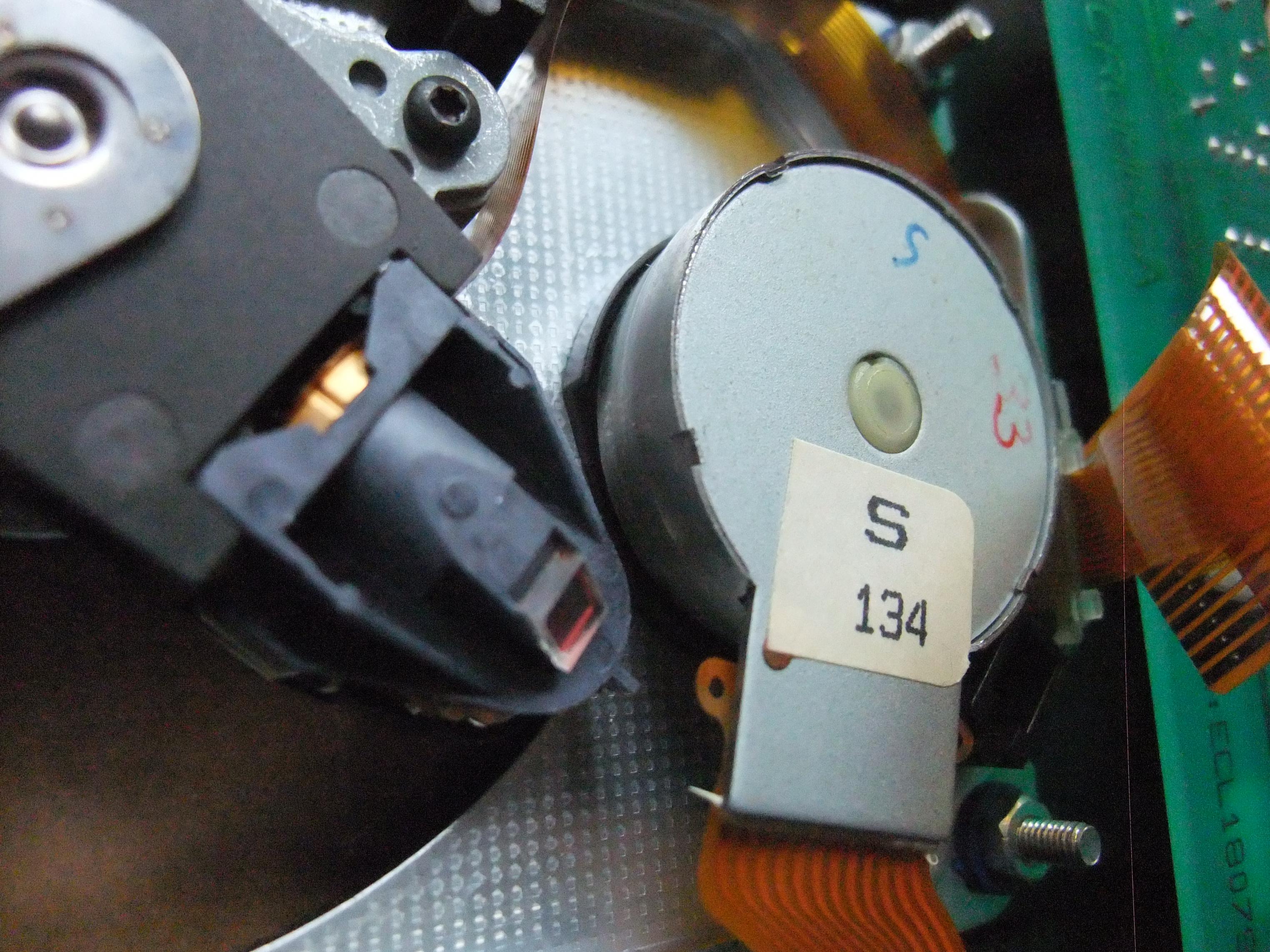

  • Micromega DUO CDM-9 spindle motor.jpg
    Micromega DUO CDM-9 spindle motor.jpg
    1,002 KB · Views: 180

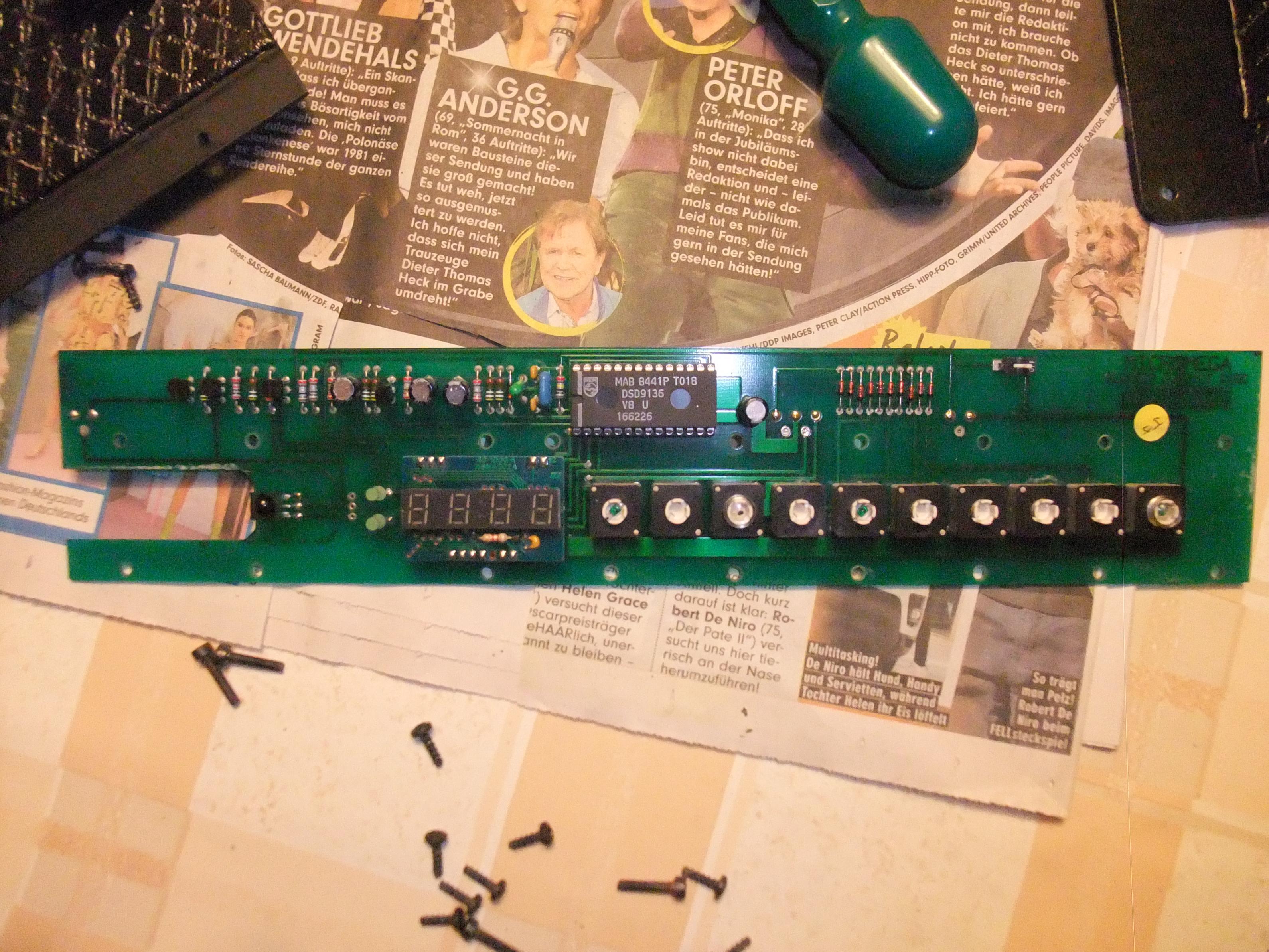

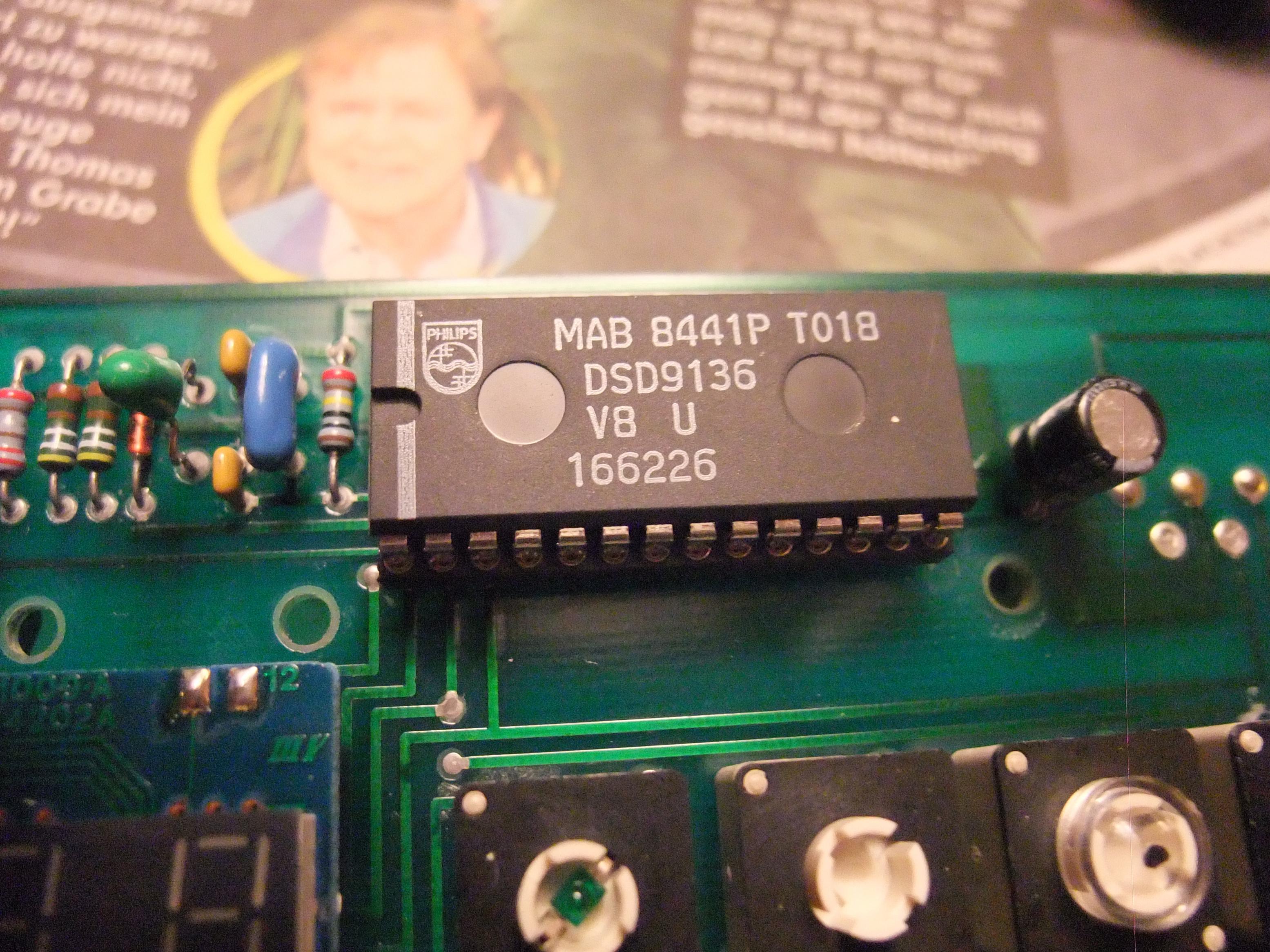

  • Micromega DUO Front-PCB MAB8441P-T018.jpg
    Micromega DUO Front-PCB MAB8441P-T018.jpg
    999.8 KB · Views: 68

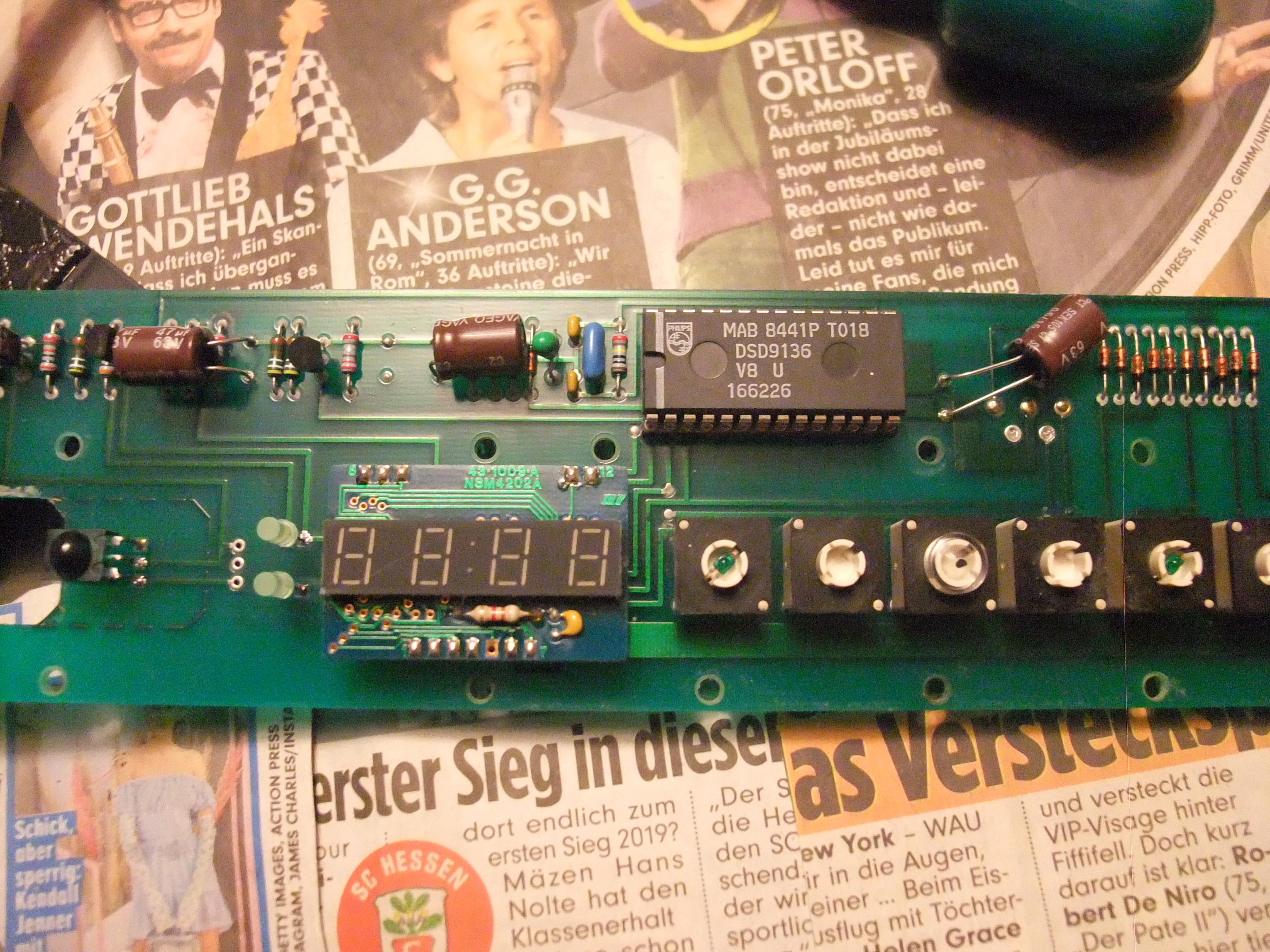

  • Micromega DUO Front-PCB-I.jpg
    Micromega DUO Front-PCB-I.jpg
    1,017.6 KB · Views: 63

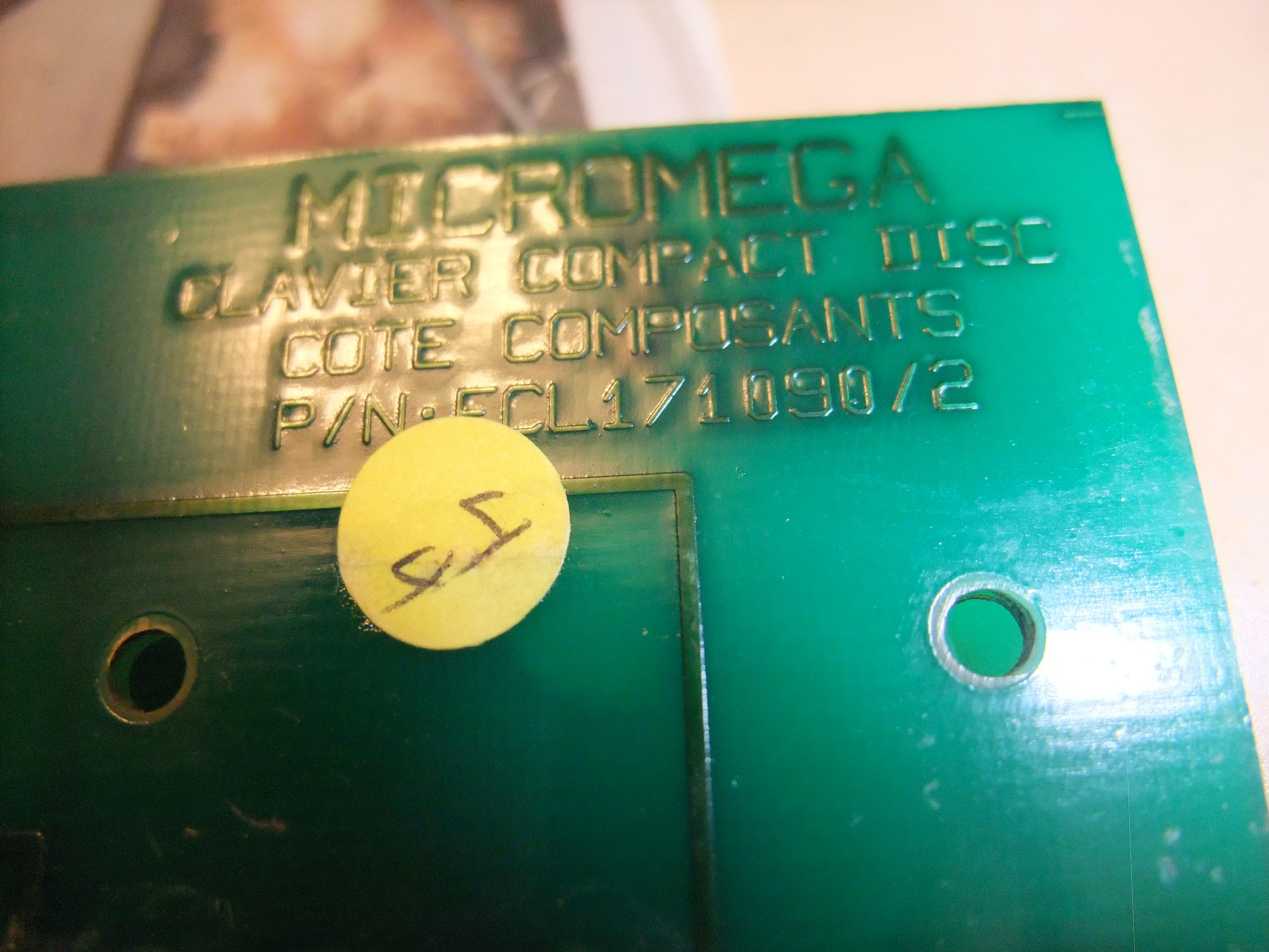

  • Micromega DUO Front-PCB-II.jpg
    Micromega DUO Front-PCB-II.jpg
    1,005.3 KB · Views: 53

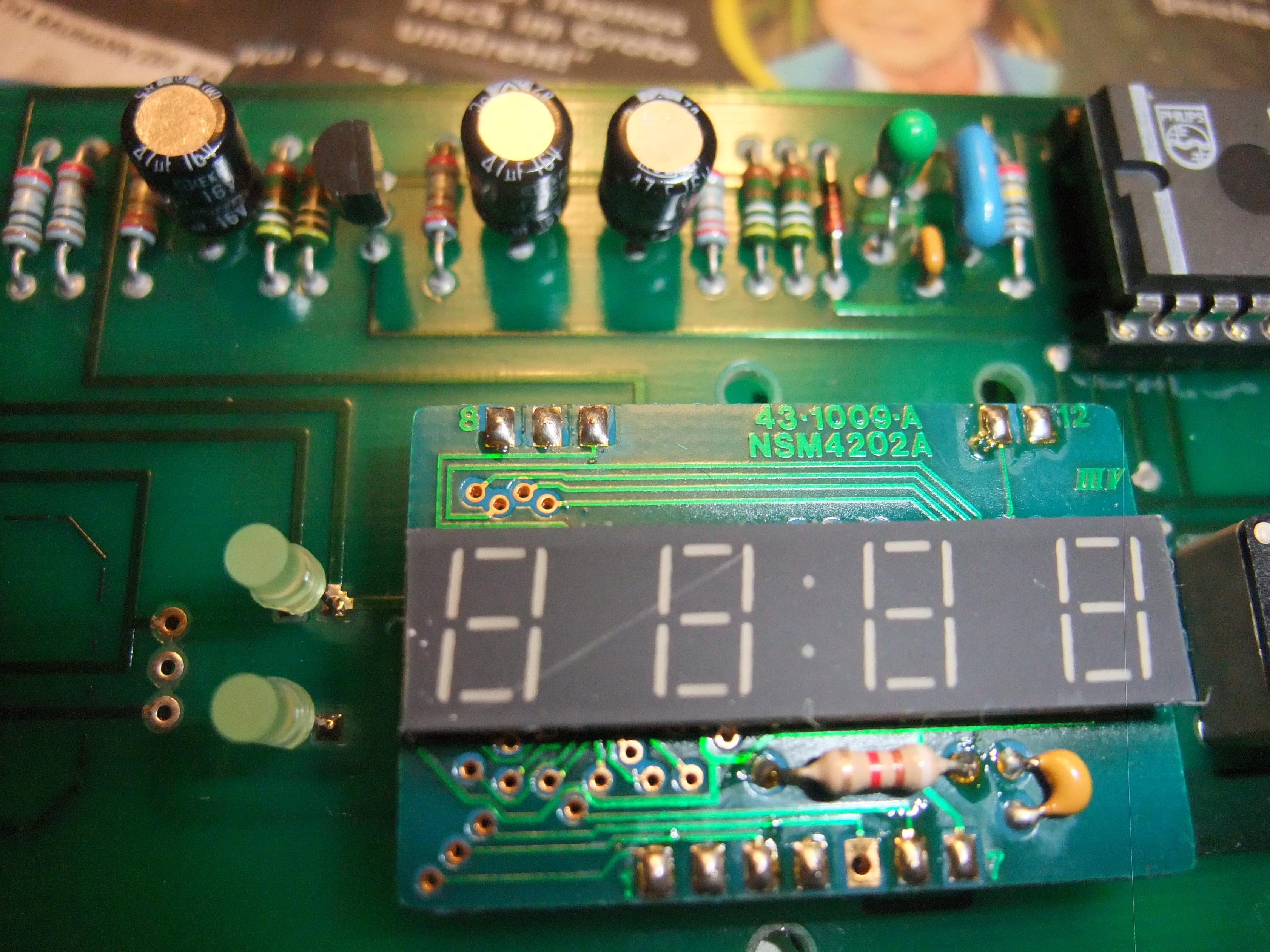

  • Micromega DUO Front-PCB-III.jpg
    Micromega DUO Front-PCB-III.jpg
    992.6 KB · Views: 56
  • Micromega DUO Front-PCB-IV.jpg
    Micromega DUO Front-PCB-IV.jpg
    948.2 KB · Views: 52

Attachments

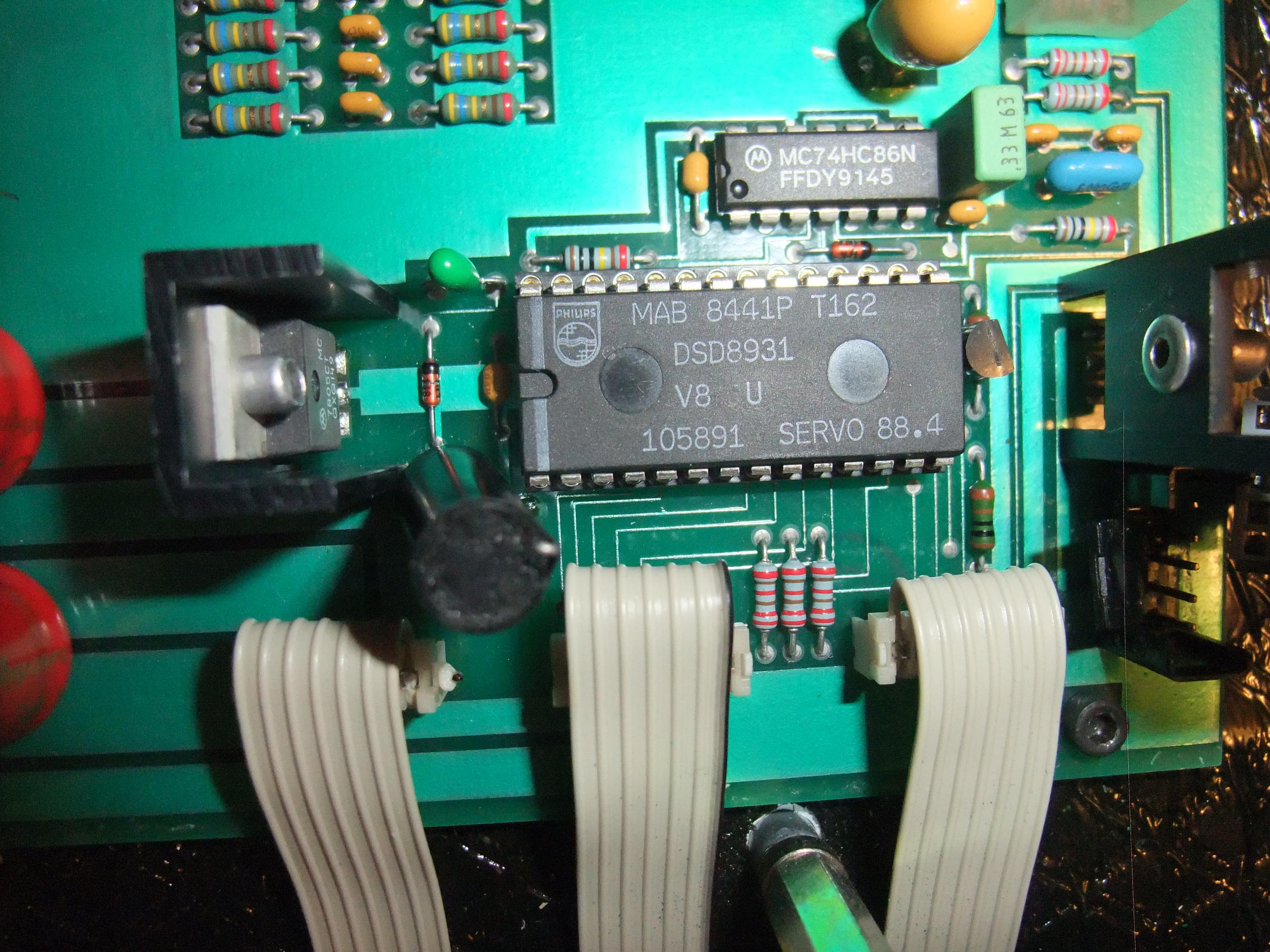

  • Micromega DUO Main-PCB MAB8441P-T162.jpg
    Micromega DUO Main-PCB MAB8441P-T162.jpg
    1,003.2 KB · Views: 59

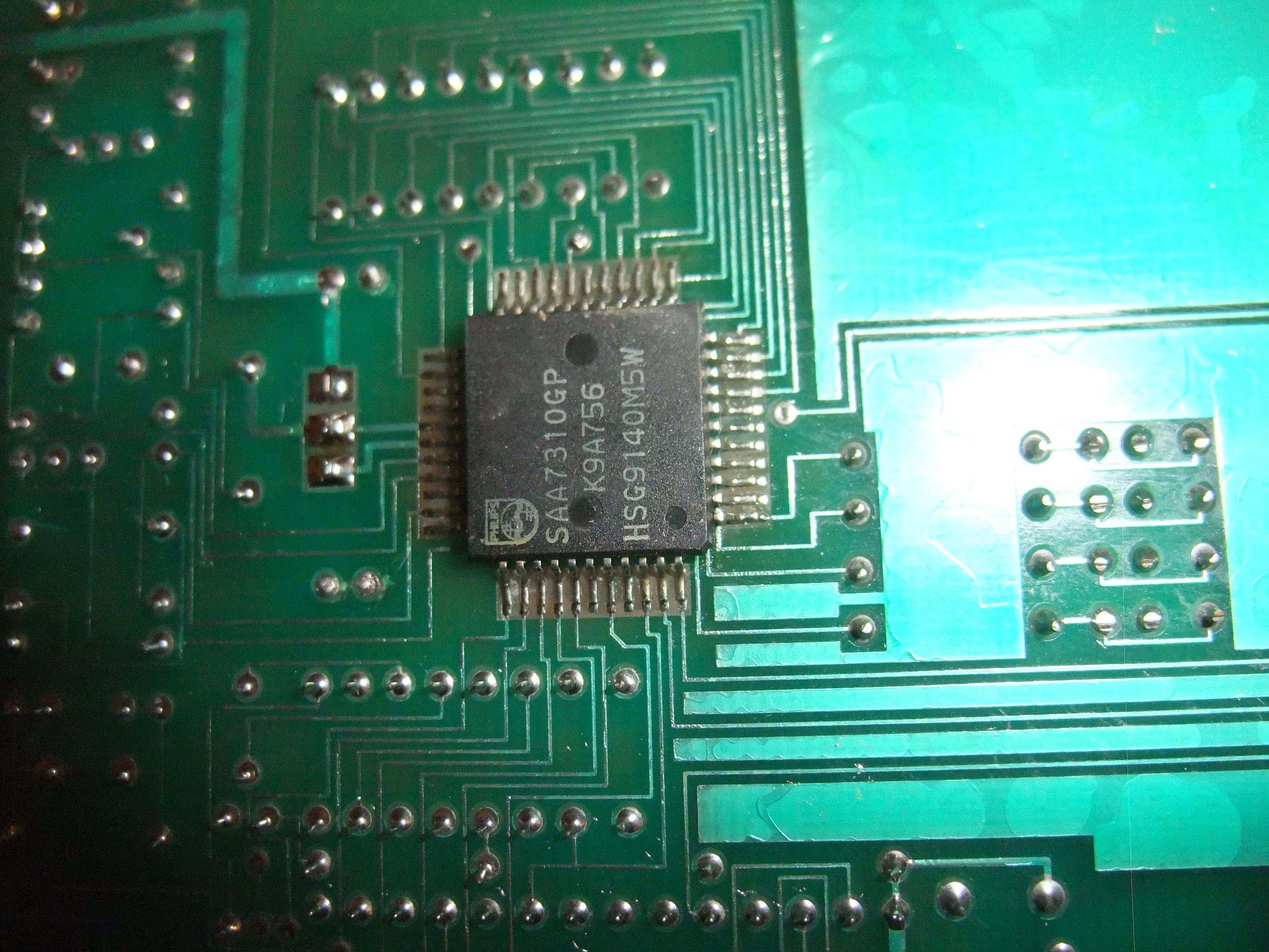

  • Micromega DUO Main-PCB SAA7310GP-I.jpg
    Micromega DUO Main-PCB SAA7310GP-I.jpg
    1,003.9 KB · Views: 54
  • Micromega DUO Main-PCB SAA7310GP-II.jpg
    Micromega DUO Main-PCB SAA7310GP-II.jpg
    1 MB · Views: 45

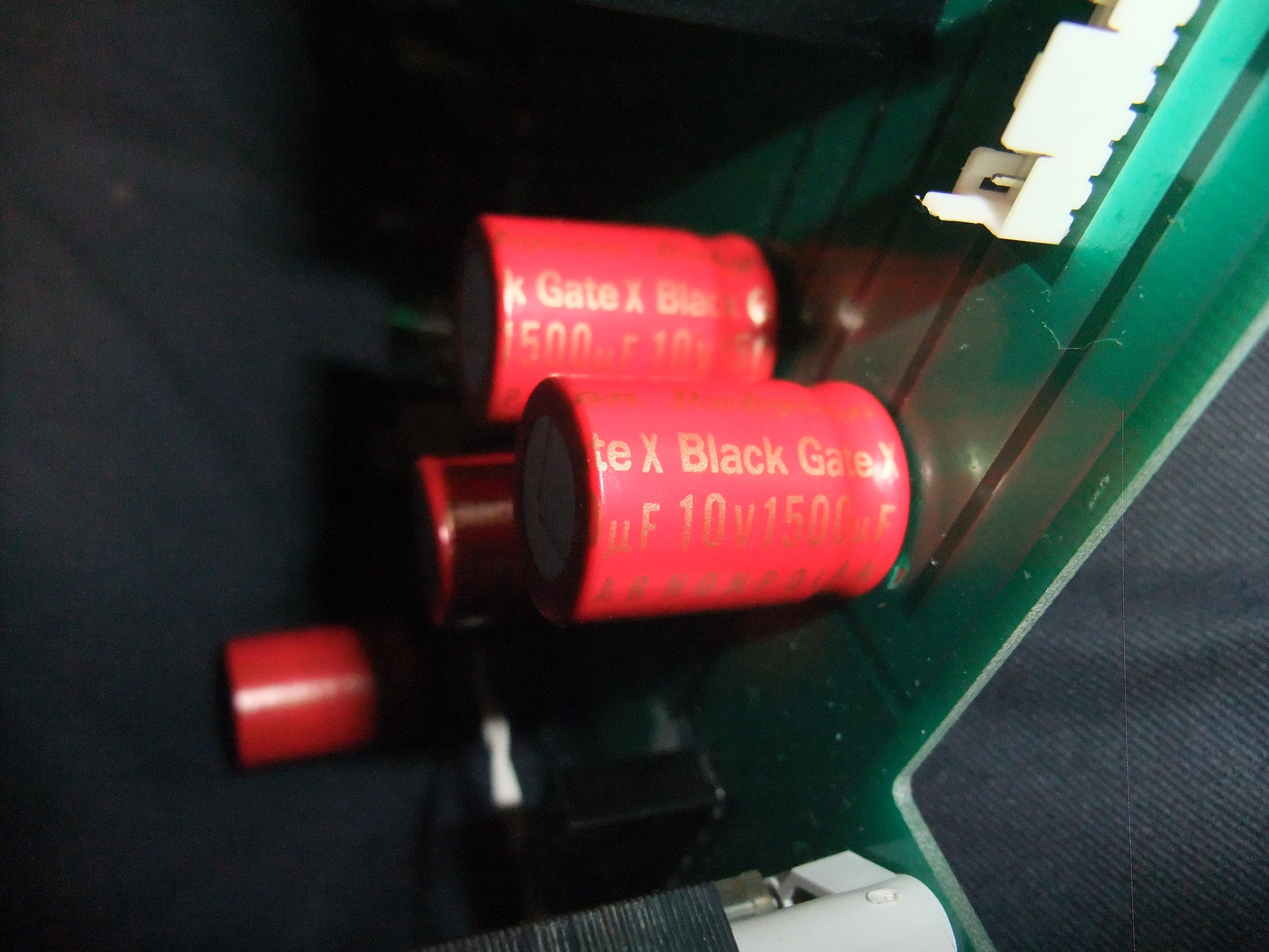

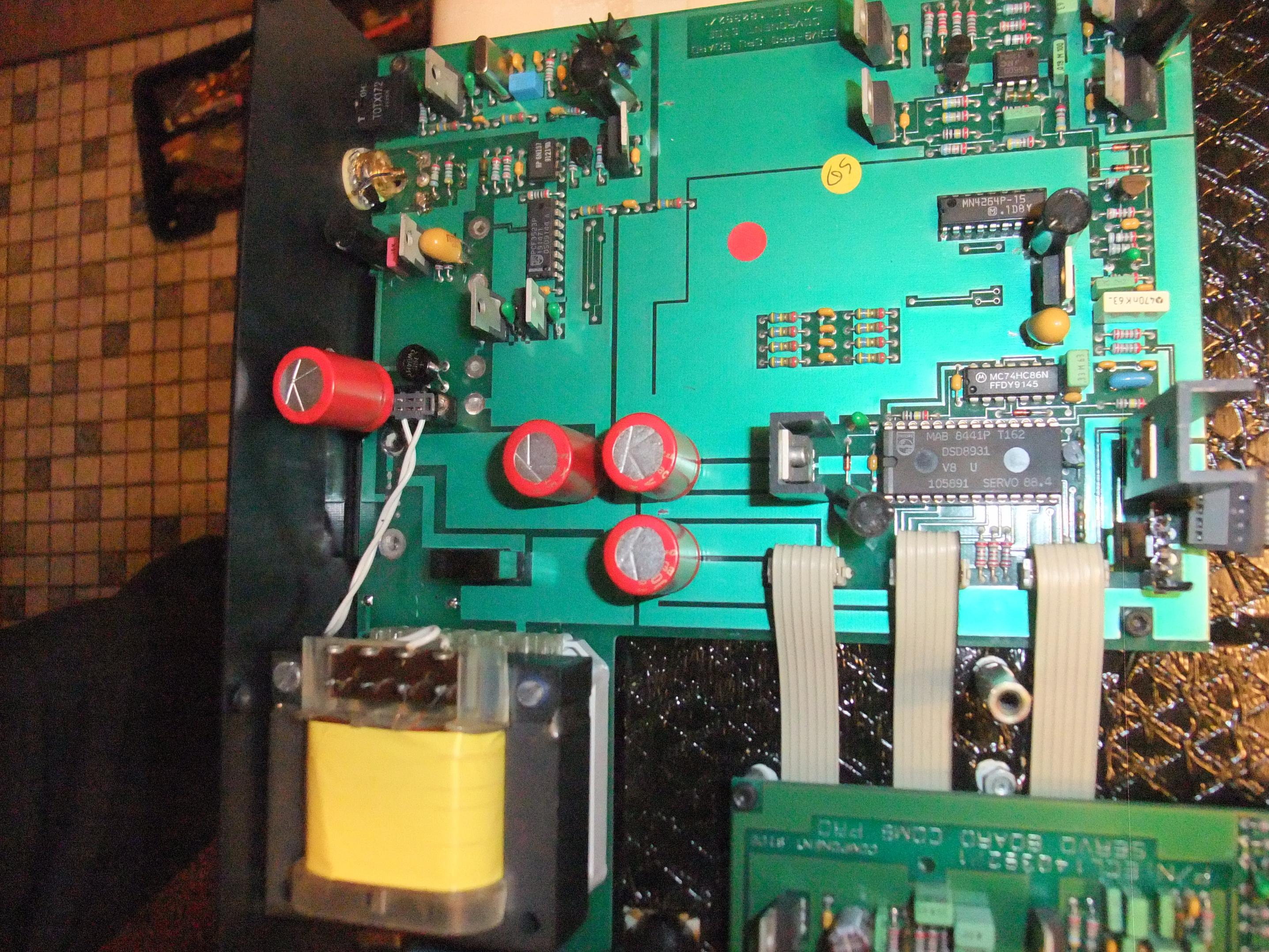

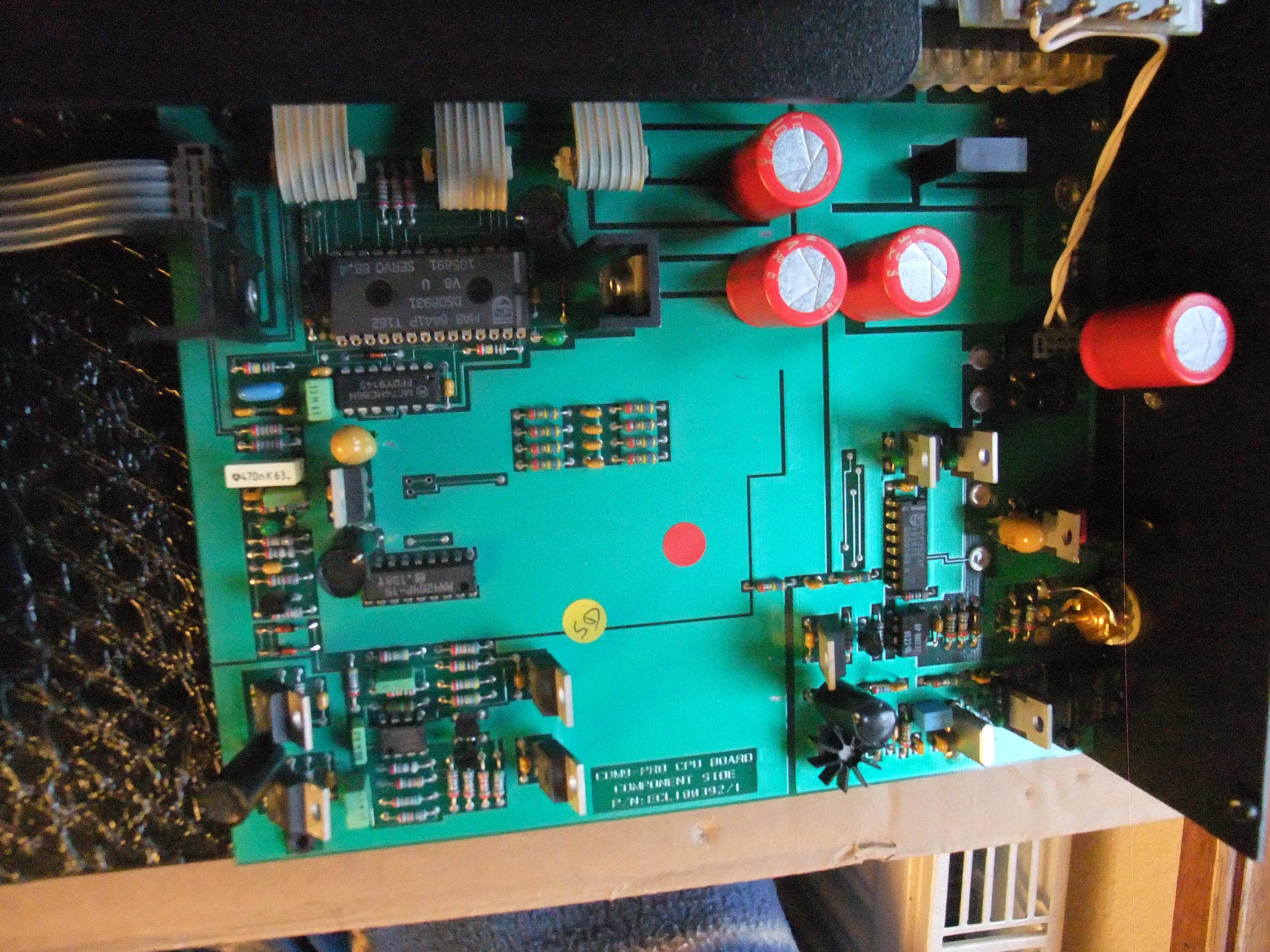

  • Micromega DUO Main-PCB unsuited caps-I.jpg
    Micromega DUO Main-PCB unsuited caps-I.jpg
    1,018.6 KB · Views: 49
  • Micromega DUO Main-PCB unsuited caps-II.jpg
    Micromega DUO Main-PCB unsuited caps-II.jpg
    982.1 KB · Views: 50

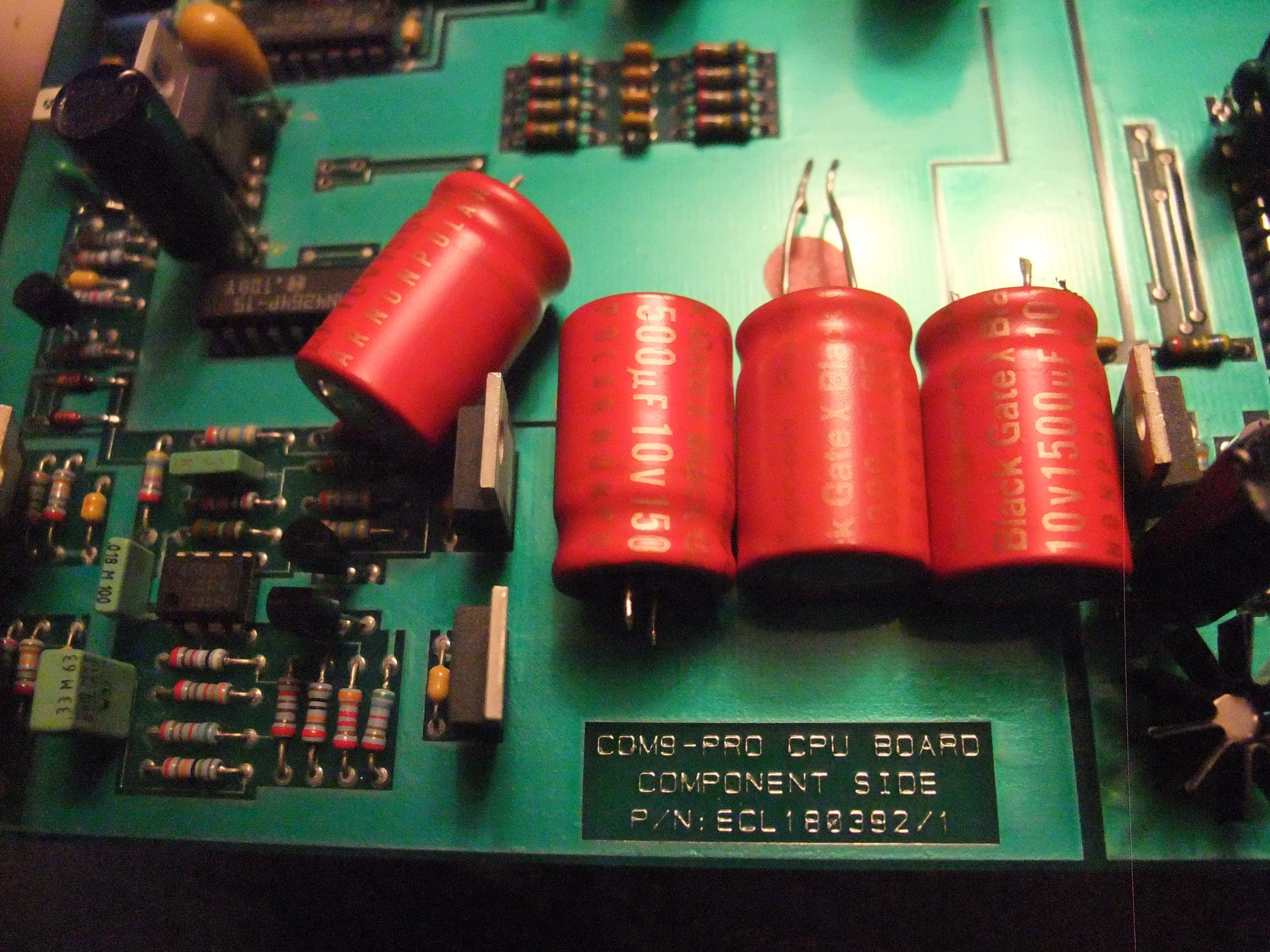

  • Micromega DUO Main-PCB unsuited caps-III.jpg
    Micromega DUO Main-PCB unsuited caps-III.jpg
    1,007.6 KB · Views: 46
  • Micromega DUO Main-PCB unsuited caps-IV.jpg
    Micromega DUO Main-PCB unsuited caps-IV.jpg
    1 MB · Views: 77

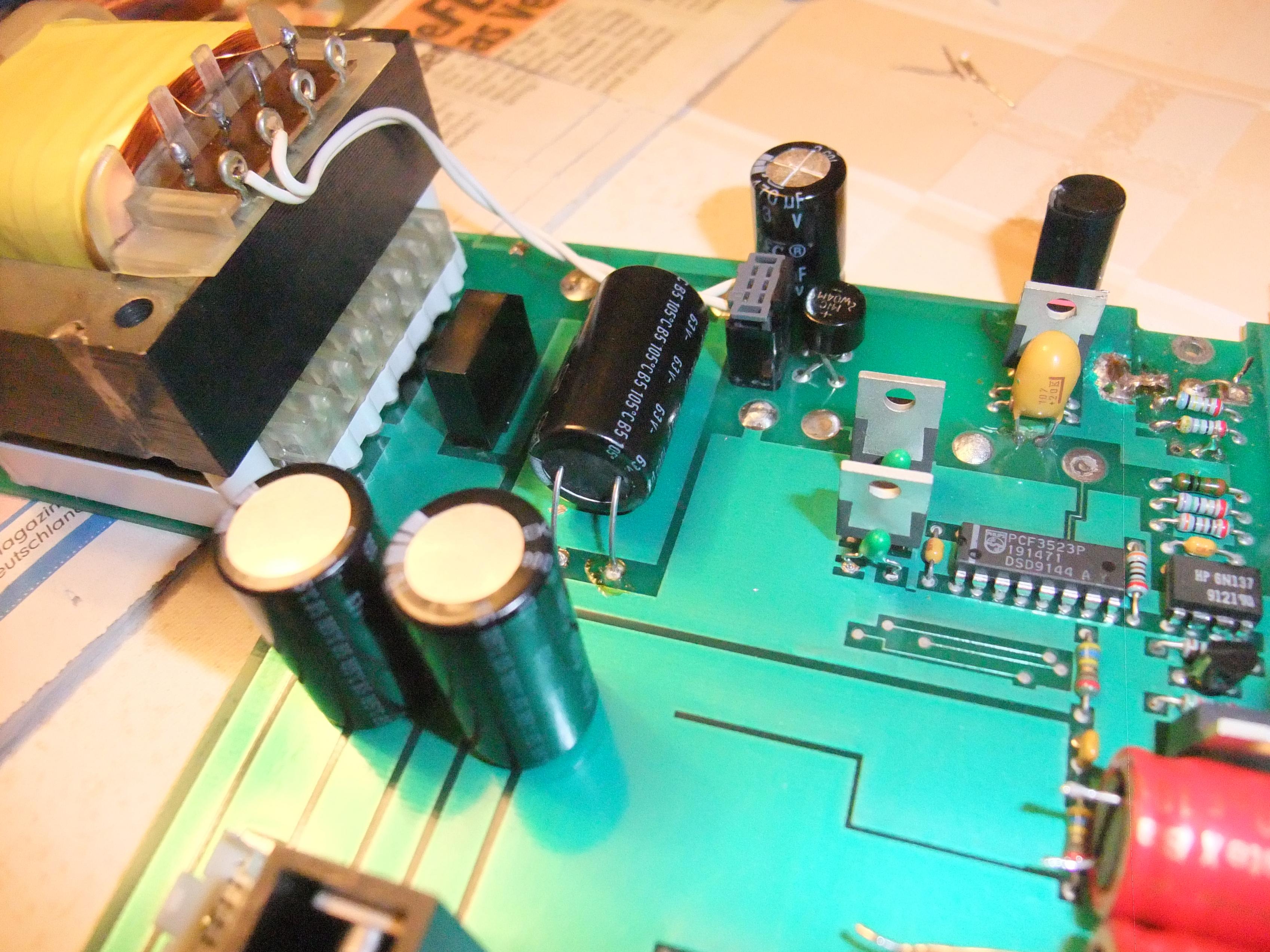

  • Micromega DUO Main-PCB suited caps-I.jpg
    Micromega DUO Main-PCB suited caps-I.jpg
    995.9 KB · Views: 41

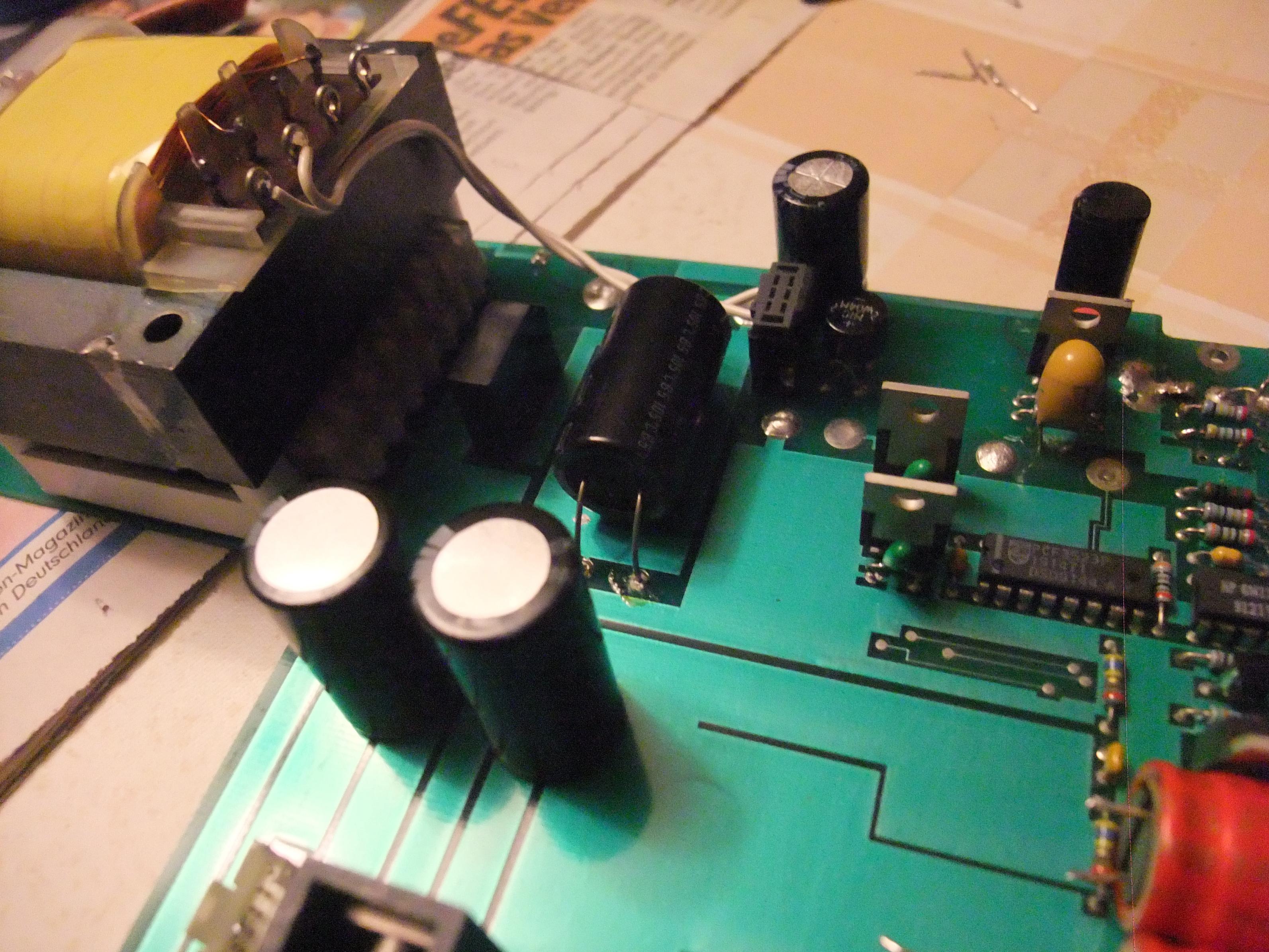

  • Micromega DUO Main-PCB suited caps-II.jpg
    Micromega DUO Main-PCB suited caps-II.jpg
    994.3 KB · Views: 40
  • Micromega DUO mains unit.jpg
    Micromega DUO mains unit.jpg
    1,001.5 KB · Views: 39
Last edited:
additional images


Attachments

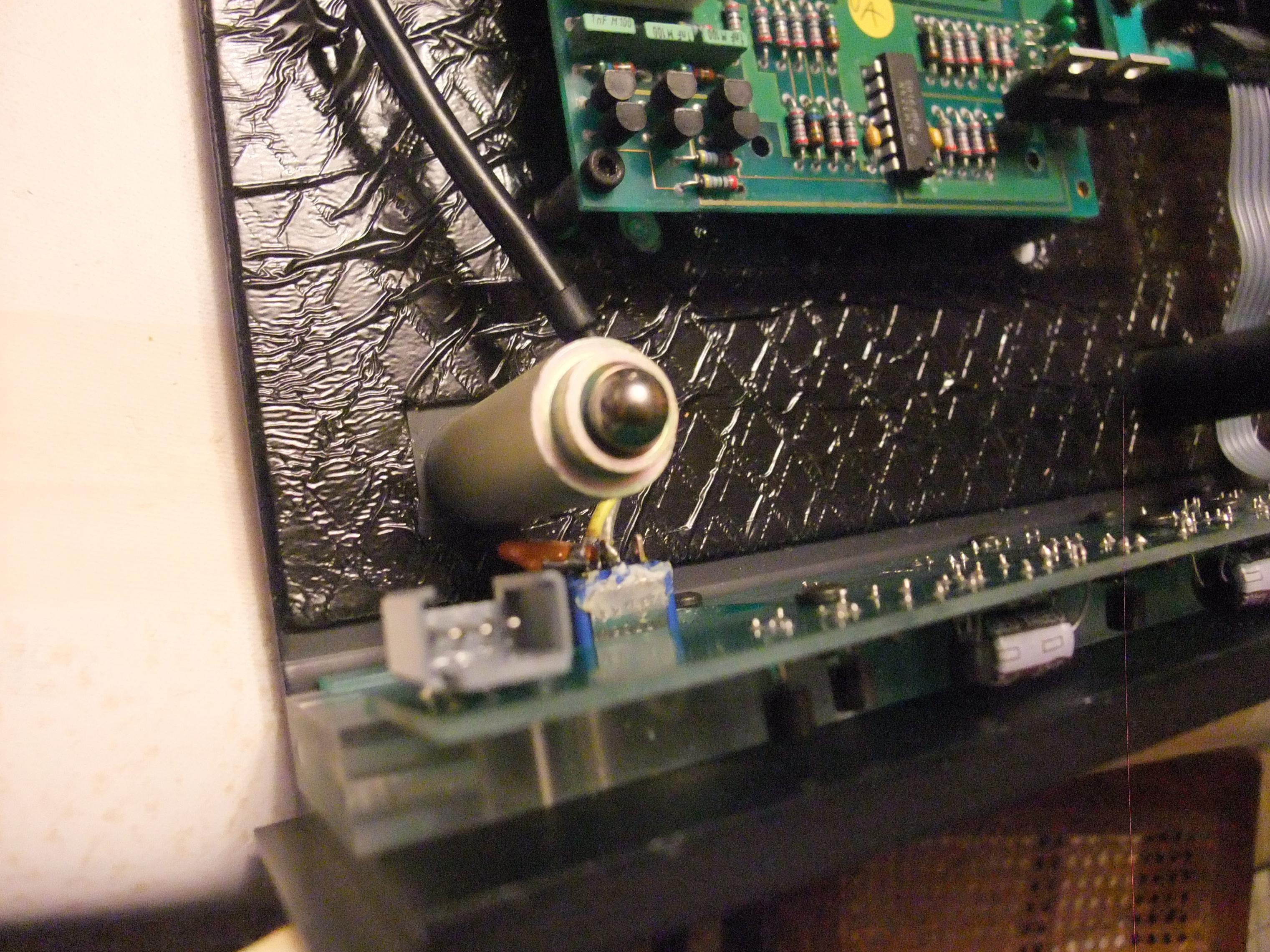

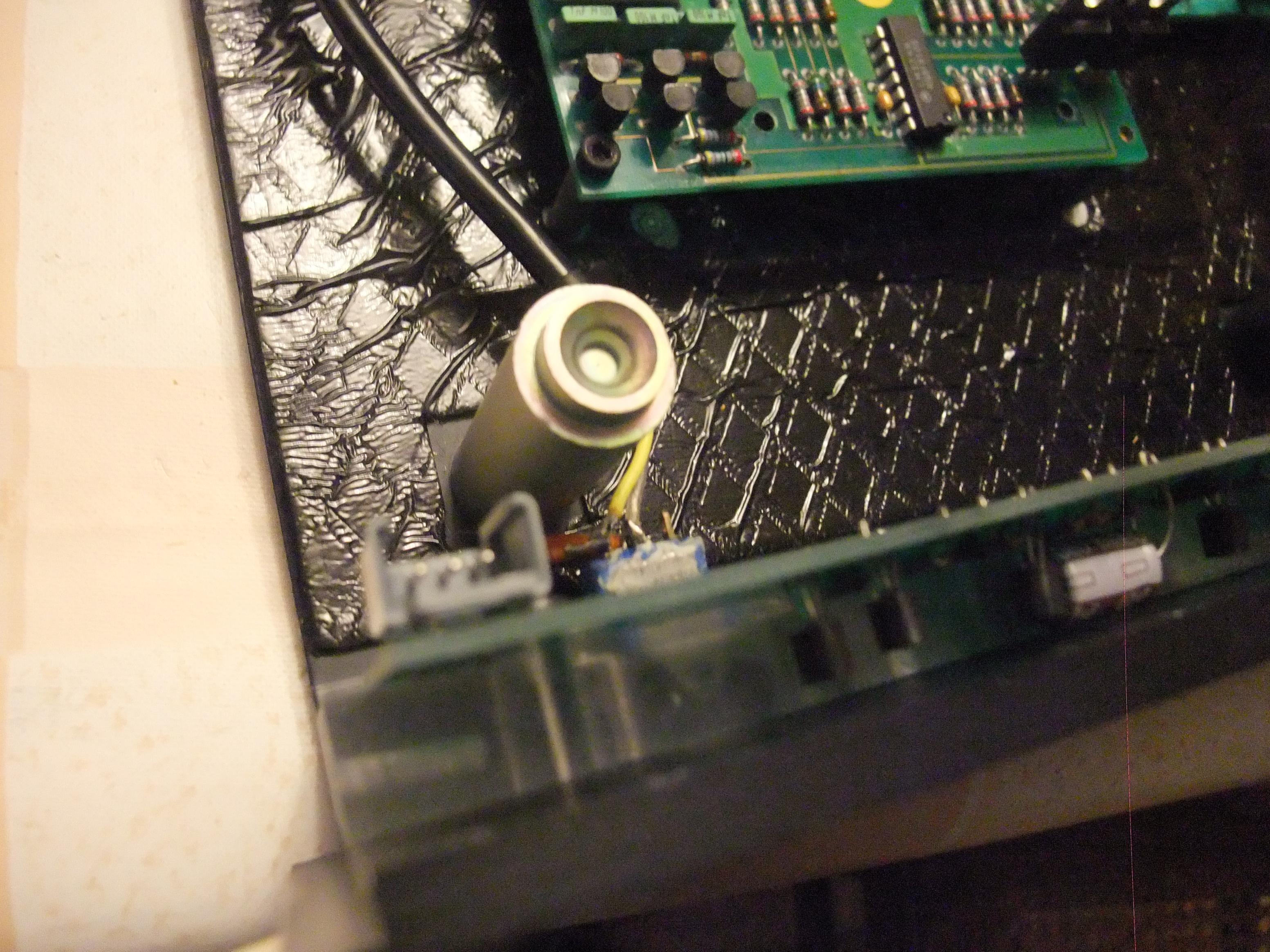

  • Micromega DUO Spike-CON-I.jpg
    Micromega DUO Spike-CON-I.jpg
    1,016.8 KB · Views: 48
  • Micromega DUO Spike-CON-II.jpg
    Micromega DUO Spike-CON-II.jpg
    1,006.5 KB · Views: 34

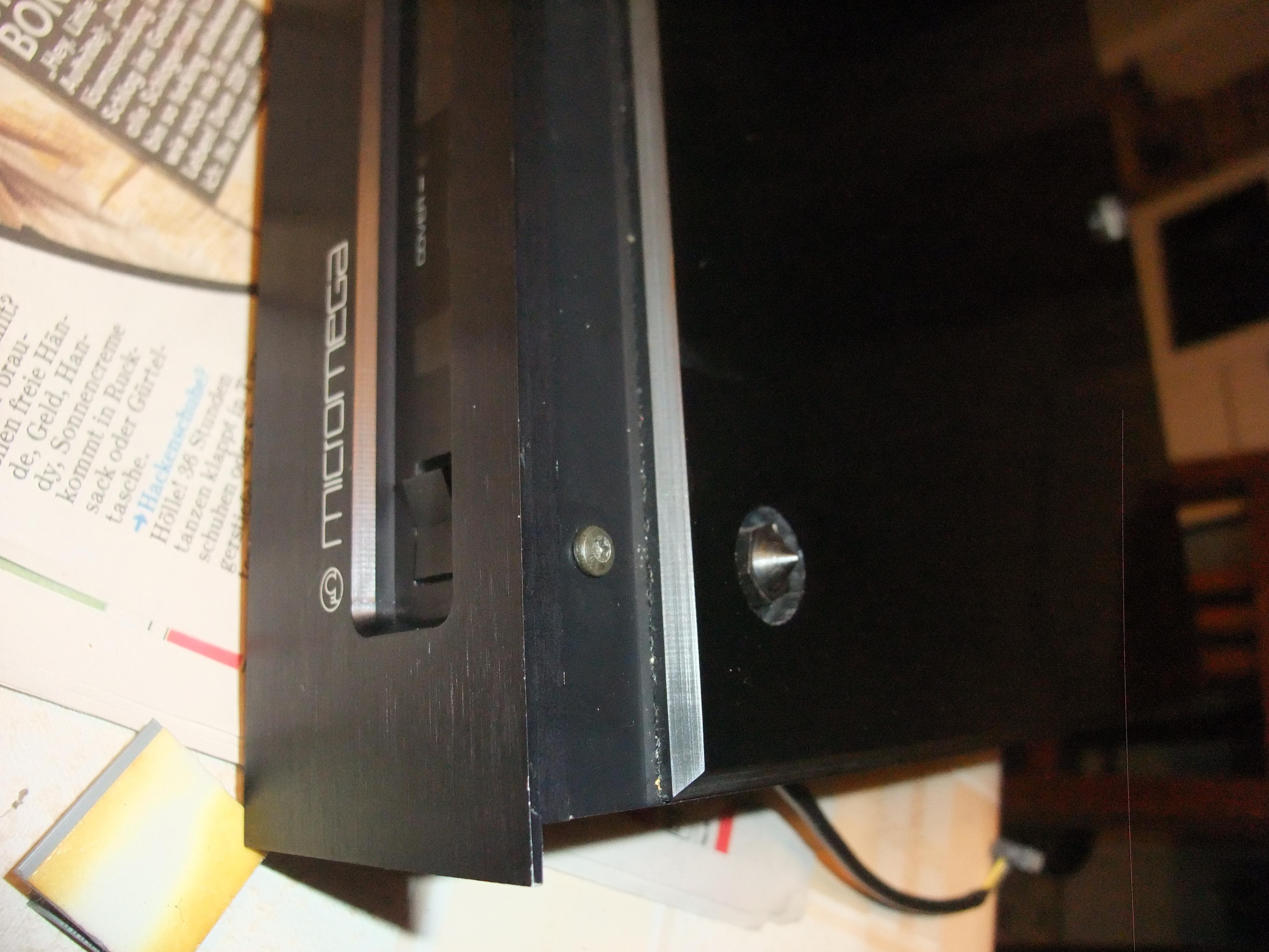

  • Micromega DUO Spike-CON-III.jpg
    Micromega DUO Spike-CON-III.jpg
    978.7 KB · Views: 29

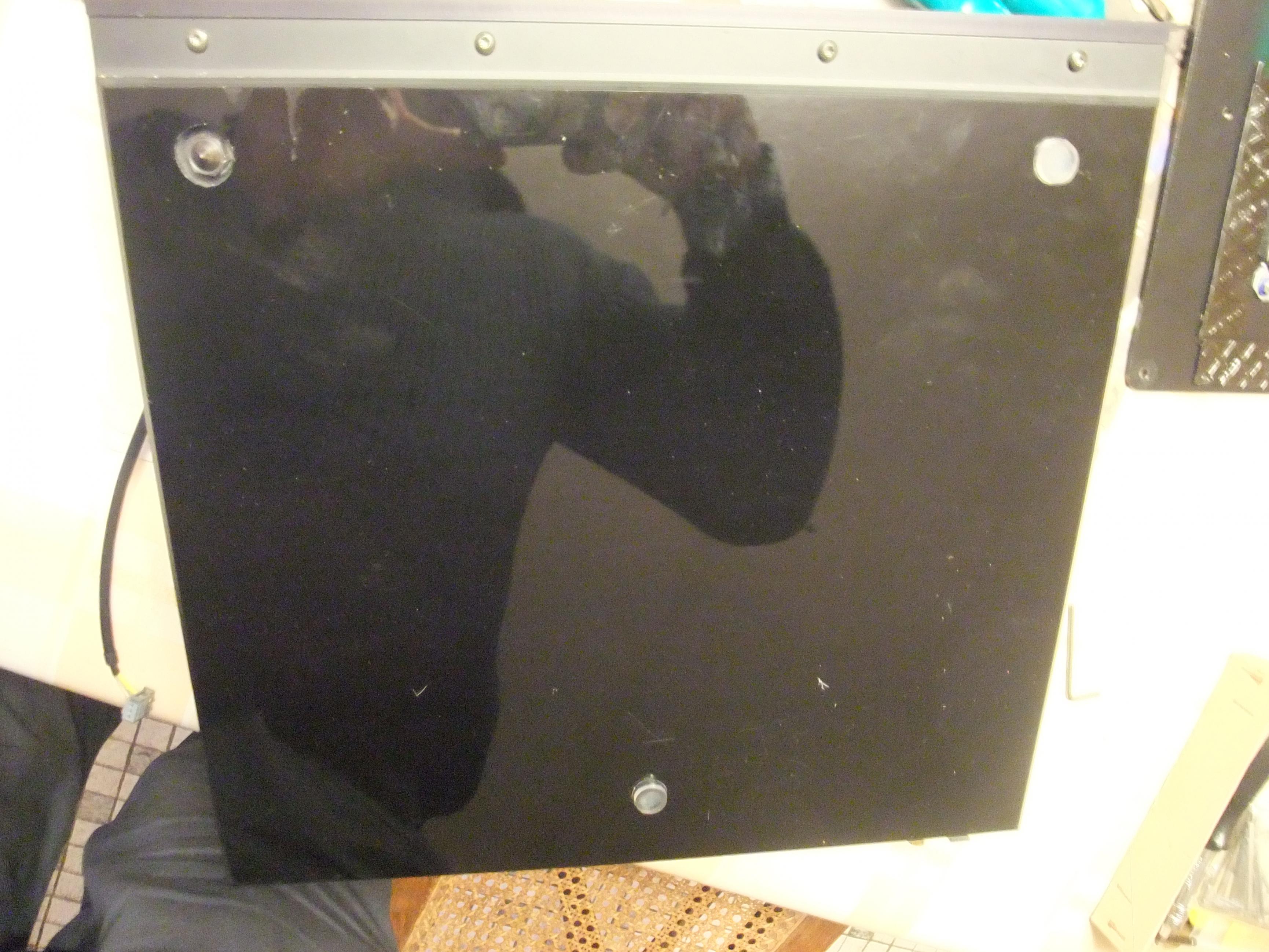

  • Micromega DUO Spike-CON-IV.jpg
    Micromega DUO Spike-CON-IV.jpg
    985 KB · Views: 30

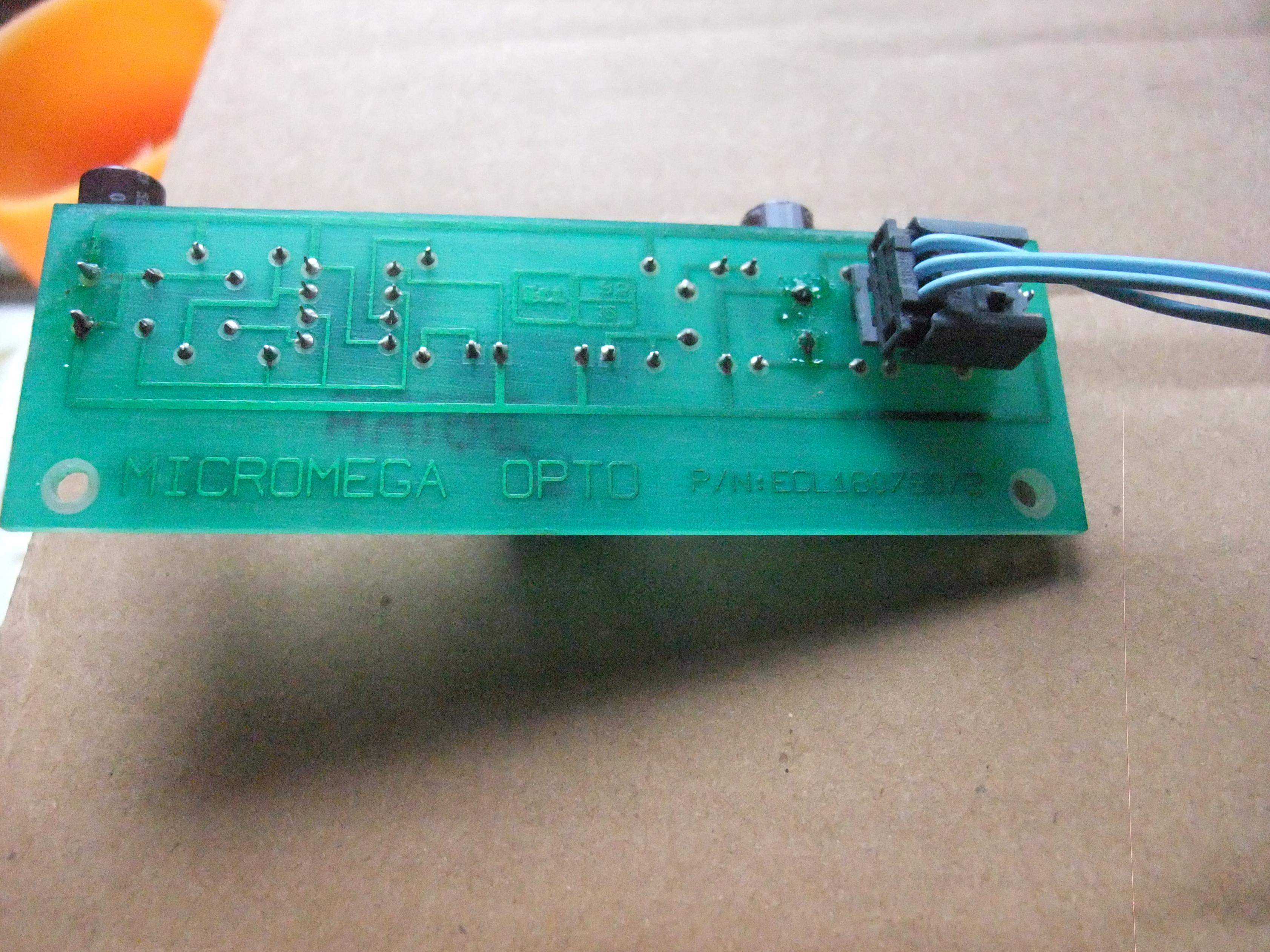

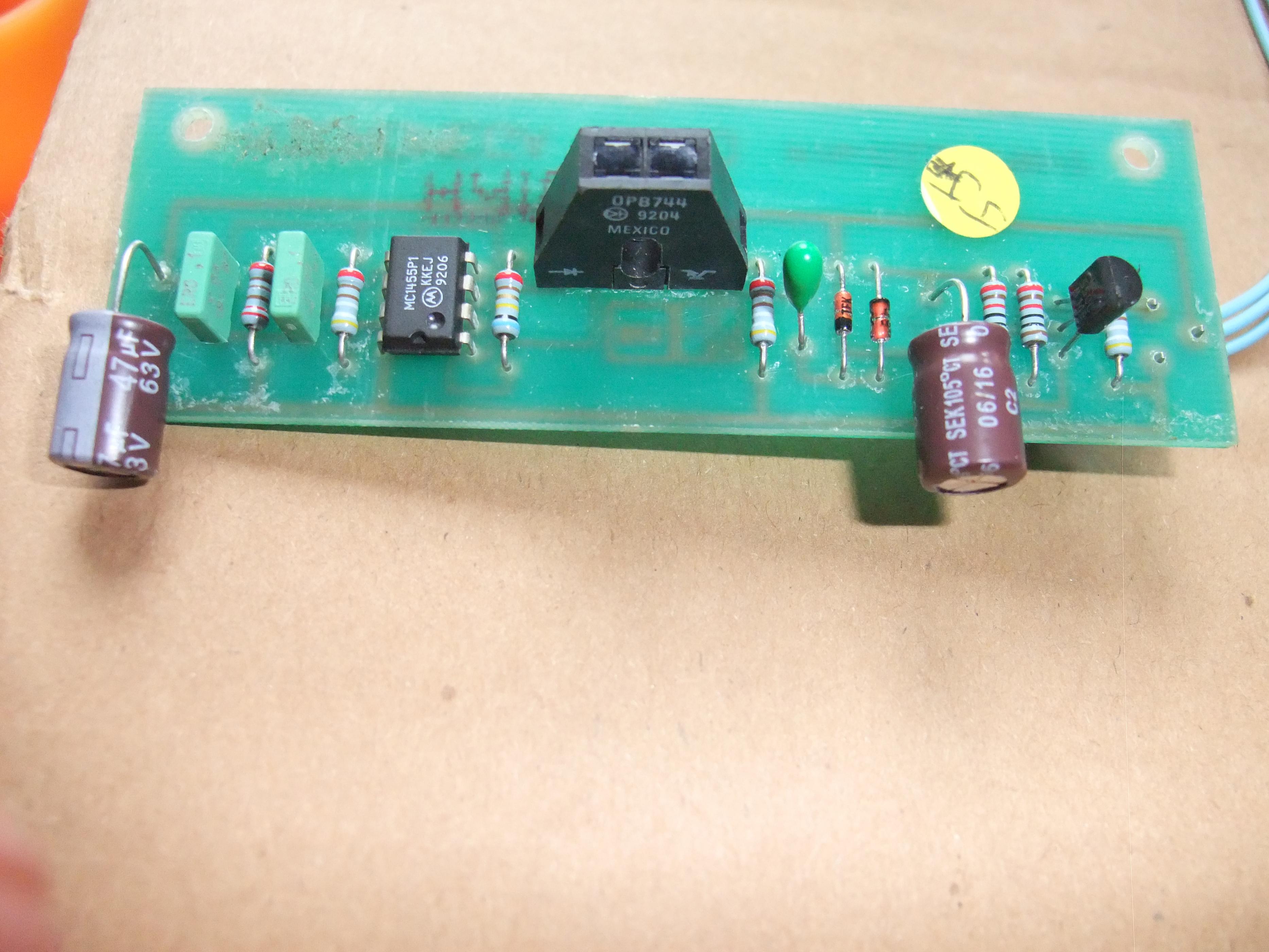

  • Micromega DUO OPTO-PCB-III.jpg
    Micromega DUO OPTO-PCB-III.jpg
    795.6 KB · Views: 40
  • Micromega DUO OPTO-PCB-II.jpg
    Micromega DUO OPTO-PCB-II.jpg
    990.4 KB · Views: 44

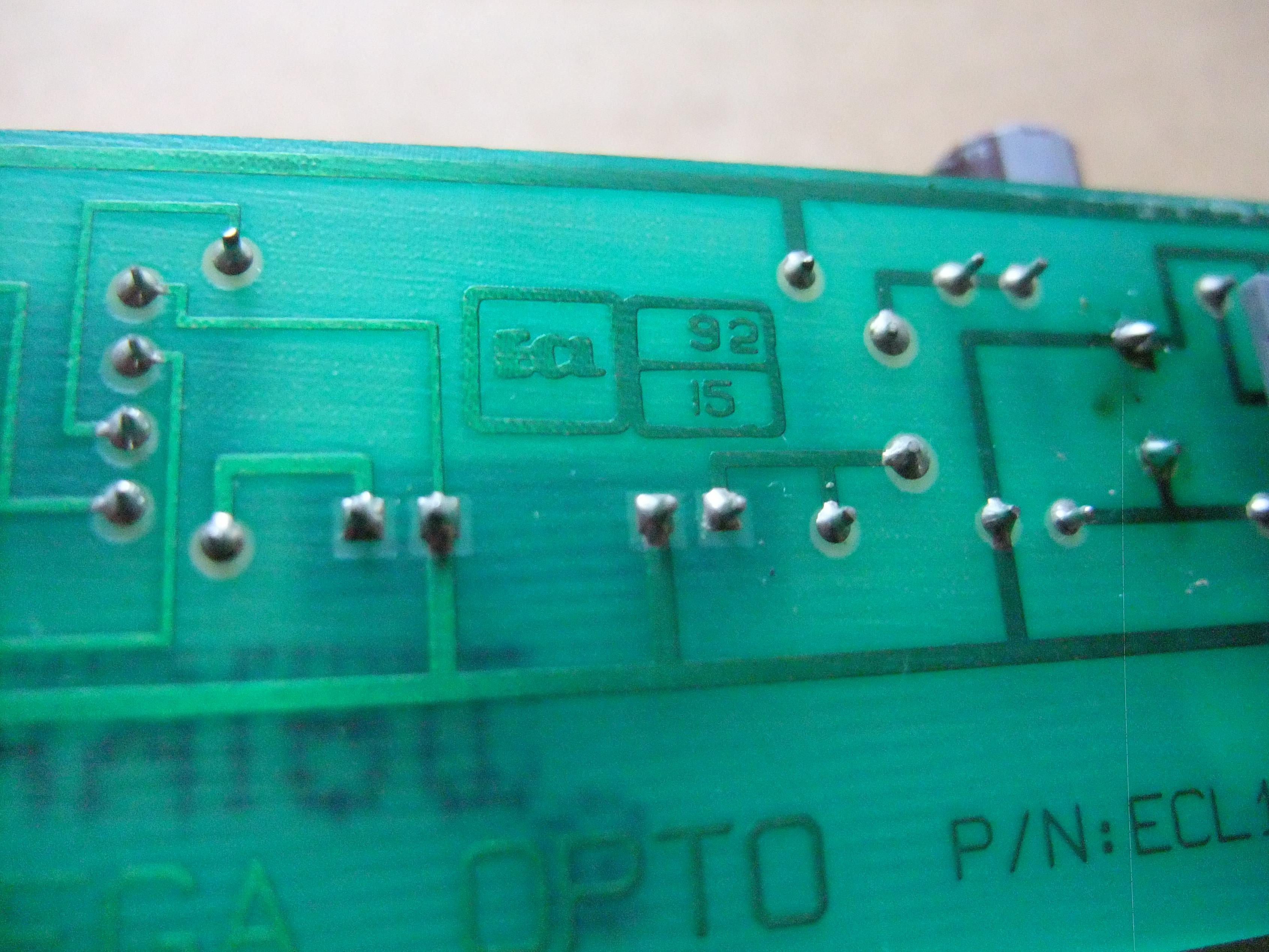

  • Micromega DUO OPTO-PCB-I.jpg
    Micromega DUO OPTO-PCB-I.jpg
    984.5 KB · Views: 24

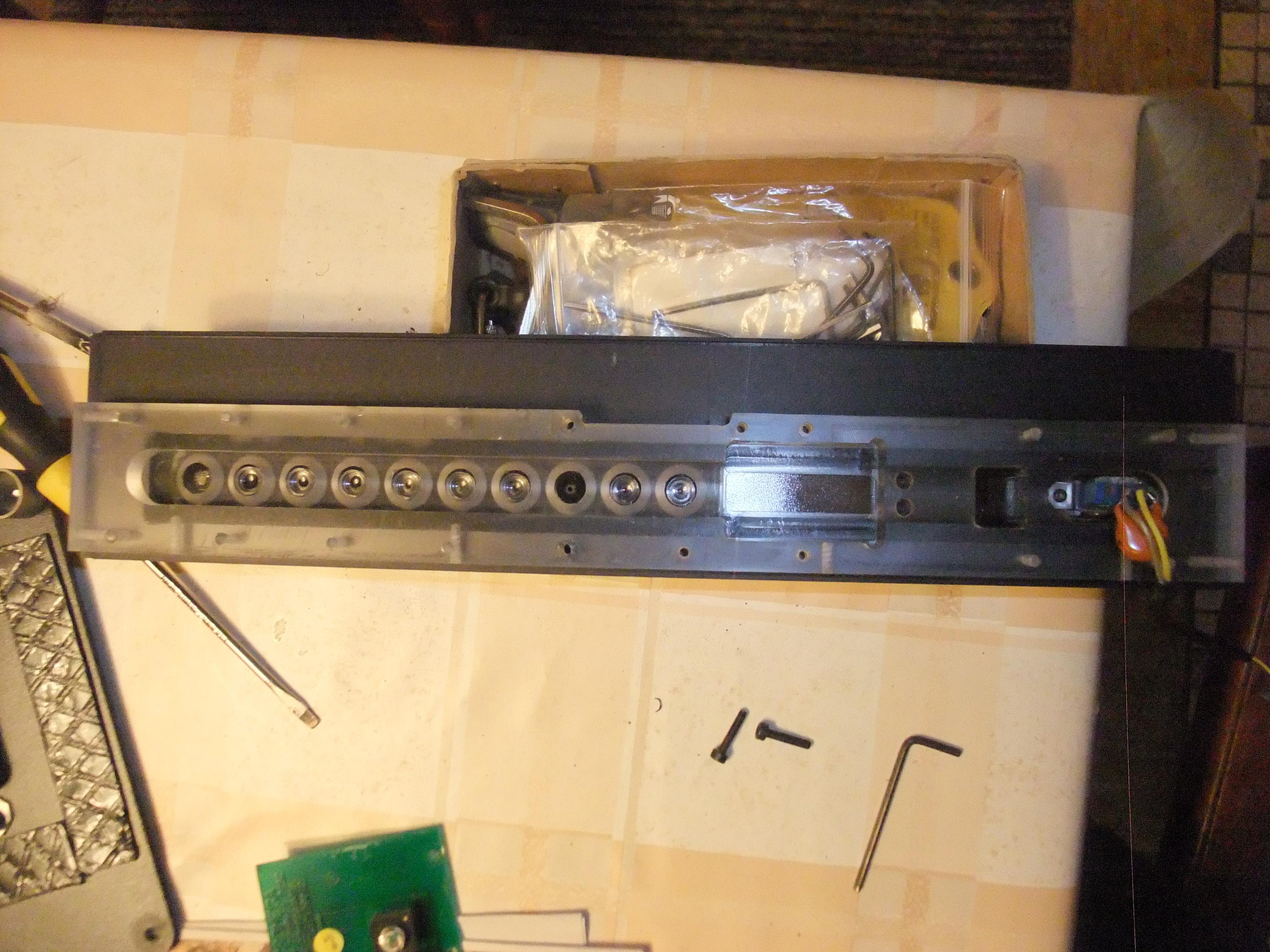

  • Micromega DUO Front inside-II.jpg
    Micromega DUO Front inside-II.jpg
    989.9 KB · Views: 25
  • Micromega DUO Front inside-I.jpg
    Micromega DUO Front inside-I.jpg
    957.6 KB · Views: 29
  • Micromega DUO cinch Jadis.jpg
    Micromega DUO cinch Jadis.jpg
    978.8 KB · Views: 31


Attachments

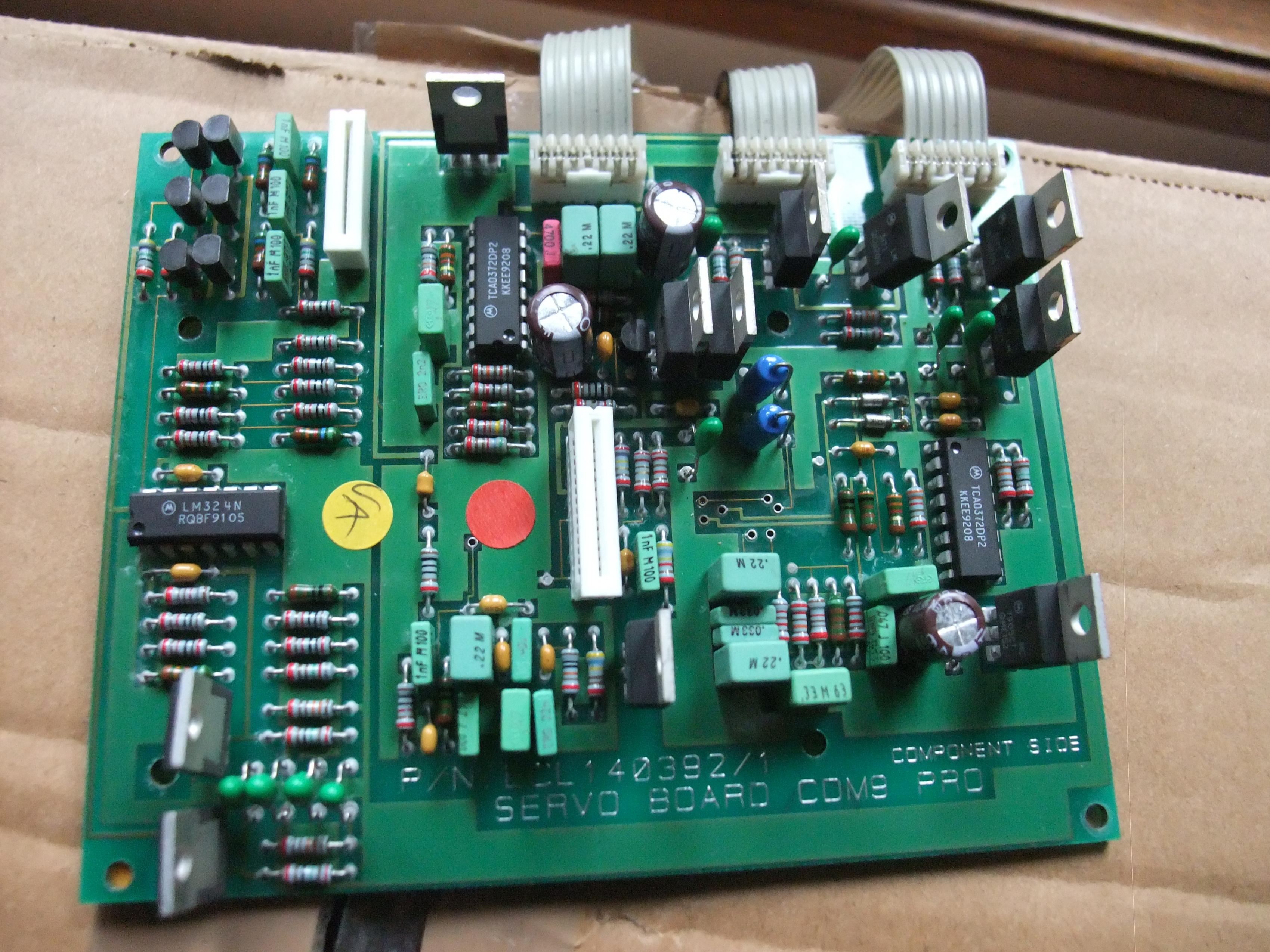

  • Micromega DUO Servo-PCB-I.jpg
    Micromega DUO Servo-PCB-I.jpg
    998.8 KB · Views: 47

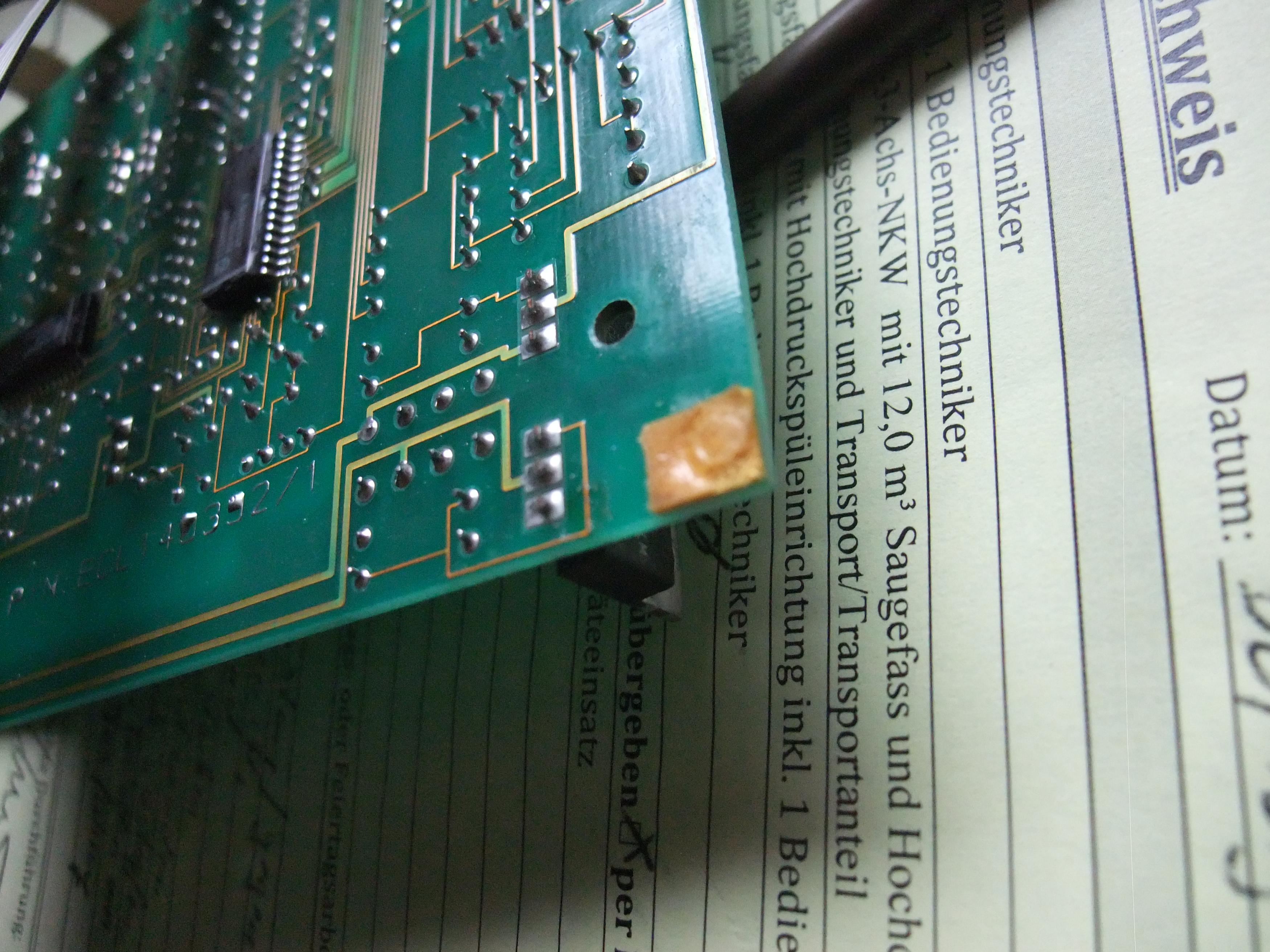

  • Micromega DUO Servo-PCB-II.jpg
    Micromega DUO Servo-PCB-II.jpg
    993.9 KB · Views: 45

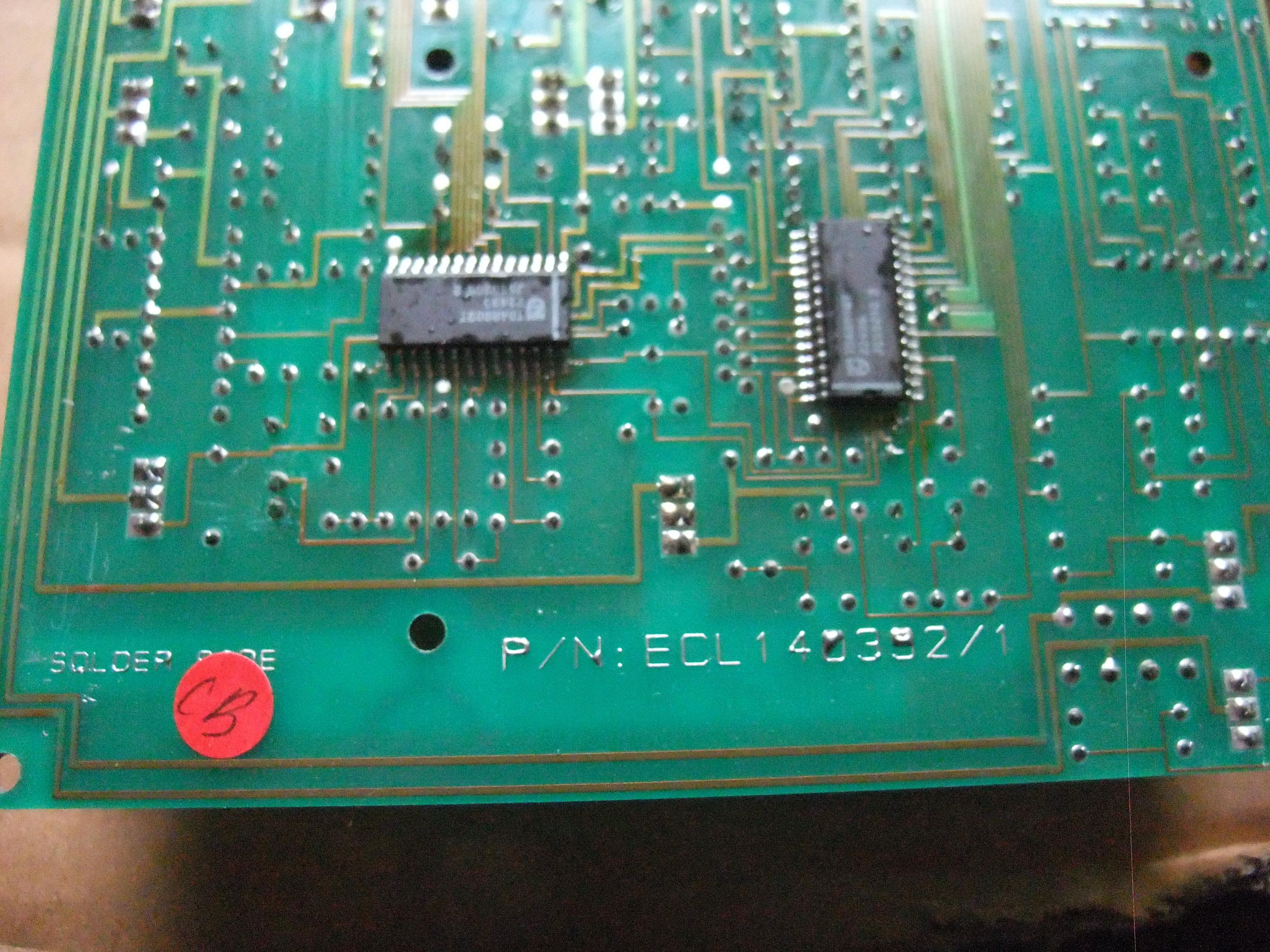

  • Micromega DUO Servo-PCB-III.jpg
    Micromega DUO Servo-PCB-III.jpg
    1,015.6 KB · Views: 32
  • Micromega DUO Servo-PCB-IV.jpg
    Micromega DUO Servo-PCB-IV.jpg
    1,019.3 KB · Views: 27

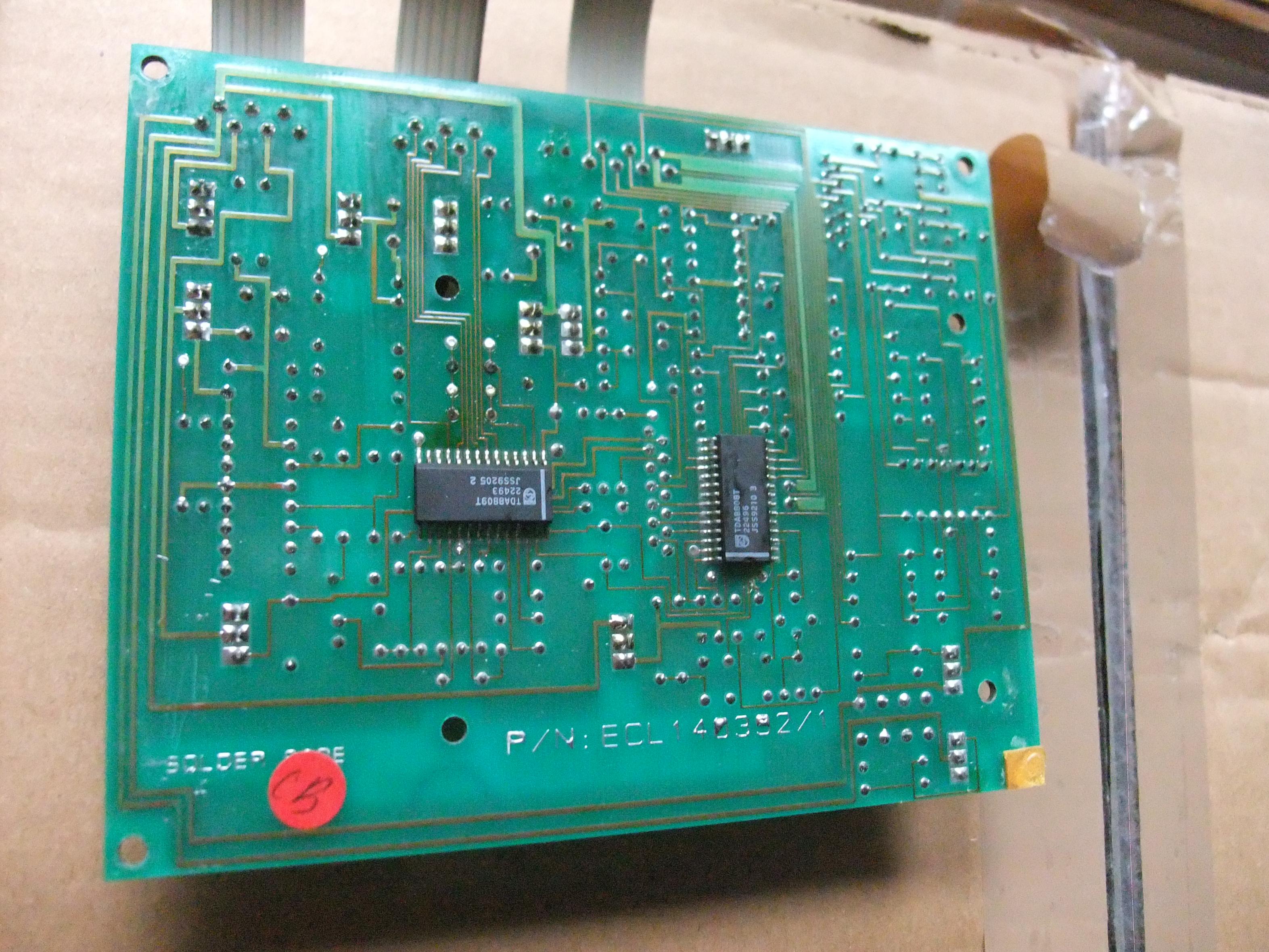

  • Micromega DUO Servo-PCB-V.jpg
    Micromega DUO Servo-PCB-V.jpg
    1,006.6 KB · Views: 28

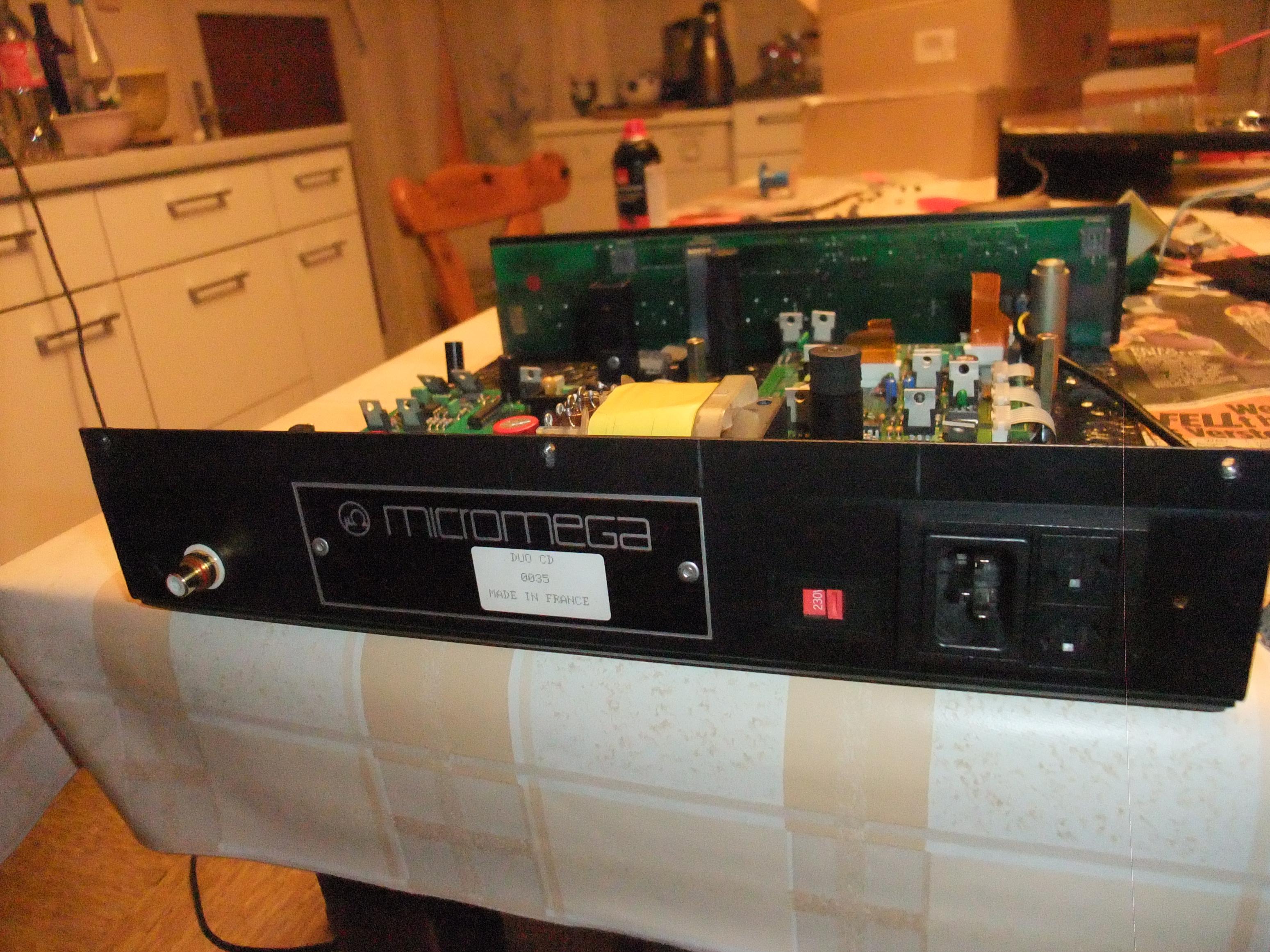

  • Micromega DUO rear-II.jpg
    Micromega DUO rear-II.jpg
    998.7 KB · Views: 41

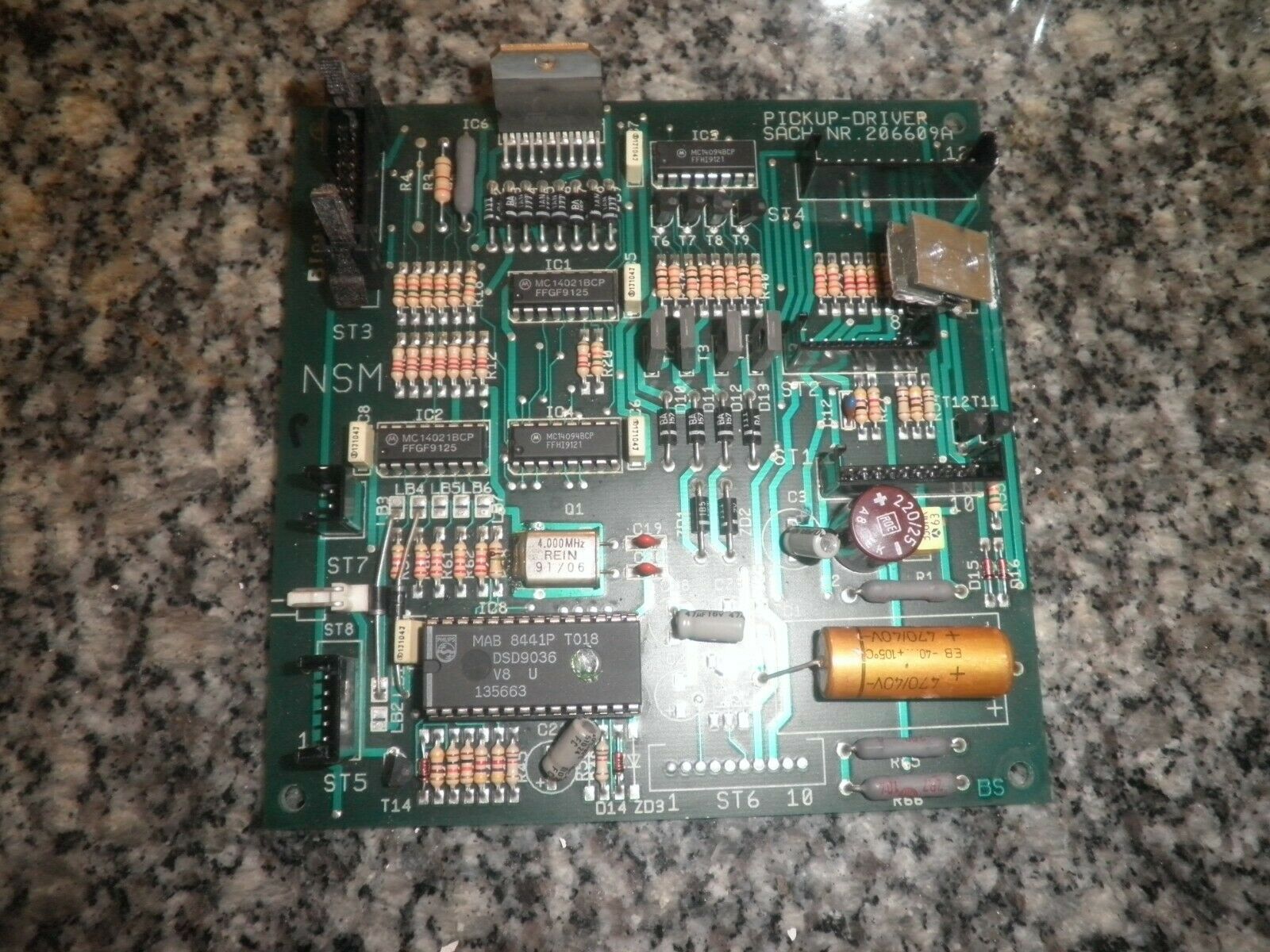

  • PickUp Driver NSM-Jukebox.jpg
    PickUp Driver NSM-Jukebox.jpg
    325.9 KB · Views: 48

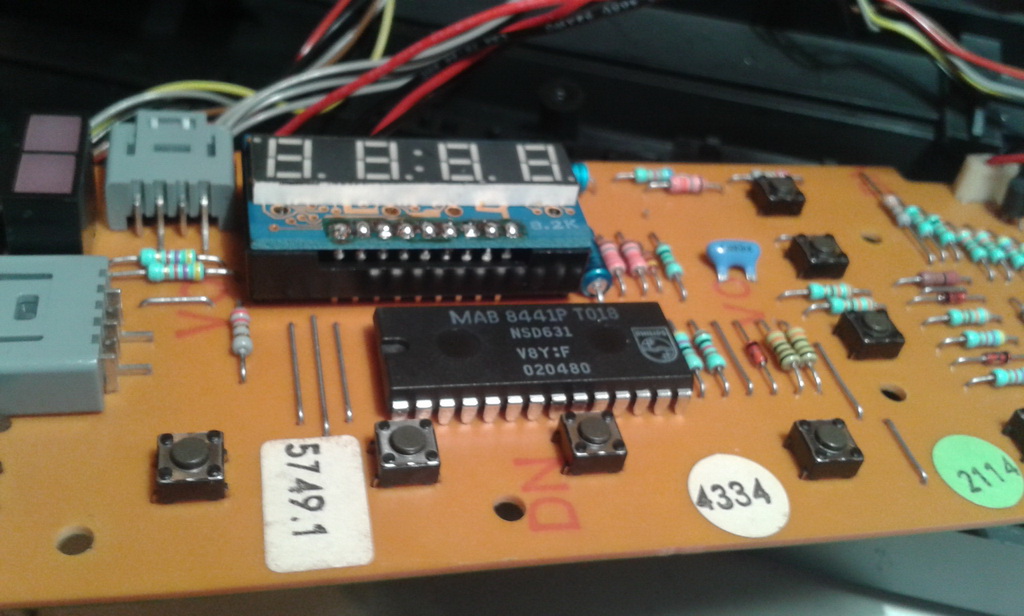

  • Grundig CD35 Display-PCB MAB 8441P T018-I.jpg
    Grundig CD35 Display-PCB MAB 8441P T018-I.jpg
    179.4 KB · Views: 43

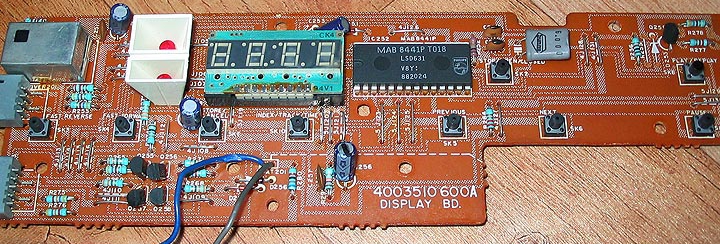

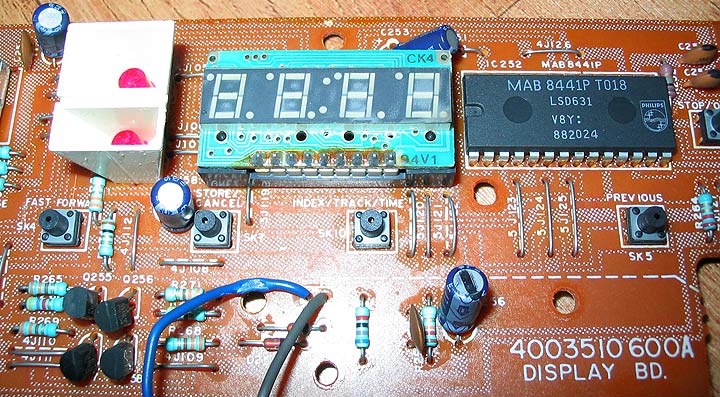

  • SAE D103 display-PCB MAB8441P T018.jpg
    SAE D103 display-PCB MAB8441P T018.jpg
    342.3 KB · Views: 51
  • SAE D103.jpg
    SAE D103.jpg
    285.3 KB · Views: 45
Last edited:
When I find out a model with "MAB 8441P T162" and purchase both, I can start troubleshooting.
In the meantime I have find out, that no cd players with usual loaders and trays use this version. This means, only top loader versions without a tray insert this version (and the "MAB 8441P T164", which is in use in old models like SOLO/DUO/TRIO from Micromega with CDM1- CDM4 swing arm transport).
To find out more of other cd player models, which also use this MAB versions, only audio/hifi-music centers resp. audio consoles with integrated cassette deck, FM tuner and pre-power amplifier comes into question here.

One example I have found by chance:
B&O Beocenter 8000 9000 9300 8500 9500 CD control board: check the image under
CD Control Board for Beocenter 9500
and in the attachment.

Vasiltech - go to
CD-Player-DAC-Transport List
unfortunately don't mentioned this kind of components.

Are there similar lists anywhere on the web with such components, equipped with CDM1 - CDM4 ?
If I have such a list with various models of audio-consoles resp. music centers, I can find out by download the associated service manual this information.

Thanks for an advice.
