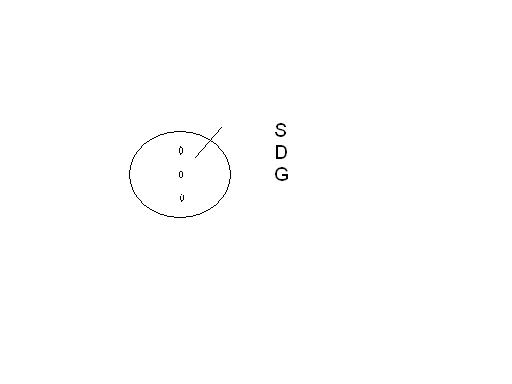

I am working on a synthesizer module. It calls for MFP-102 N channel. The markings on the board contradict the pins configuration of MFP-102. MFP-102 is 1. Drain, 2. Source, 3. Gate. I have included a portion of the schematic as well as a drawing of board marking.
Thank you in advance
Thank you in advance
Attachments
The MPF102 is a symmetrical JFET. The drain and source leads are interchangeable.
