LM 4780 STEREO AMP PCB

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.
Jump to Latest
M

Mark Walter

Member
Joined 2013
Hi all
I recently received from texas instruments 3 LM4780 and now I'm building the PCB with eagle for stereo split supply non inverting non bridge and non parallel amp.
If you know for some nice pcb can tell me? thankss because i'm not shure of mine

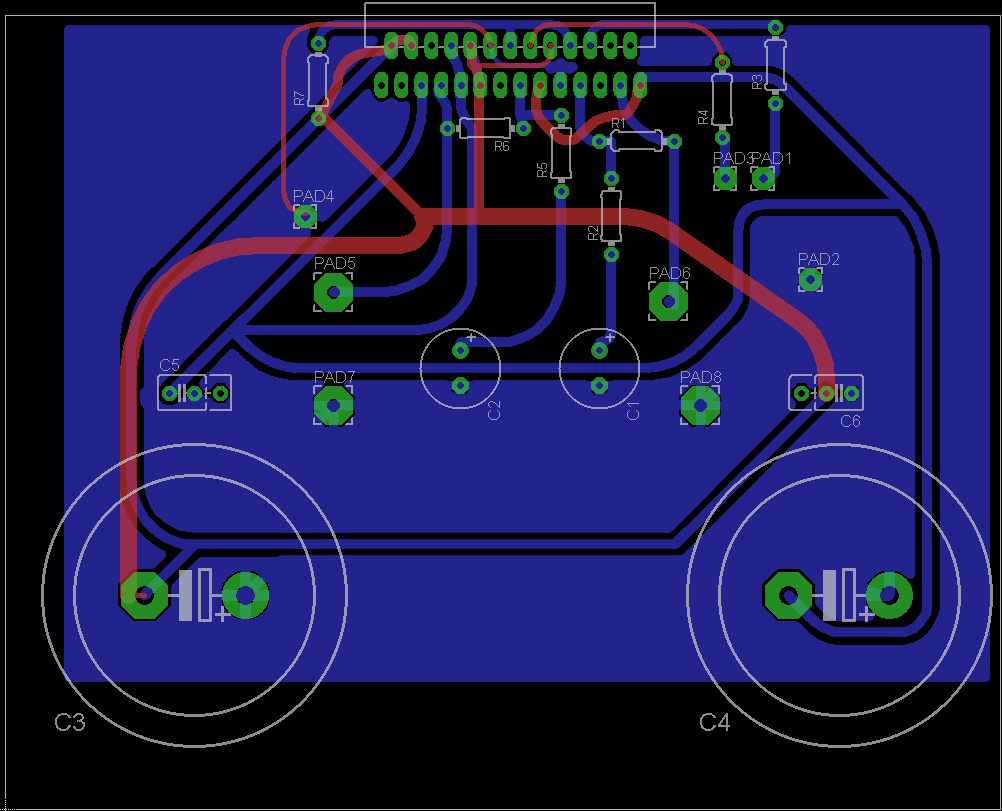

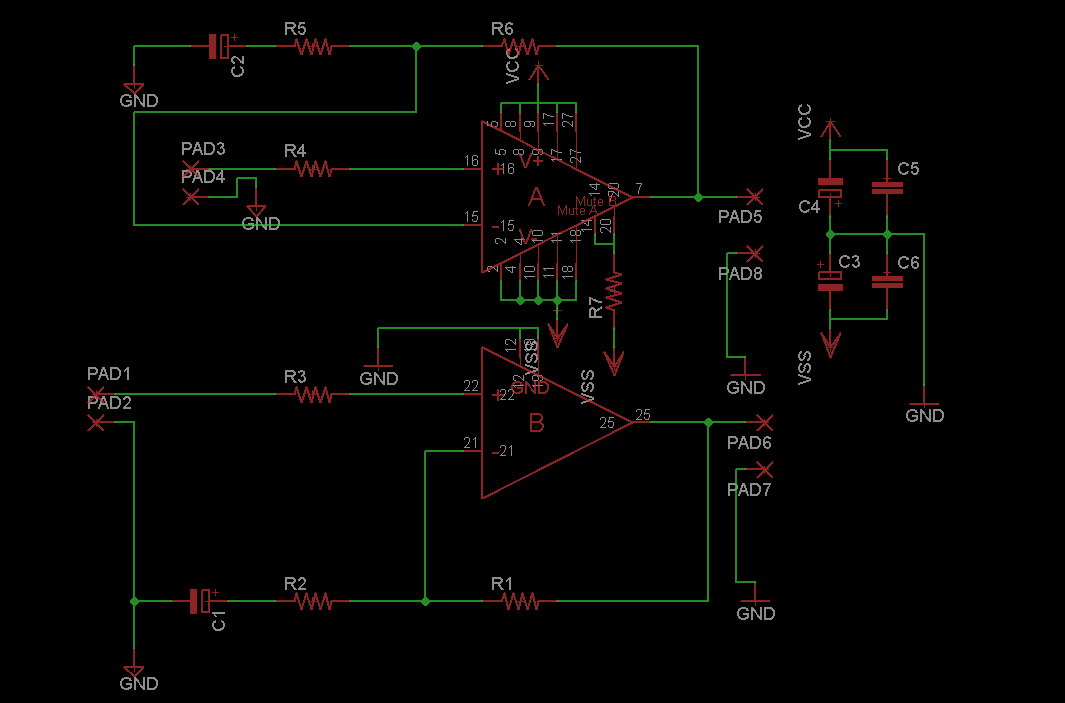

This is the mine, please tell me all what you think!!


Attachments

  • lm4780pcb.png
    53.5 KB · Views: 200
  • lm4780schem.png
    32.9 KB · Views: 190
