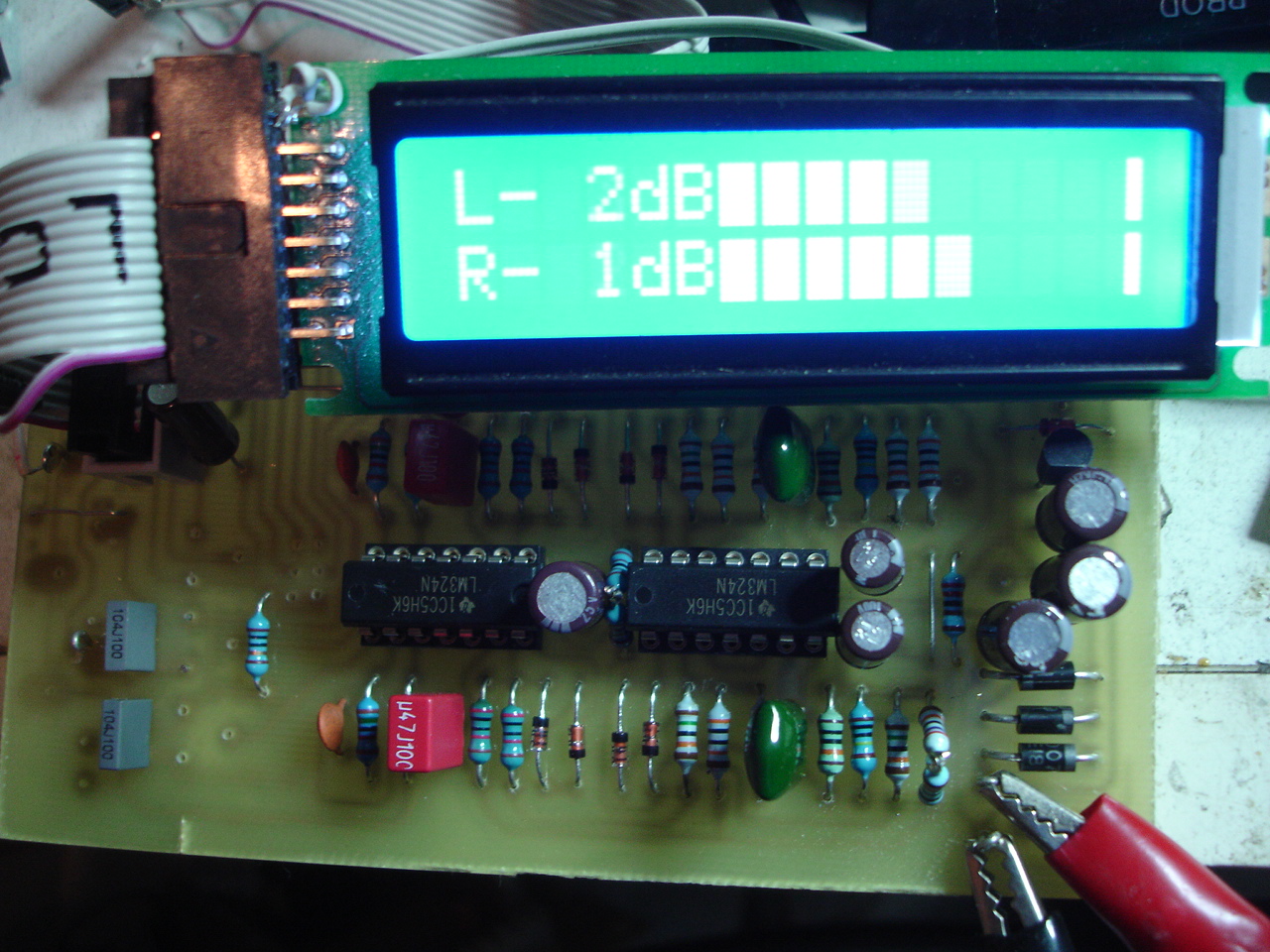

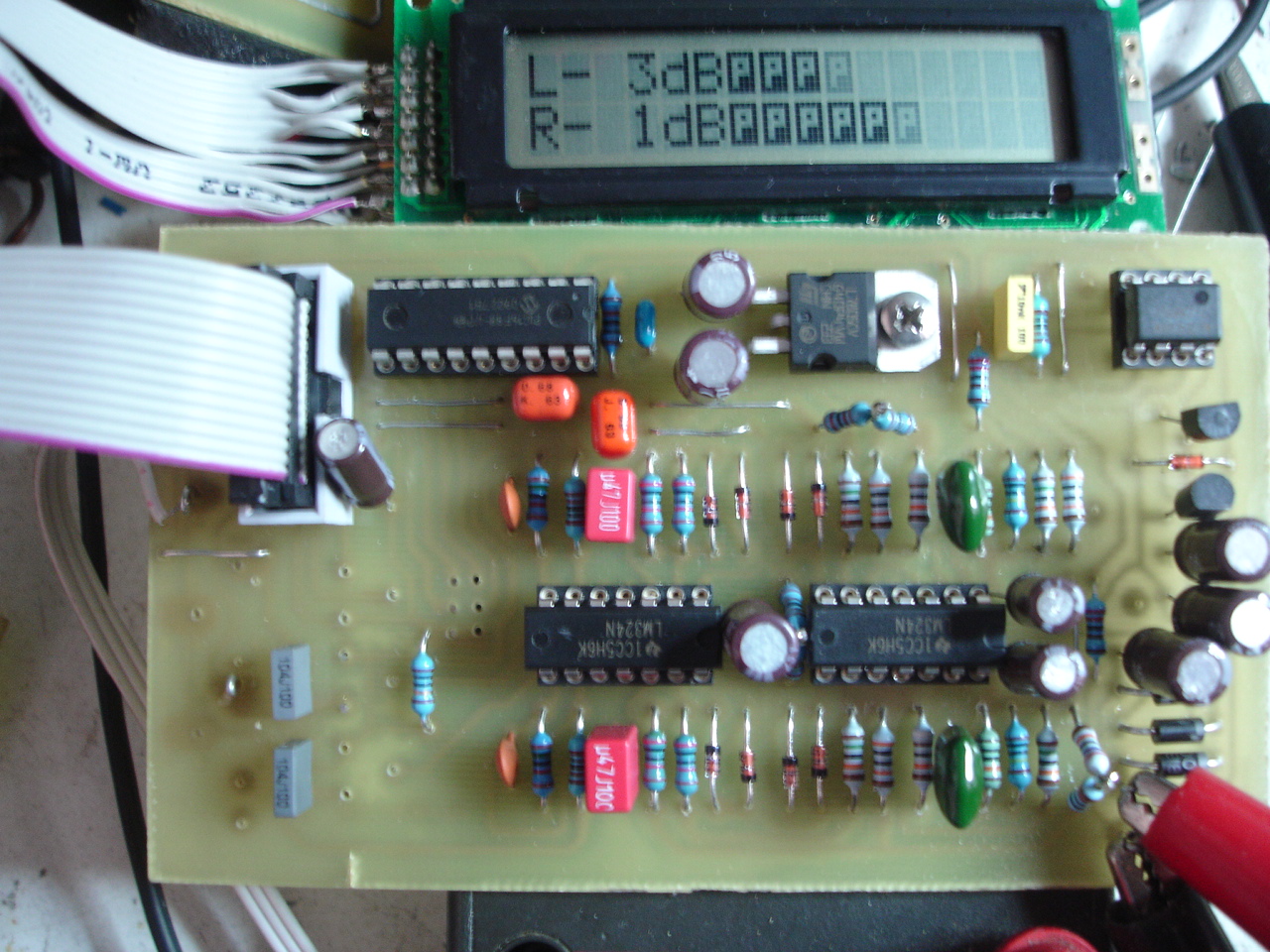

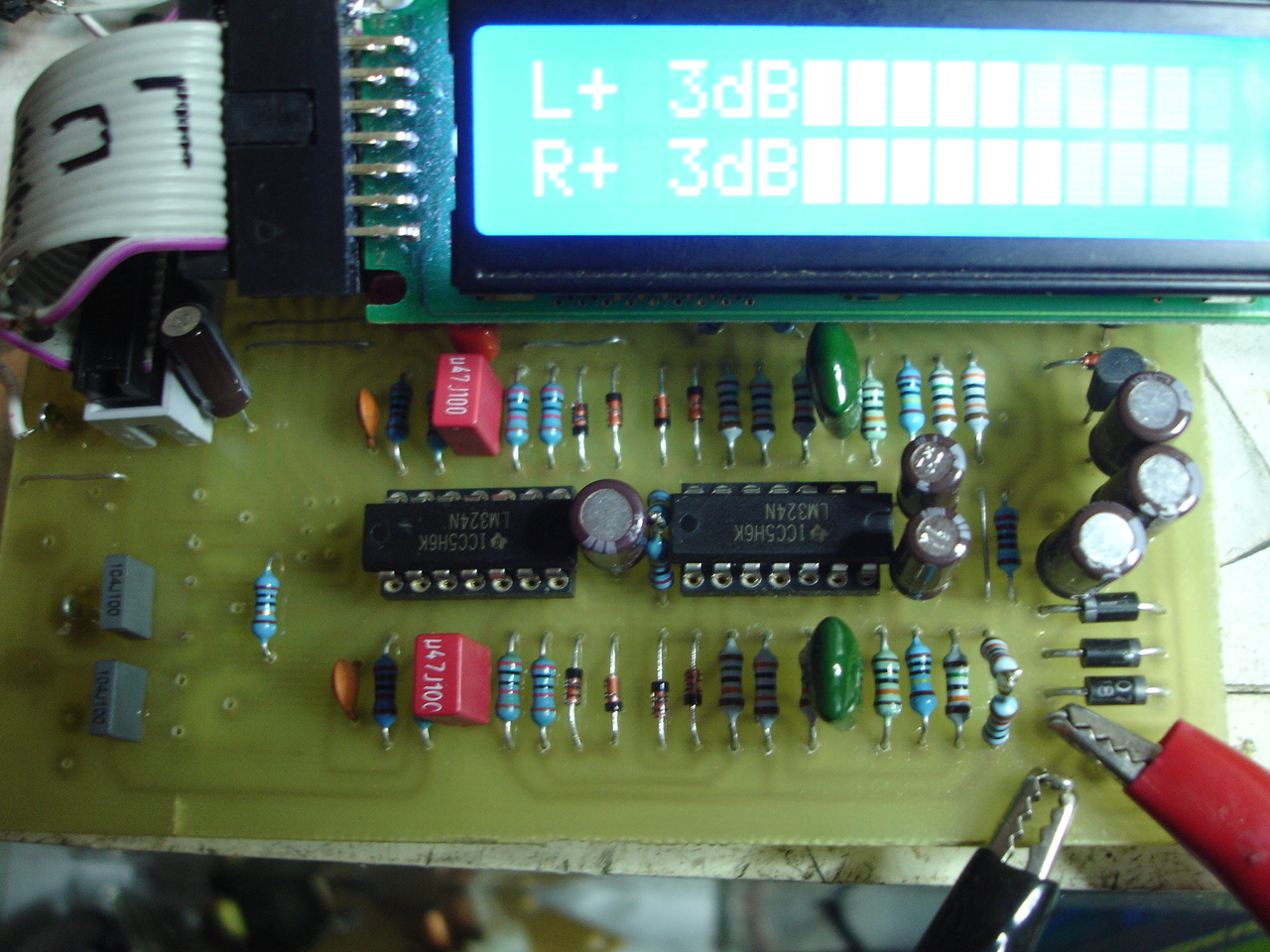

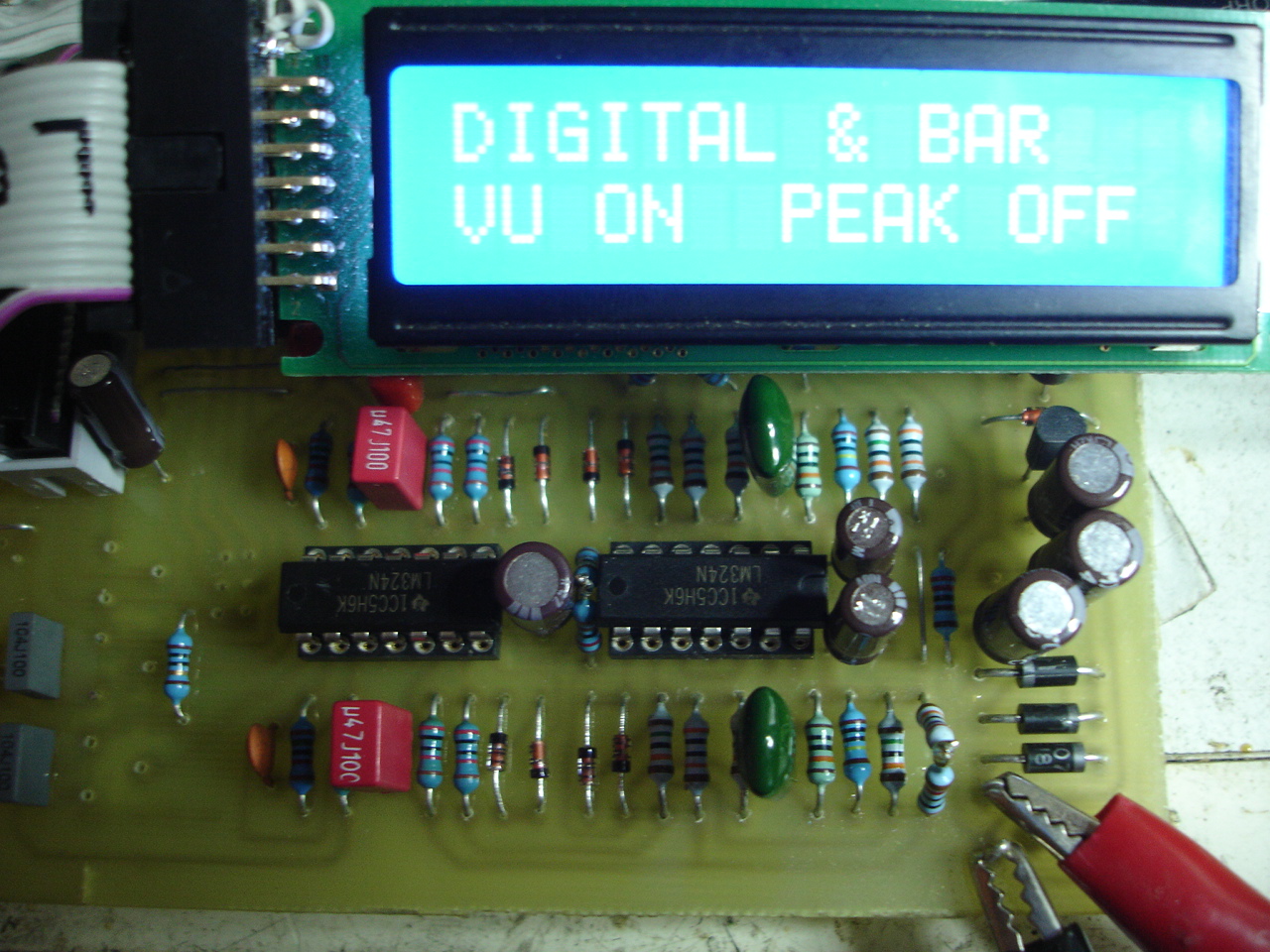

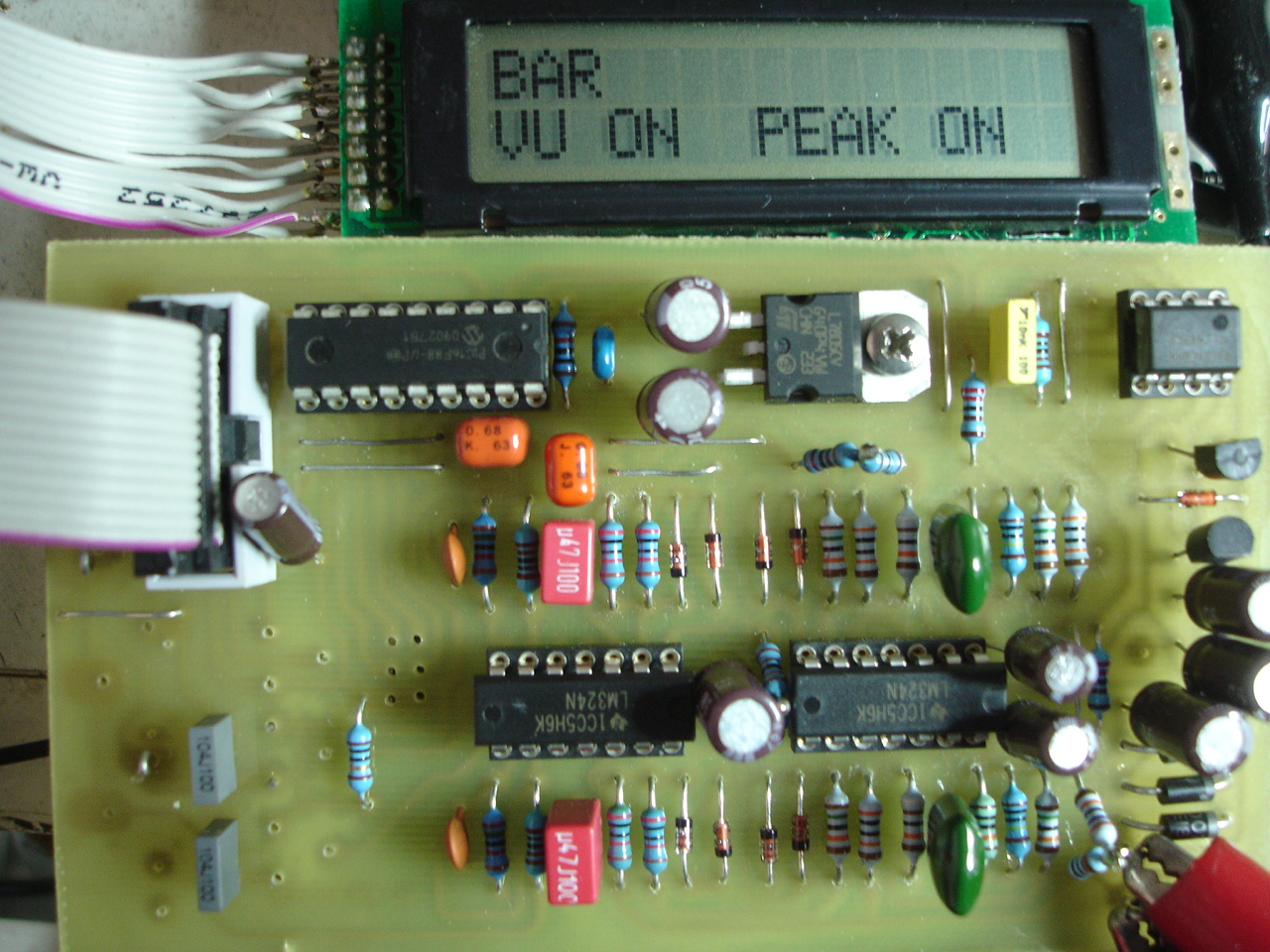

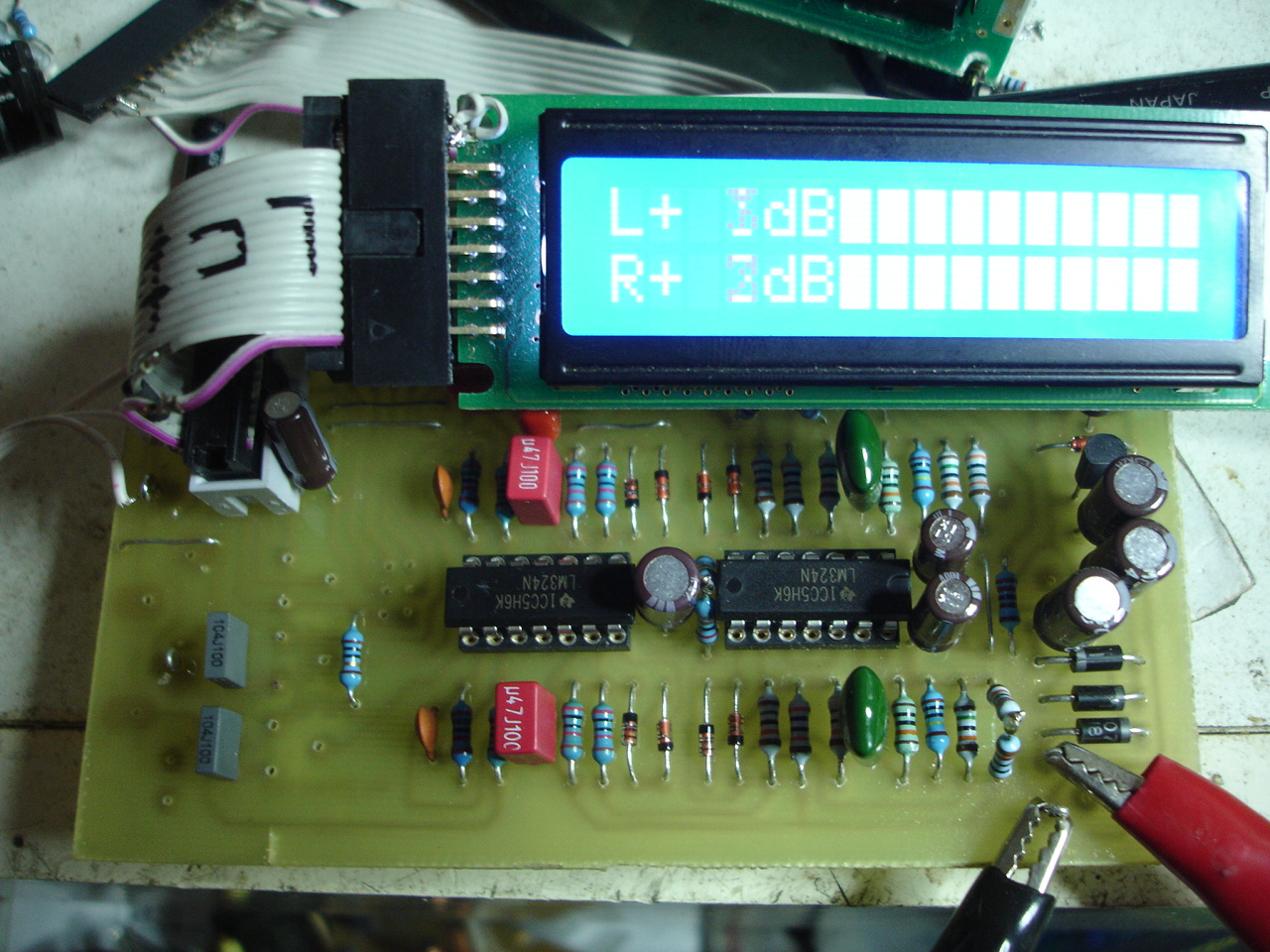

Here is a vu meter publiced in EPE magazine March 2009.
Software for pic 16f88 and pcb is free downloading.

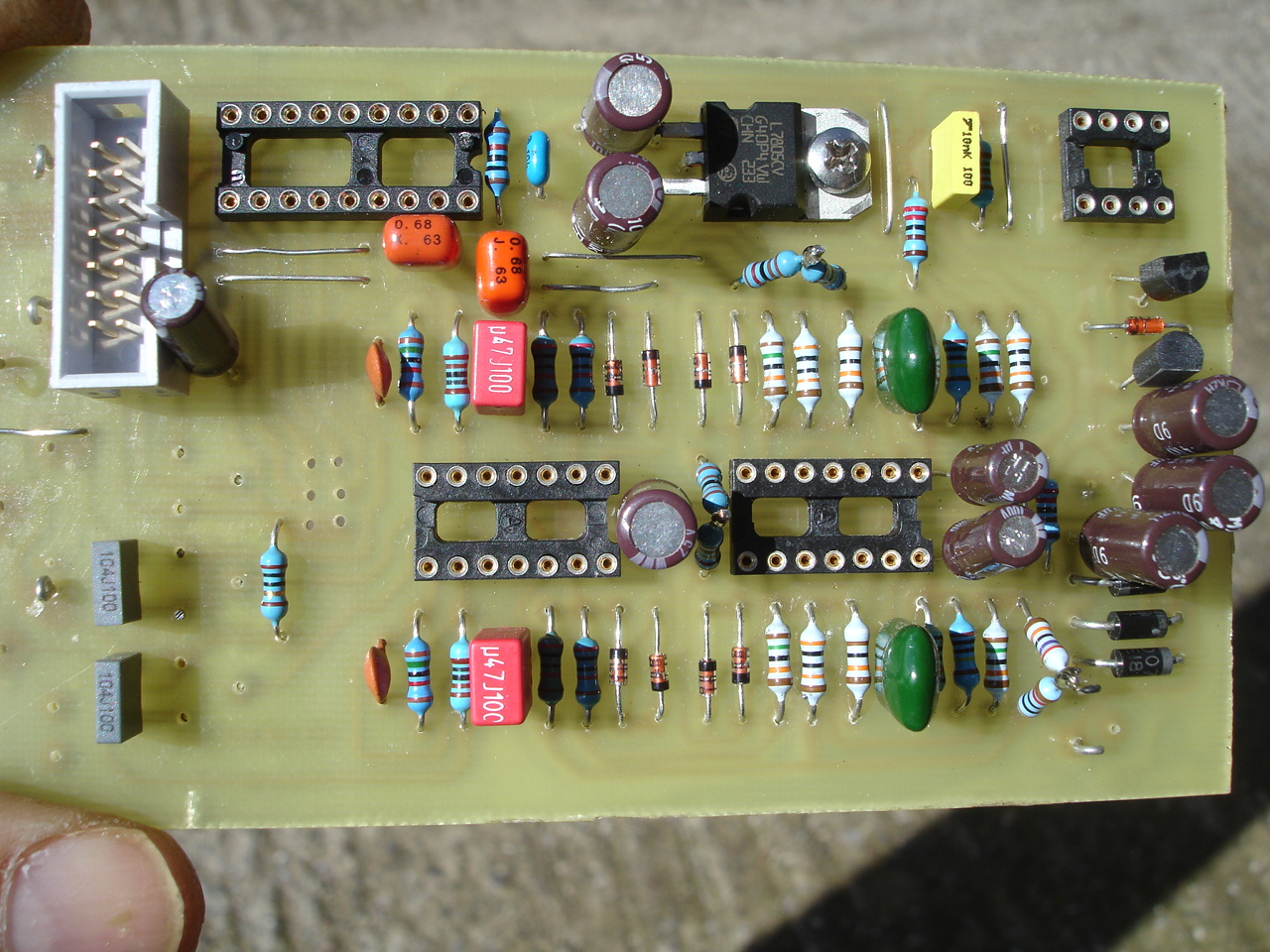

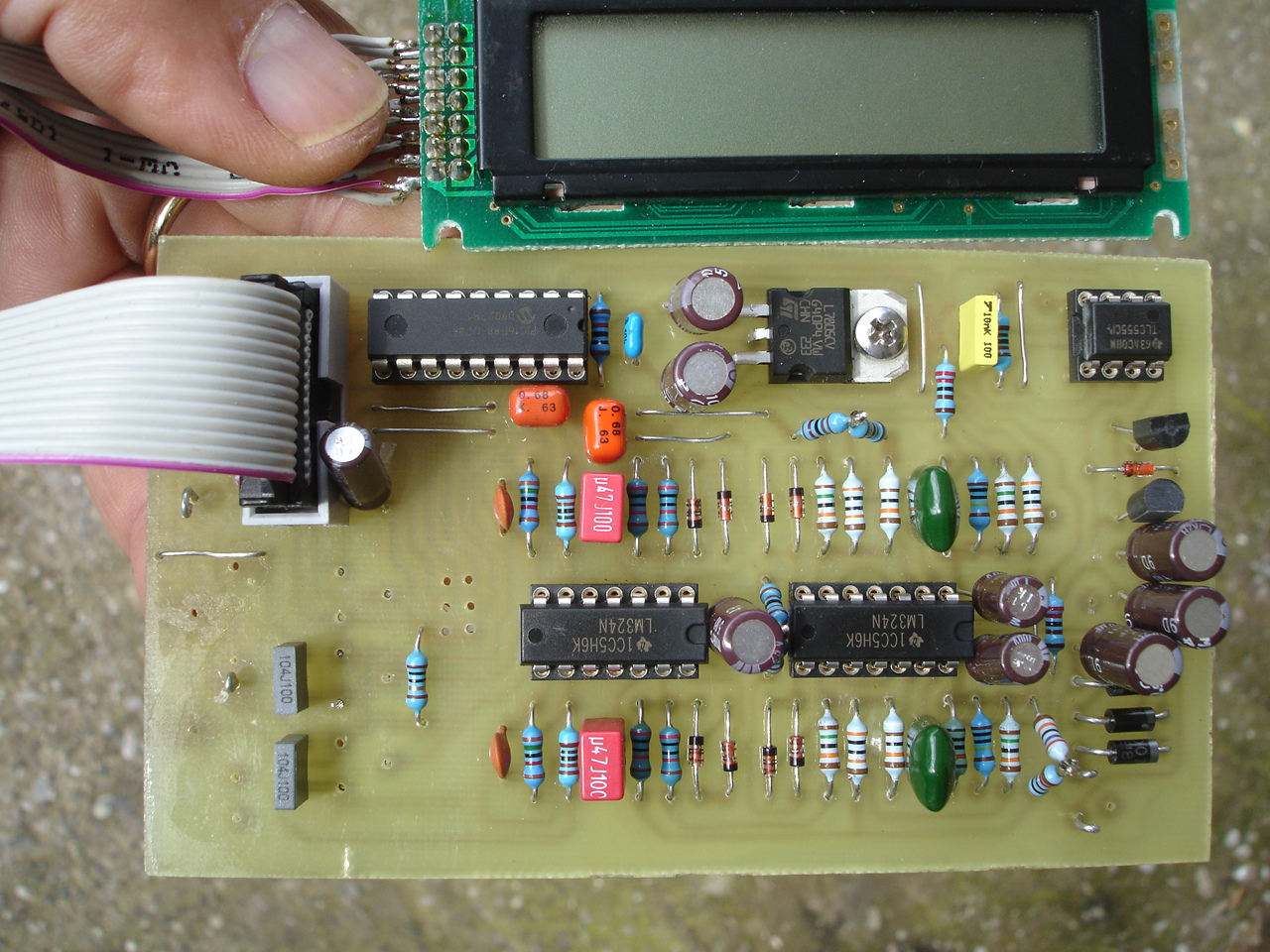

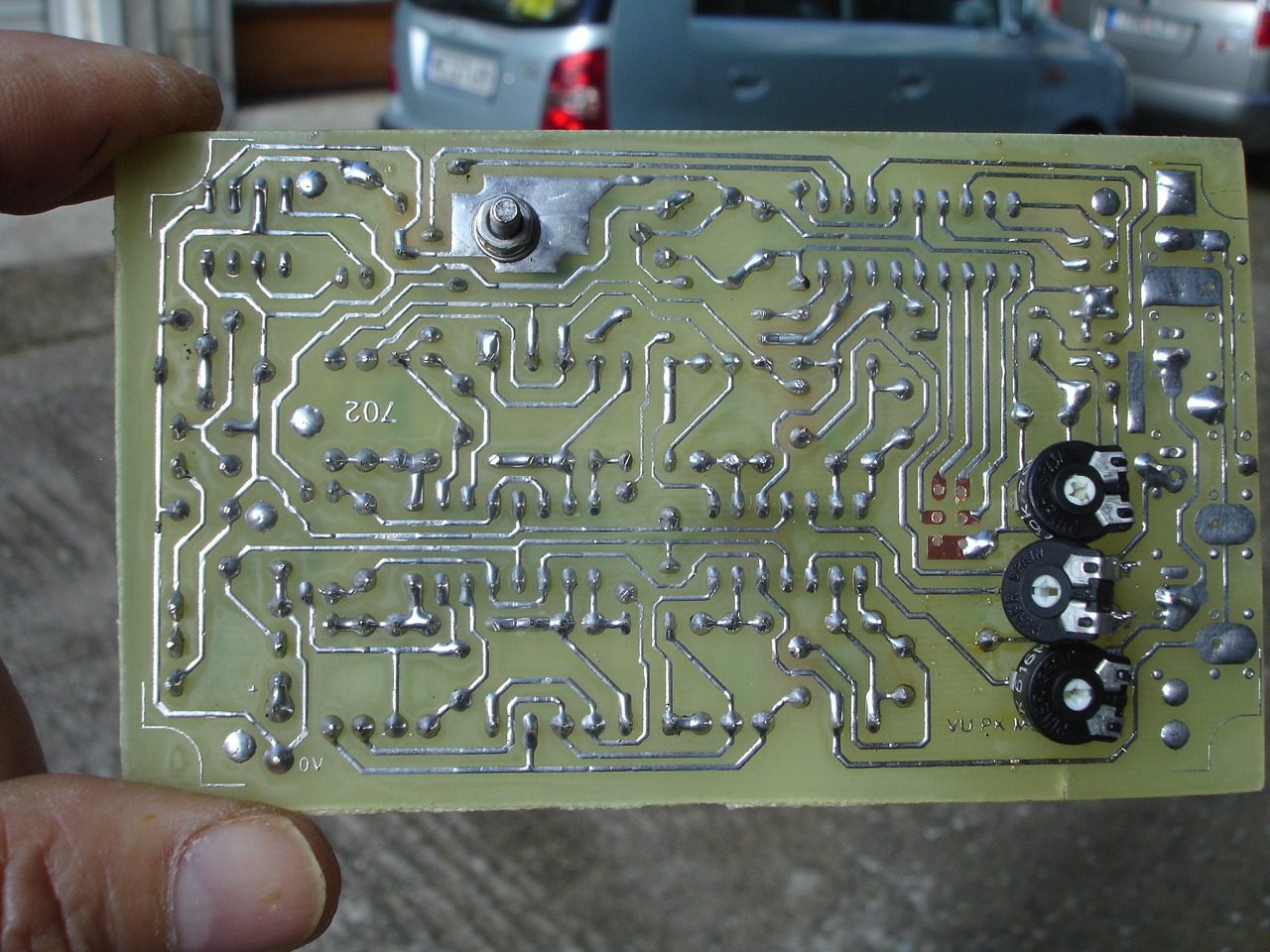

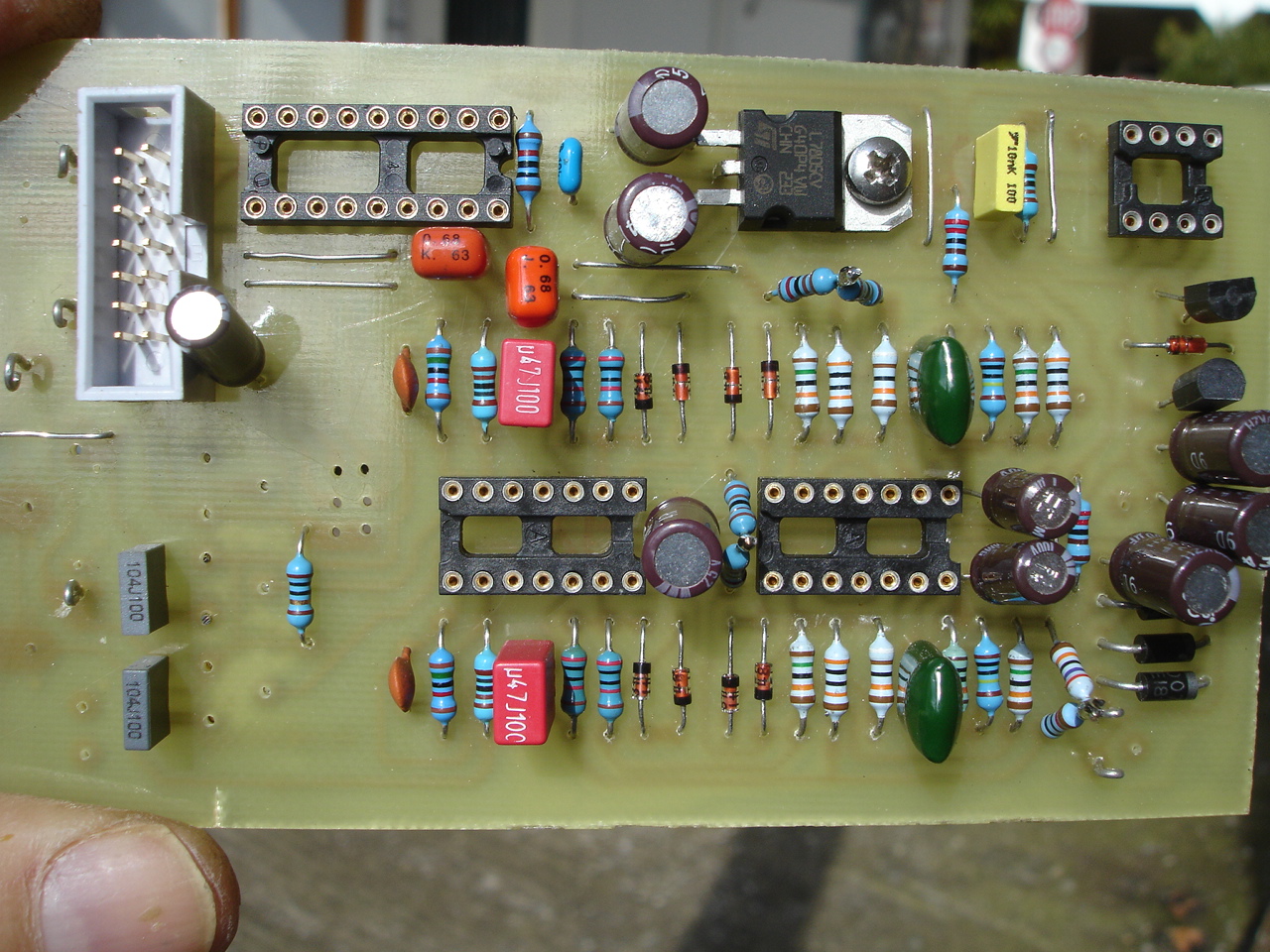

Pcb is hand made using photoresist method and pic was programmed using a general use JDM programmer and I.C programming software.
