In need of schematic for Conn 59092 amplifier

[markhh]

I am looking for schematic for a Conn Ltd. organ amplifier, chassis # 59092. The chassis was donate to me, covered in dust, but looks in good shape. I'd like to either refurbish it, or rebuild it to become a power amp. Any suggestions where to look?



[32860]

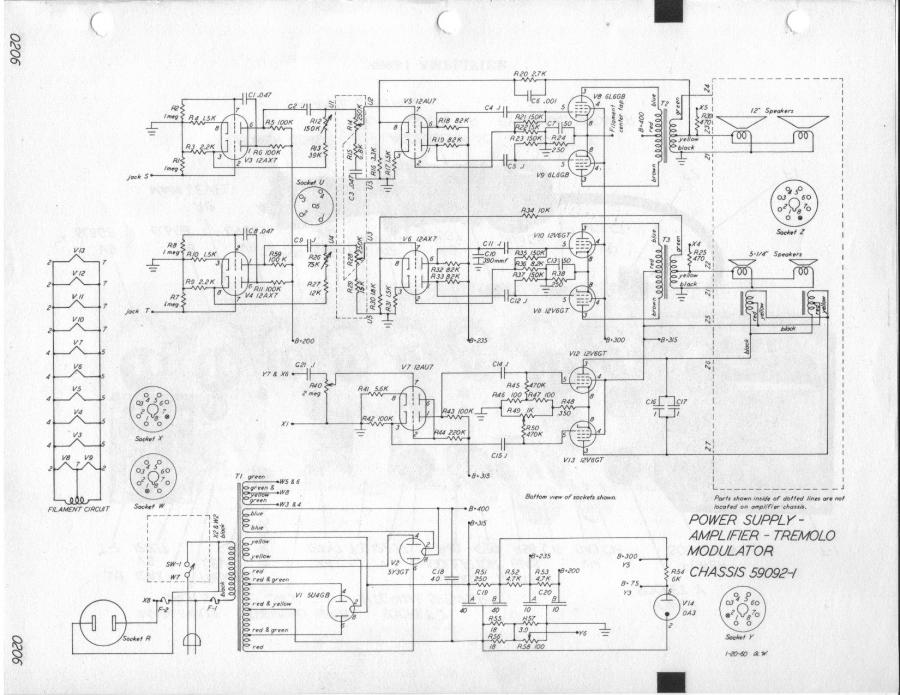

Is it this one?

Hammond T-Series Power Amp Swap W/CONN Tube Amp -

The Organ Forum



[markhh]

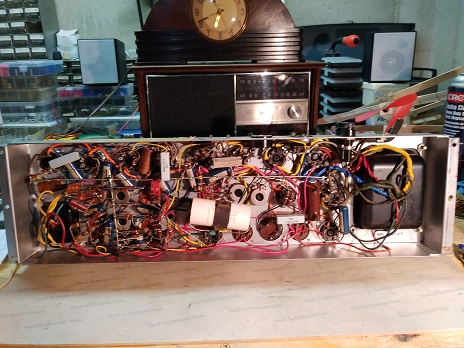

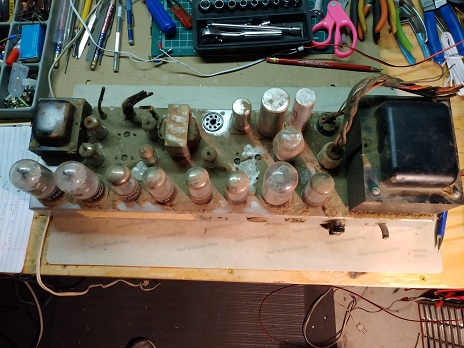

The amp looks like this: (see attached 2 photos)



[kevinkr]

If this is going to be used as an instrument amp it should be moved to Instruments & Amps, likely more people there would be familiar with it.

Let me know and if appropriate I will move it.



[anatech]

You just need another for stereo. There seems to be a lot going on on that chassis.

-Chris



[PRR]

That's a lot more than "an amp". It is 2 (or 3?) power amps, main and tremolo and? Be a funny kind of stereo. Seems complete over-kill for guitar.

Edit: yes, a main amp 2*6L6, another amp 2*6V6 (but 12V types), and...... a low-frequency amp which *modulates the field coils of the field-coil speaker* (which is probably long gone). If you could *fit* another OT on there, you "could" have Left and Right satellites at 10 Watt, plus a 25 Watts sub-woof channel. Plus a LOT of tarnish to clean.



[markhh]

Thank you all for your input. I will chase down the Hammond T-series. If you would like to move this to another more appropriate thread, please do so. I appreciate all the help.
