Heil Sound Phamplets

This is for inmate turk 182 "where did you find that product literature!? sometimes it's next to impossible to find old pre-net stuff unless someone preserved and uploaded it."

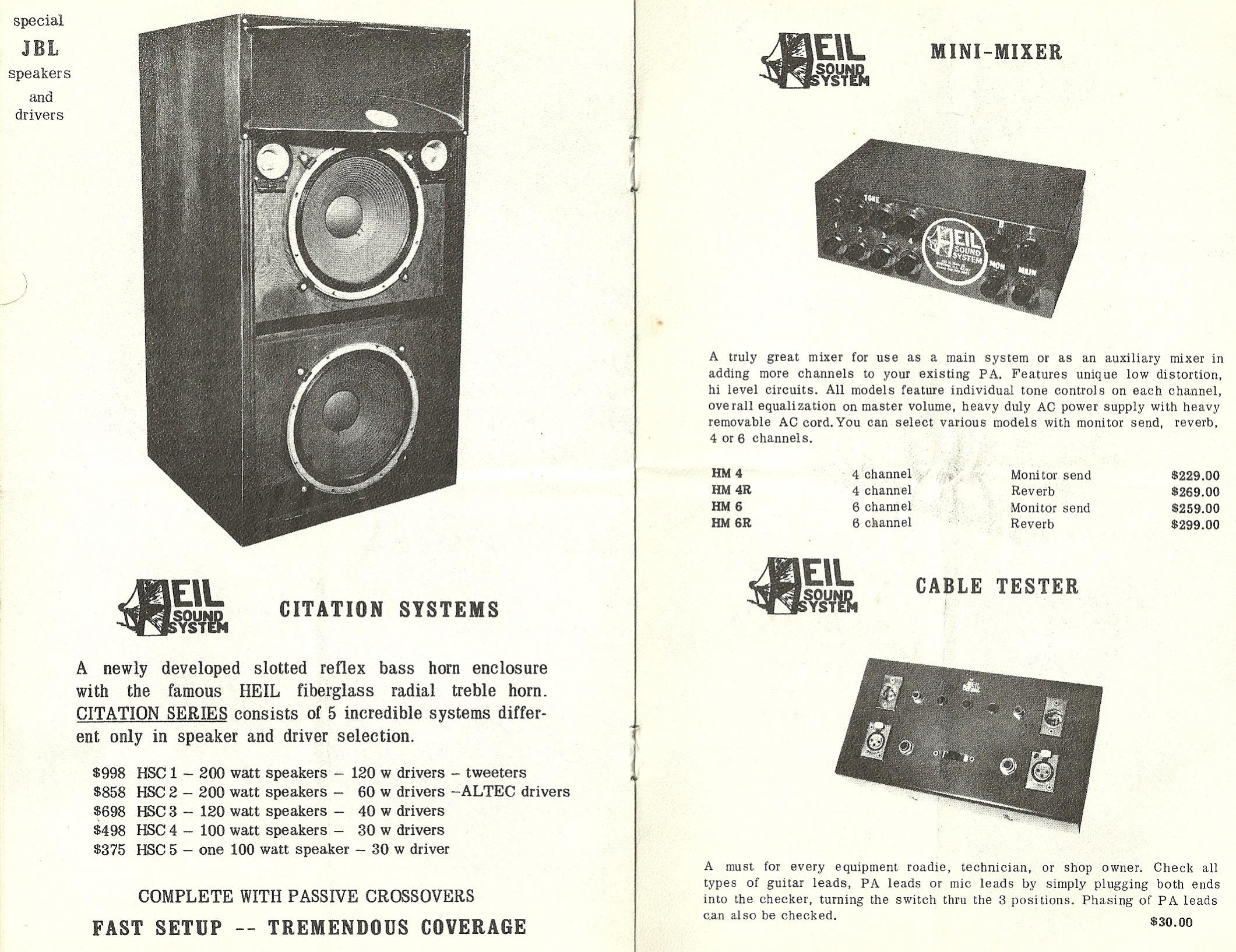

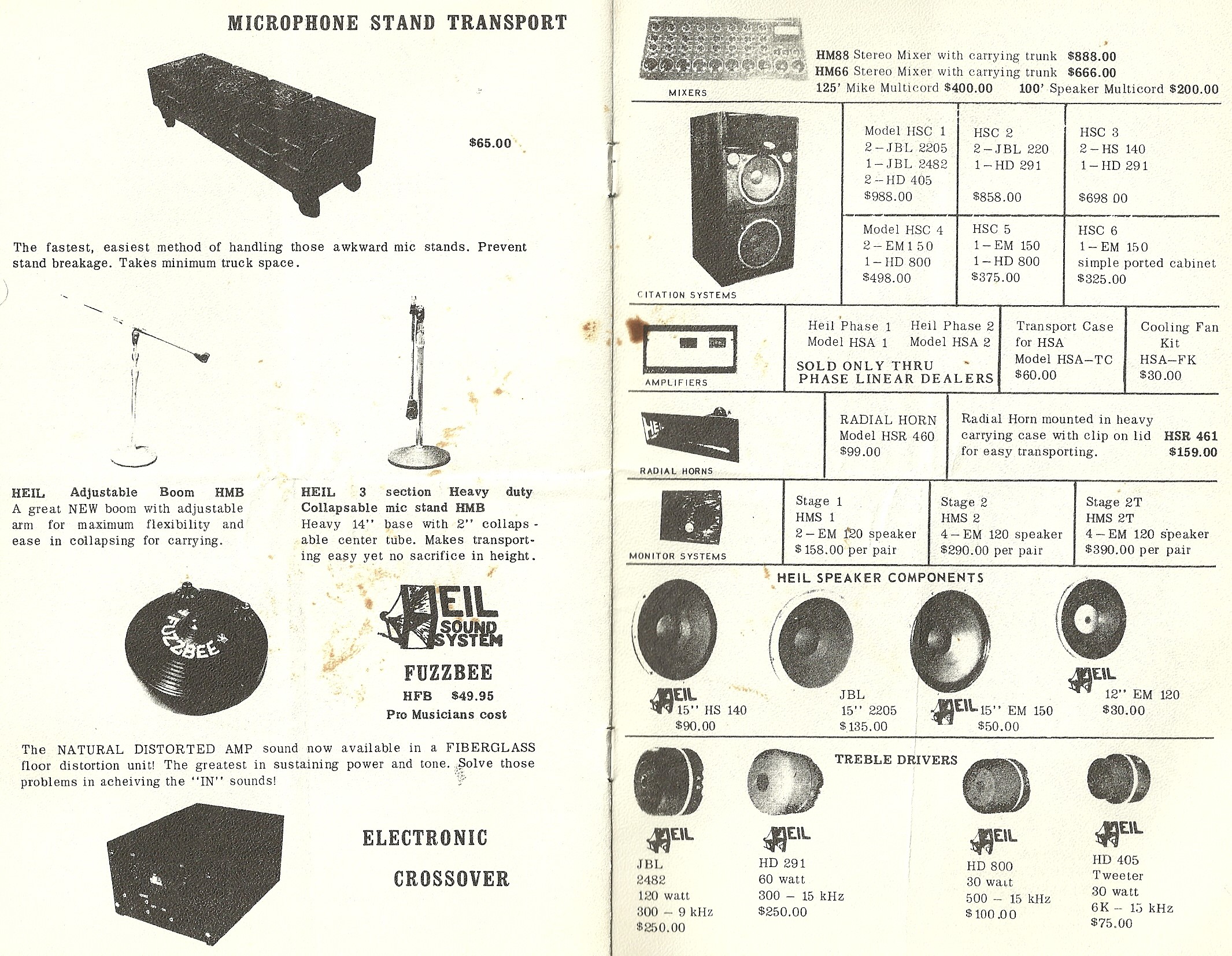

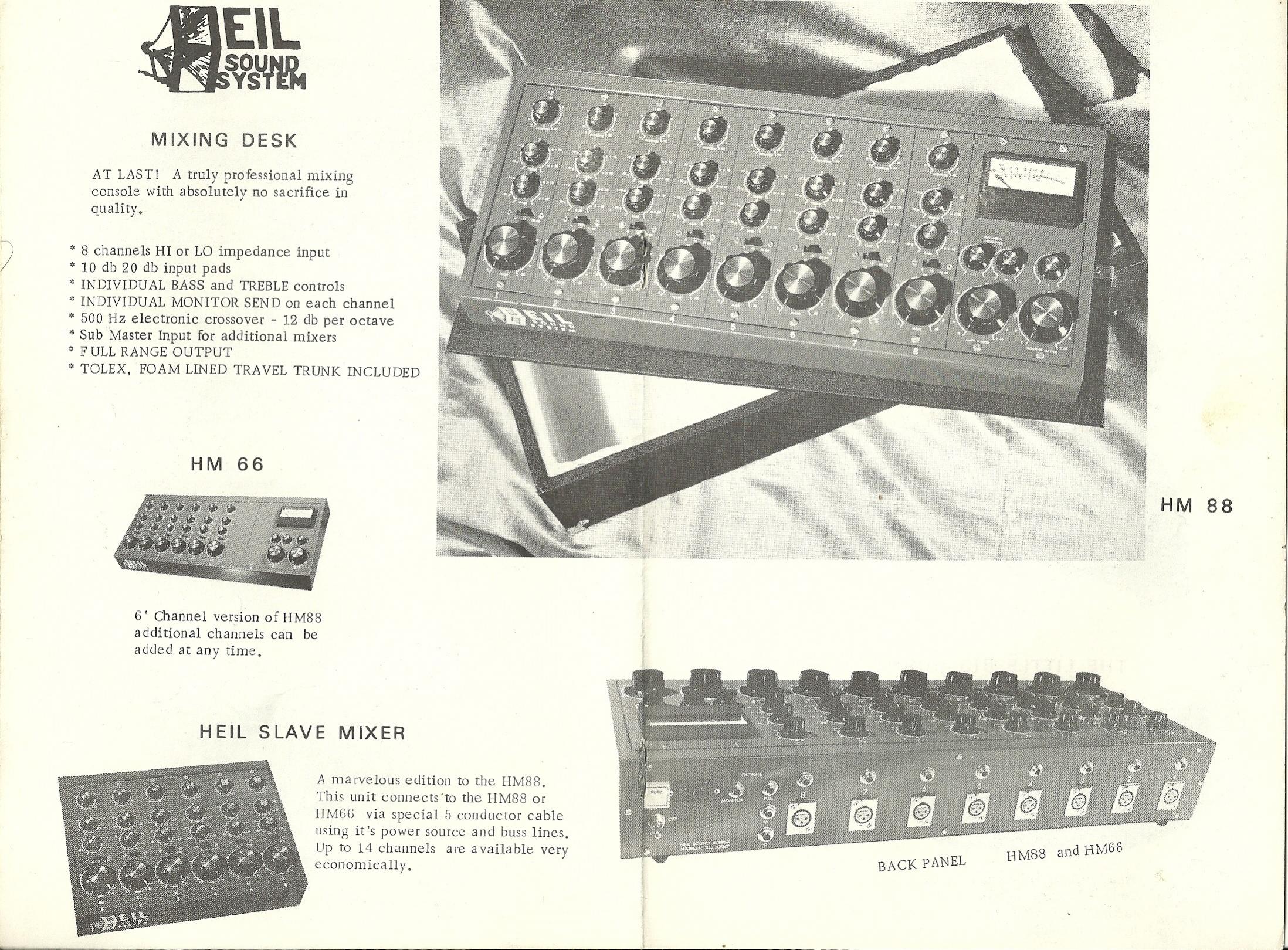

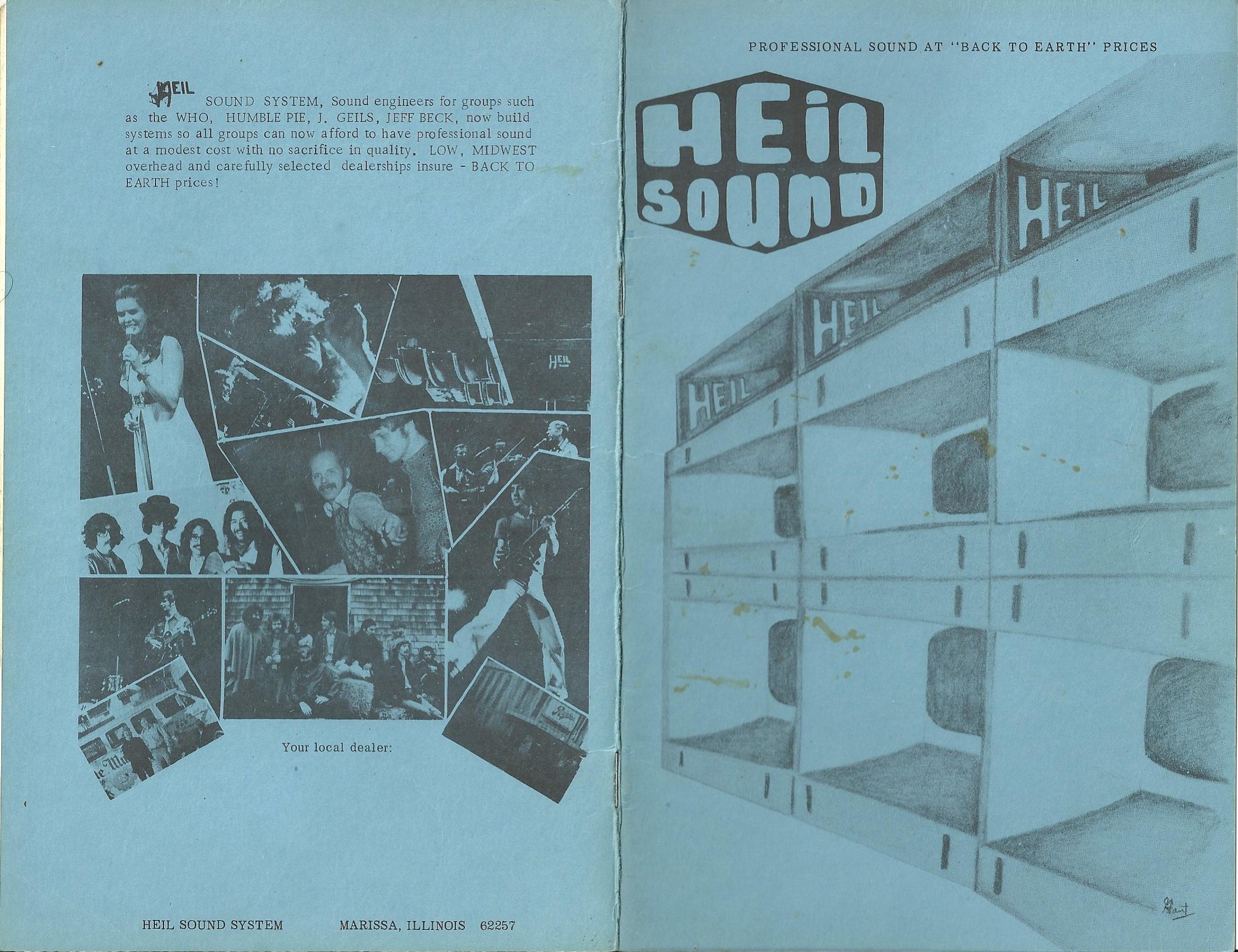

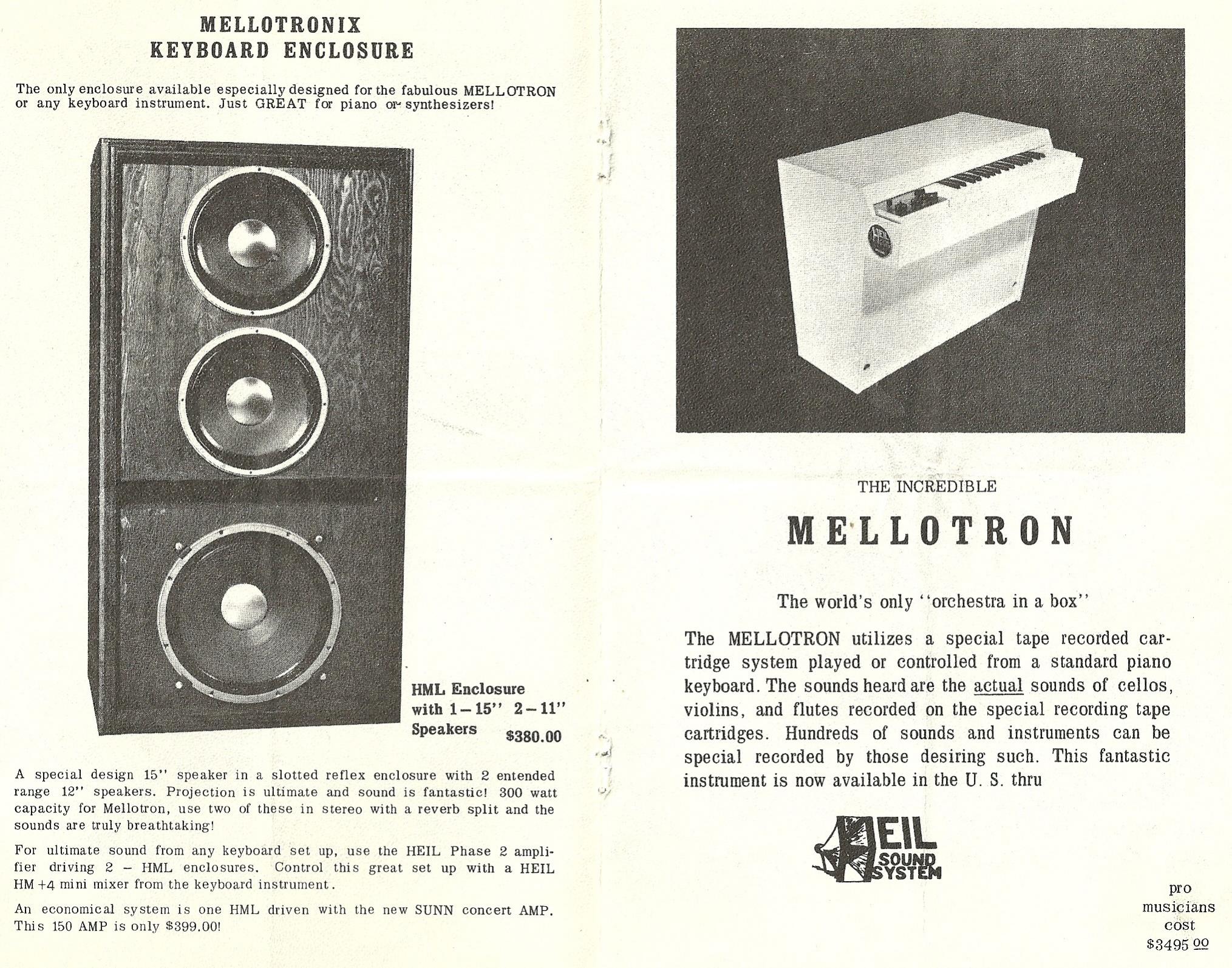

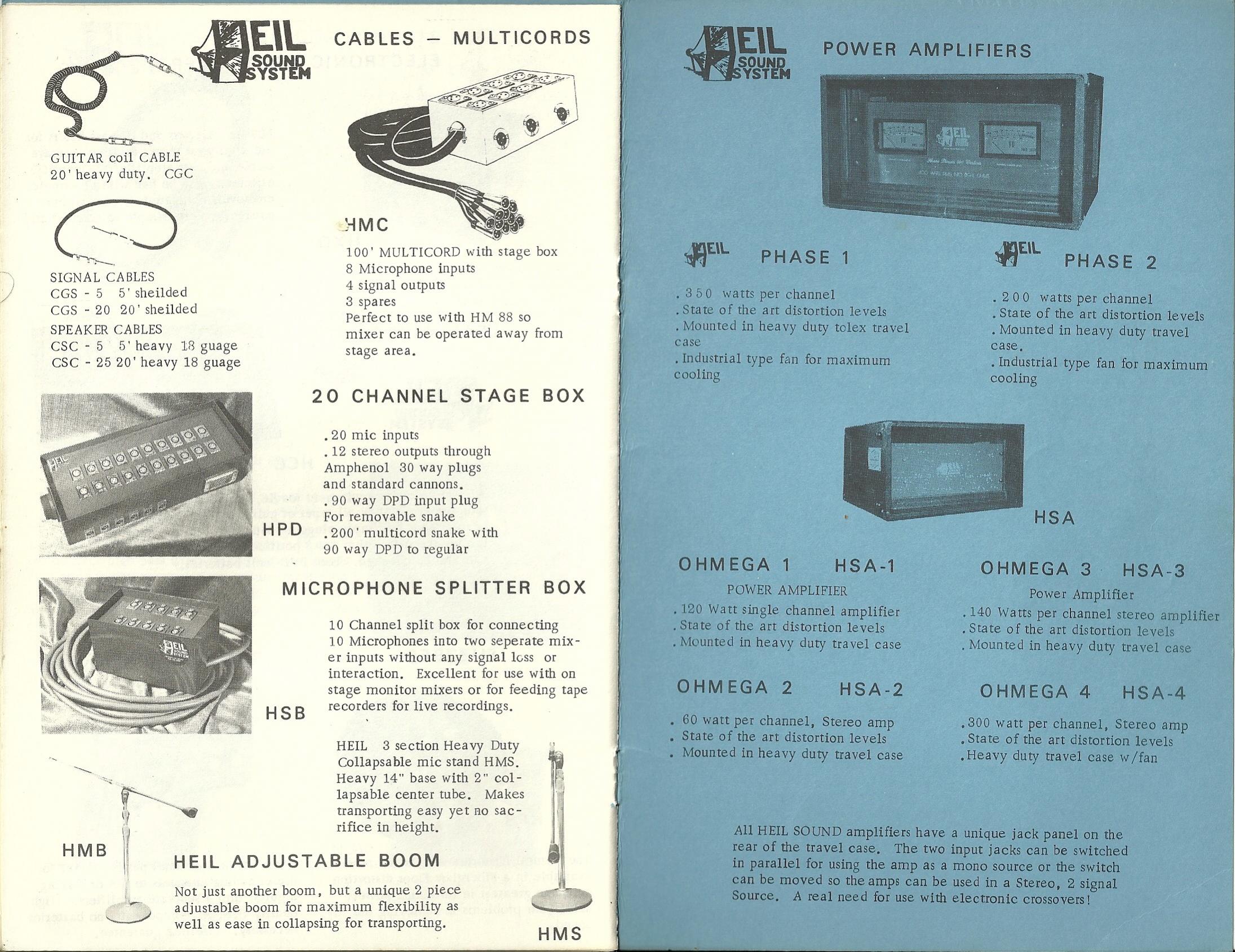

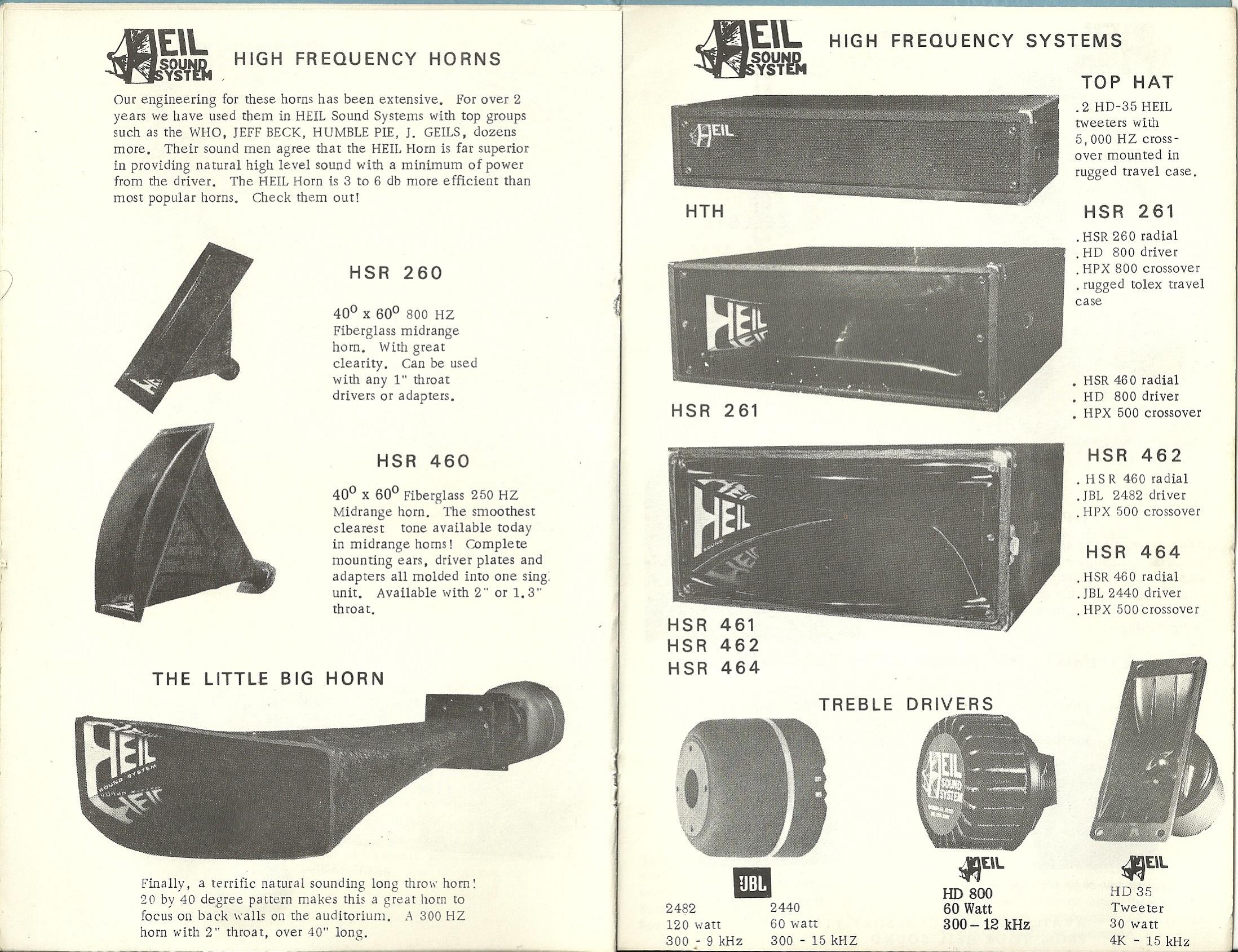

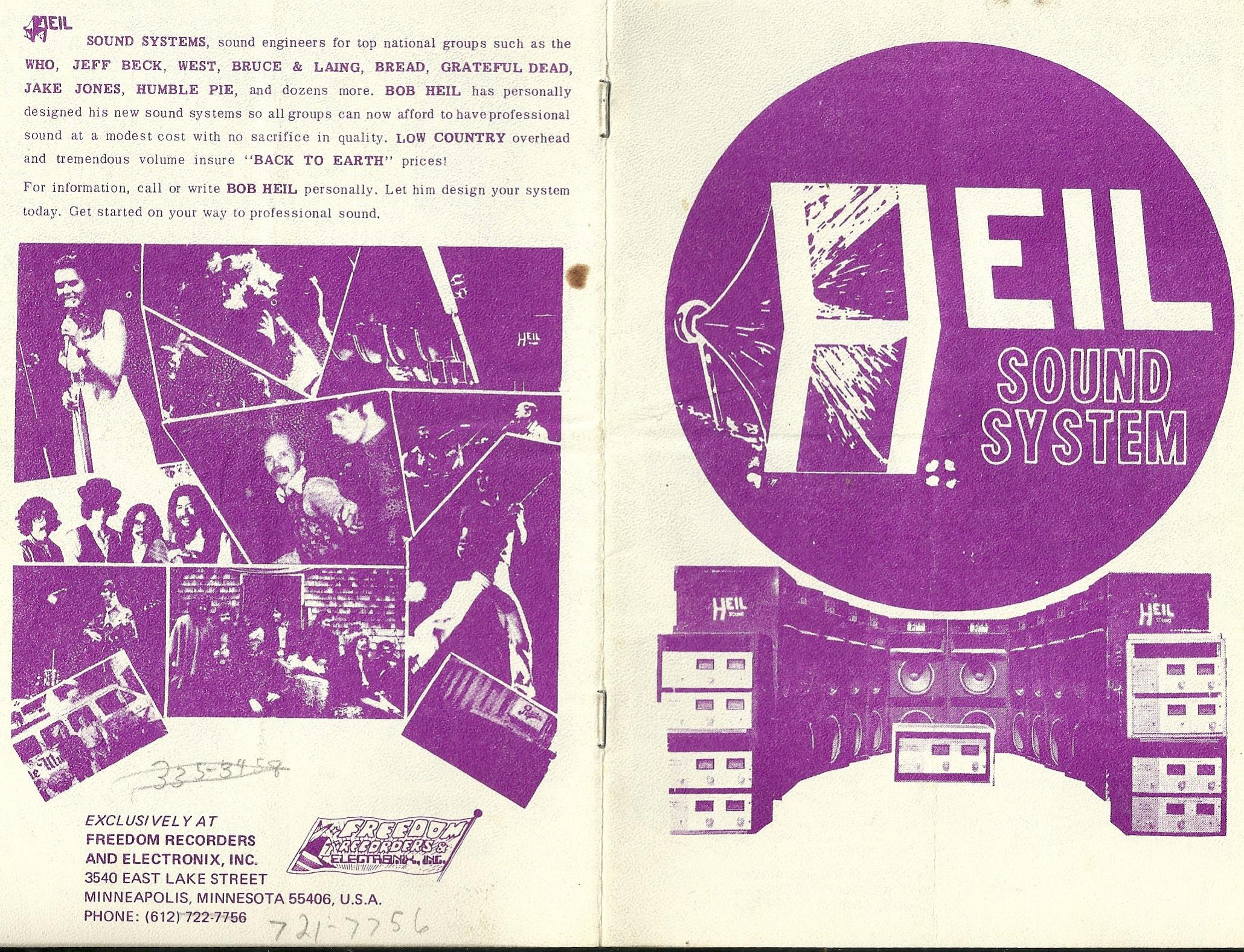

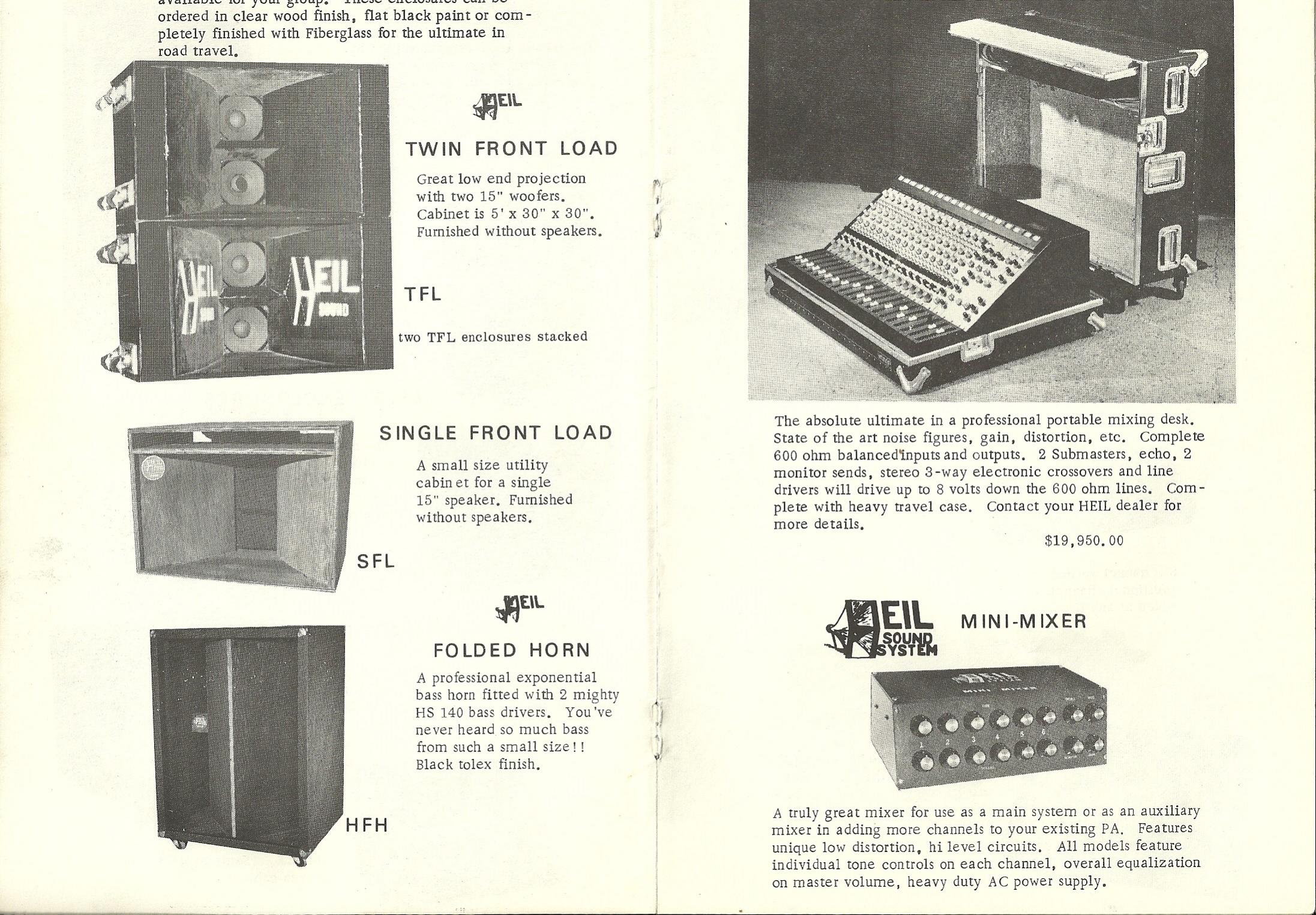

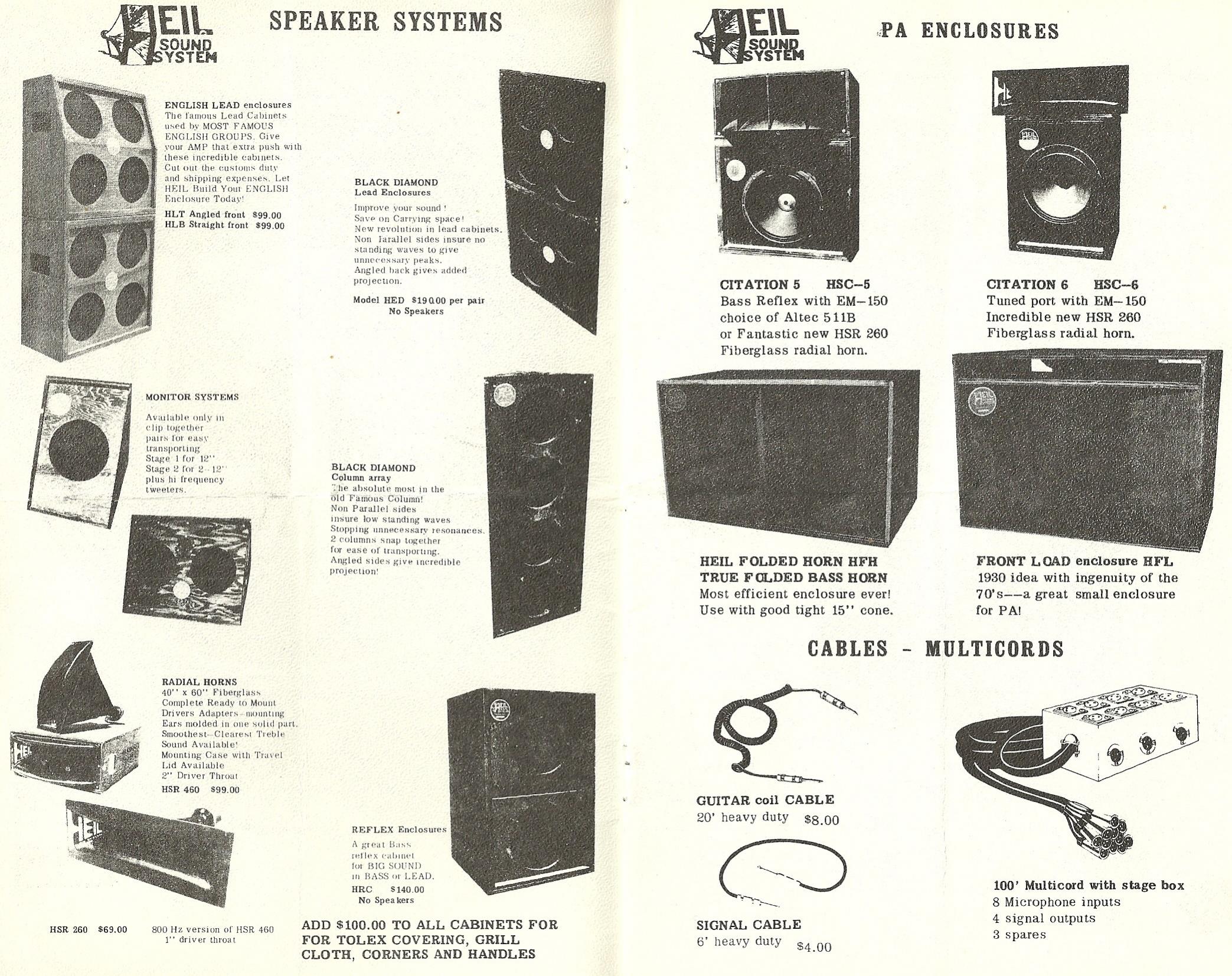

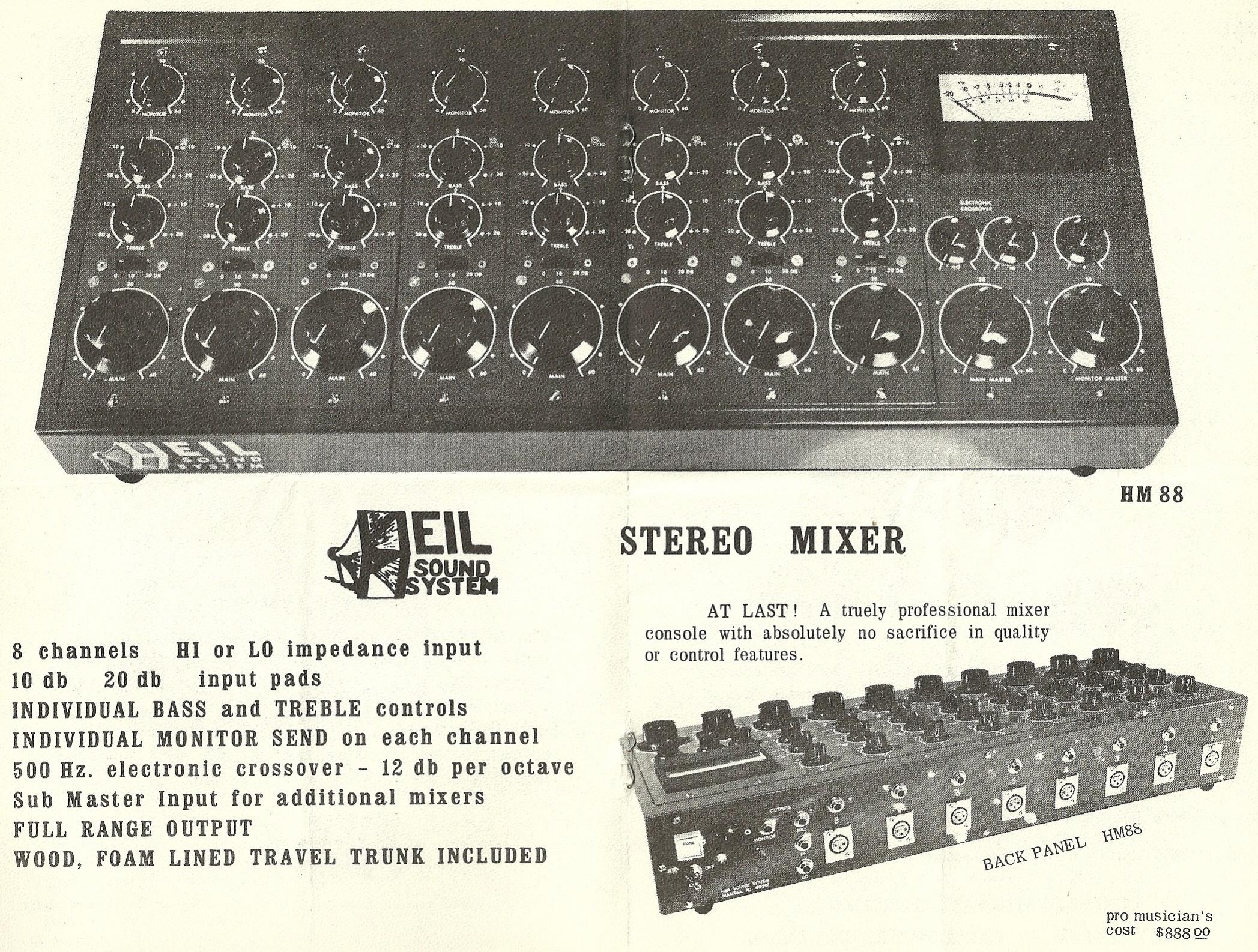

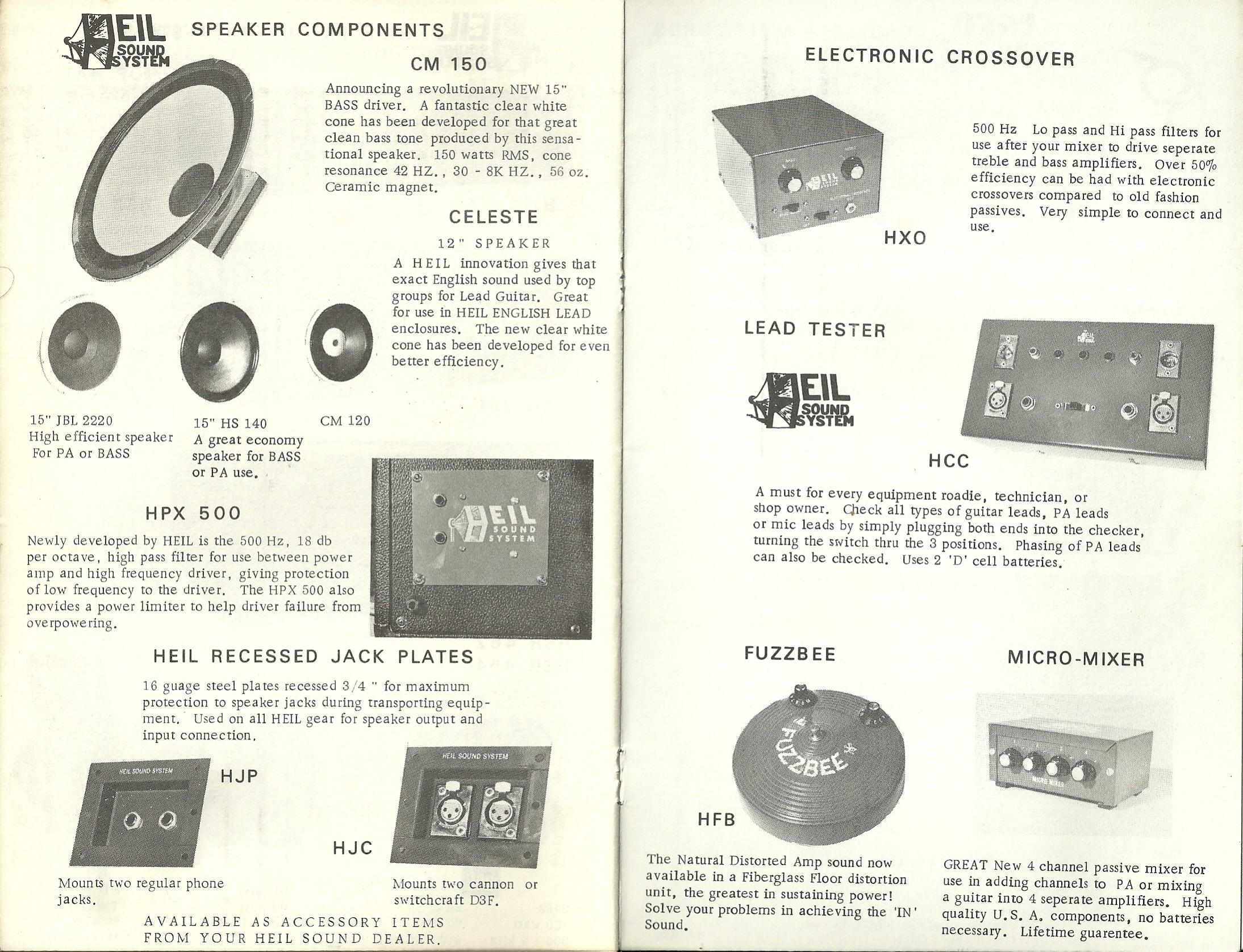

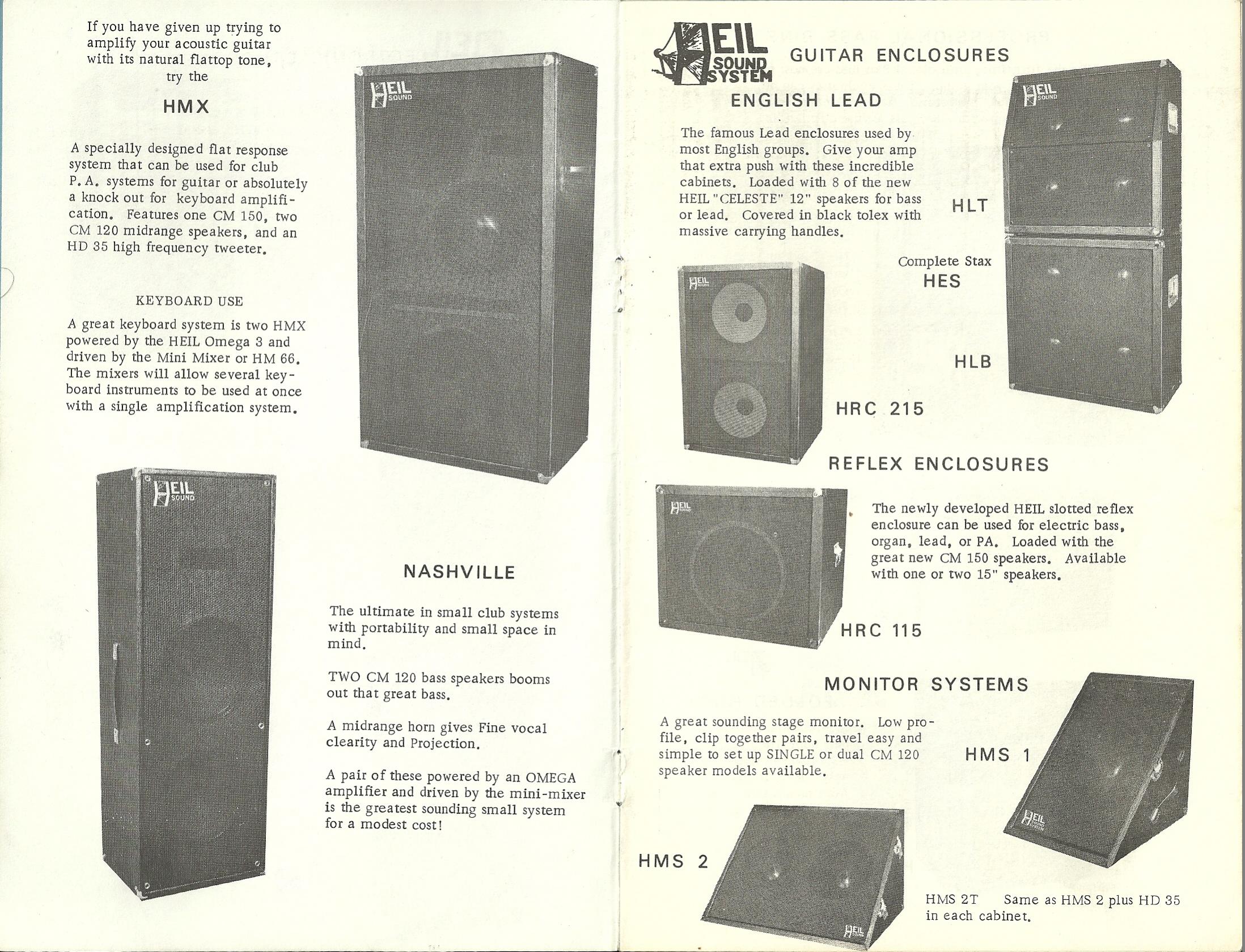

I have two pamphlets from the 70s Heil Sound. first one:


Attachments

  • scan0016.jpg
    756 KB · Views: 148
  • scan0017.jpg
    577.5 KB · Views: 147
  • scan0018.jpg
    584.4 KB · Views: 147
  • scan0019.jpg
    752.2 KB · Views: 138
  • scan0020.jpg
    520.2 KB · Views: 135
  • scan0021.jpg
    967.6 KB · Views: 61
Last edited:
The early Heil Sound systems had a profound effect on my loudspeaker collection.

In the early 70's I got two blown up Altec A7-500s from a local band for $200. I refurbished them with stock components and they sounded awesome.

I listened to the Heil Tr-ax system used by the James Gang at a fairgrounds concert. Sold my rebuilt A7s for $400 and got a new 1975 Klipsch LaScala including shipping for $425.

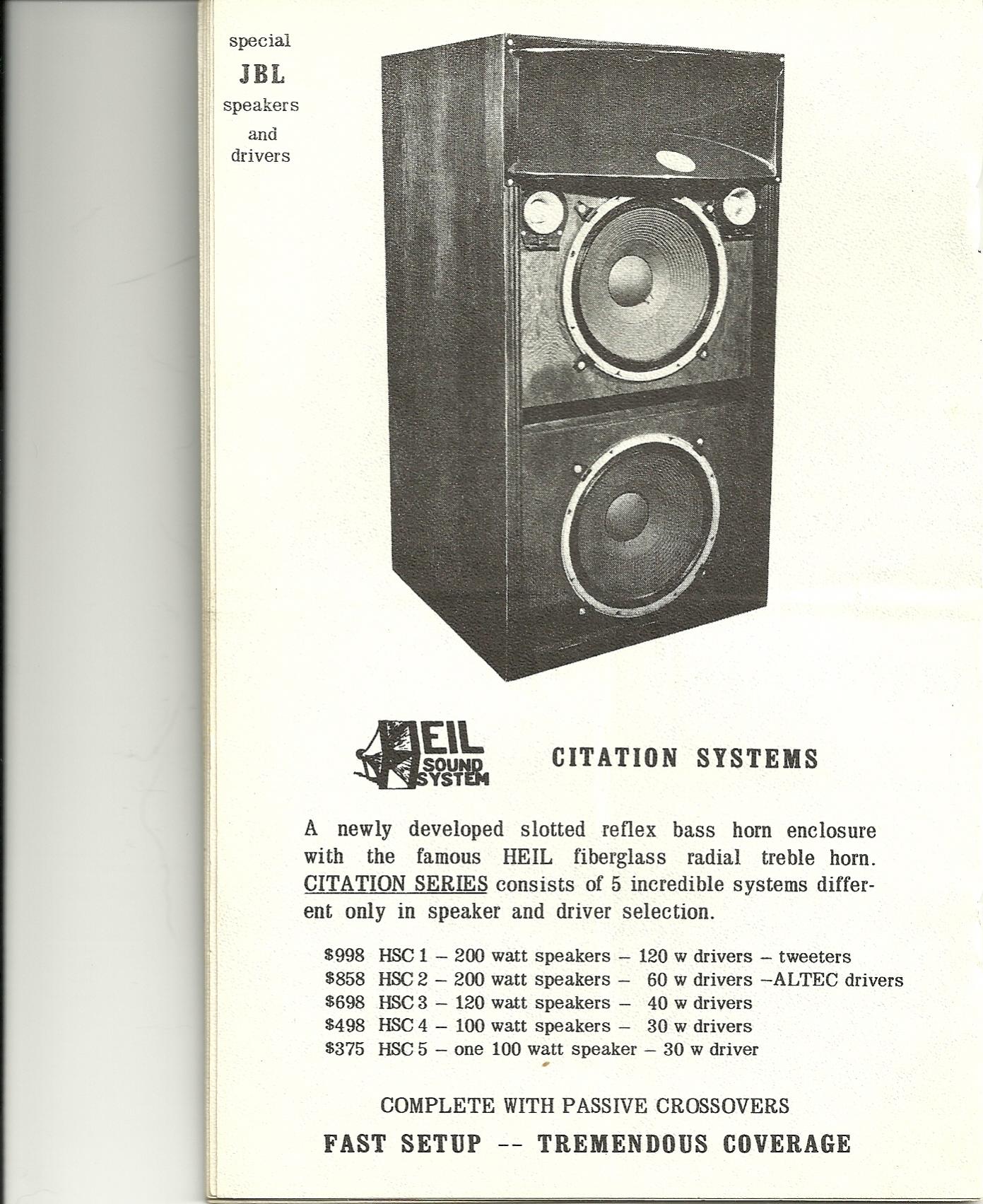

Later I built several systems based on the Heil Citation. I still use/have these in my near field kit.


Attachments

  • Citation.jpg
    308.8 KB · Views: 48
  • 20190213_142734.jpg
    103.1 KB · Views: 63

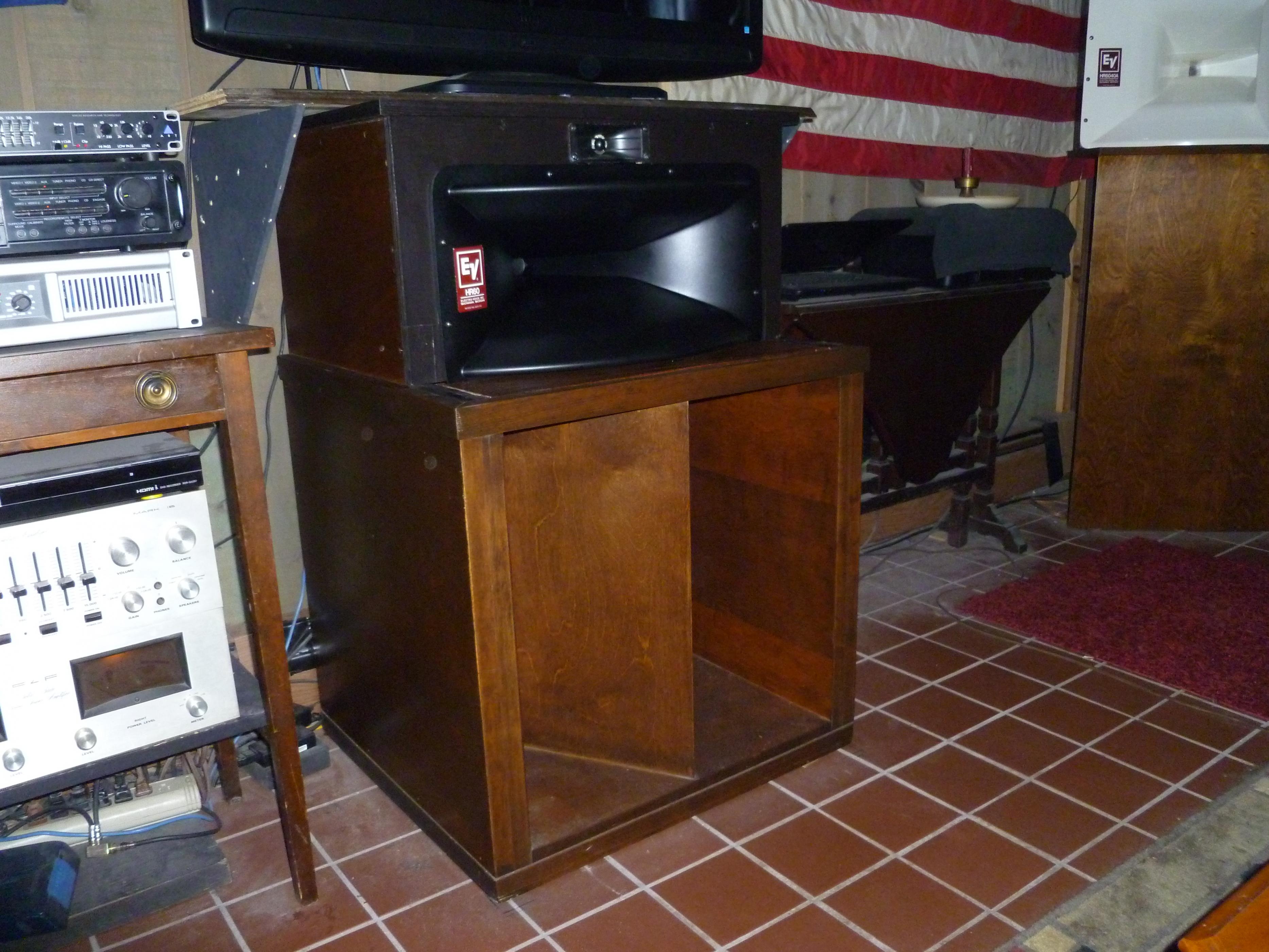

Hello turk 182, in the above pix I have the EV ST350A tweeter, EV SM120A horn with an EV 1824M driver, and two EV 15B woofers. The bass box is sized as a 7 cu/ft center slot ported tuned at 43Hz. Similar to the EV TL606B with 15Ls. Mine would be a TL506B that EV didn't name, per DBKeele.

The speaker has 107dB/W so the pair is 110dB/W. The 15Bs are Pro-line.

As for my LaScala it has always been the center channel for my modified Klipschorns, I also have a pair Belles for rear surround duty. I have an EV 15B in the LaScala, also I sawed off the top portion of the Klipsch box, added two pcs of 3/4 plywood to the outsides of the bass horn and changed the mid horn to the EV HR-90.

I also needed a Large horn and BR sub ;)


Attachments

  • P1010720.jpg
    929.6 KB · Views: 47
Hello turk 182, in the above pix I have the EV ST350A tweeter, EV SM120A horn with an EV 1824M driver, and two EV 15B woofers. The bass box is sized as a 7 cu/ft center slot ported tuned at 43Hz. Similar to the EV TL606B with 15Ls. Mine would be a TL506B that EV didn't name, per DBKeele.

The speaker has 107dB/W so the pair is 110dB/W. The 15Bs are Pro-line.

As for my LaScala it has always been the center channel for my modified Klipschorns, I also have a pair Belles for rear surround duty. I have an EV 15B in the LaScala, also I sawed off the top portion of the Klipsch box, added two pcs of 3/4 plywood to the outsides of the bass horn and changed the mid horn to the EV HR-90.

I also needed a Large horn and BR sub ;)

Alright, YOU need to post pics of your whole system! That center channel is WICKED!

Hello BP1Fanatic, I could not get the pix into one post due to size? no problem.

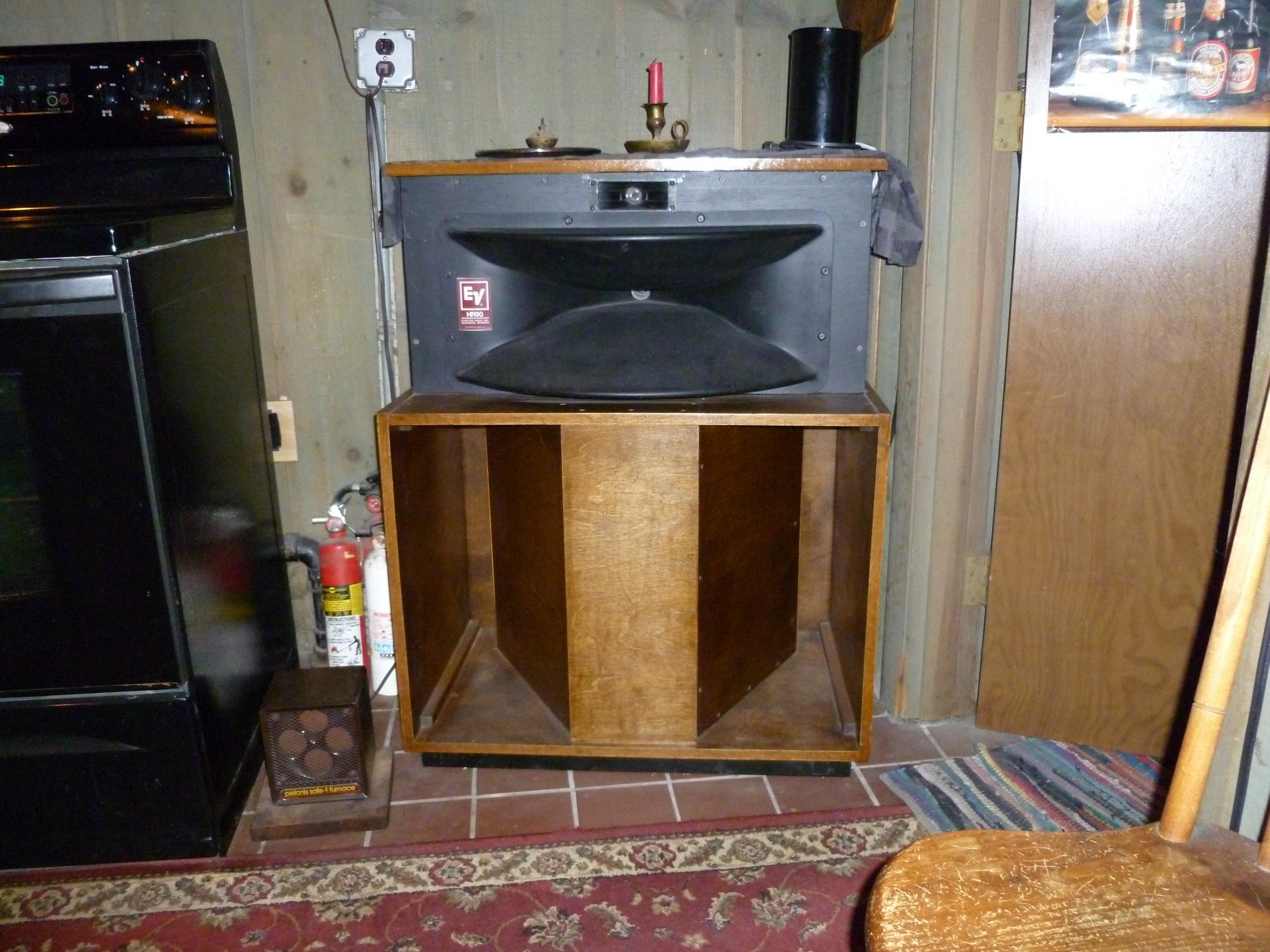

Modified Klipschorn bass bins with EV 15L woofers, EV HR6040A horns and EV ST350A tweeters.

DIY Cinema F-20 with EV DL18MT woofer.

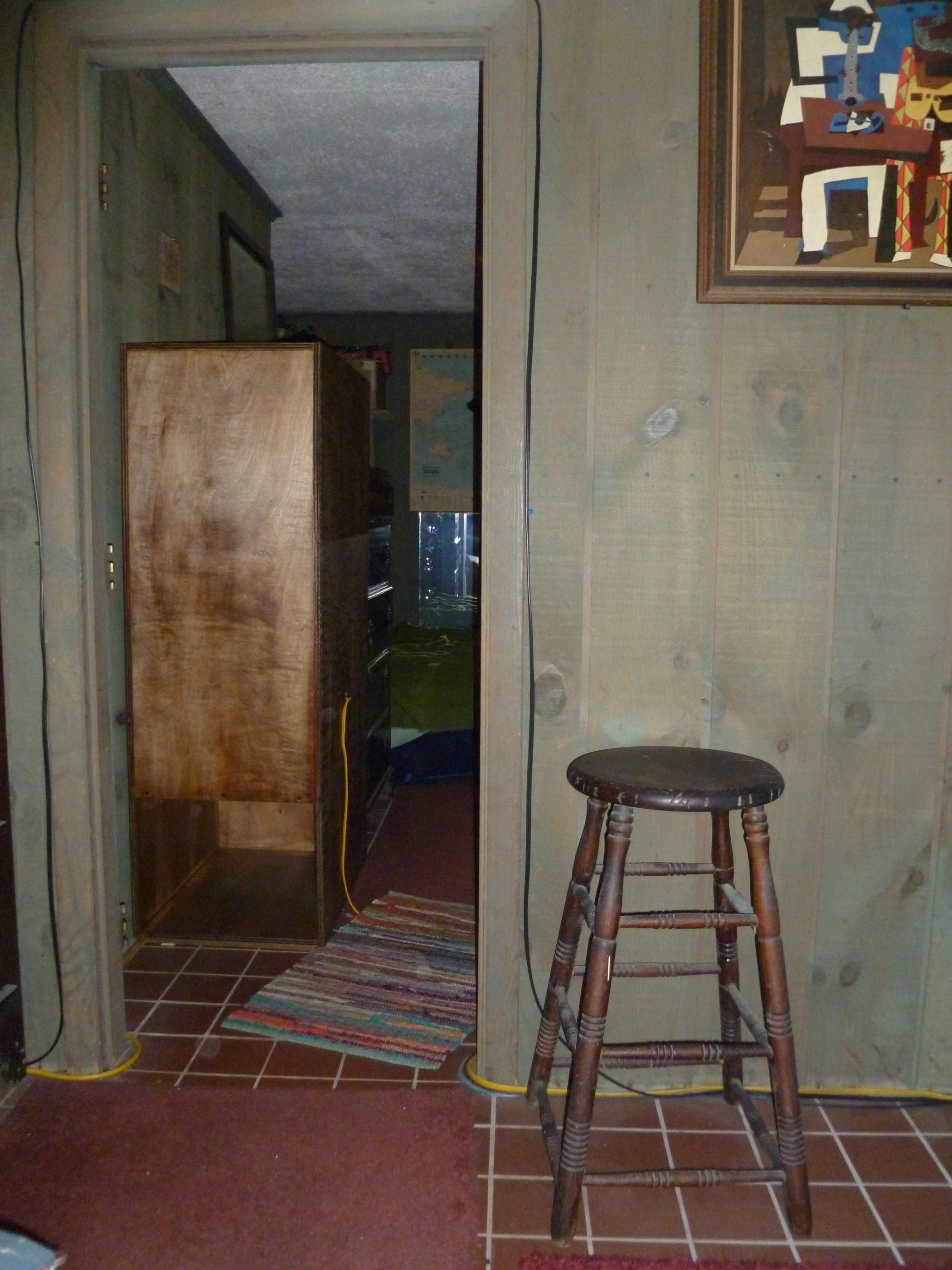

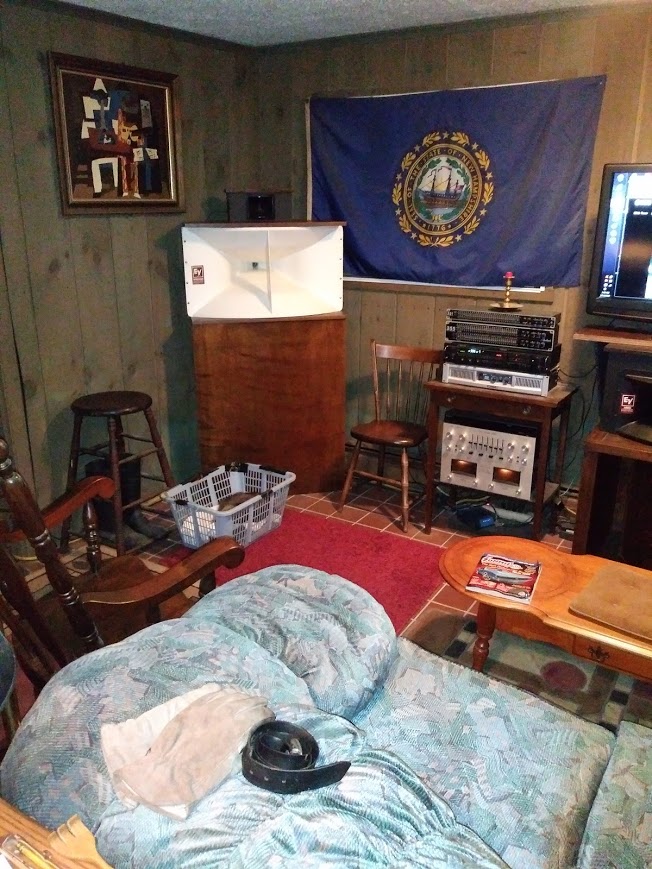

Front left channel and F-20 sub in adjacent room. (small apartment)


Attachments

  • S1.jpg
    164 KB · Views: 42
  • P1010471.jpg
    538.9 KB · Views: 26
Last edited:
