GB Pass SONY VFET Version 2 - AL Boards by Tea-Bag

Member
Joined 2006
Paid Member
Ok, This is a summarized information for the GB of Sony Version 2 VFET boards, to build the amplifier. Somewhere along the lines Nelson dubbed it "AL" and so it is called that.

http://www.diyaudio.com/forums/pass-labs/276711-sony-vfet-amplifier-part-2-a.html#post4379458

http://www.firstwatt.com/pdf/art_sony_vfet_pt2.pdf

My blog on the Sony VFET2 is here.
http://www.diyaudio.com/forums/blogs/tea-bag/352-sony-vfet-version-2-al-boards-build-blog.html

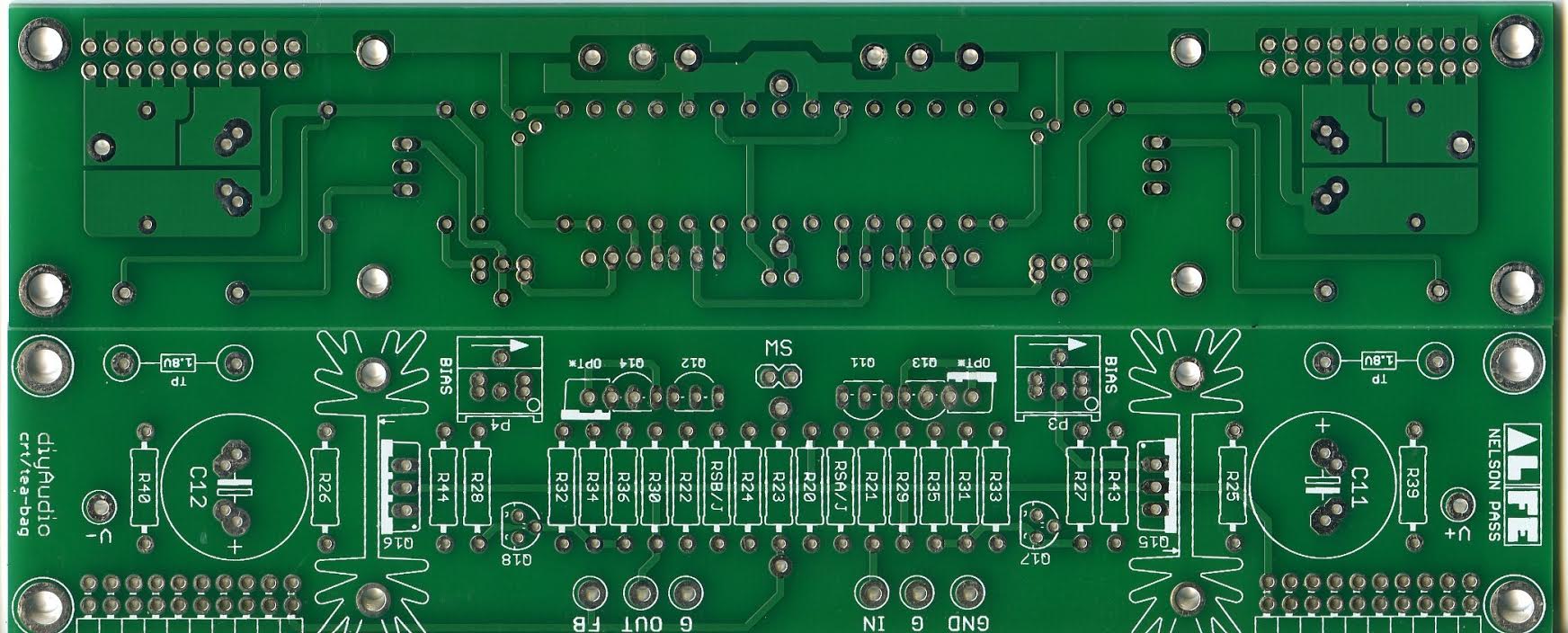

Here is the front end. 36mm x 175mm



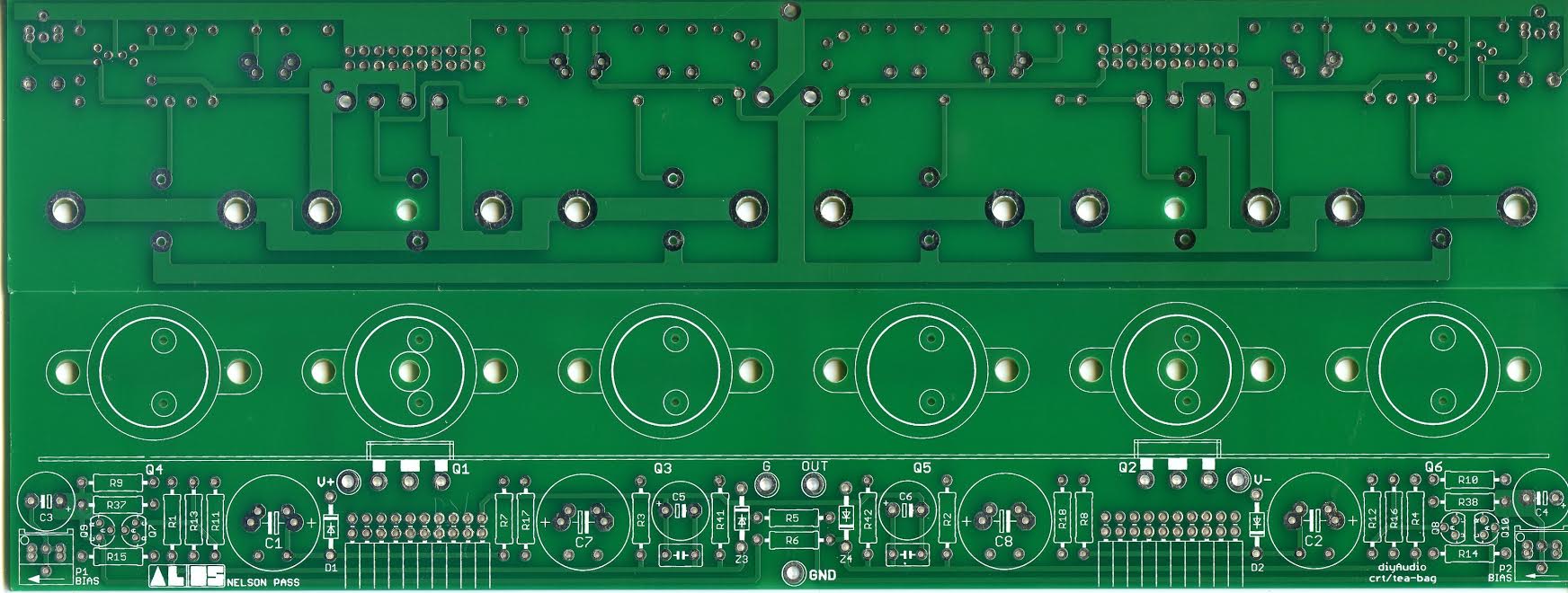

Here is the Output Stage. 54mm x 285mm

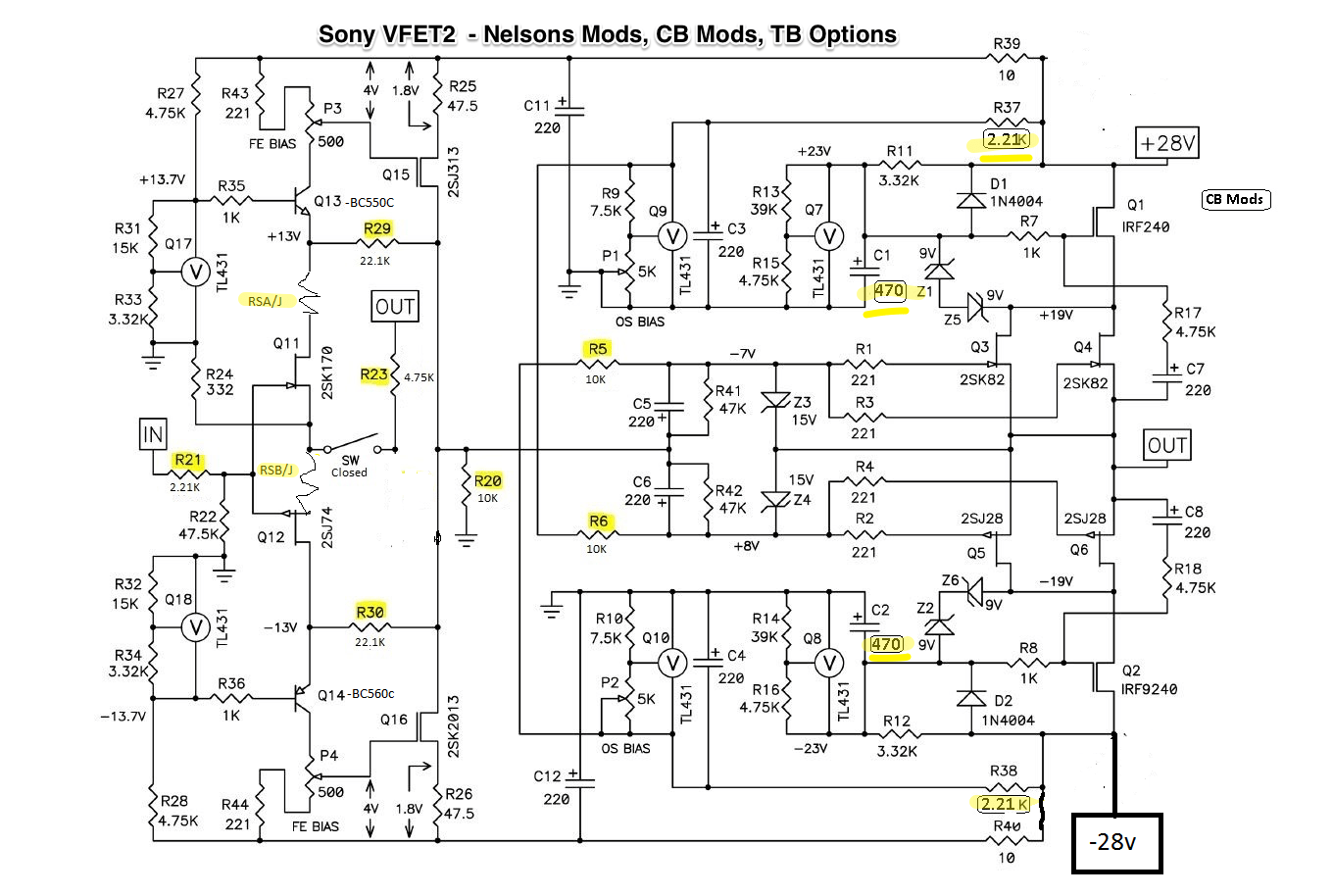

So, here is a schematic to show what is really missing here, and what is added.




Here is the built up version showing the connectors, the Aluminum Angle mounting piece. You must be skillfull and patient to drill the aluminum properly. This should not be your first amplifier.



Recommended Parts
Here is an important piece. The boards are ideally connected via the following 2x10x2.54 headers and pins.
PN are
4 - PPPC102LJBN-RC - Digikey - S5563-ND
4 - PBC10DBAN - Digikey PN- S2111E-10-ND
Recommended
4- Front end Heatsinks - 637-10ABPE or similar
TL431ACLPR - Buy extra, if something will short, it will likely be these that die. The TL431B were found not to work well. Use "A" type.

Okay, Rundown of current pricing.
Pair of front end boards $15.00
Pair of output boards $34.00

Optional Parts:
4 TO-3 IRF240/9240 can set - two of each = $40
Set of connectors 4-male, 4-female = $18.00
Front end heatsinks set of 4 - $7.00
Dual Rail Power supply boards $25
See http://www.diyaudio.com/forums/blogs/tea-bag/923-dual-rail-power-supply-power-amplifier.html for more info.

Shipping generally starts at $8.00 international or domestic for set of PCBs.

Sign up on spreadsheet and send me a private message with your email and I will send you an invoice.

GB for these will end 2/14/2016 at 11:59PM. This will fall in the middle of the Chinese New Year period so board production afterwards may be a little delayed. They will likely ship in the beginning of March.
