Gain Equalization System

Status
Not open for further replies.
Jump to Latest
Stee

Stee

Member
Joined 2005
esafono.it
#1
look at this diagram
This architecture allows to obtain
an absolute equal gain (unitary)
between the two branches of the amplifier

much better in balanced mode


Attachments

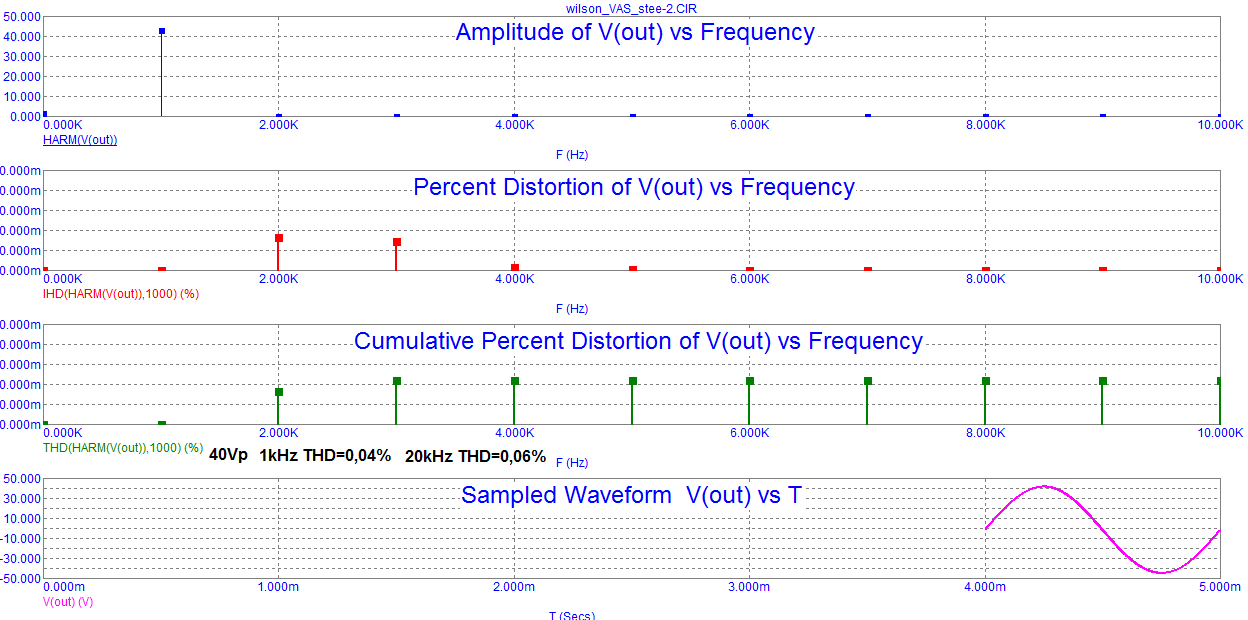

  • VAS_Stee_Last_THD_VAS.png
    39.7 KB · Views: 134

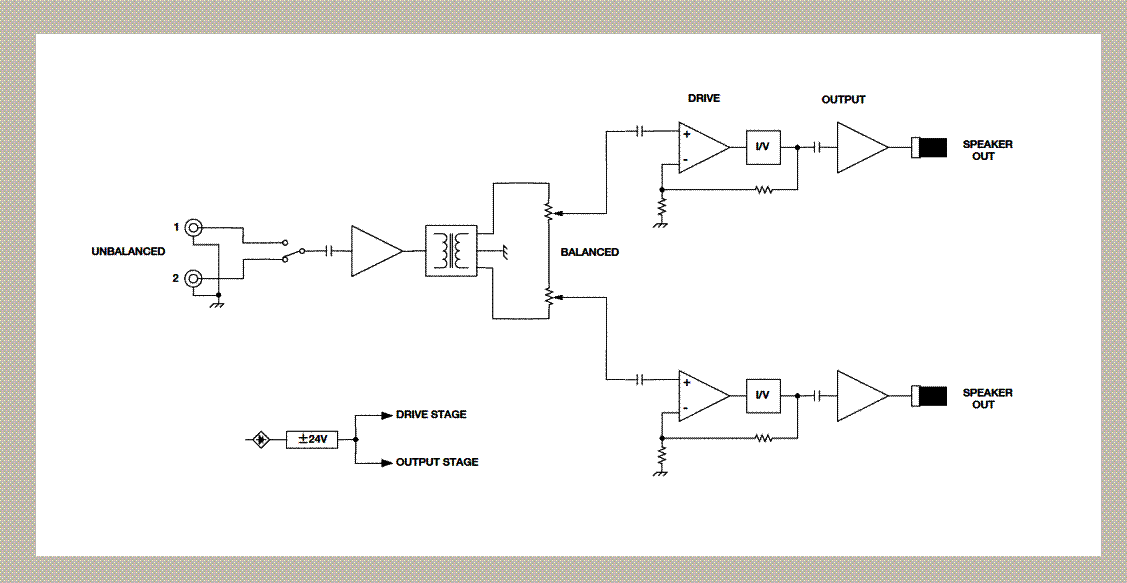

  • blocs wilson cfp 2.GIF
    blocs wilson cfp 2.GIF
    20.3 KB · Views: 130

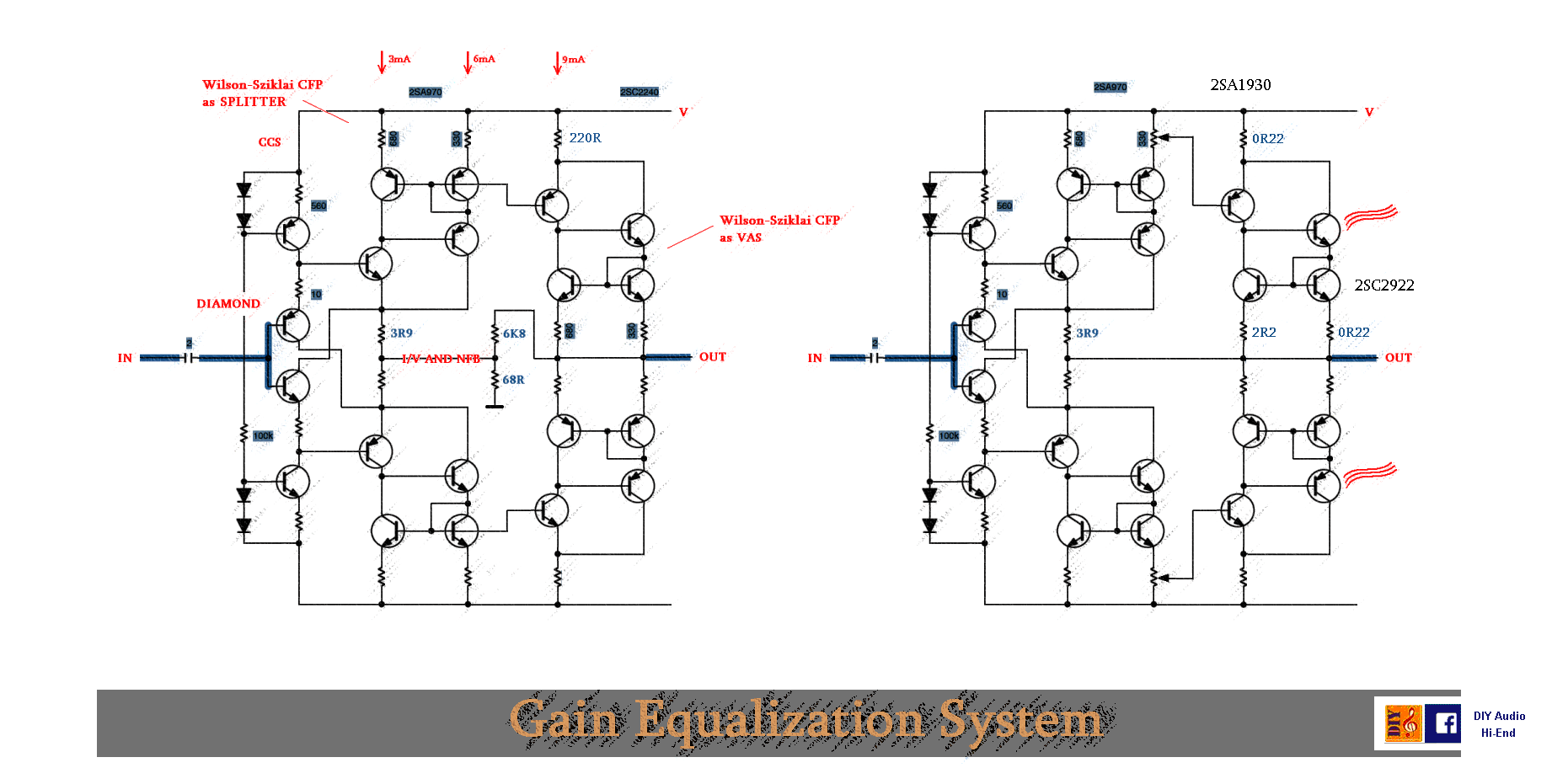

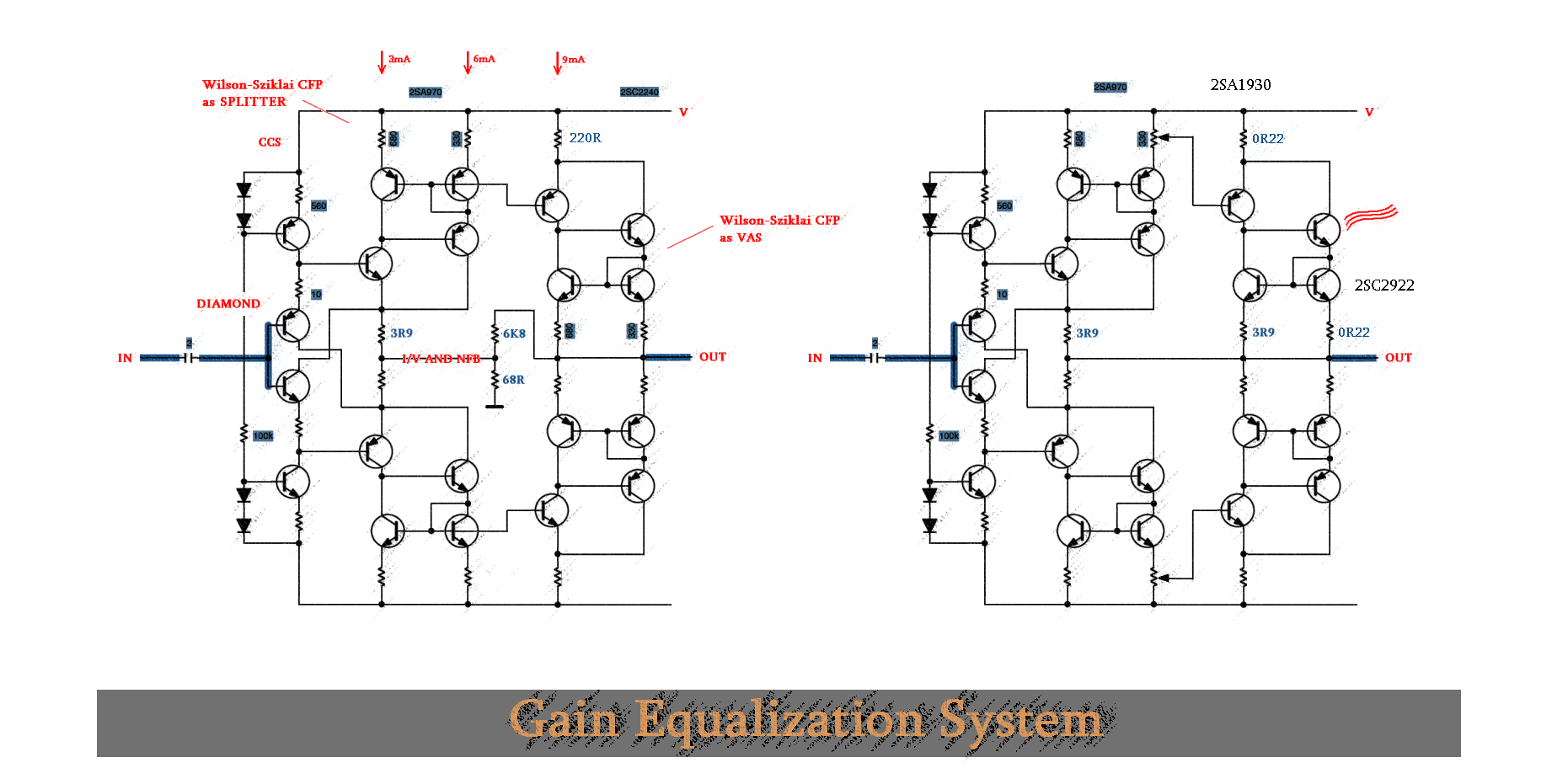

  • Wilson-Sziklai CFP - Accurate Amplifier - GES FILTER.png
    Wilson-Sziklai CFP - Accurate Amplifier - GES FILTER.png
    235.4 KB · Views: 128
