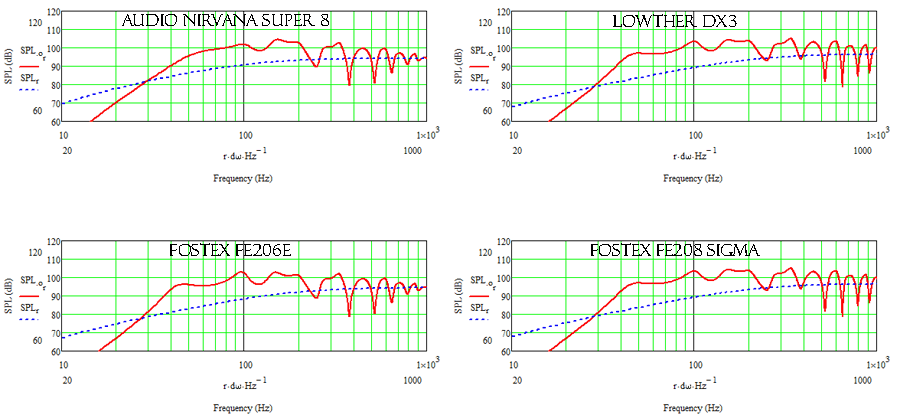

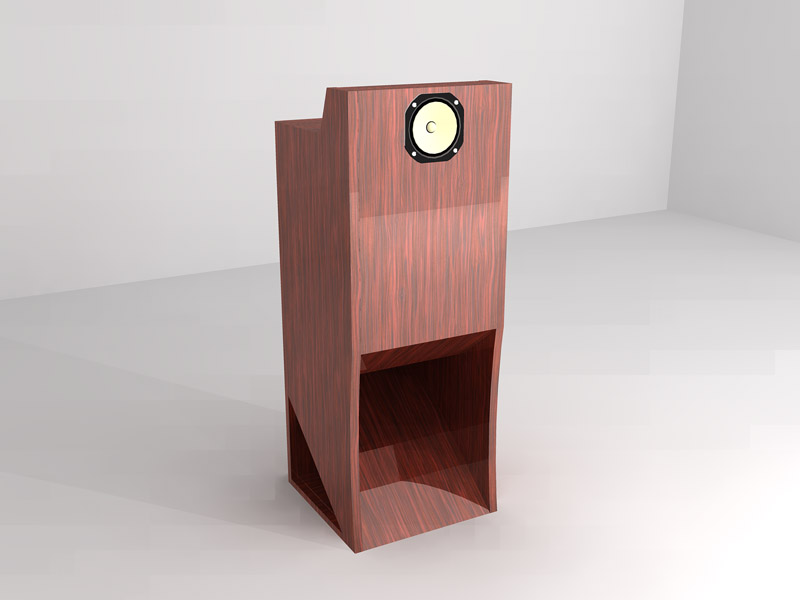

Well, here are the final plansfor the SPQR Model II. Cut sheet and all. Looks like she will sing! Sorry, it is a PDF 300k so it has to be hosted off of here.
http://www.box.net/shared/u4rs0mntw0
Tom
http://www.box.net/shared/u4rs0mntw0
Tom
final plans plus 3 meters of fun in a small wooden box
- Thread starter Harderror
- Start date
JeremyB said:
Thanks Jeremy, I sent you an email as well! The only plans I have are the ones that I have posted here. I don't have DXF files for them. I would if I Had the commercial version of Google Sketchup. As it is I have a blender version and a sketchup version. Only thing I can say is remember that these designs are for private use only, any commercial use if prohibited by the copyright I have pulled on them. Thanks!
Tom
So, I have been really busy with the start of classes. Students are so needy.

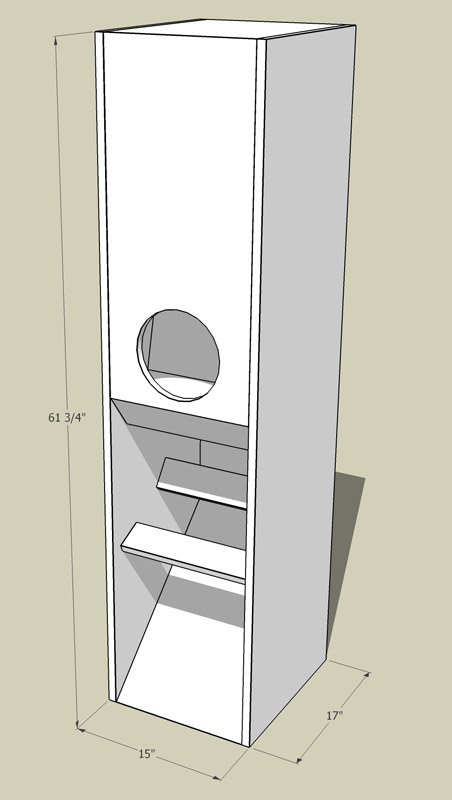

Anyway, I have a little time today and will be working on the final drawings for the model III Here is a side cut to give an idea of the internal dimension and shape. There has been a good deal of interest in these so I will try to get them complete within the next couple of days.
As for the cast 10 enclosure. The model III is not a good starting point so I am beginning an entirely new design for that driver.
After that, I am going to try to track down some parameters for the new 138 as I think I will either do that or the 168 sigma as the next box. Man, the list just gets longer and longer. The first build of the Model II should be beginning this weekend as the plans have been translated into CNC DXF files by an interested builder and he plans to begin construction presently.
On the image, ignore the width, that is for the sides and they were not set right in the prog. The actual overall width will be 15 inches.
Thanks all!
Tom
Anyway, I have a little time today and will be working on the final drawings for the model III Here is a side cut to give an idea of the internal dimension and shape. There has been a good deal of interest in these so I will try to get them complete within the next couple of days. As for the cast 10 enclosure. The model III is not a good starting point so I am beginning an entirely new design for that driver.
After that, I am going to try to track down some parameters for the new 138 as I think I will either do that or the 168 sigma as the next box. Man, the list just gets longer and longer. The first build of the Model II should be beginning this weekend as the plans have been translated into CNC DXF files by an interested builder and he plans to begin construction presently.
On the image, ignore the width, that is for the sides and they were not set right in the prog. The actual overall width will be 15 inches.
Thanks all!
Tom

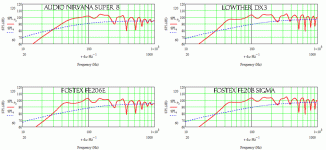

Attachments
Yikes! A small measurement error on the cut sheet and on the board numbering sheet (boards E and F) has been corrected! Here is the updated plan. Sorry for the problem folks!
Updated Model II plan
http://www.box.net/shared/1uathoykg4
Tom
Updated Model II plan
http://www.box.net/shared/1uathoykg4
Tom
