ESS 200 and Preamp Schematics

Hello,

I am on the hunt for an ESS 200 and Preamp schematic.

I did find the Preamplifier "brochure" on hifiengine that contains an article (in French, not my native tongue) that contains a brief schematic.

@Nelson Pass it was suggested that I try reaching out to you via this fora. Any help is greatly appreciated.

Thank you.


Attachments

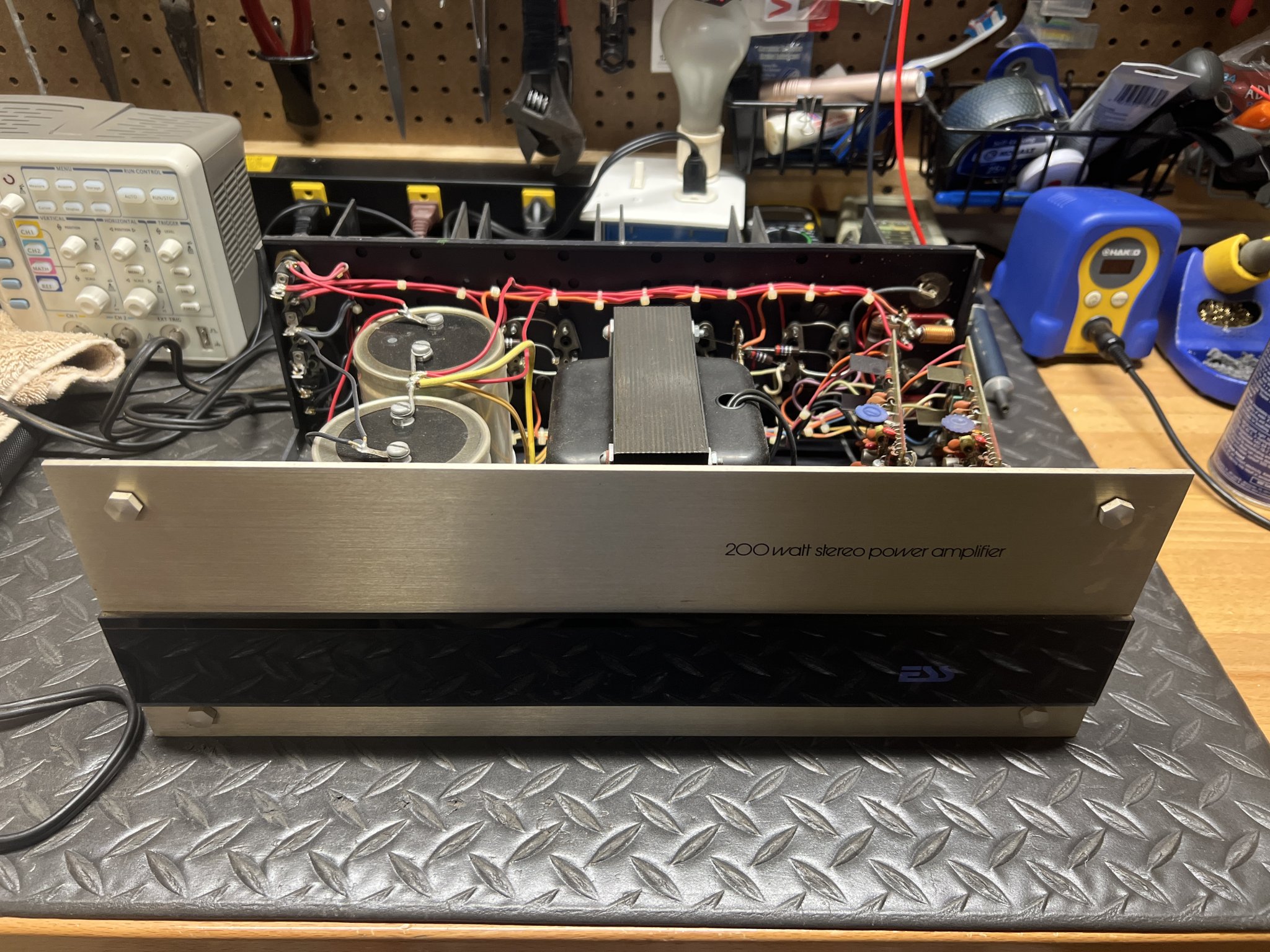

  • 71339350957__21438F9E-3BC4-48EC-B5C3-9B16C3668E93.jpeg
    554 KB · Views: 179

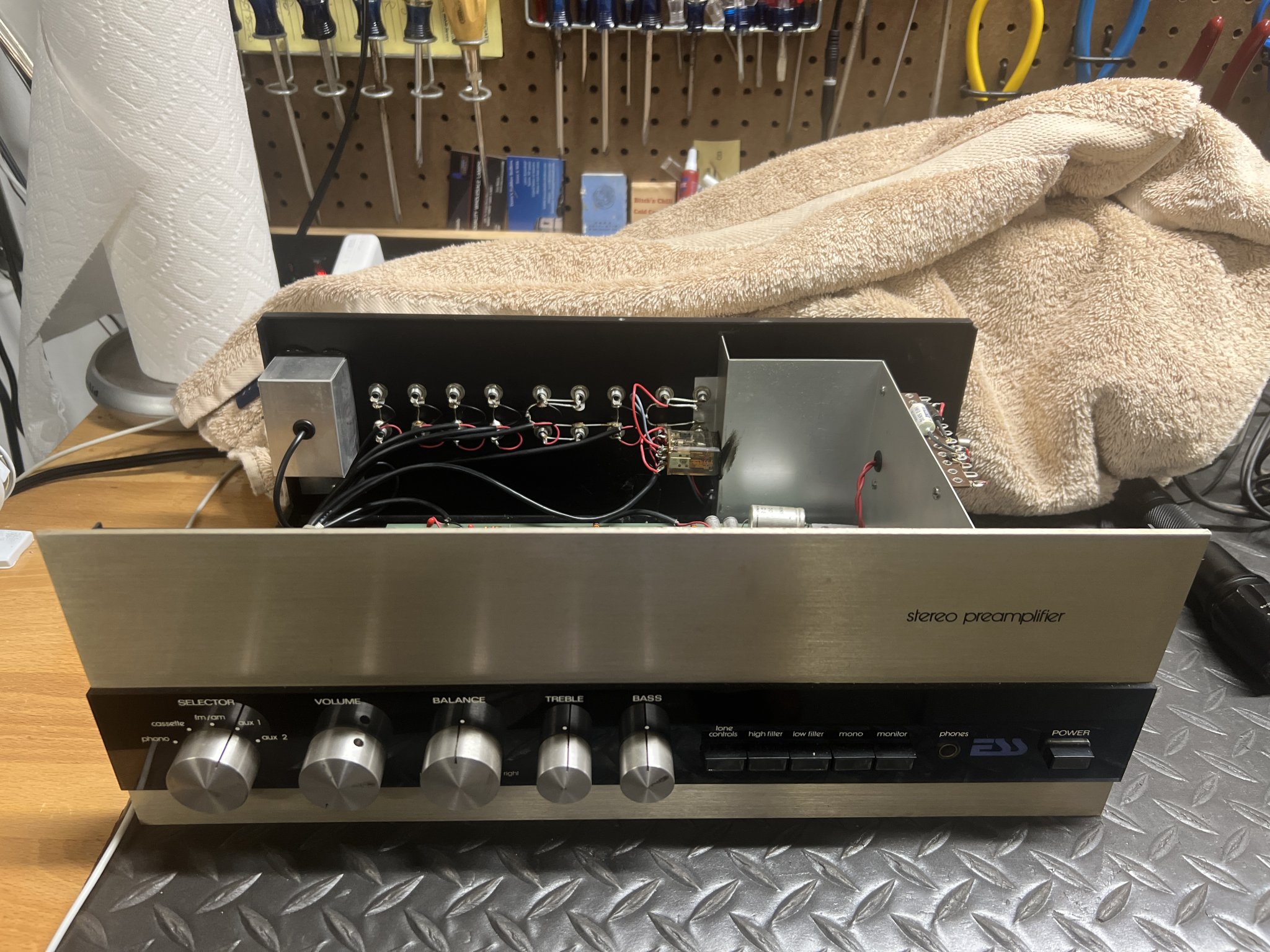

  • 71339352093__DF334541-4A8B-4949-891A-CDAF7AAFA084.jpeg
    503.7 KB · Views: 190
Thank you. Visually it immediately reminded me of the pl400. Will see what I can scrap up as this one has a dead short somewhere, assuming output transistor(s) and perhaps more. If you, or anyone else that stumbles upon this thread, happen across a direct schema for this amp and/or preamp I would appreciate it.

Thank you.
