ES9023 DAC + USB Asynchronous Input (TAS1020B)

JarekC

Member
2004-11-17 9:07 am
Krakow
Hi,

I finished project of the PCB for ES9023 Sabre DAC.
PCB is compatibile with my USB-I2S converter (TAS1020 based,asynchronous, low jitter XOs, galwanic isolation ADUM3160).
More info about converter is here:
http://www.diyaudio.com/forums/digi...pdif-converter-24bit-96khz-9.html#post3328142

- DAC can work with own 50MHz oscillator or synchronous witch MCLK from USB-I2S converter.
- Critical elements (capacitors) can be mounted THT or SMD.
- I2S connector is Pin2Pin compatibile with converter
- Boards can be stacked

Today I sent the board into production.
Prototype series (10pcs) will be available in about 2 weeks.

Best regards,
JarekC


Attachments

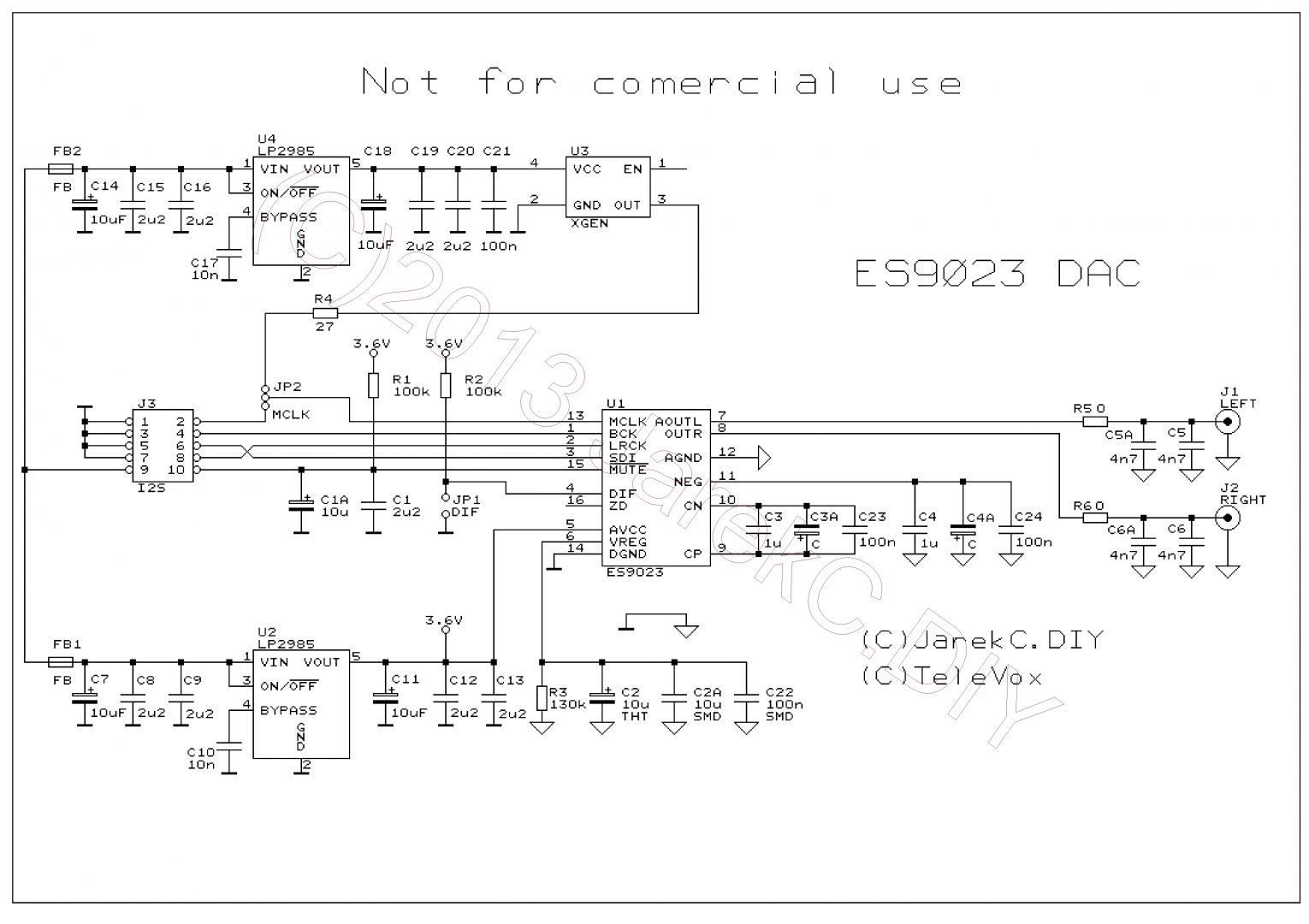

  • 6113sch.jpg
    143.5 KB · Views: 439

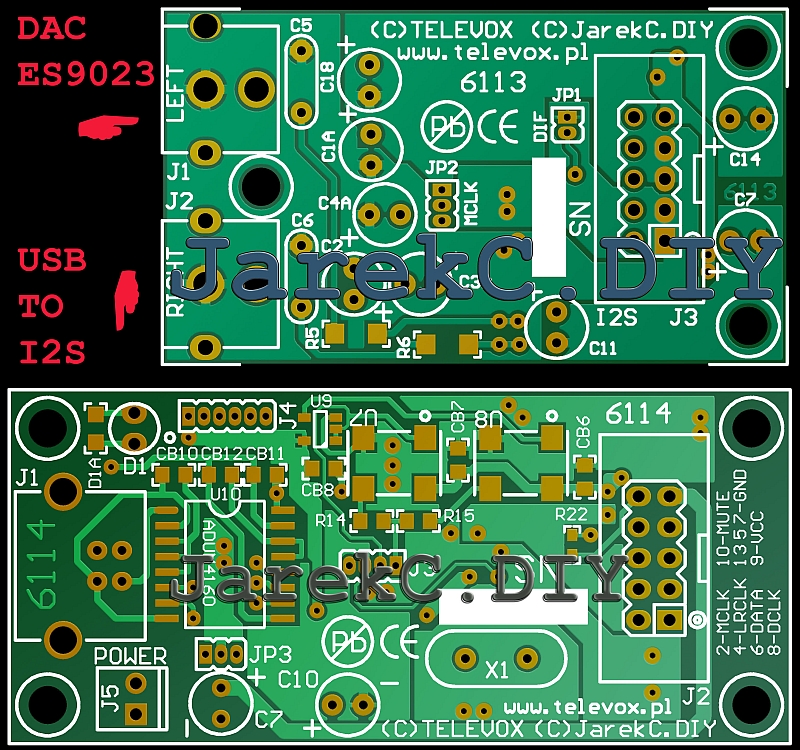

  • 6113-6114-top-800x600.jpg
    526.4 KB · Views: 427

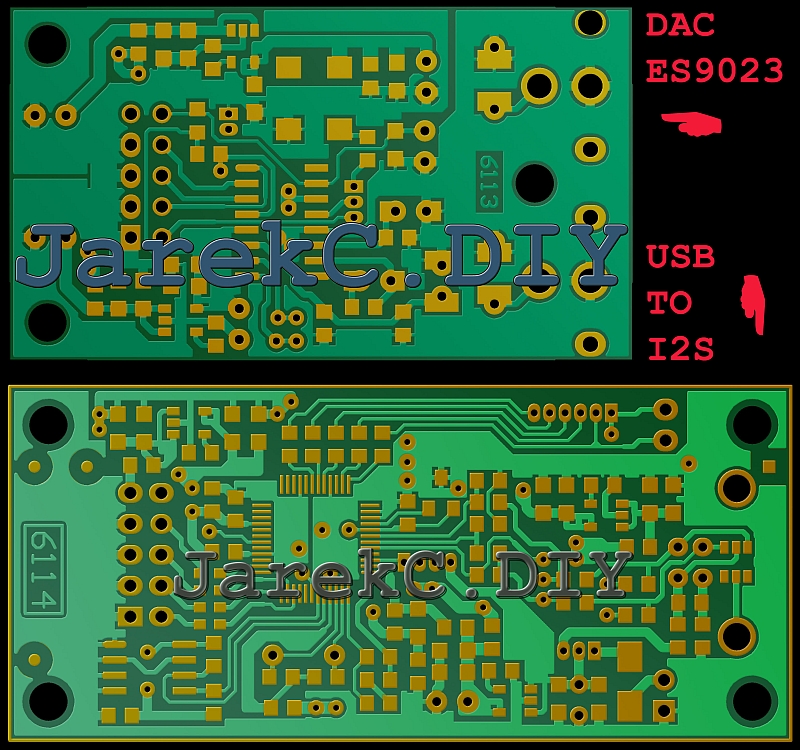

  • 6113-6114-bot-800x600.jpg
