:: dynaco qd-1 schematic ::

Dear all:

Anyone have schematic of this dynaco qd-1??? Please post it here ....

Thanks:
ragil.hastomo


Attachments

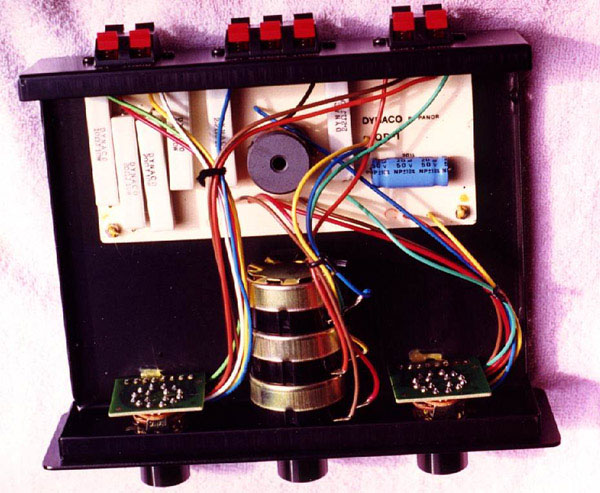

  • dynaco-qd1.jpg
    93.6 KB · Views: 151
Well gee. There's not a whole lot to be figured out.

The QD-1 is completely passive.

There's no electrical power going into it other than speaker level output from what ever amp you are going to run into it. It performs no amplification of it's own.

This is about as simple as "psudeo surround" gets and for some people it works fine.

Sorry for not being too much help.
