dual ganged pot

[kendarmstat]

Does anyone have a schematic or diagram for the dual gang pot in the eq schemayic?



[mickeymoose]

What you were looking for is the kind of pot. Dual reverse (or CCW) log taper, I believe is called for here.
For some info go to this site: Spectrum Analyzer and Equalizer Designs
E



[mickeymoose]

And here: http://all-electric.com/schematic/mix-eq.gif



[kendarmstat]

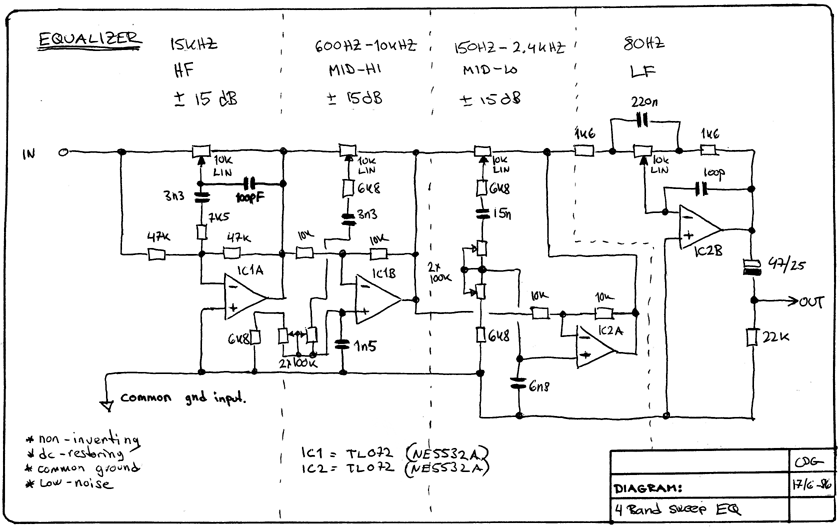

Kind of like this picture is the information i am looking for

Something like this for a dual ganged pot in the schematic above



[godfrey]

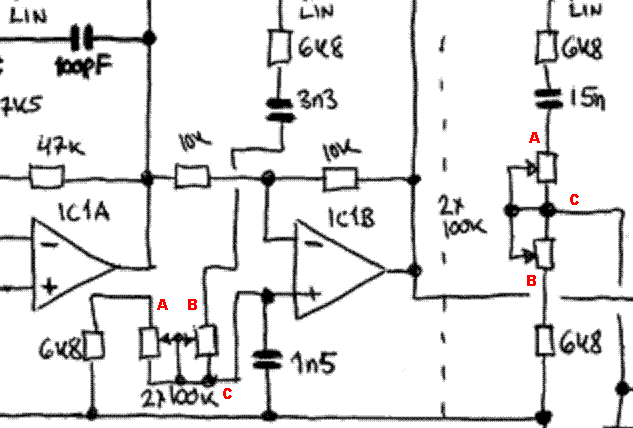

It should be like this.



[kendarmstat]

Thank you very much. I appreciate it.
