Looks like a homebrew type to me...
Yes its prolly worth that if it goes and has the tubes... It could be good source for parts and chassis etc; those o/p transformers aren't cheap. It could be a nice project to restore, thats what ive been doing and its very rewarding.

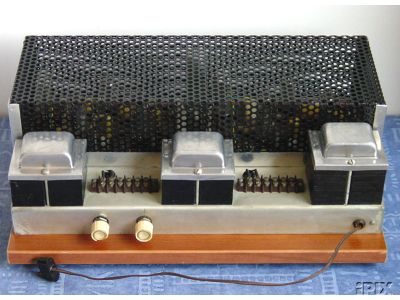

Love that rugged grille 😀
Yes its prolly worth that if it goes and has the tubes... It could be good source for parts and chassis etc; those o/p transformers aren't cheap. It could be a nice project to restore, thats what ive been doing and its very rewarding.
Love that rugged grille 😀
JP,
I don't know why but the design looks like 50s English. You might post some more pics with the cage off and let us know the tube brands. The type of electrical plug might be a hint as well.
I don't know why but the design looks like 50s English. You might post some more pics with the cage off and let us know the tube brands. The type of electrical plug might be a hint as well.
JP said:
ECL86 is a triode+an output pentode. Think 1/2 a 12ax7 + not quite an EL84/6BQ5. Good for about 3.5-4 W in SE and 8-10 in PP. The ECL86 is similar to the 6BM8/ECL82 in the WAVE 8, that gets many accolades.
What is the tube on the front of the board?

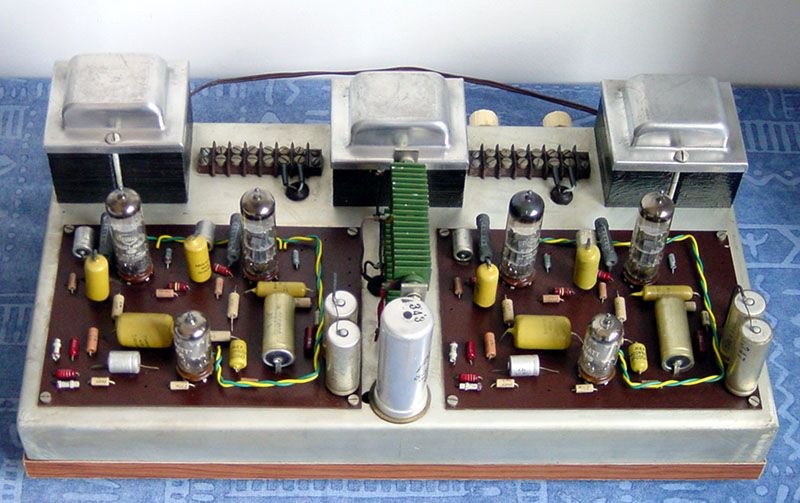

Quite a bank of old germainium rectifiers. It is not a home built with those boards. Both the Germans & the English used those flat-blade bolts holding down the boards. From the way the green & yellow filament wires are routed & the Mullards i'd guess British.
Sizable OPTs are probably an indicator of a higher end amp. The screw connectors may indicate a pro amp out of a theater or some such.
In good working order it is probably worth the asking (and maybe then some).
dave
And,
With little or no circuit mods the 6BM8 could even be used -- it is current production, i don't know if anyone is making ECL86s.
dave
planet10 said:
With little or no circuit mods the 6BM8 could even be used -- it is current production, i don't know if anyone is making ECL86s.
dave
British or German amplifier. As per the boards layout reverse engineering may be very easy, but you need to have certain knowledge of valve electrronics to draw schematics. Selenium rectifier can be easily replaced by the well know 1n4007 silicon diodes. ECL86 or ECL82 expected to deliver fantasic european sound. I would go with this amp and put it again to run. Of course I am basing assumptions the Output and power transwformers are OK.
can you see if the power transformer is 230v or 110v.
i ask this as the plug does not look like a UK one...........it may just be it was in a bigger cab to start with, but hav'ing said that it looks to good to go in a bigger box?
i ask this as the plug does not look like a UK one...........it may just be it was in a bigger cab to start with, but hav'ing said that it looks to good to go in a bigger box?
The AC Plug seems very similar to those used in my Country Uruguay like 20 to 30 years ago. I bed it is 230VAC. Now a days, you still can use the same Plug in several european countries as well as some South American countries using 220 VAC/50Hz power lines. Uruguay and Argentina are 220/50Hz commercial power and plugs like your picture are still available here.
Looking carefully to the pictures, I also recognized the capacitors, cilindrical with color yellow/green --
Those capacitors were used in several Philips (Neetherlands) electronic equipments during 60's, so, origin would also be Holland or Belgium, again, 230VAC/50Hz power supply.
Those capacitors were used in several Philips (Neetherlands) electronic equipments during 60's, so, origin would also be Holland or Belgium, again, 230VAC/50Hz power supply.
