bogen db20 Schematic

yes thanks to the schmematic one of two is finished. that would be the blue one. wow it sounds great.

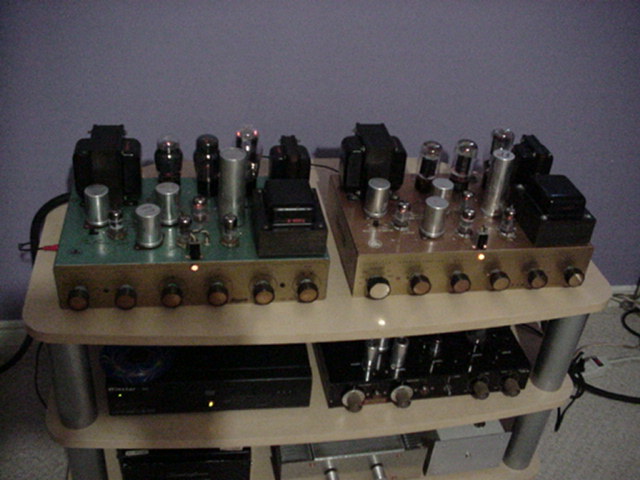

  • mvc-491f.jpg
    64.7 KB · Views: 434
pulled a all nighter and fixed the second one. i have my tester tubes on it now just in case somthing goes bad. so far so good;)
all caps replaced. i recaped them from the under side and left the old ones for looks and value:D

im sending the preamp tube covers in to be Rechromed should look nice.


  • mvc-577f.jpg
    64.4 KB · Views: 308


2003-11-11 11:06 pm
looks nice karma. sounding the same?

tom, I emailed you about the db110 schematic. Maybe you filtered it out or something. I would like a copy if you have it available. Just a quick look at a couple things...otherwise I can order one from reprinters I guess. (this forum has no PM, it seems).

Or if someone else has one.. mail [email protected]

edit (email formatting.. spammed address anyway)
