alpine mrp-f250

[bdgf2004]

does anybody know where i can get a scematic. i need to know what part # to get for the power supply drivers (Q901, Q902).

thanks



[Perry Babin]

I don't have the manual. Are there any markings or numbers on the drivers?



[bdgf2004]

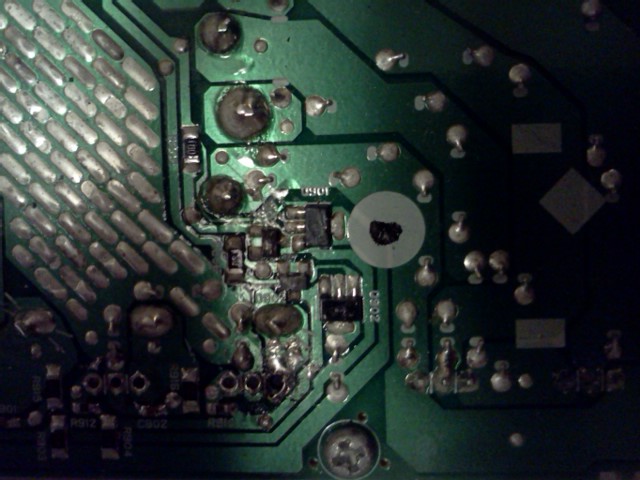

on 1 of em i can see BA. sot-223 package.



[Perry Babin]

Are you sure it's the SOT-223 package? I don't see one with the marks BA.



[bdgf2004]

same type of package but a little bit smaller.



[Perry Babin]

If these are PNP drivers, look up the datasheet for a 2SB1260 to see if it will fit.



[bdgf2004]

spec sheet says its the same size



[Perry Babin]

It should be a good sub (assuming that the originals are PNP transistors).



[bdgf2004]

k. i got my new dvd and board today in perfect condition.
thanks



[Perry Babin]

Well... now you can't say you don't have anything to do. 🙂



[deadpool]

If these are PNP drivers, look up the datasheet for a 2SB1260 to see if it will fit.

Has anyone tried this sub? I need to replace the drivers in this amp. Is there anyone following up this post?😕



[deadpool]

Just answering my own post this is the original transistors Q901/902

ROHM|2SB1132T100Q|TRANSISTOR,PNP,32V,1A,SO-89 | element14 Australia



[Perry Babin]

That should work.

If you have any more questions about the repair of your amp, start a new thread.
