Akai M8 help

[mumbleypeg]

Greetings,
I have an M8 and the line inputs are not working with record engaged. Do you have any suggestions?



[Eli Duttman]

Greetings,
I have an M8 and the line inputs are not working with record engaged. Do you have any suggestions?

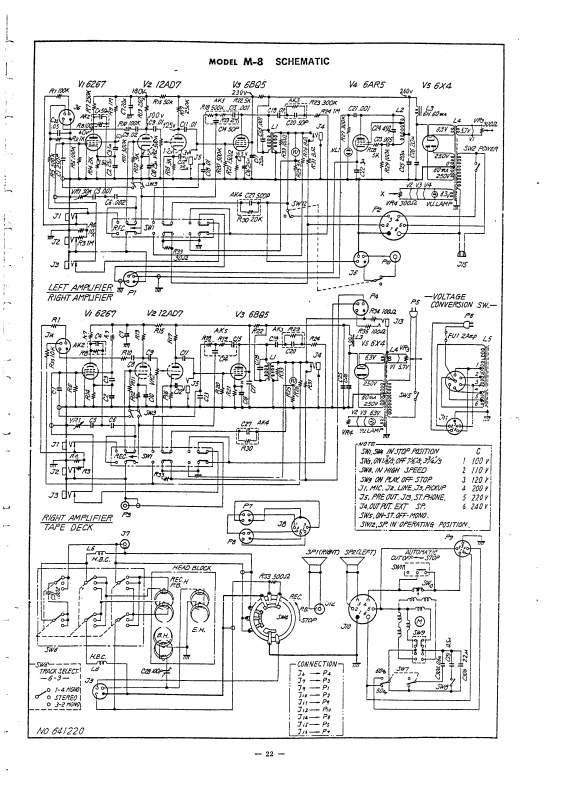

I'm uploading the M8 schematic. Look it over and see how setting the switches in a particular way impacts on behavior.



[mumbleypeg]

Thanks for the reply Ed. Does this schematic exist in another format? When I zoom in far enough to read it, it gets blurry. Part of the problem is my laptop screen is pretty small.



[cogsncogs]

Thanks for the reply Ed. Does this schematic exist in another format? When I zoom in far enough to read it, it gets blurry. Part of the problem is my laptop screen is pretty small.

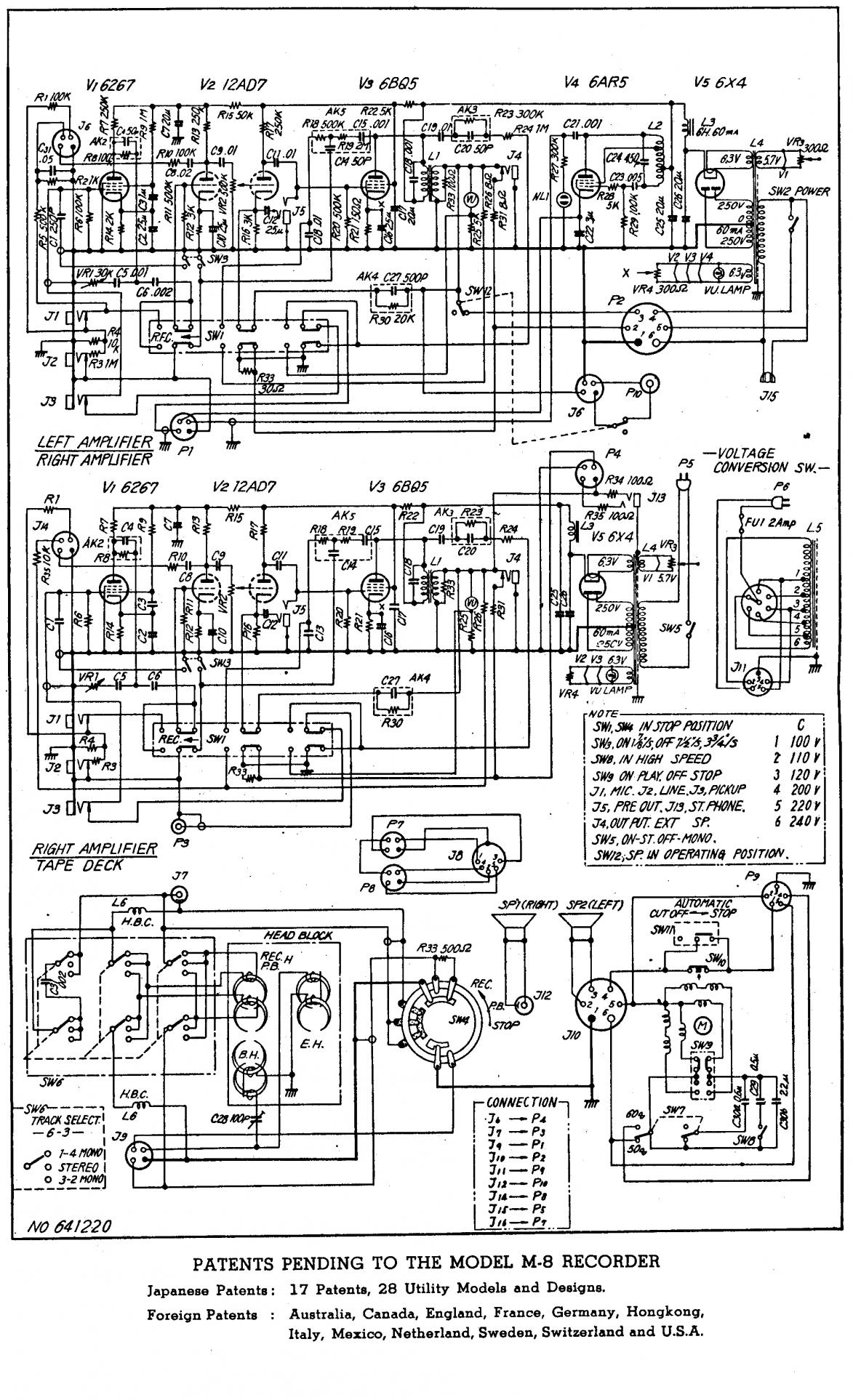

How's this?
Better?
