A special Super-A class amplifier

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.
Jump to Latest
A

apls

Member
Joined 2010

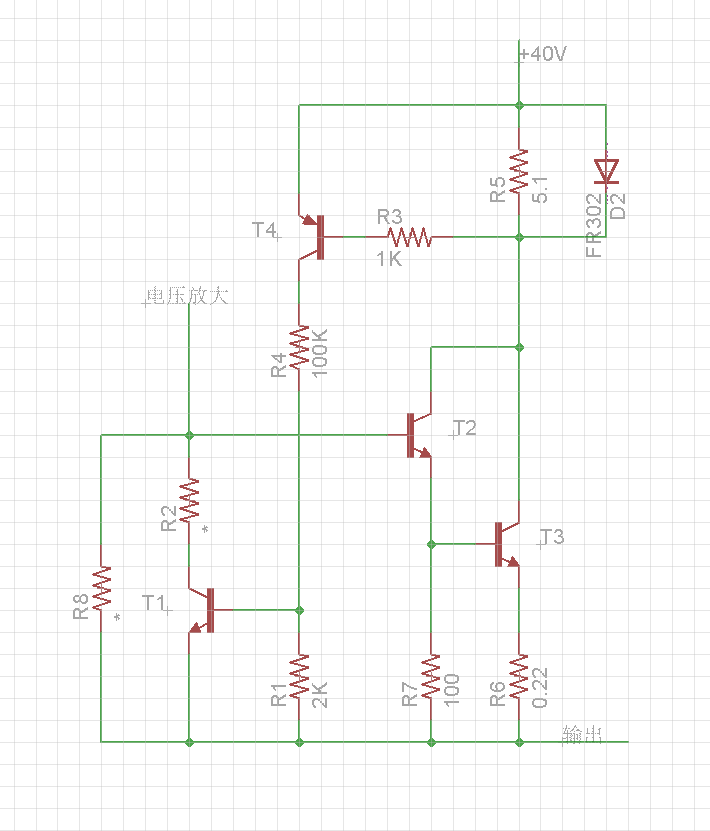

This is up-side out-put part of the amplifier, down-side is similar.
R5 T1 T4 limit the minimum current of T3 at 100mA.
D2 is a fast diod limit Vbe of T4.


Attachments

  • super-a.png
    28.5 KB · Views: 324
