A new design

Status
This old topic is closed. If you want to reopen this topic, contact a moderator using the "Report Post" button.
Hello builders, it's a joy to be here with such an energetic group!
I just finished my new power amp and here's a photo of my preamp/headphone amp. I will be doing a preamp for my system that will have a headphone output but will be more preamp than head amp.

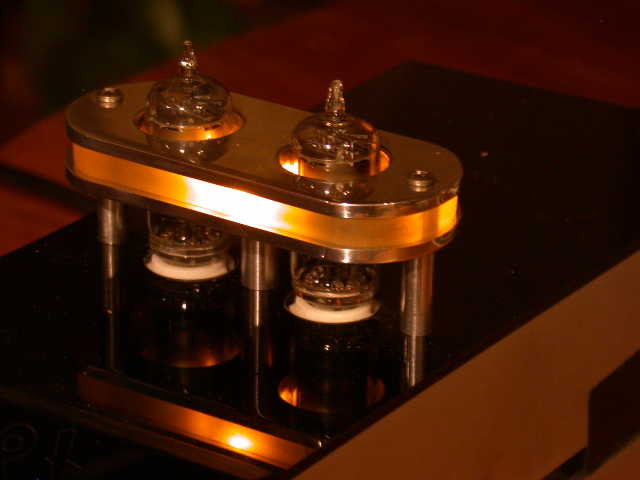

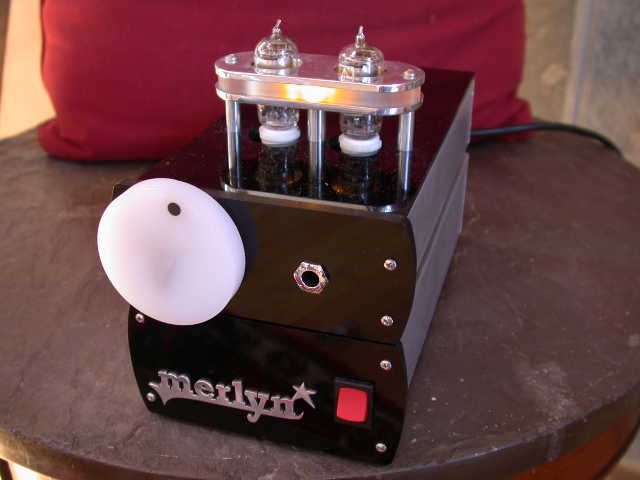

Here's a photo of the preamp/headphone amp. I'll post some photos of my power amp when all the bugs are worked out.
I have a new pot in design (active) but that will have to wait a couple of days as i need a rest from the last design.

Hope I can contribute and learn from you all.

best,
Rob


Attachments

  • Merlyn-photo2.JPG
    19.9 KB · Views: 153
