47 Treasure Model 0347

47 Laboratory /47 Treasure
Model 0347 All discrete stereo power amp (DIY Kit)
Only the simplest can accommodate the most complex.









Features
All discrete design
Current feedback high slew-rate op-amp design
Sziklai pair construction (Complementary Darlington)
Use lw pass filter to block radio frequency interference
Max. output power 40W (4Ω) / 30W (8Ω)

Power supply: AC100-120V, 200-240V
Input : RCA pin jack system x1(unbalnced)
Filter : equipped with RFI filter (radio frequency interference)
Impedance : 50kΩ (fixed)
Input sensitivity : 0.775VRMS (30W, maximum output when 8Ω)
Residual noise: below the detection limit
Amplifier gain: 31dB (approximately 35 times the voltage gain)
Frequency response: 5Hz ~ 120kHz (within-3dB)
Output terminal: speaker terminal
Maximum output power: 40W (4Ω) / 30W (8Ω)
DC output voltage: Less than 10mV (DC zero adjustment function)
Size: W250 x H60 x D175mm
Weight: 2.7kg (without power cable)
Accessories: power cable for AC inlet

PDF format assembly manual and technical information (CD-ROM included)

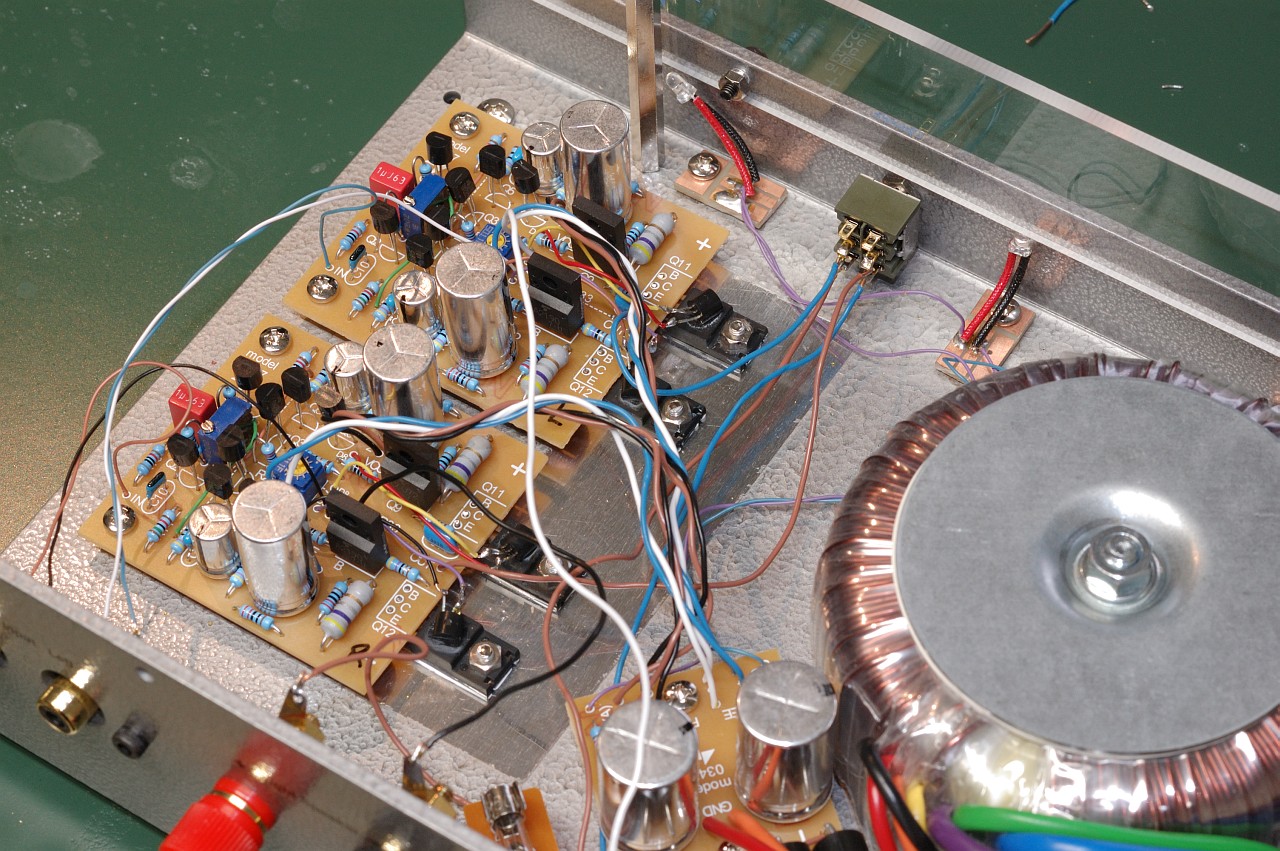

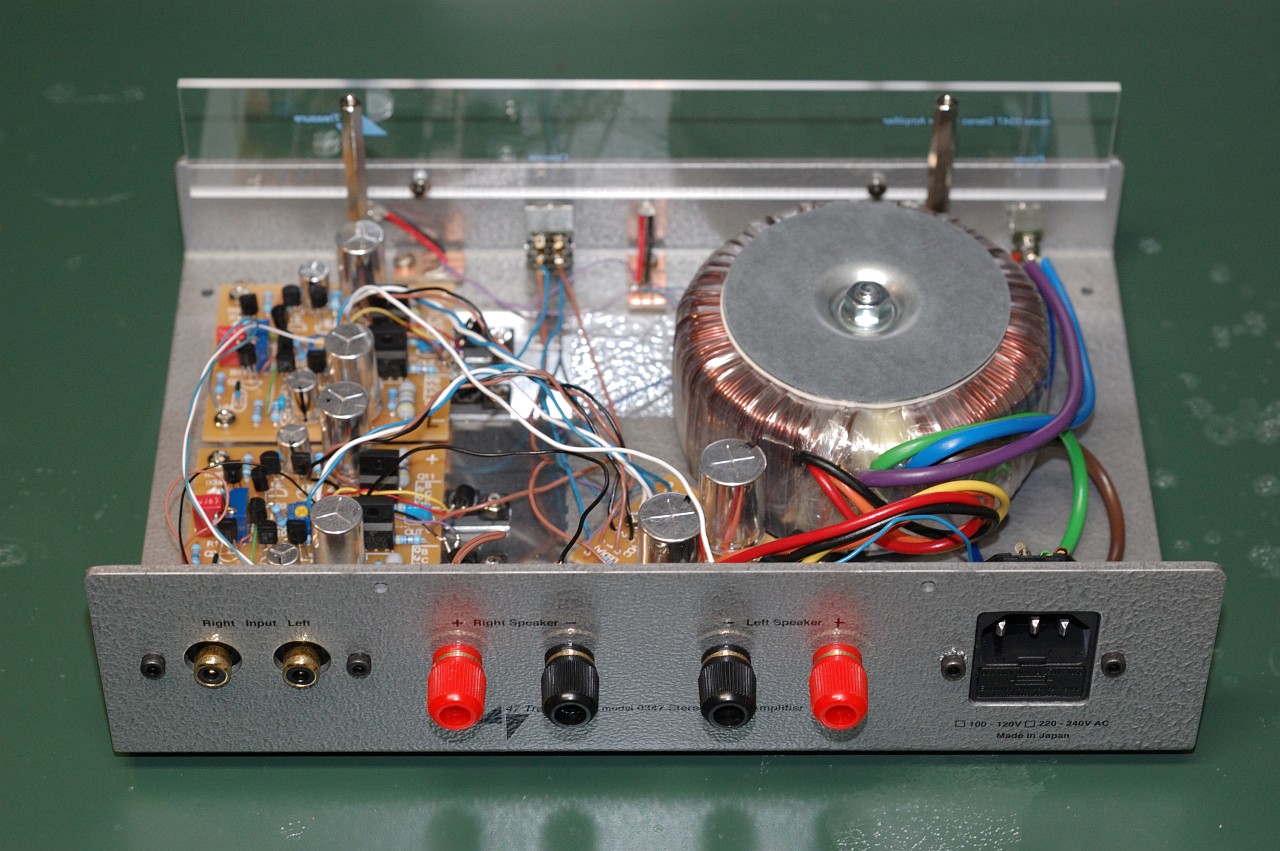

Nice photos from rjm
