Old 1st December 2009, 06:18 PM   #1191
dinu is offline dinu  United States
diyAudio Member

Join Date: May 2005
Location: New York
Default Big chance to show off

I built this a couple years ago. It's a Pass A75. Pretty standard except the VU meters (Scales are in German) and the chassis. It was built for and now lives with my German buddy in Florida in a well air conditioned living room.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
__________________
"make a move and plead the fifth cause you can't plead the first"
  Reply With Quote
Old 2nd December 2009, 09:03 PM   #1192
diyAudio Member

Join Date: Dec 2003
Location: Munich
Default Solid State Speaker Relay

This is one of my current side topics.
A fully isolated solid state speaker relay.
It offers distortion below -120db and is capable to operate even in high power amps in the range of multiple kW and rails up to +/-100V.
Of course it is also very well suited for class D, not only solid state.

And most impressive: Choko went for a proper PCB, instead of his bad attitude of doing everything with P2P wired protos.
Attached Images
File Type: jpg solidstaterelay.jpg (5.6 KB, 2253 views)
  Reply With Quote
Old 6th December 2009, 09:05 AM   #1193
diyAudio Member

Join Date: Oct 2005
Default MRR White serie

Hi There, ( hi destroyer, hi dark horse )

my very last realization !

Gorgeous sound... Amazing dynamic...

Eighty capacitors ( ultra, ultra low ESR )

Class A ( 2 x 7 watts ) with no Heatsink


Yeahhhhhhhhhhhh ...

Have fun
Attached Images
File Type: jpg MRR White serie 2.JPG (47.7 KB, 1805 views)
File Type: jpg MRR White serie.JPG (117.7 KB, 1854 views)
  Reply With Quote
Old 6th December 2009, 09:27 AM   #1194
diyAudio Member

jacco vermeulen's Avatar

Join Date: Oct 2004
Location: At the sea front, Rotterdam or Curaçao
Send a message via Yahoo to jacco vermeulen
Chute, a Le Monstre with 40VA.
__________________
2015 : World Cup Cat Hacky Sack
  Reply With Quote
Old 11th December 2009, 07:57 AM   #1195
osscar is offline osscar  Latvia
diyAudio Member

osscar's Avatar

Join Date: May 2009
Location: Riga, LV
My F5 amplifier-some pictures of the construction period , some when it is ready.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.
__________________
If time is money then I'm out of time
  Reply With Quote
Old 16th December 2009, 09:03 PM   #1196
diyAudio Member

destroyer X's Avatar

Join Date: Feb 2004
Location: Recife - Brasil Northeast
Default Very nice Rockmandrake..... lovely amplifier

Beautifull circuit, wonderfull colour, nice shape.

Great!

Carlos
__________________
A Darlington audio amplifier, a toy for your weekend enjoyment; https://www.youtube.com/watch?v=yk0qvkwsAOY, No overshot; https://www.youtube.com/watch?v=CEgK4l0MH8k
  Reply With Quote
Old 17th December 2009, 05:31 PM   #1197
kees52 is offline kees52  Netherlands
diyAudio Member

Join Date: May 2009
Location: Sprang-capelle Holland.
Do we make audio amps here or nuclair plants?

what a power on this page.

I am making a pcb for the topamp, on demand, but I loose the email adres of this guy.

if he is here pleas mail me.

regards
  Reply With Quote
Old 17th December 2009, 05:58 PM   #1198
diyAudio Member

FastEddy's Avatar

Join Date: Jun 2006
Location: North Californie
kees52: " Do we make audio amps here or nuclair plants? ... what a power on this page. ..."

Hopefully some of you guys are doing both. We need the clean energy and ... well, the clean energy
  Reply With Quote
Old 17th December 2009, 06:17 PM   #1199
kees52 is offline kees52  Netherlands
diyAudio Member

Join Date: May 2009
Location: Sprang-capelle Holland.
windmills

good idee only I think co2 was some day in out admosfeer, al the oil was plants and animals, in the begin of the earts days there was a lot of co2 and
it was a paradise, but later, more and more plants and animals take co2 and
put that in the fosiles like oil.

so if we don,t stop oil use we go beack in time and that means less soil to live on, because everithing is started in the sea.

oke, on topic now, here is a design of the topamp, what i made for someone here.
Attached Images
File Type: jpg topamp1.jpg (43.1 KB, 291 views)
File Type: jpg topamp2.jpg (45.6 KB, 352 views)
  Reply With Quote
Old 18th December 2009, 12:44 AM   #1200
syn08 is offline syn08  Canada
Account disabled at member's request

Join Date: Aug 2005
Location: Toronto
See the pictures.

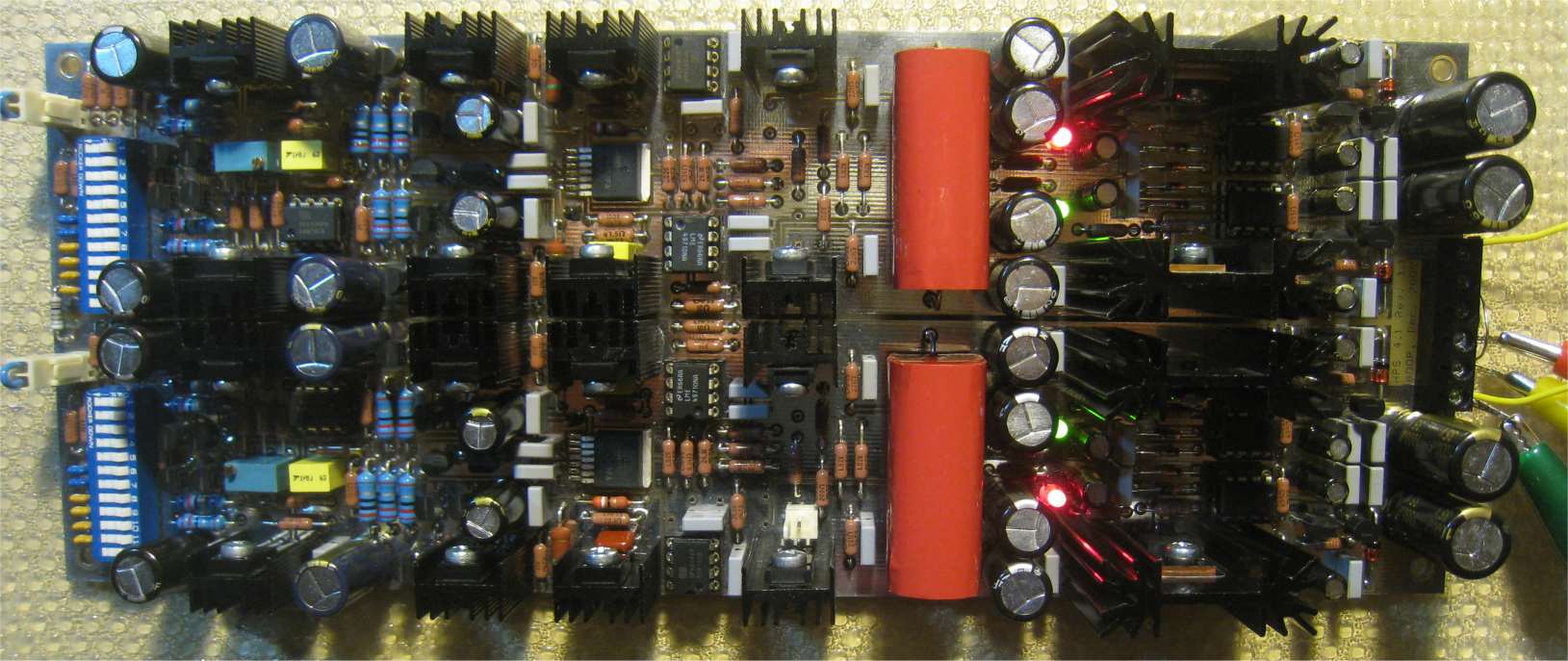

This is a full bipolar version that uses Jung regulators and local bipolar buffers. It is also high impedance (default 47kohm), while the input current can be trimmed to under 50nA. No caps in the signal path.

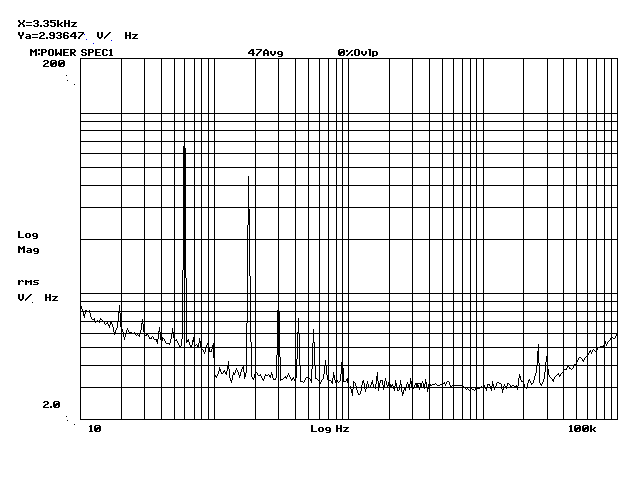

Full measurements to follow, but here's the first noise measurement. RIAA correction is not installed, gain is a little over 80dB (will be 60dB @ 1KHz after RIAA correction). Bottom line - 0.28nV/rtHz.

Distortions are much better than in the HPS 3.1 JFET, I suppose because the large (8 x JFET) nonlinear Ciss is now missing. Overall, about 70ppm at all frequencies and output levels, up to +/-20V. HPS 4.1 has the same headroom of 32dB.

Click the image to open in full size.
Click the image to open in full size..
  Reply With Quote
