Rasing toroid transformer off the chassis
Rasing toroid transformer off the chassis
Please consider donating to help us continue to serve you.

Ads on/off / Custom Title / More PMs / More album space / Advanced printing & mass image saving
Thread Tools Search this Thread
Old 10th September 2013, 04:57 AM   #1
ClefChef is offline ClefChef  United States
diyAudio Member
ClefChef's Avatar
Join Date: Sep 2011
Default Rasing toroid transformer off the chassis

Due to space constrains it is sometimes difficult to fit the power transformer into the chassis. I tried "hanging" the transformer from the top lid, but that creates all kinds of connectivity problems. I also tried raising the trafo on the bolt as see in the attached picture, it does not touch any PCB's - any problems with this solution?

This is my JC-2 clone preamp with remote - it sounds excellent, no noise.
Attached Images
File Type: jpg JC-2 Remote.jpg (286.3 KB, 111 views)
  Reply With Quote
Old 10th September 2013, 10:41 AM   #2
ingenieus is offline ingenieus  South Africa
diyAudio Member
Join Date: Apr 2011
Location: Pretoria

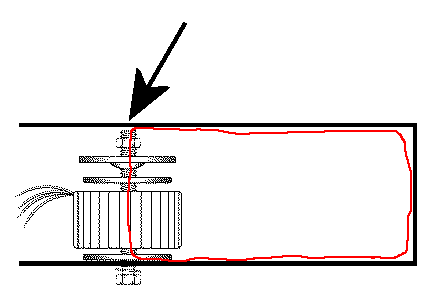

Just make sure that the bolt holding the transformer does not touch the top and bottom of a conductive enclosure at the same time. That would be a bad thing. It will make a single turn in the secondary winding that is short circuited. This will then melt the primary winding because it cannot deliver the current demanded.
