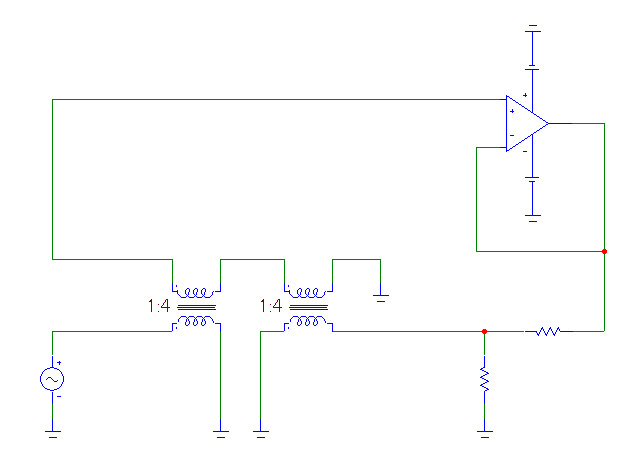

I don't know if this makes sense in the real world.
It allows gain and feedback at the same time.
The opamp stands for a follower output stage.

Click the image to open in full size.

Last edited by Bernhard; 29th January 2013 at 03:40 PM.
  Reply With Quote
Old 29th January 2013, 04:12 PM   #2
kenpeter is offline kenpeter  United States
diyAudio Member

Join Date: Nov 2007
Location: Dallas
Negative feedback path has potential 4x gain.

Best make sure gain rolls down less than 1
before a phase shift >90 finds you on the
positive side of the wheel.
