Nytech CA 202 schematic or Servicemanual?
Nytech CA 202 schematic or Servicemanual?
Please consider donating to help us continue to serve you.

Ads on/off / Custom Title / More PMs / More album space / Advanced printing & mass image saving
Reply

Thread Tools Search this Thread
Old 30th November 2010, 08:07 PM   #1
carawu is offline carawu
diyAudio Member

Join Date: Jul 2003
Default Nytech CA 202 schematic or Servicemanual?

Hello,

I want to refurbish/rebuild my Nytech CA-202 and need the schematic or Servicemanual, but I can only put my hands on the CA-252 schematics (which differ a little bit) and the 202 amp part (from tiefbassuebertr).
Can anybody please post or email these schematics or Servicemanual?

Thanks, Carsten

Last edited by carawu; 30th November 2010 at 08:18 PM.
  Reply With Quote
Old 30th November 2010, 11:41 PM   #2
forr is offline forr  France
diyAudio Member

forr's Avatar

Join Date: Dec 2004
Location: Next door
Hi,
you may find useful information here :

Ion Obelisk

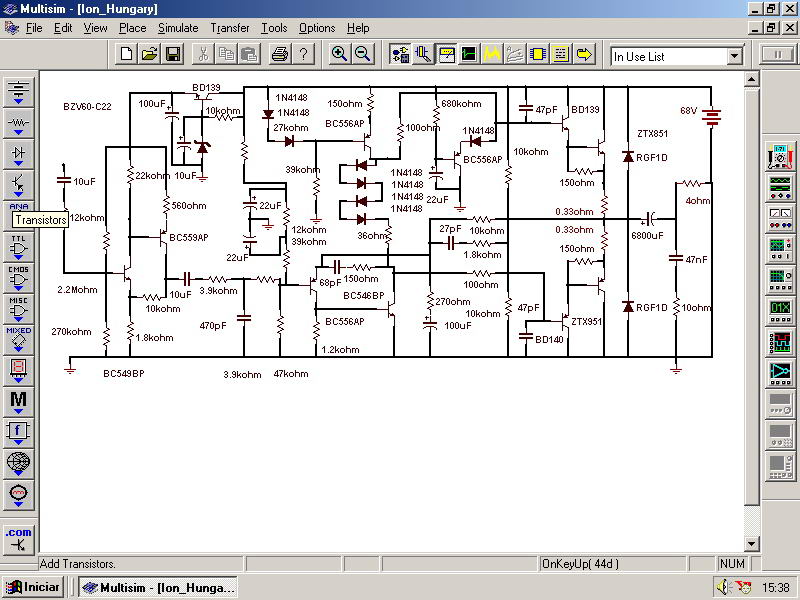

Your circuit may not be very different from this one :

Click the image to open in full size.
  Reply With Quote
Old 1st December 2010, 06:59 AM   #3
lineup is online now lineup  Sweden
diyAudio Member

lineup's Avatar

Join Date: Dec 2005
Location: the north
this one
Click the image to open in full size.
__________________
lineup
  Reply With Quote
Old 9th September 2015, 02:54 PM   #4
maddave2112 is offline maddave2112
diyAudio Member

Join Date: Sep 2015
hi I have just bought a nytech ca 202 that wont power up, has anyone got any suggestions as to what it may be..? many thanks
  Reply With Quote
Old 10th September 2015, 03:13 AM   #5
Ian Finch is offline Ian Finch  Australia
diyAudio Member

Join Date: Apr 2010
Location: Coffs Harbour, NSW
Your question gives nothing to go on. How about telling us what general condition the amplifier is in, whether it appears someone has already messed with it etc. inside, as usually seen by messy work around the power output transistors.

It seems common with amplifiers at bargain Ebay prices, that it means the unit was too expensive to repair. With a few lies about its repairability, the problems and costs then become the buyer's, whether it is then repaired professionally or they struggle with the problems and steep learning curve of electronics practice and repair techniques themselves.

So, do you have any prior experience with electronic repairs, soldering iron, suitable hand tools, Digital multimeter and access to reliable, quality components? With some measurements by you and the aid of a schematic diagram to trace the circuit properly, it need not be a disaster but you'll need to give us some facts on which to base suggestions first.

There is no free service manual available but this schematic is a little more readable than the above: http://i.imgur.com/FSGjKSa.jpg
